Lelon
معرفی
خازن الکترولیت 1000 میکروفاراد 50 ولت تلرانس 20% سایز 16 میلیمترx16.5 میلیمتر

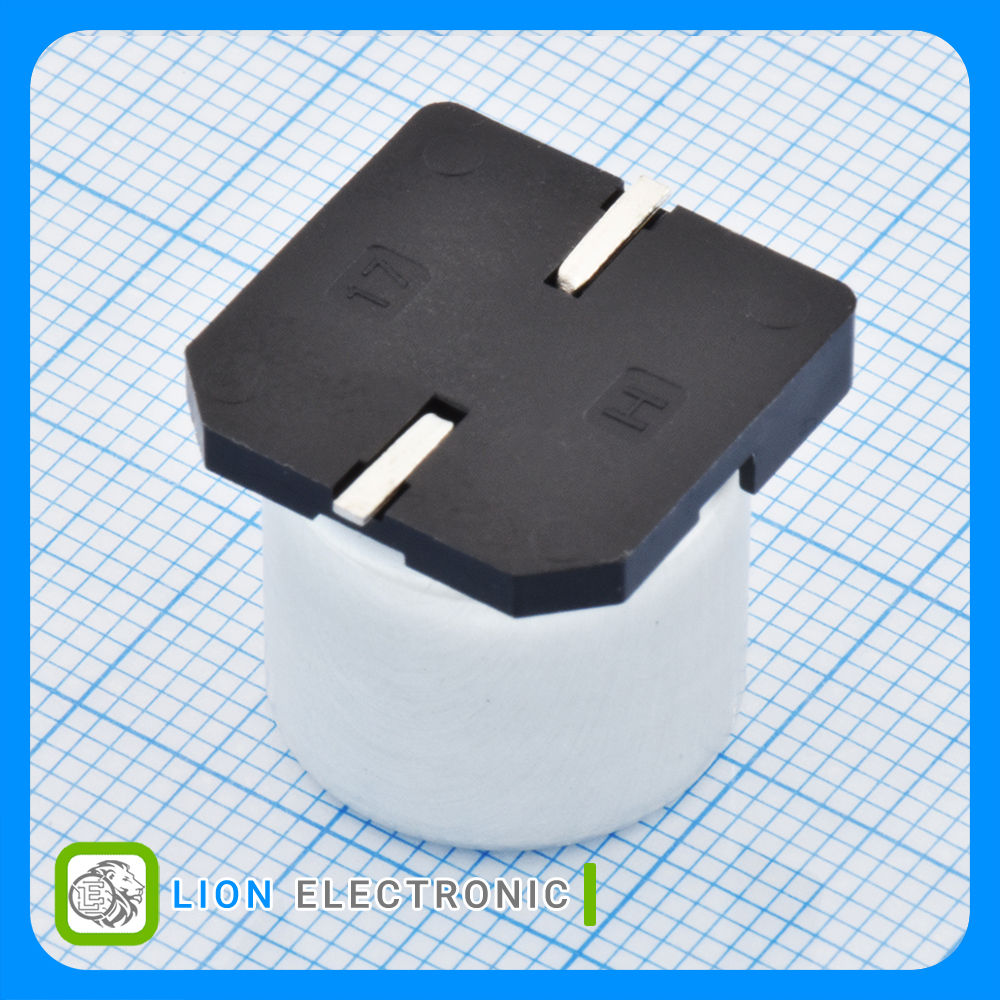

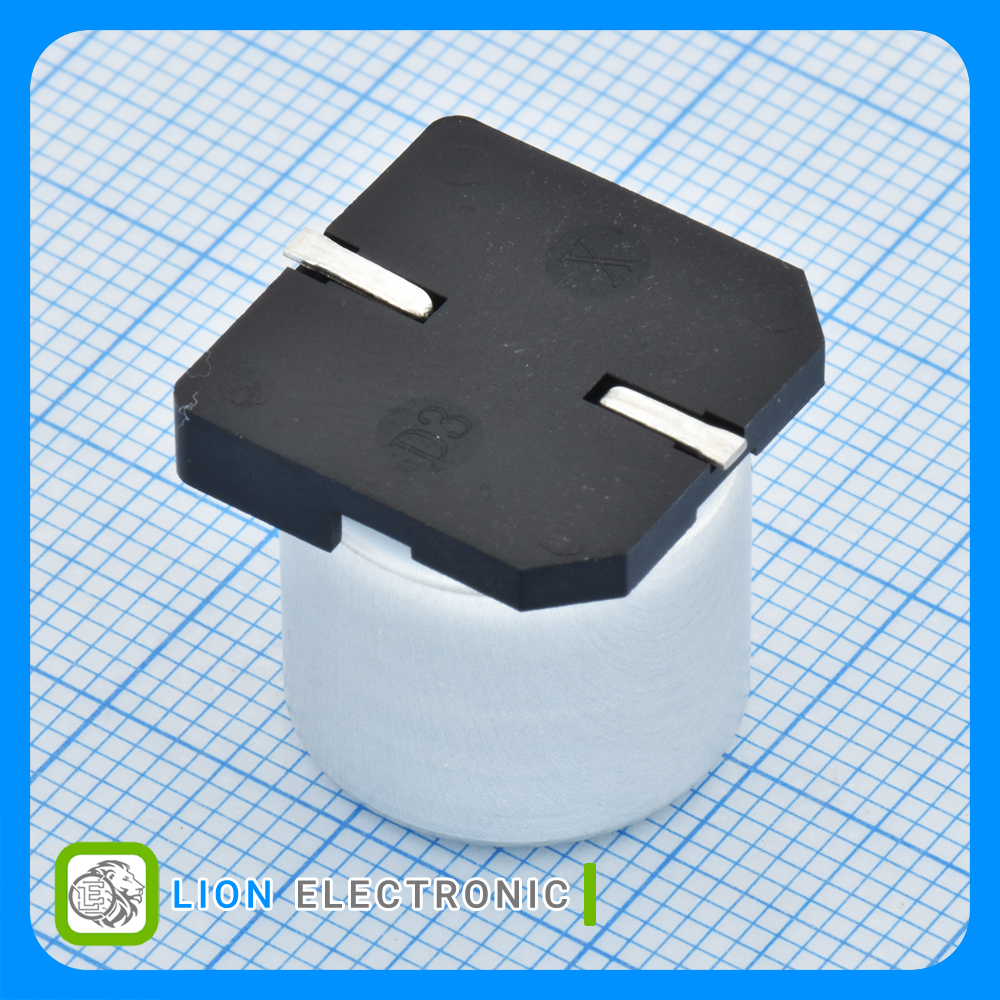

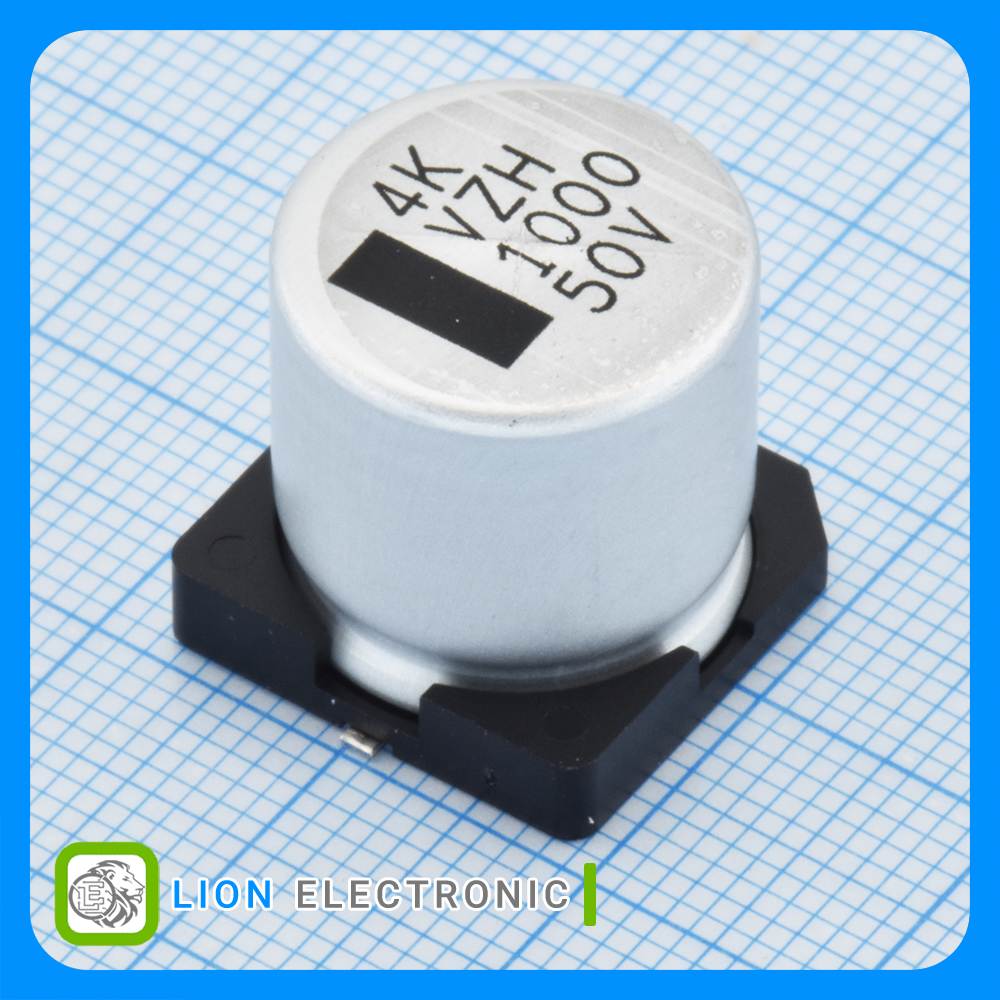

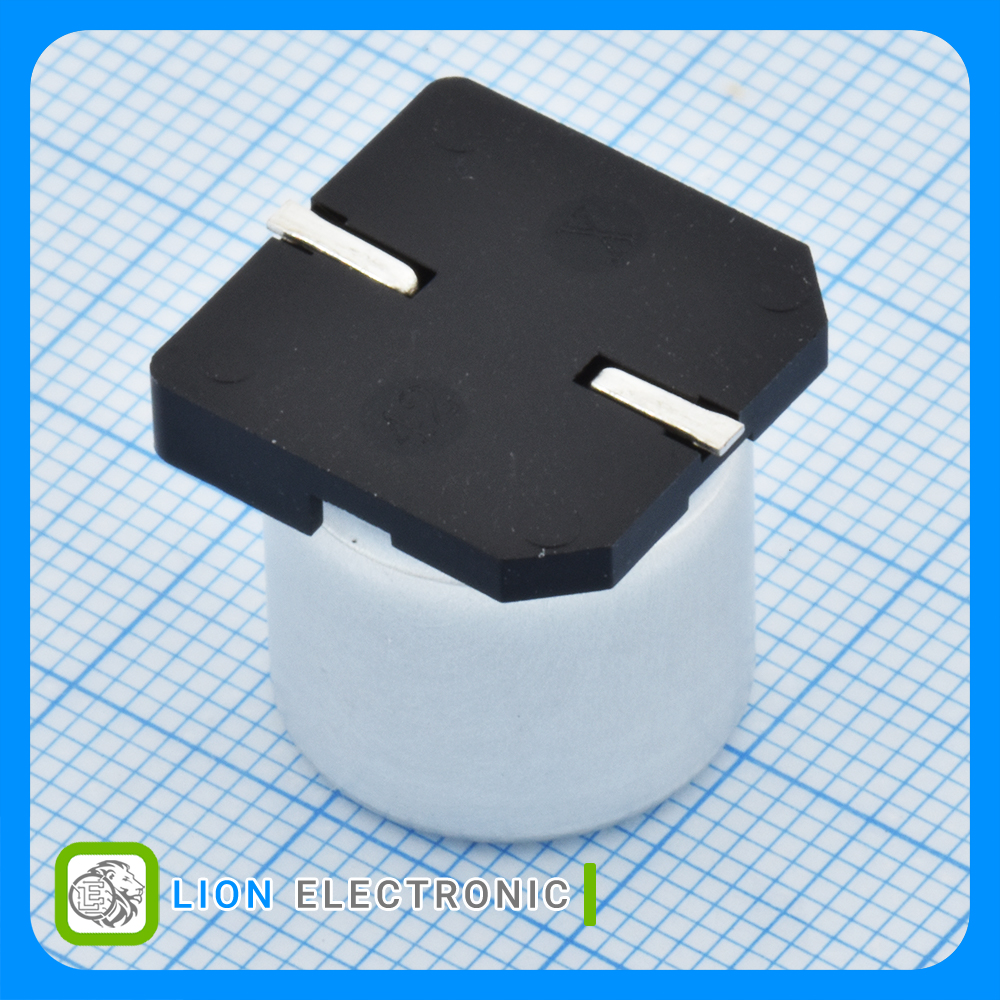

Aluminum Electrolytic Capacitor 1000uF, 50V, 20% with 16mmx16.5mm Size
Specifications
- Life: 5000 Hour
- Capacitance: 1000uF
- Voltage Rating DC: 50VDC
- Ripple Current: 1A
- ESR: 73mΩ
- Tolerance: 20%
- Diameter: 16mm
- Height: 16.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات VZH102M1HTR-1616
VZH102M1HTR-1616
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
5000 Hour
Life
20%
Tolerance
+105C
Maximum Operating Temperature
50VDC
Voltage Rating DC
73mΩ
ESR
16mm
Diameter
1A
Ripple Current
16.5mm
Height
1000uF
Capacitance
