HV1E477M0810PZ
HV1E477M0810PZ
Part Number
6374
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت 470 میکروفاراد 25 ولت تلرانس 20% سایز 8 میلیمترx10.5 میلیمتر

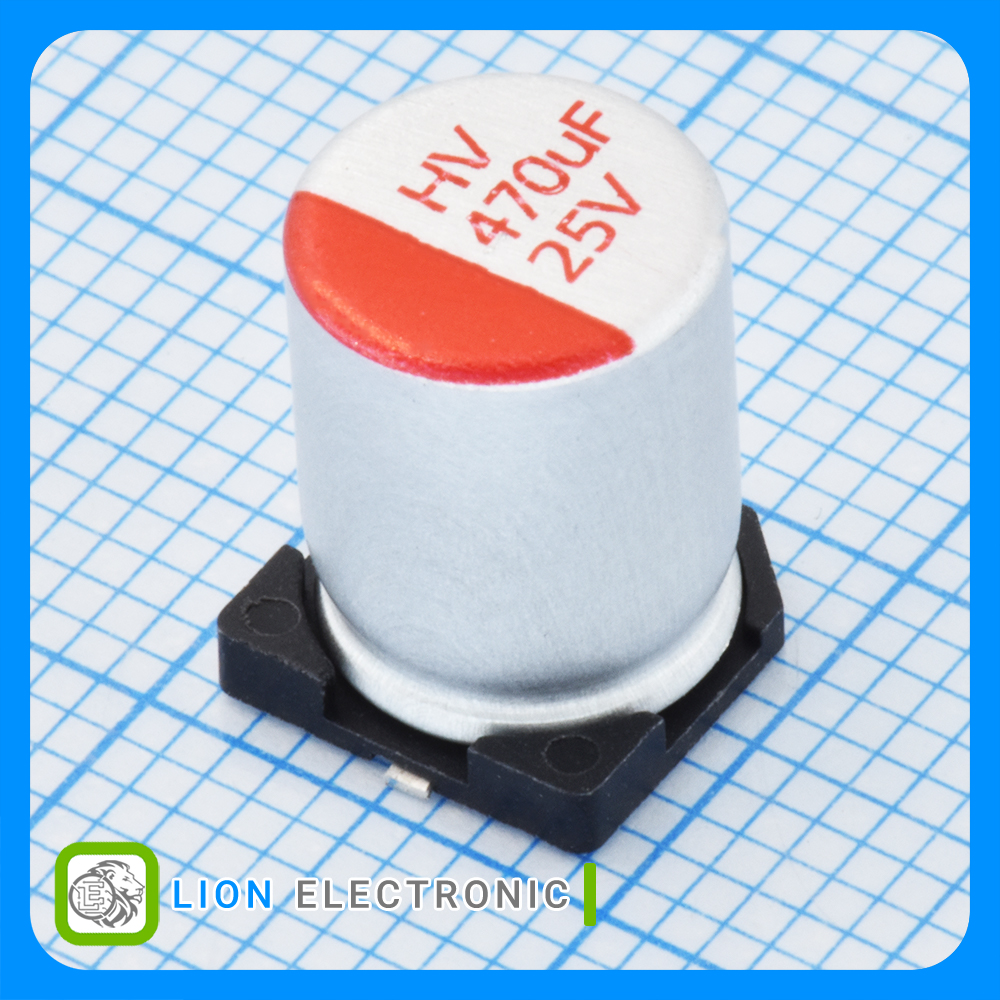

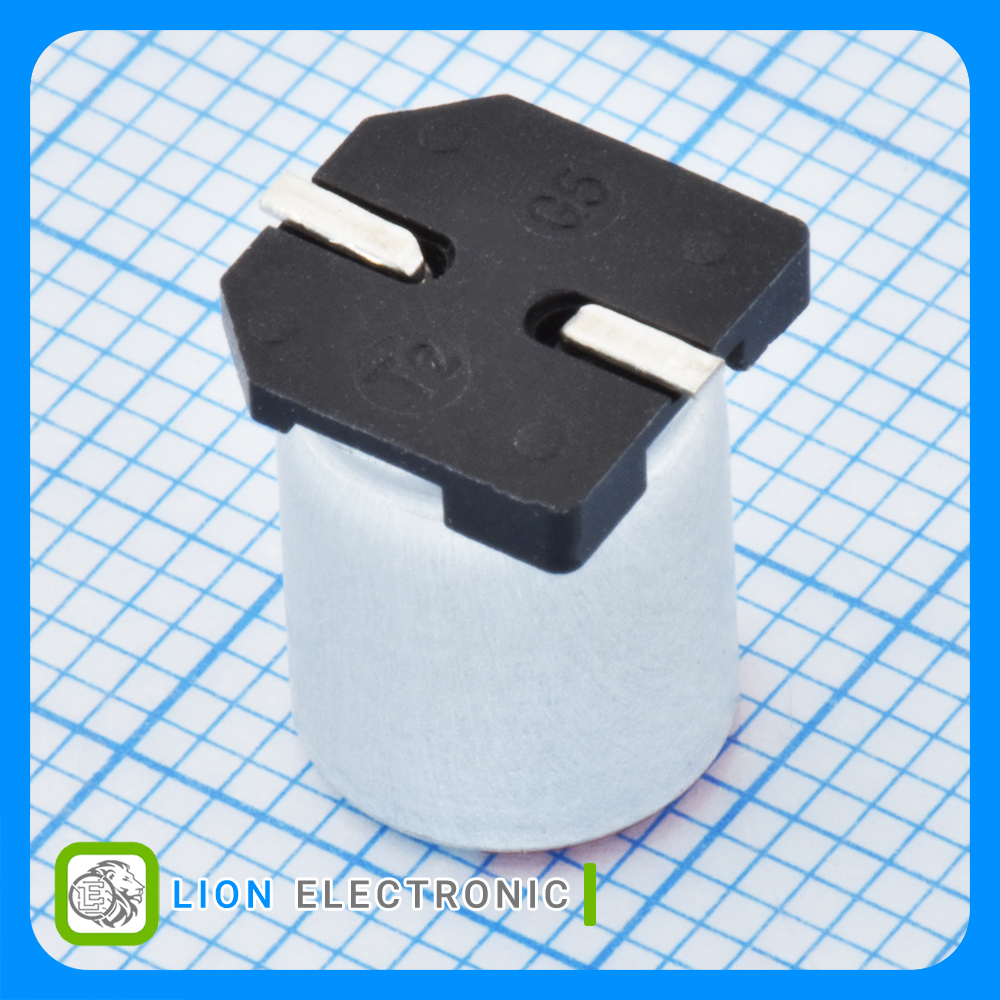

Aluminum Electrolytic Capacitor 470uF, 25V, 20% with 8mmx10.5mm Size
معرفی
خازن الکترولیت 470 میکروفاراد 25 ولت تلرانس 20% سایز 8 میلیمترx10.5 میلیمتر
Aluminum Electrolytic Capacitor 470uF, 25V, 20% with 8mmx10.5mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 470uF
- Voltage Rating DC: 25VDC
- Ripple Current: 2.8A
- ESR: 30mΩ
- Tolerance: 20%
- Diameter: 8mm
- Height: 10.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات HV1E477M0810PZ
HV1E477M0810PZ
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
30mΩ
ESR
25VDC
Voltage Rating DC
8mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
2.8A
Ripple Current
10.5mm
Height
470uF
Capacitance
