HV1H107M0810PZ
HV1H107M0810PZ
Part Number
6376
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت 100 میکروفاراد 50 ولت تلرانس 20% سایز 8 میلیمترx10.5 میلیمتر

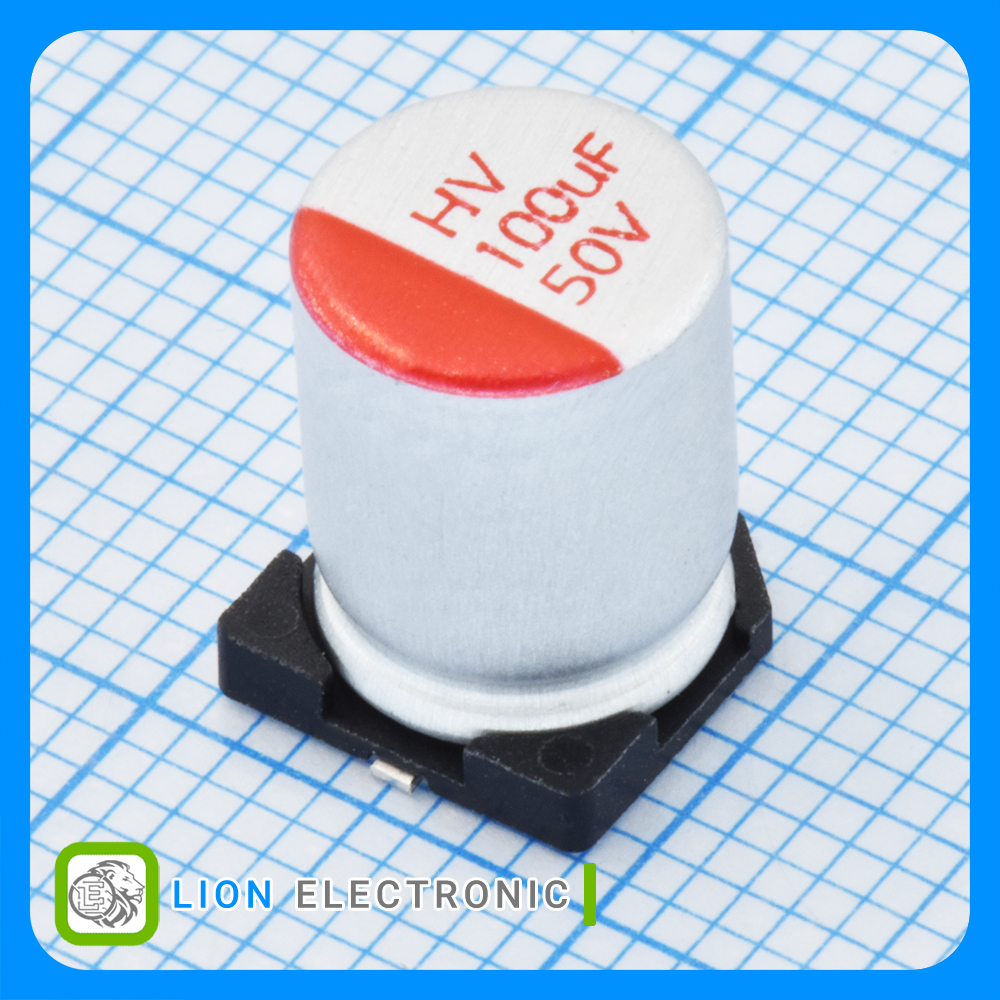

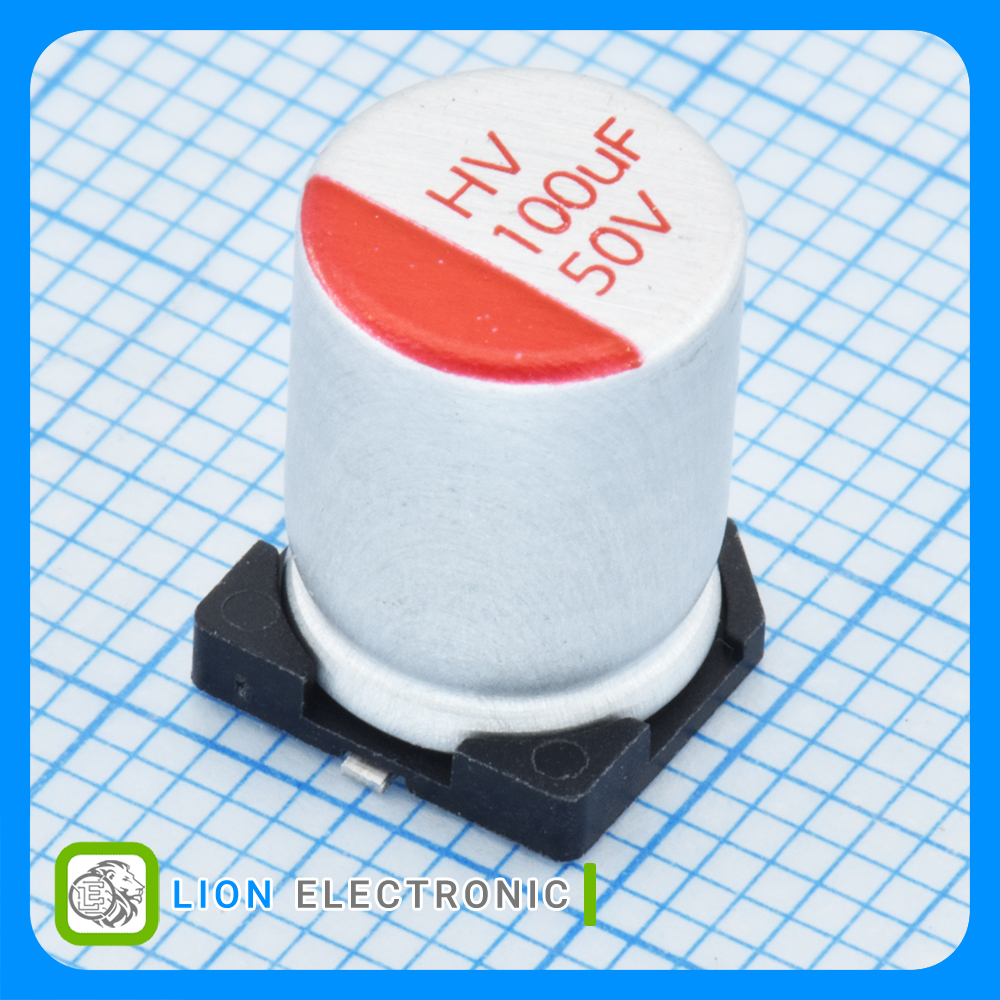

Aluminum Electrolytic Capacitor 100uF, 50V, 20% with 8mmx10.5mm Size
معرفی
خازن الکترولیت 100 میکروفاراد 50 ولت تلرانس 20% سایز 8 میلیمترx10.5 میلیمتر
Aluminum Electrolytic Capacitor 100uF, 50V, 20% with 8mmx10.5mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 100uF
- Voltage Rating DC: 50VDC
- Ripple Current: 1.65A
- ESR: 38mΩ
- Tolerance: 20%
- Diameter: 8mm
- Height: 10.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات HV1H107M0810PZ
HV1H107M0810PZ
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
38mΩ
ESR
8mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
50VDC
Voltage Rating DC
1.65A
Ripple Current
10.5mm
Height
100uF
Capacitance
