HV1C108M1010PZ
HV1C108M1010PZ
Part Number
6378
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت SMD با ظرفیت 1000 میکروفاراد و ولتاژ 16 ولت

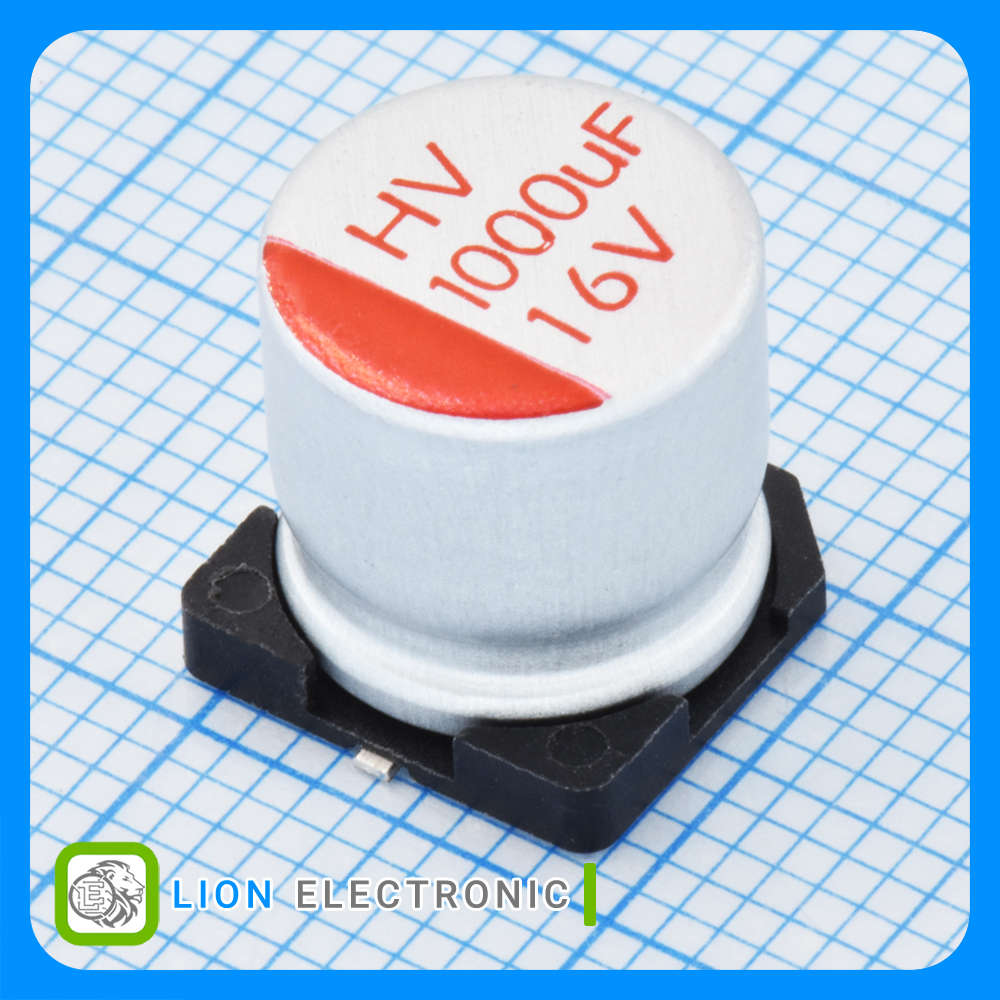

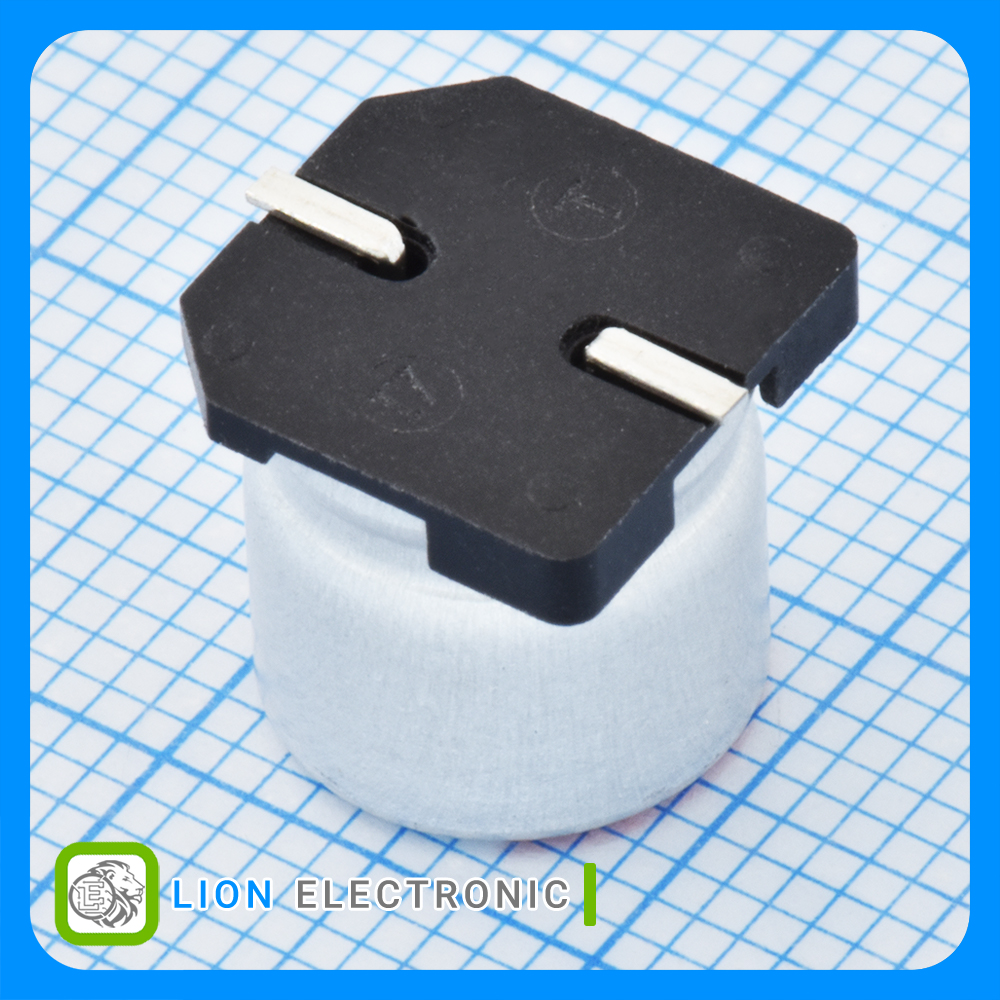

SMD Aluminum Electrolytic Capacitor 1000uF 16V
مشخصات HV1C108M1010PZ
HV1C108M1010PZ
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
25mΩ
ESR
Reel
Packaging
16VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
10mm
Diameter
4.35A
Ripple Current
10.5mm
Height
1000uF
Capacitance
