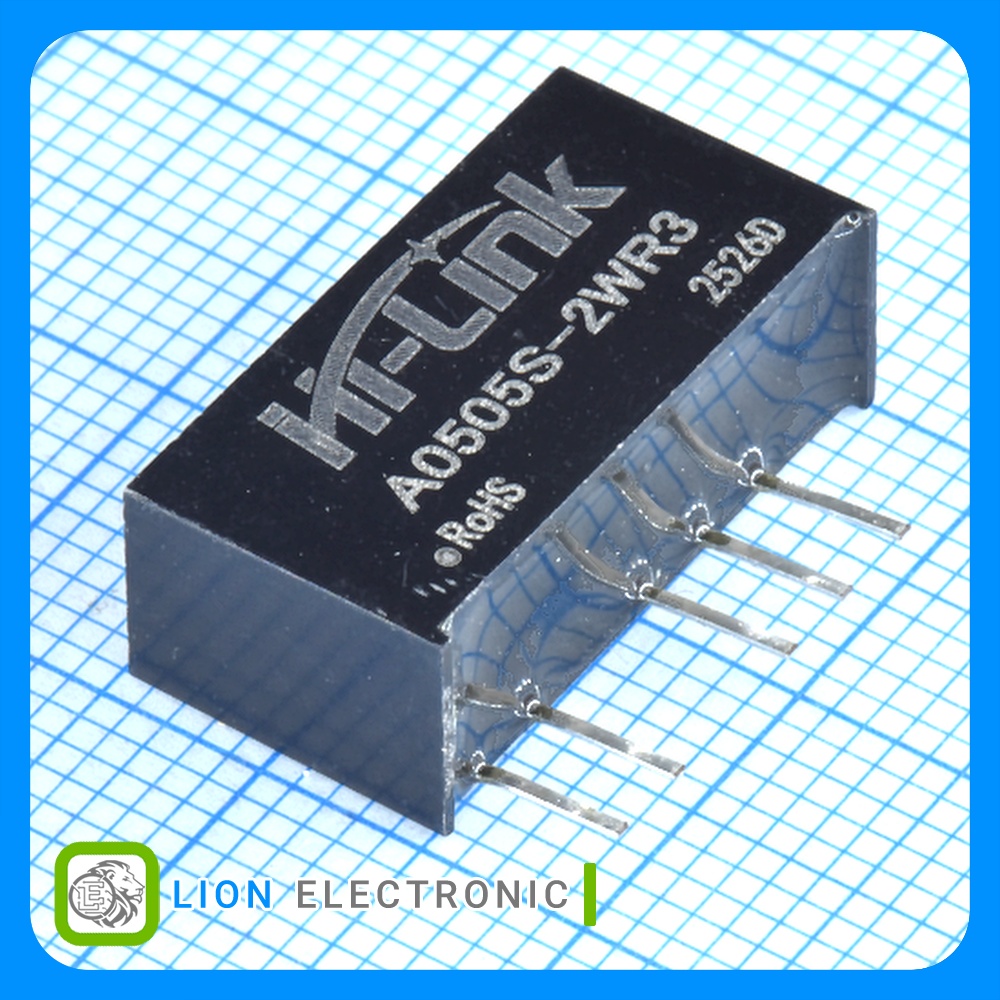

A0505S-2WR3
A0505S-2WR3
Part Number
6506
Lion Part
Datasheet
HI-LINK Manufacture
مبدل دیسی به دیسی ایزوله دو خروجی ورودی 5 ولت خروجی 5± ولت 200 میلیآمپر توان 2 وات ایزولاسیون 1.5 کیلوولت با ابعاد 19.5x7.0x10.0mm
Isolated Dual-Output DC-to-DC Converter 5V in, ±5V 200mA out, 2W, 1.5kVDC Isolation with 19.5x7.0x10.0mm Size
معرفی
مبدل دیسی به دیسی ایزوله دو خروجی ورودی 5 ولت خروجی 5± ولت 200 میلیآمپر توان 2 وات ایزولاسیون 1.5 کیلوولت با ابعاد 19.5x7.0x10.0mm
Isolated Dual-Output DC-to-DC Converter 5V in, ±5V 200mA out, 2W, 1.5kVDC Isolation with 19.5x7.0x10.0mm Size
Specifications
- Input Voltage: 5V
- Number of Outputs: 2
- Output Voltage - Channel 1: 5V
- Output Current - Channel 1: 200mA
- Output Voltage - Channel 2: -5V
- Output Current - Channel 2: 200mA
- Output Power: 2W
- Isolation Voltage: 1.5kVDC
- Mounting Style: Through Hole
- Package/Case Size: 19.5x7.0x10.0mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات A0505S-2WR3
A0505S-2WR3
Part Number
2
Number of Outputs
1.5kVDC
Isolation Voltage
5V
Output Voltage - Channel 1
-5V
Output Voltage - Channel 2
-40C
Minimum Operating Temperature
200mA
Output Current - Channel 2
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
200mA
Output Current - Channel 1
19.5x7.0x10.0mm
Package-Case Size
2W
Output Power
5V
Input Voltage
