A1212S-2WR3
A1212S-2WR3
Part Number
6507
Lion Part
Datasheet
HI-LINK Manufacture
مبدل دیسی به دیسی ایزوله دو خروجی ورودی 12 ولت خروجی 12± ولت 83 میلیآمپر توان 2 وات ایزولاسیون 1.5 کیلوولت با ابعاد 19.5x7.0x10.0mm

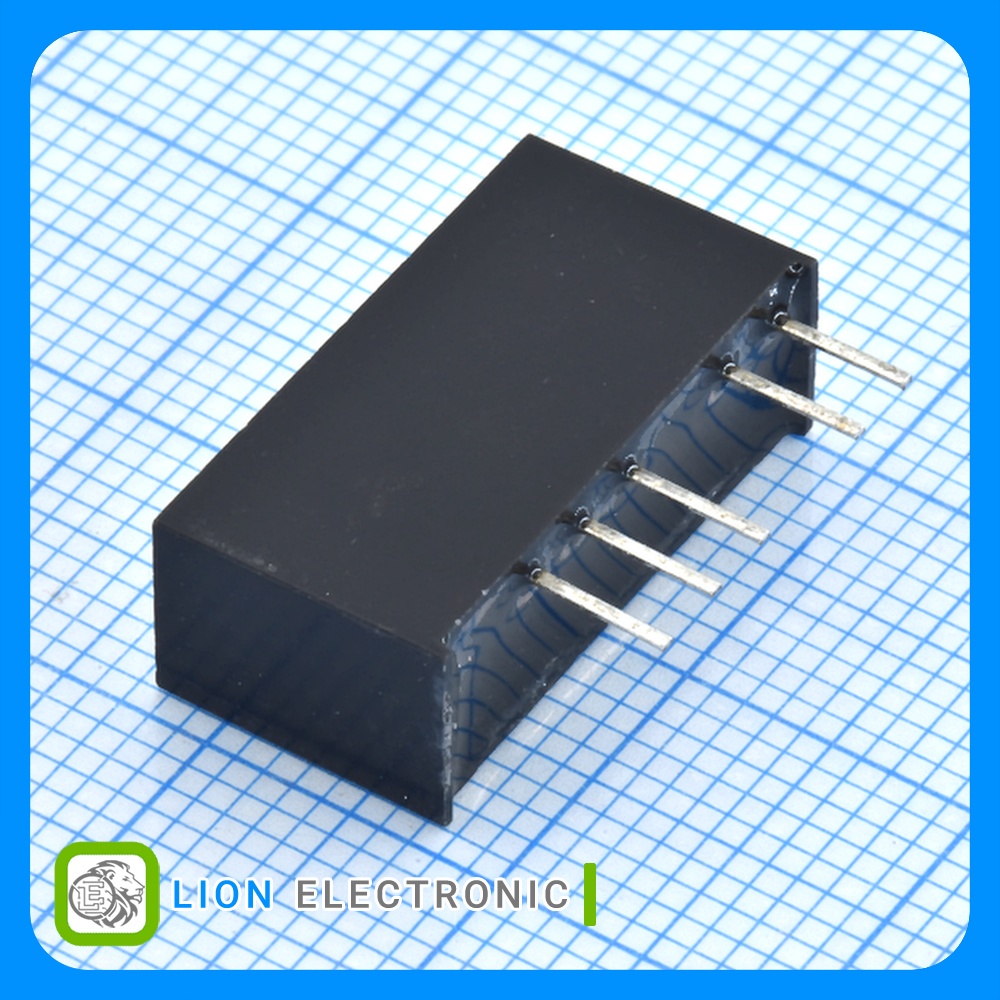

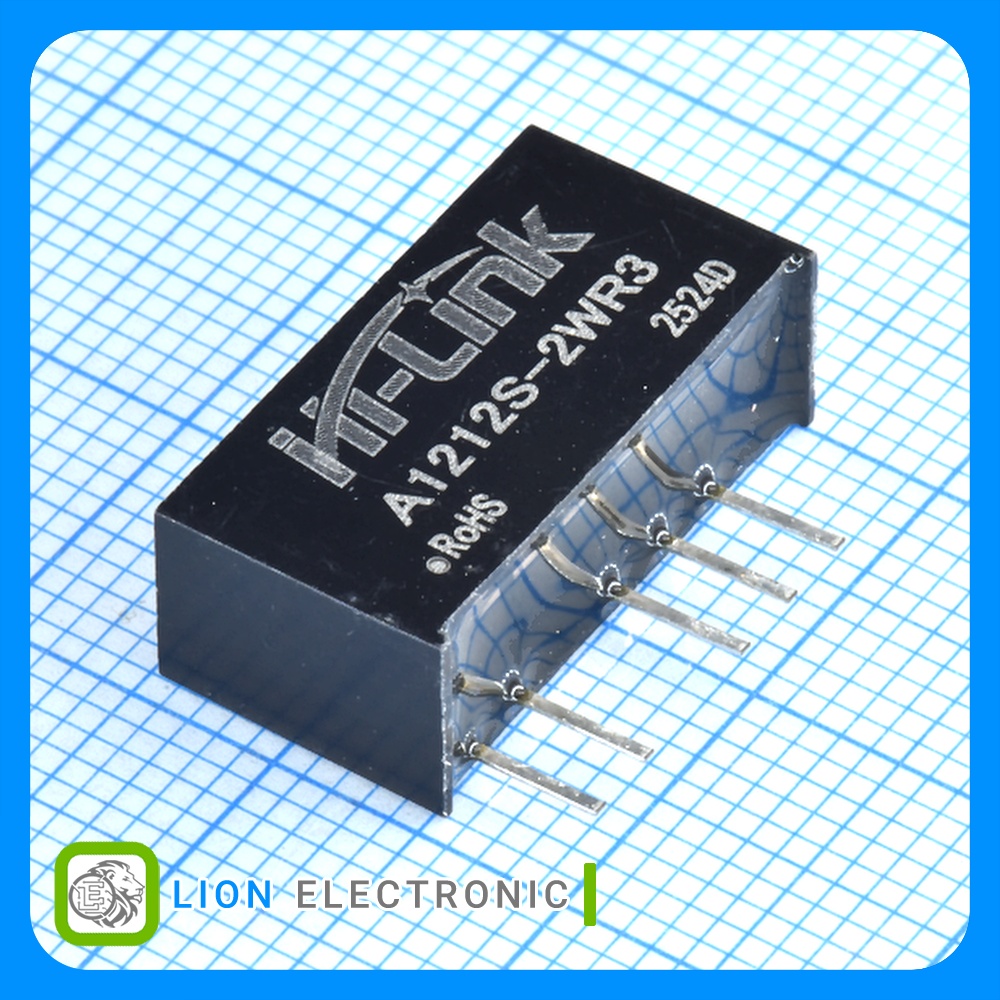

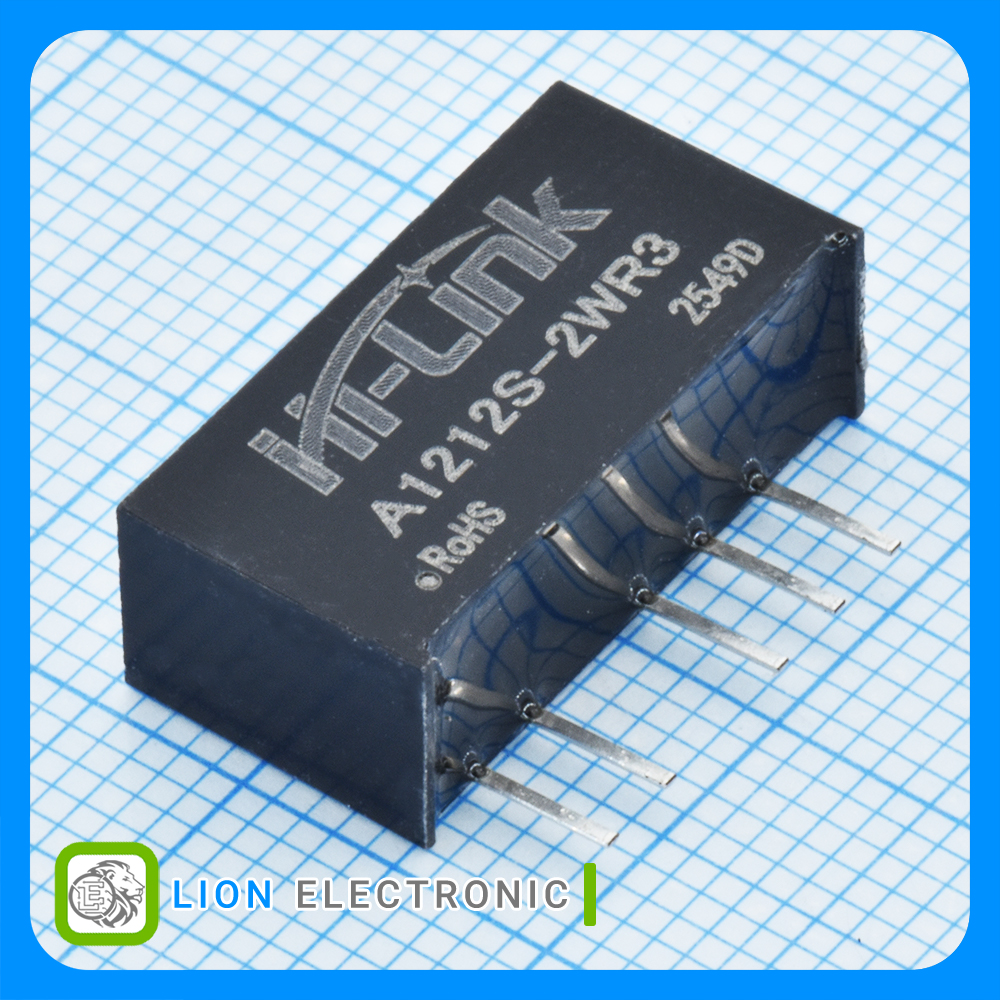

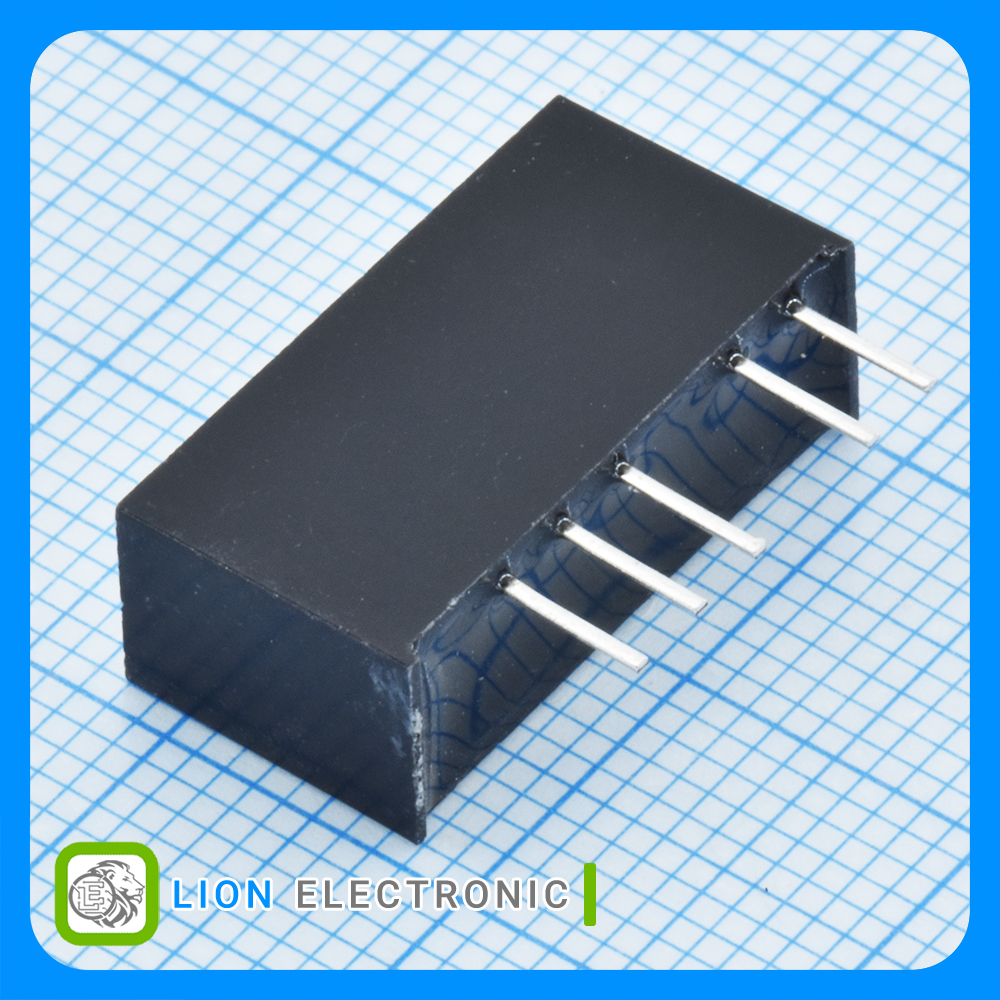

Isolated Dual-Output DC-to-DC Converter 12V in, ±12V 83mA out, 2W, 1.5kVDC Isolation with 19.5x7.0x10.0mm Size
معرفی
مبدل دیسی به دیسی ایزوله دو خروجی ورودی 12 ولت خروجی 12± ولت 83 میلیآمپر توان 2 وات ایزولاسیون 1.5 کیلوولت با ابعاد 19.5x7.0x10.0mm
Isolated Dual-Output DC-to-DC Converter 12V in, ±12V 83mA out, 2W, 1.5kVDC Isolation with 19.5x7.0x10.0mm Size
Specifications
- Input Voltage: 12V
- Number of Outputs: 2
- Output Voltage - Channel 1: 12V
- Output Current - Channel 1: 83mA
- Output Voltage - Channel 2: -12V
- Output Current - Channel 2: 83mA
- Output Power: 2W
- Isolation Voltage: 1.5kVDC
- Mounting Style: Through Hole
- Package/Case Size: 19.5x7.0x10.0mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات A1212S-2WR3
A1212S-2WR3
Part Number
2
Number of Outputs
-12V
Output Voltage - Channel 2
1.5kVDC
Isolation Voltage
83mA
Output Current - Channel 2
83mA
Output Current - Channel 1
12V
Output Voltage - Channel 1
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
19.5x7.0x10.0mm
Package-Case Size
2W
Output Power
12V
Input Voltage
