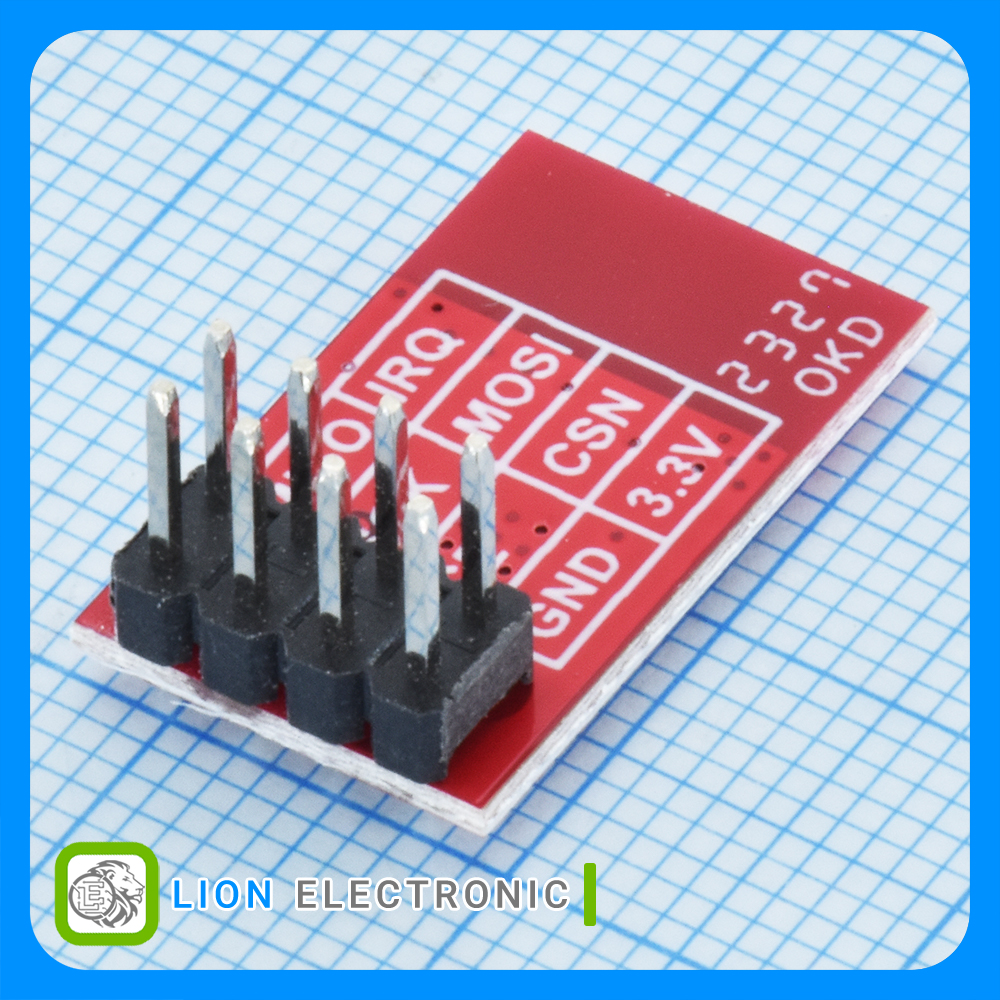

AS01-ML01D
AS01-ML01D
Part Number
6903
Lion Part
Datasheet
Chengdu Ashining Tech Manufacture
ماژول فرستندهگیرنده 2.4 گیگاهرتز 1 میلیوات با آیسی nRF24L01P و رابط SPI، پایهدار
2.4GHz 1mW Wireless Transceiver Module with nRF24L01P, SPI Interface, DIP
معرفی

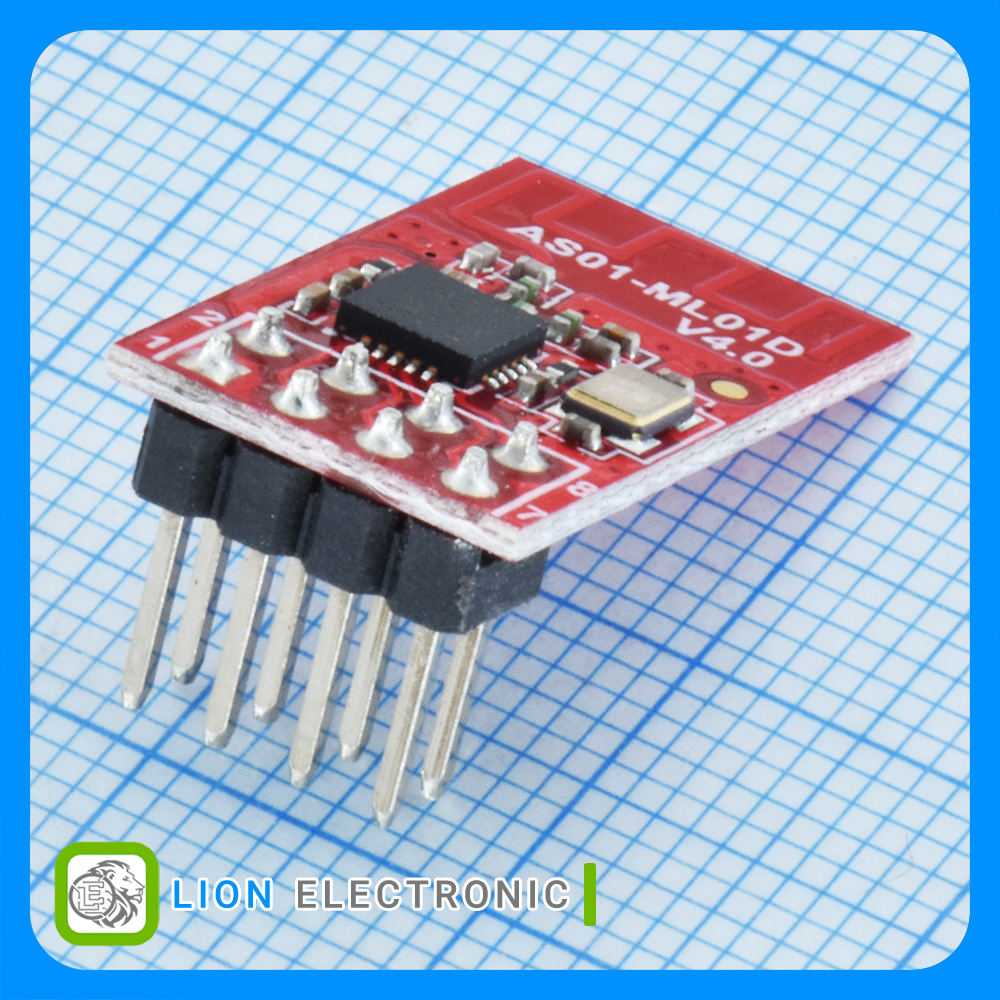

The AS01-ML01D is a 2.4GHz, 1mW, high-speed (maximum air rate up to 2Mbps), highly stable, industrial-grade wireless transceiver data module. It comes with a high-performance PCB antenna with precise impedance matching and uses the original Nordic nRF24L01P RF chip, operating in the 2.4GHz~2.5GHz ISM band. This module has strong transmission power, good spectral characteristics, low harmonics, minimal channel crosstalk, a super small size, all made with original Murata components, making it a model of industrial-grade standards.
مشخصات AS01-ML01D
AS01-ML01D
Part Number
---
Packaging
1mW
Output Power
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
1.8 - 3.6V
Operating Supply Voltage
12.6mA
Supply Current Receiving
16mA
Supply Current Transmitting
2.4GHz
Frequency
RF Transceivers
Product
21.2 × 12.5mm
Dimensions
SPI
Interface Type
