AS01-SP2
AS01-SP2
Part Number
6904
Lion Part
Datasheet
Chengdu Ashining Tech Manufacture
ماژول فرستندهگیرنده 2.4 گیگاهرتز 100 میلیوات با آیسی nRF24L01P، آنتن PCB و رابط SPI

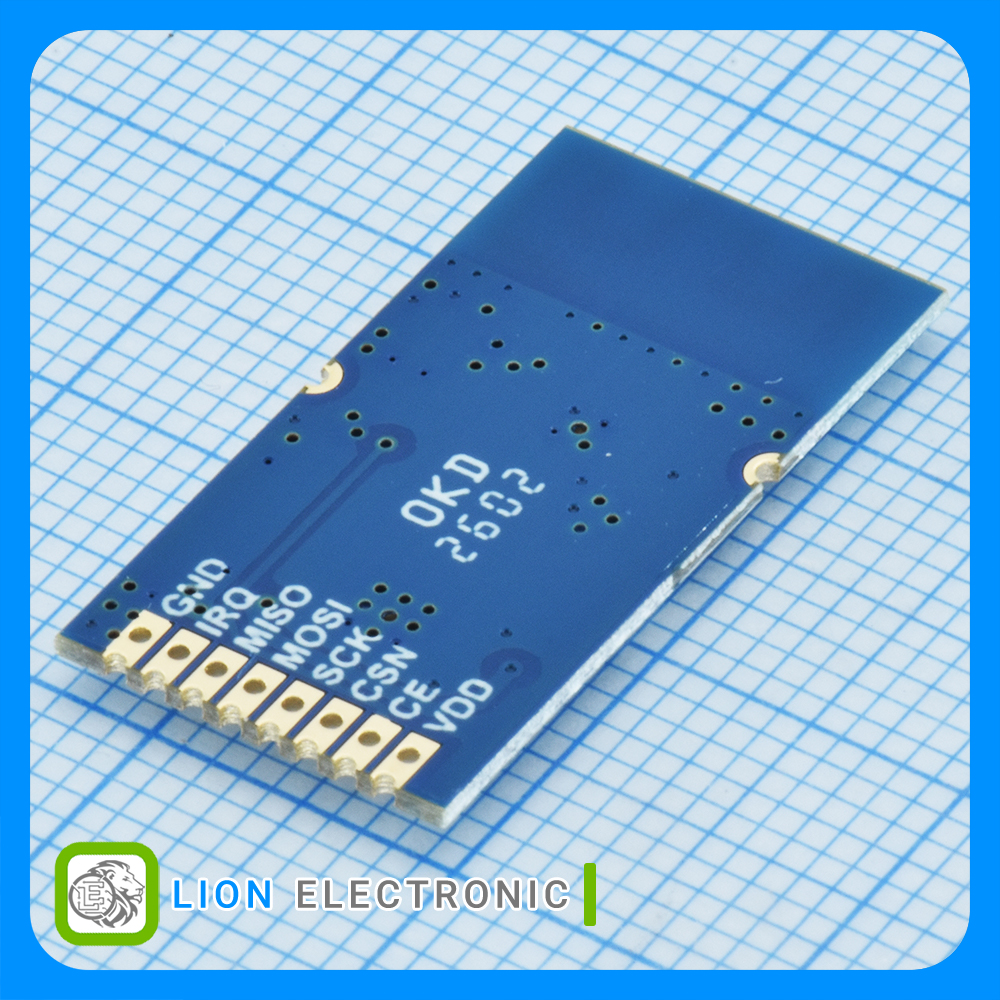

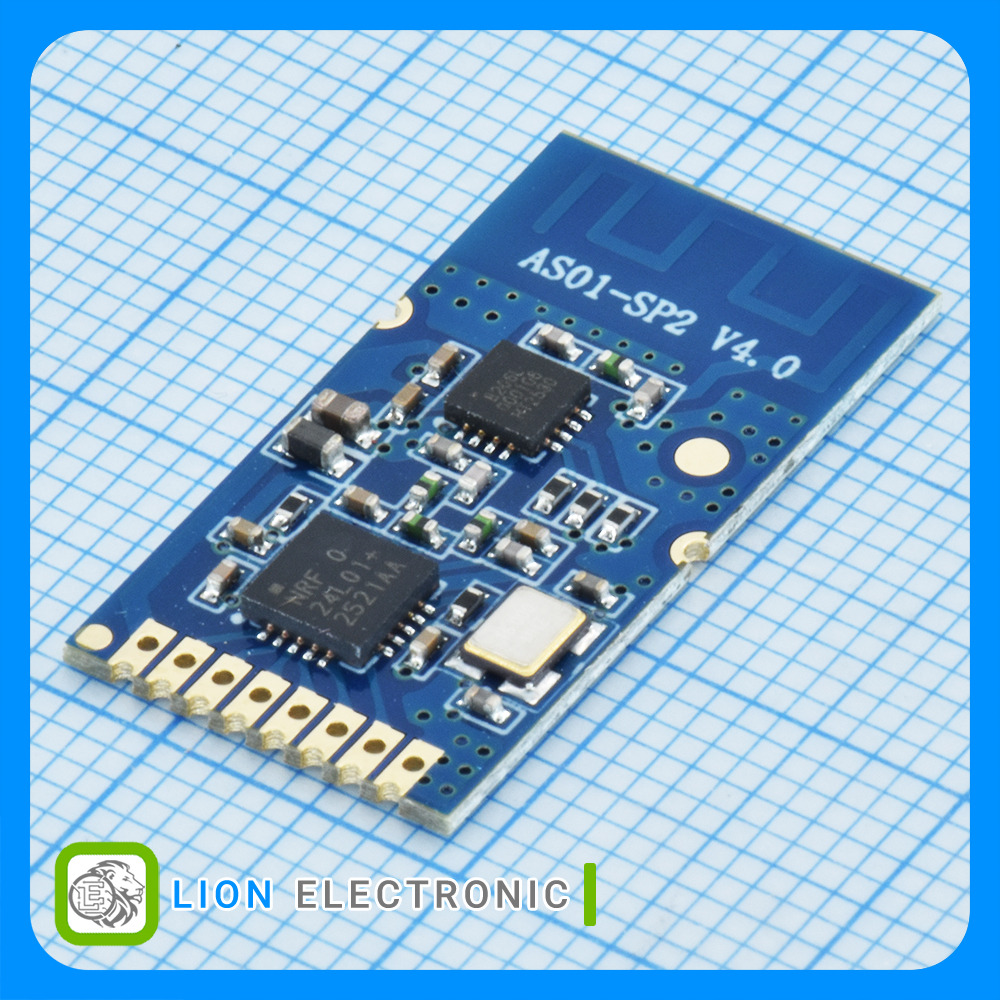

2.4GHz 100mW Wireless Transceiver Module with nRF24L01P, PCB Antenna, SPI Interface
معرفی
AS01-SP2 is a 2.4GHz, 100mW, high-speed, high-stability, industrial-grade wireless transceiver in one of the digital transmission module. The module comes with a high-performance PCB antenna, accurate impedance matching, using NORDIC original nRF24L01P RF chip and RFX2401C amplifier chip, built-in LNA, receiving sensitivity increased by 10dBm, working in the ISM band of 2.4GHz~2.525GHz. The module transmits power, good spectrum characteristics, small harmonics, small channel crosstalk, ultra-small size, and some devices have reached the military standard.
مشخصات AS01-SP2
AS01-SP2
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
21mA
Supply Current Receiving
240mA
Supply Current Transmitting
1.8 - 3.6V
Operating Supply Voltage
2.4GHz to 2.525GHz
Frequency
20dBm
Output Power
RF Transceivers
Product
13mm x 25mm
Dimensions
SPI
Interface Type
