AS01-ML01DP2
AS01-ML01DP2
Part Number
6968
Lion Part
Datasheet
Chengdu Ashining Tech Manufacture
ماژول فرستندهگیرنده 2.4 گیگاهرتز 100 میلیوات با آیسی nRF24L01P و تقویتکننده RFX2401C، کانکتور آنتن SMA و ابعاد 17 x 33.5mm

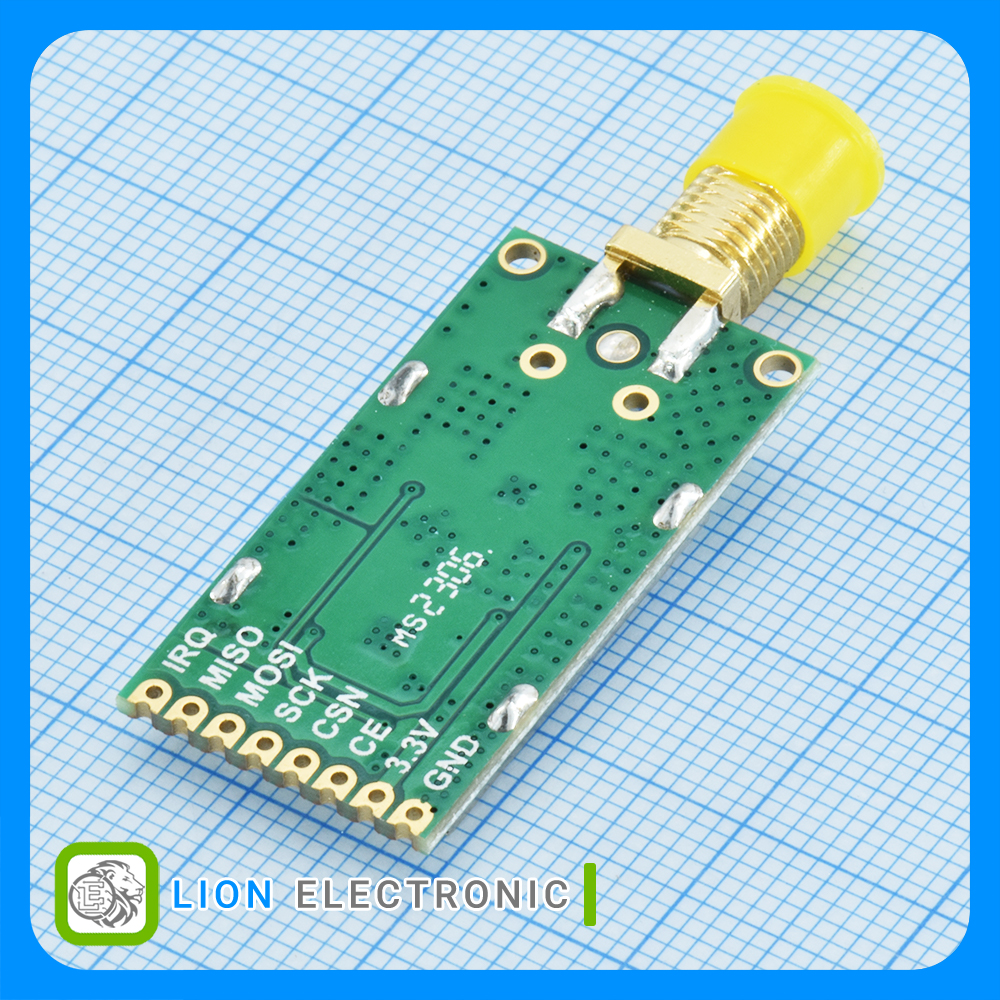

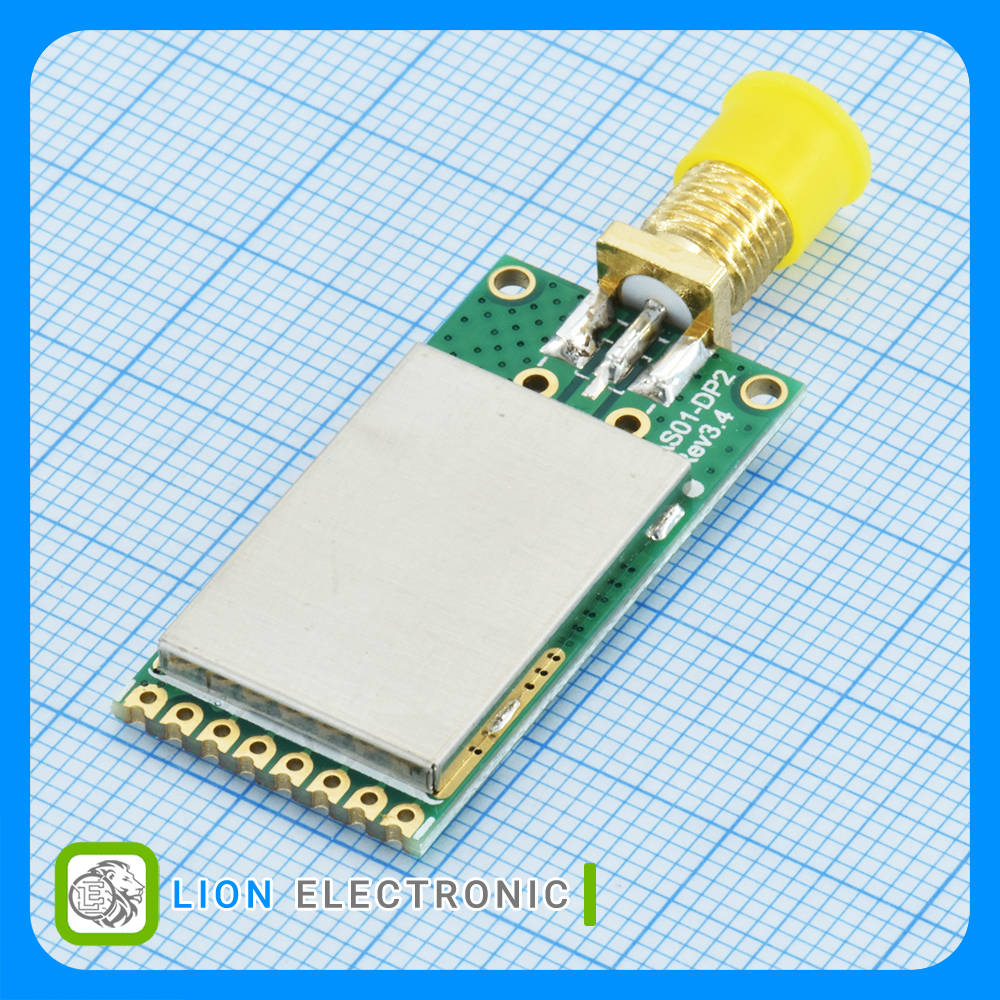

2.4GHz 100mW Wireless Transceiver Module with nRF24L01P and RFX2401C, SMA Antenna Connector, 17 x 33.5mm
معرفی
The module adopts NORDIC original nRF24L01P RF chip and RFX2401C amplifier chip, built-in LNA, the receiving sensitivity is increased by 10dBm, and the ISM band operates in the 2.4GHz~2.525GHz ISM band, with a metal shield, and the anti-interference performance is strong. The module transmits power, the spectrum characteristics are very good, the harmonics are very small, the channel crosstalk is small, the volume is small, and some devices have reached the military grade standard.
مشخصات AS01-ML01DP2
AS01-ML01DP2
Part Number
Bag
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
SMA-K
Antenna Connector Type
21mA
Supply Current Receiving
200mA
Supply Current Transmitting
1.8 - 3.6V
Operating Supply Voltage
2.4GHz to 2.525GHz
Frequency
20dBm
Output Power
RF Transceivers
Product
17mm x 33.5mm
Dimensions
SPI
Interface Type
