AS07-M1101D-TH
AS07-M1101D-TH
Part Number
6971
Lion Part
Datasheet
Chengdu Ashining Tech Manufacture
ماژول فرستندهگیرنده 433 مگاهرتز 10 میلیوات با آیسی CC1101، آنتن فنری و رابط SPI

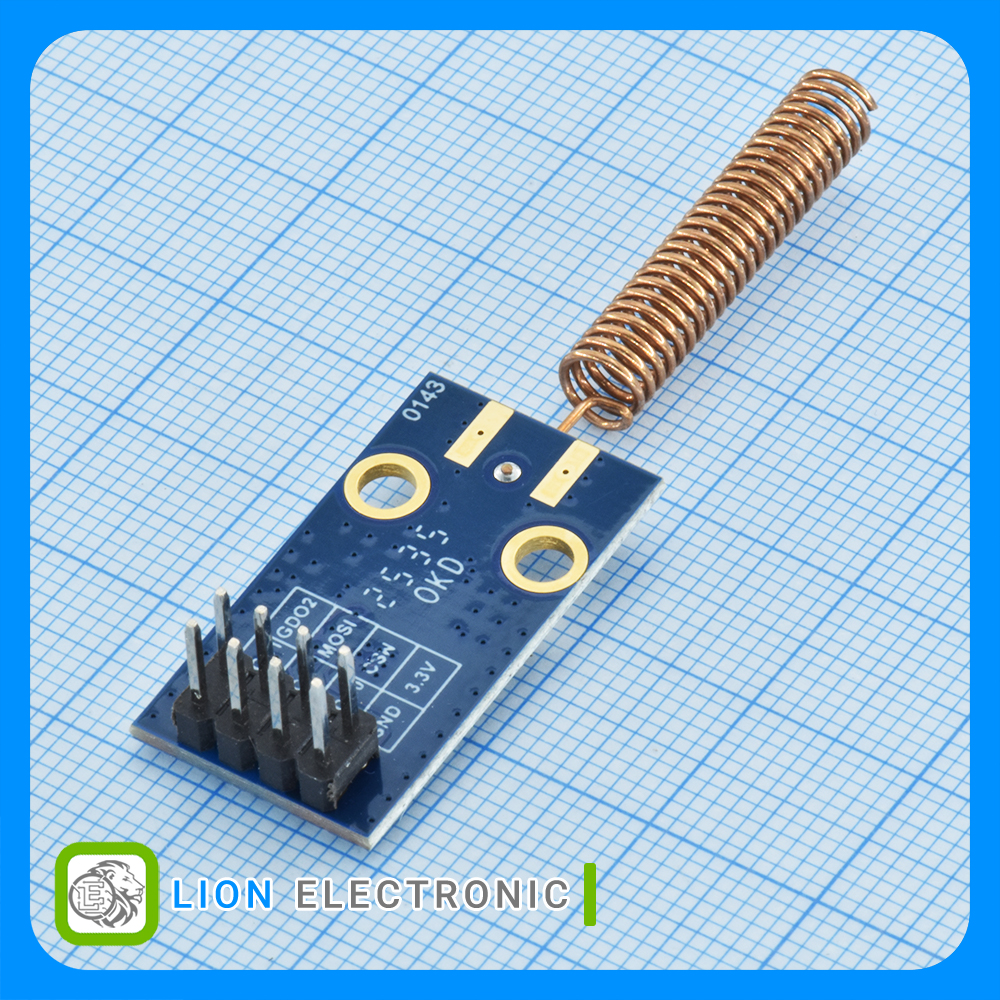

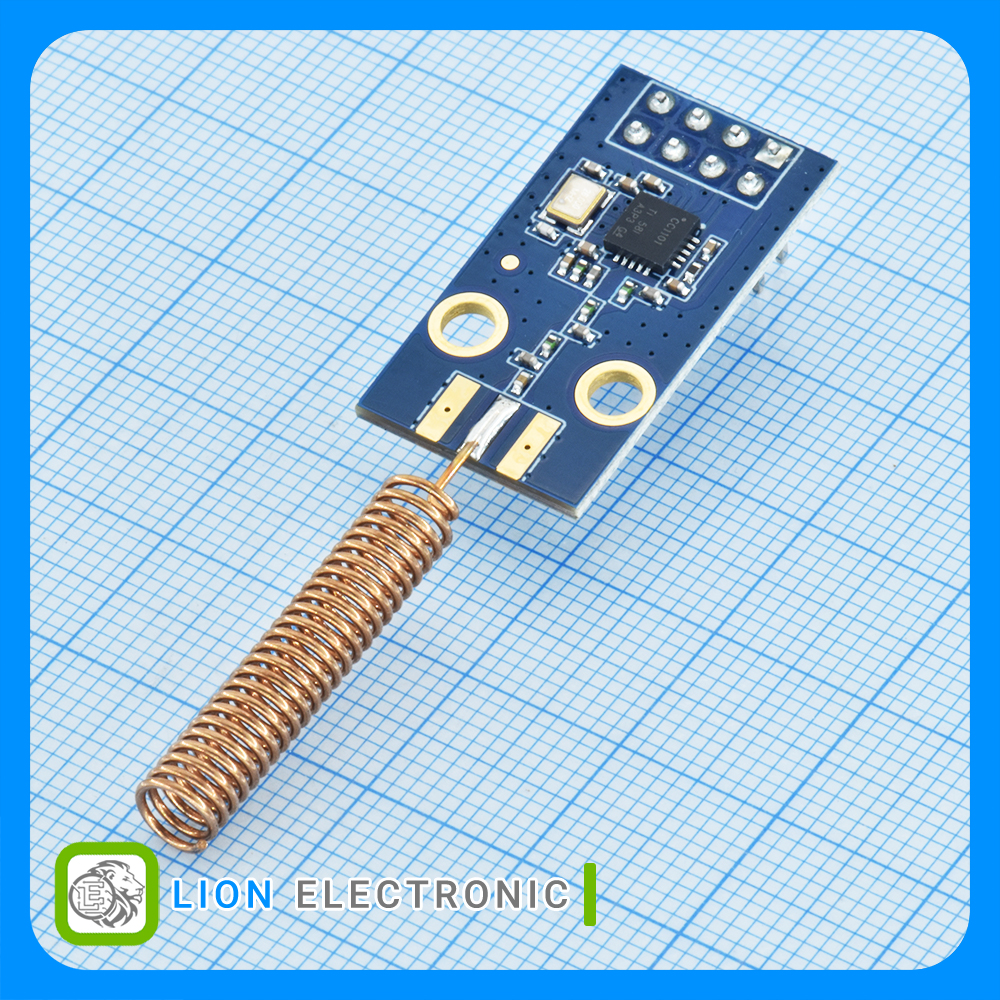

433MHz 10mW Wireless Transceiver Module with CC1101, Spring Antenna, SPI Interface
معرفی
The module comes with a positioning hole and spring antenna, using the original CC1101 RF chip imported by Texas Instruments, USA, with FEC and interwoven coding, strong anti-interference ability. The module transmits power, good spectrum characteristics, small harmonics, small channel crosstalk, inductance, and some devices meet the military grade standard.
مشخصات AS07-M1101D-TH
AS07-M1101D-TH
Part Number
Bag
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
29mA
Supply Current Transmitting
Spring
Antenna Connector Type
16mA
Supply Current Receiving
387MHz to 464MHz
Frequency
1.8 - 3.6V
Operating Supply Voltage
10dBm
Output Power
RF Transceivers
Product
20.8mm x 12.2mm
Dimensions
SPI
Interface Type
