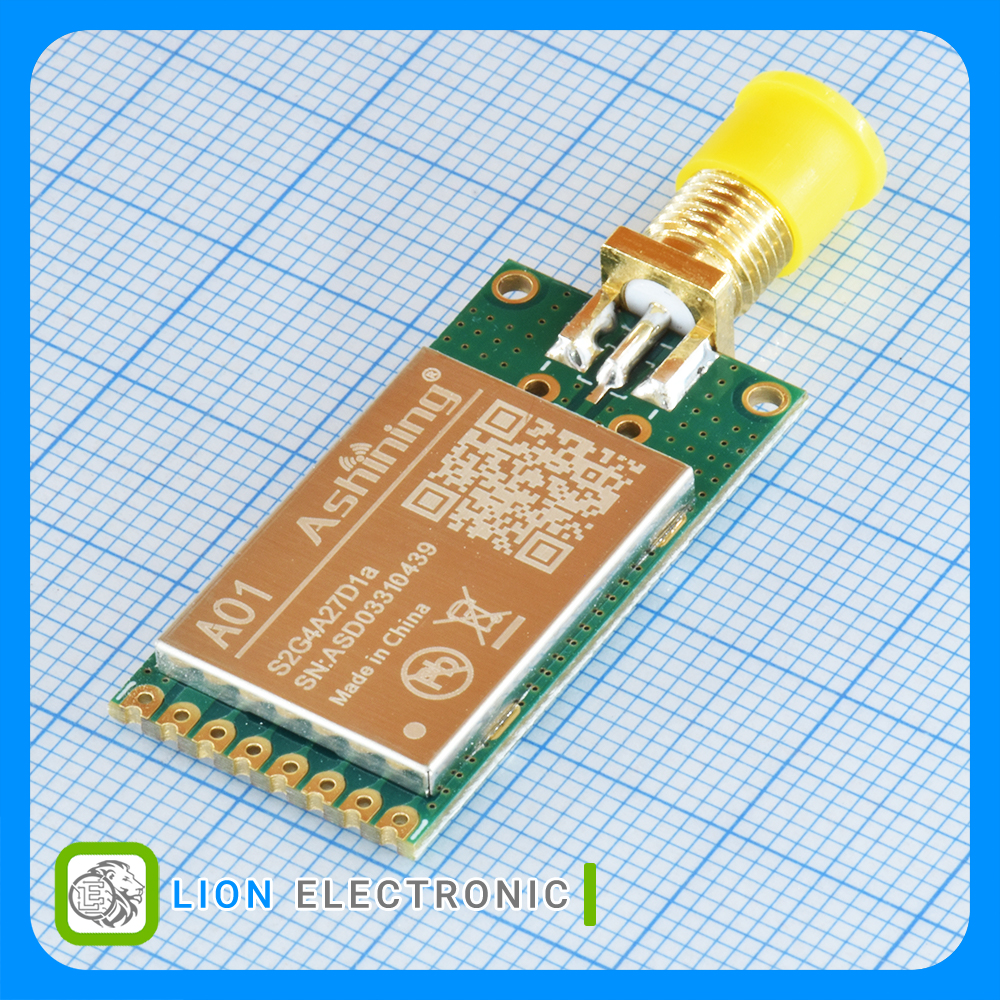

A01-S2G4A27D1a
A01-S2G4A27D1a
Part Number
6969
Lion Part
Datasheet
Chengdu Ashining Tech Manufacture
ماژول فرستندهگیرنده 2.4 گیگاهرتز 500 میلیوات با آیسی nRF24L01P و تقویتکننده داخلی، کانکتور آنتن SMA و رابط SPI

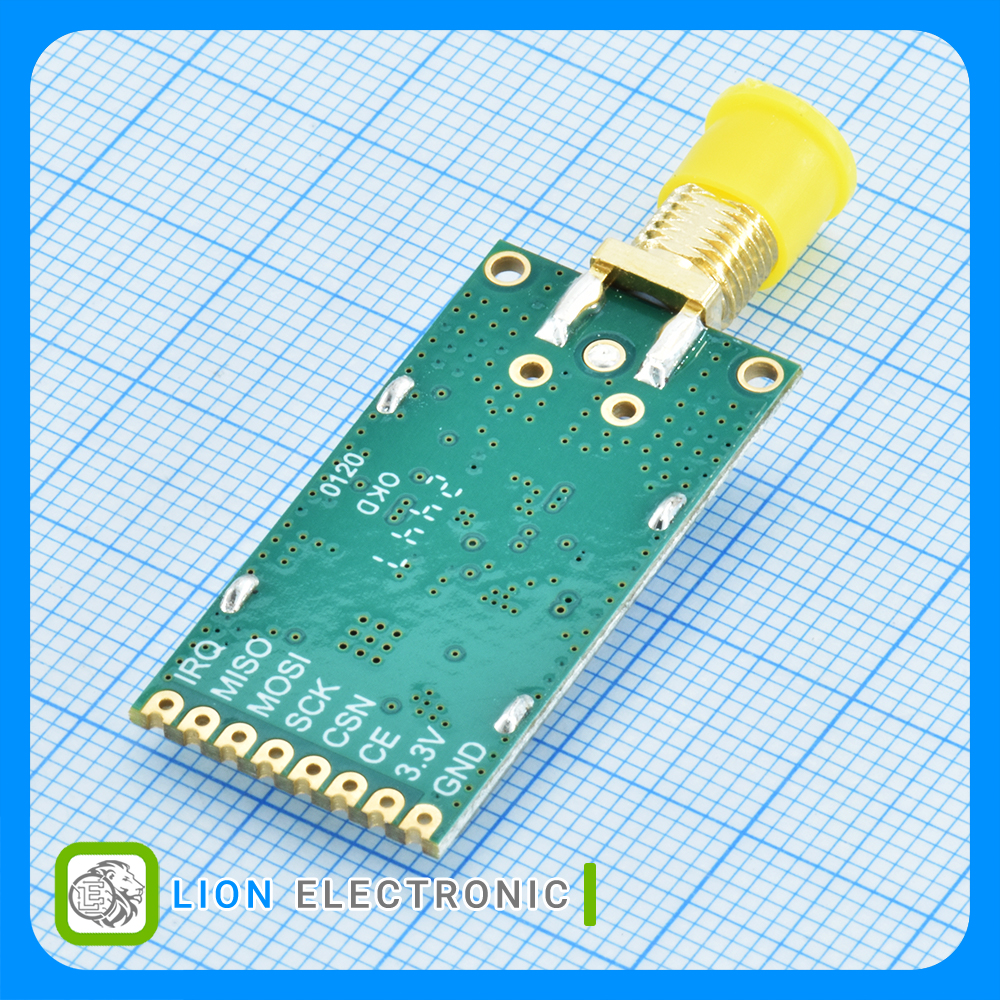

2.4GHz 500mW Wireless Transceiver Module with nRF24L01P and Built-in PA, SMA Antenna Connector, SPI Interface
معرفی
The module adopts NORDIC original nRF24L01P RF chip and the original imported amplifier chip, built-in LNA, the receiving sensitivity is increased by 10dB, and the ISM band operates in the ISM band from 2.4GHz to 2.525GHz, with a metal shield and strong anti-interference performance. The module transmits power, the spectrum characteristics are very good, the harmonics are very small, the channel crosstalk is small, the volume is small, and some devices have reached the military grade standard.
مشخصات A01-S2G4A27D1a
A01-S2G4A27D1a
Part Number
Bag
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
SMA-K
Antenna Connector Type
21mA
Supply Current Receiving
320mA
Supply Current Transmitting
2.4GHz to 2.525GHz
Frequency
2.5 - 5.5V
Operating Supply Voltage
501.2mW
Output Power
RF Transceivers
Product
17mm x 33.5mm
Dimensions
SPI
Interface Type
