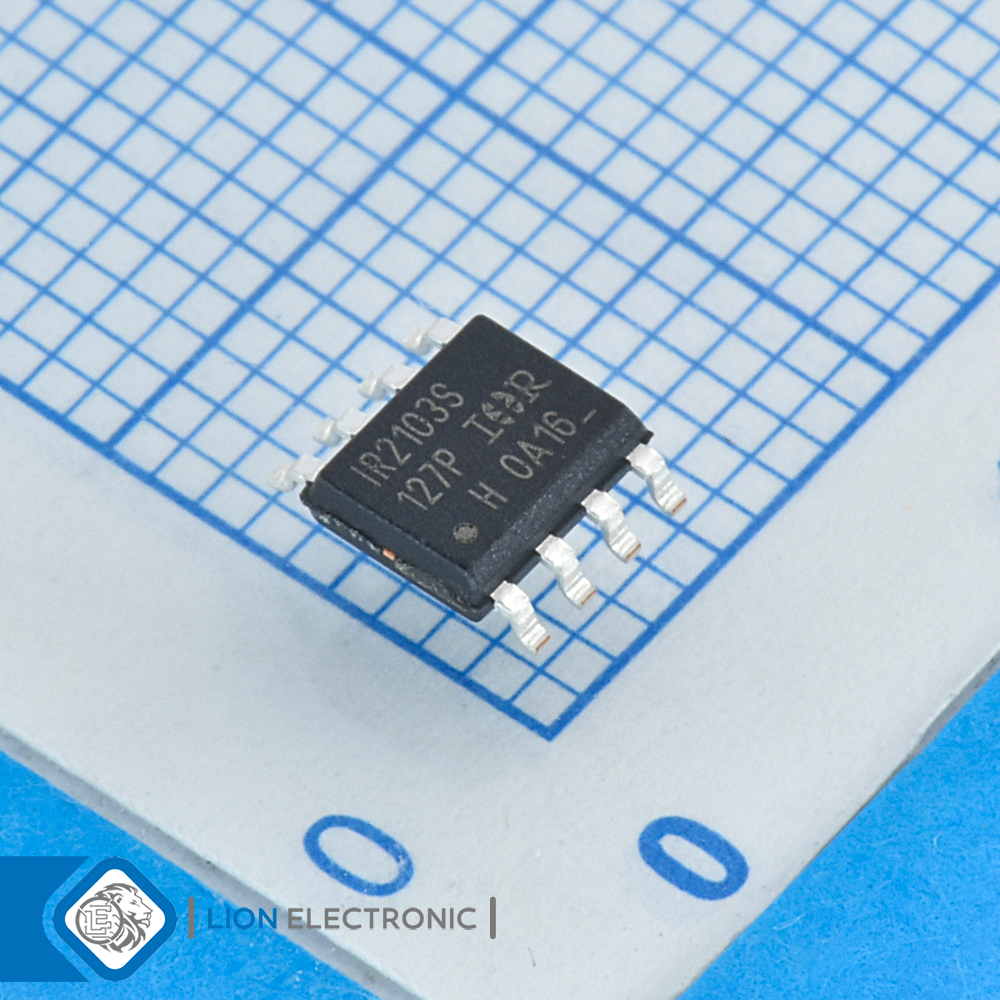

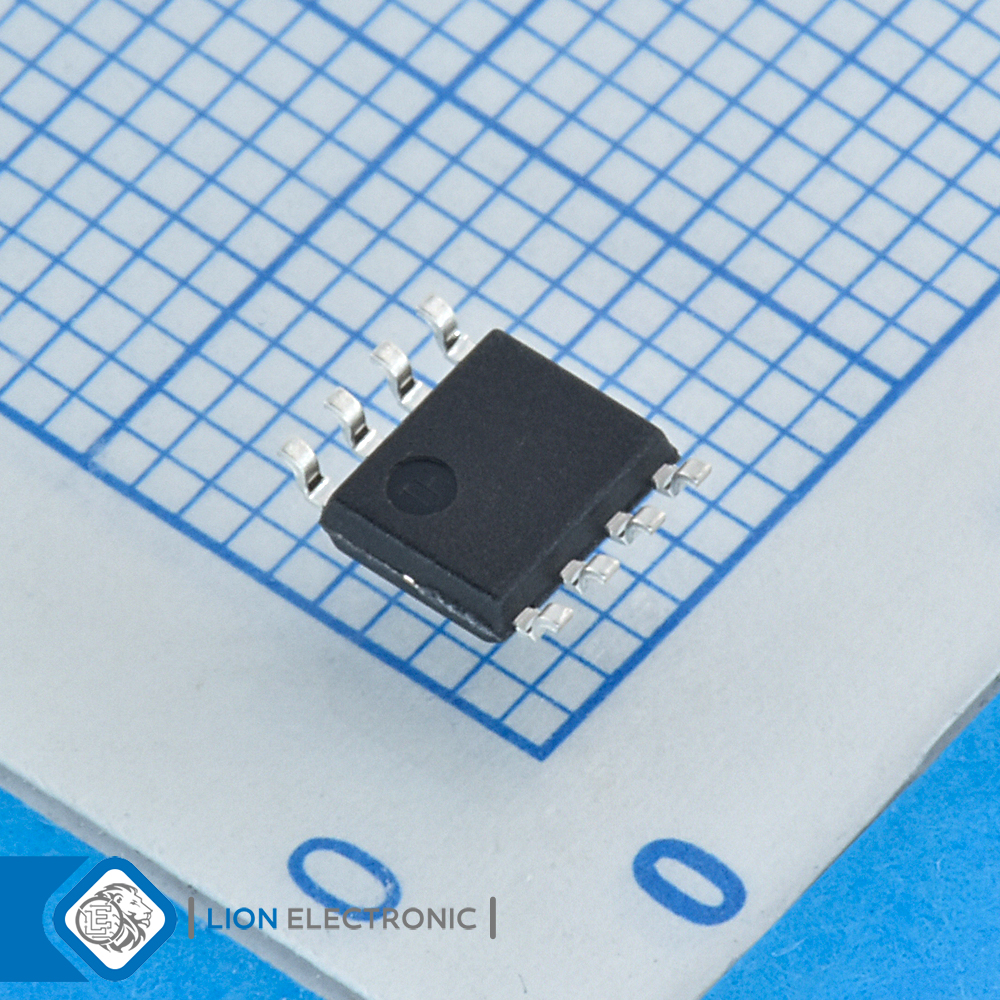

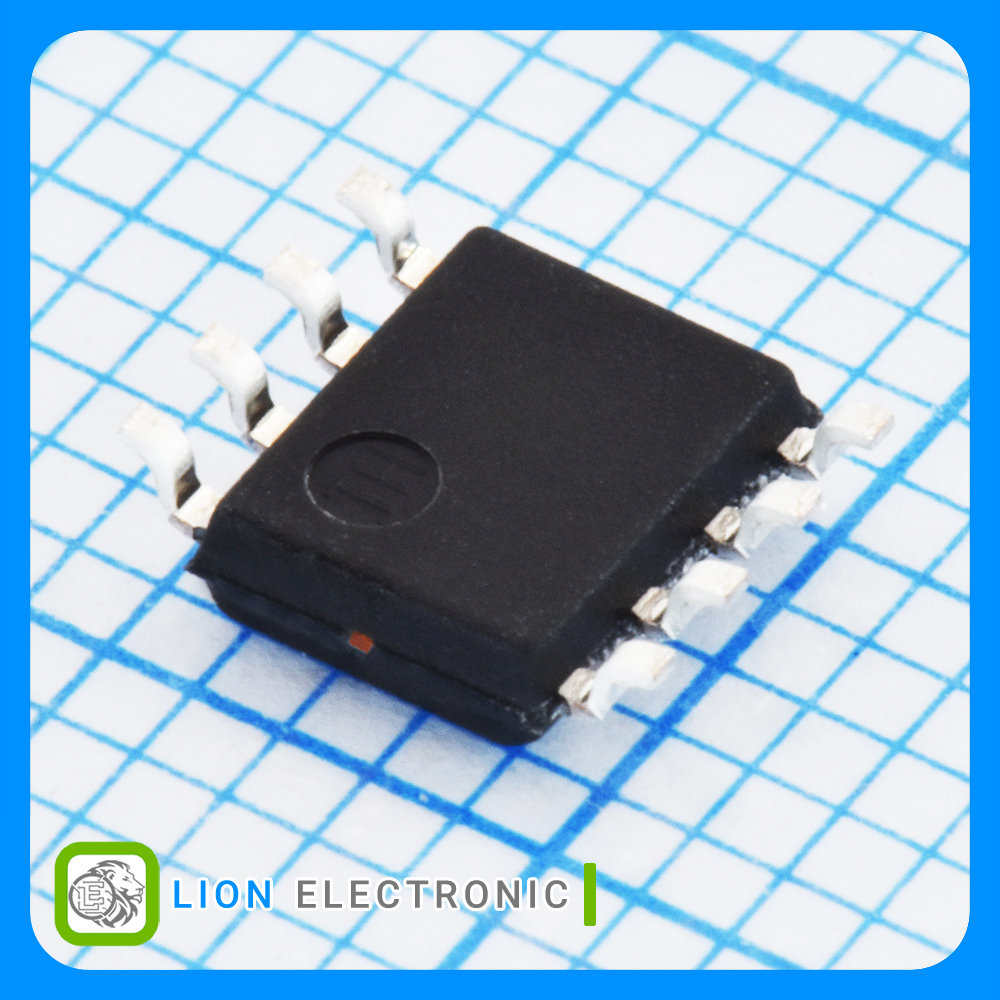

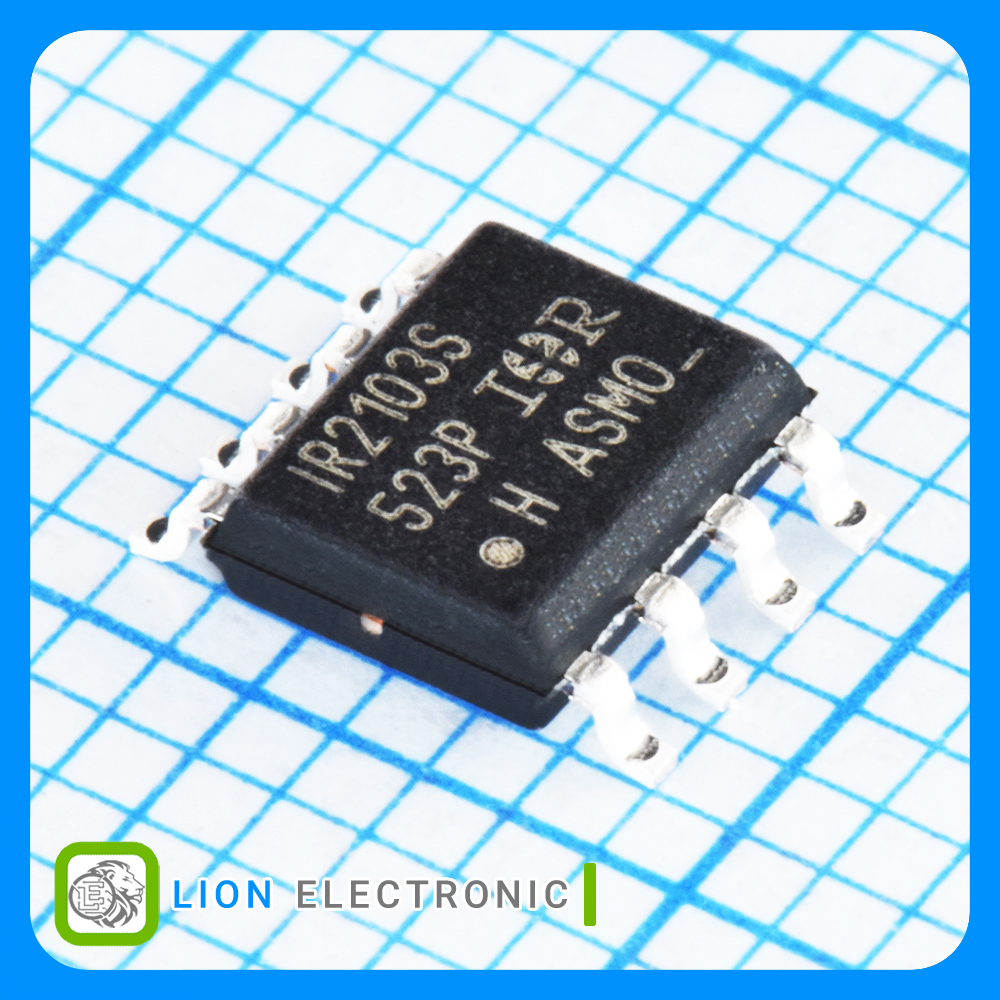

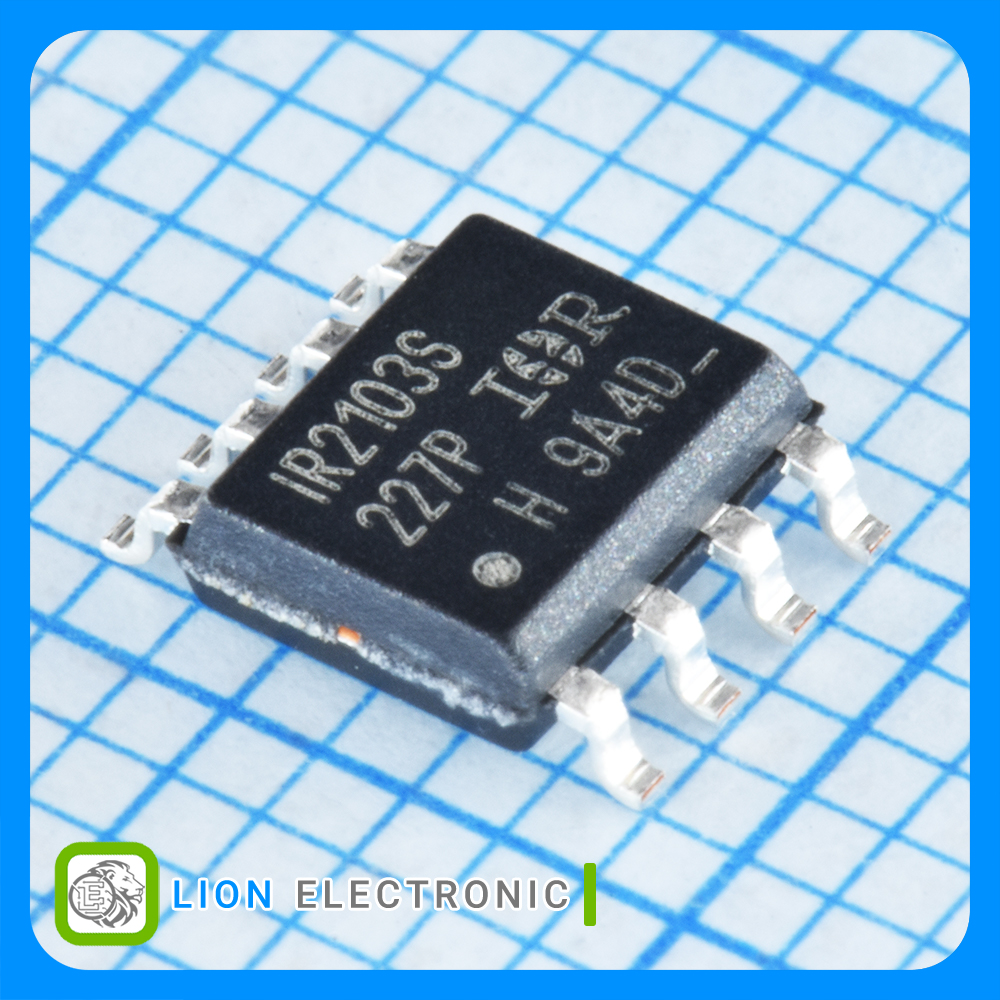

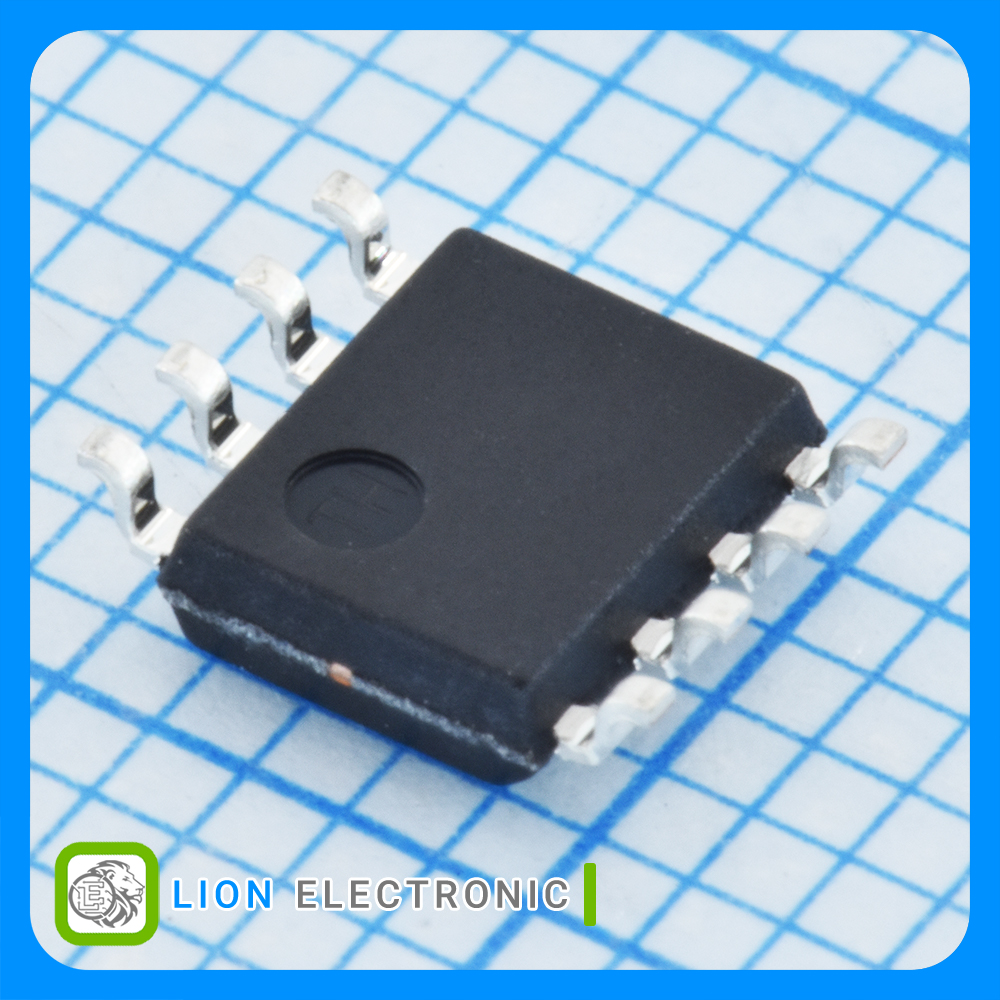

IR2103STRPBF
IR2103STRPBF
Part Number
748
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور نیمپل 600 ولت، ولتاژ تغذیه 10 تا 20 ولت جریان خروجی 360 میلیآمپر با پکیج SOIC-8
Half-Bridge Gate Driver 600V, 10V - 20V Supply, 360mA Output Current with SOIC-8 Package
معرفی
گیت درایور نیمپل 600 ولت، ولتاژ تغذیه 10 تا 20 ولت جریان خروجی 360 میلیآمپر با پکیج SOIC-8
Half-Bridge Gate Driver 600V, 10V - 20V Supply, 360mA Output Current with SOIC-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 360mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 180uA
- Dead Time: 520ns
- Propagation Delay - Max: 60ns
- Pd - Power Dissipation: 625mW
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات IR2103STRPBF
IR2103STRPBF
Part Number
2
Number of Outputs
Reel
Packaging
600V
Floating Voltage
-40C
Minimum Operating Temperature
520ns
Dead Time
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
60ns
Propagation Delay - Max
Half-Bridge
Configuration
625mW
Pd - Power Dissipation
360mA
Output Current
20V
Supply Voltage - Max
180uA
Operating Supply Current
10V
Supply Voltage - Min
SOIC-8
Package-Case
