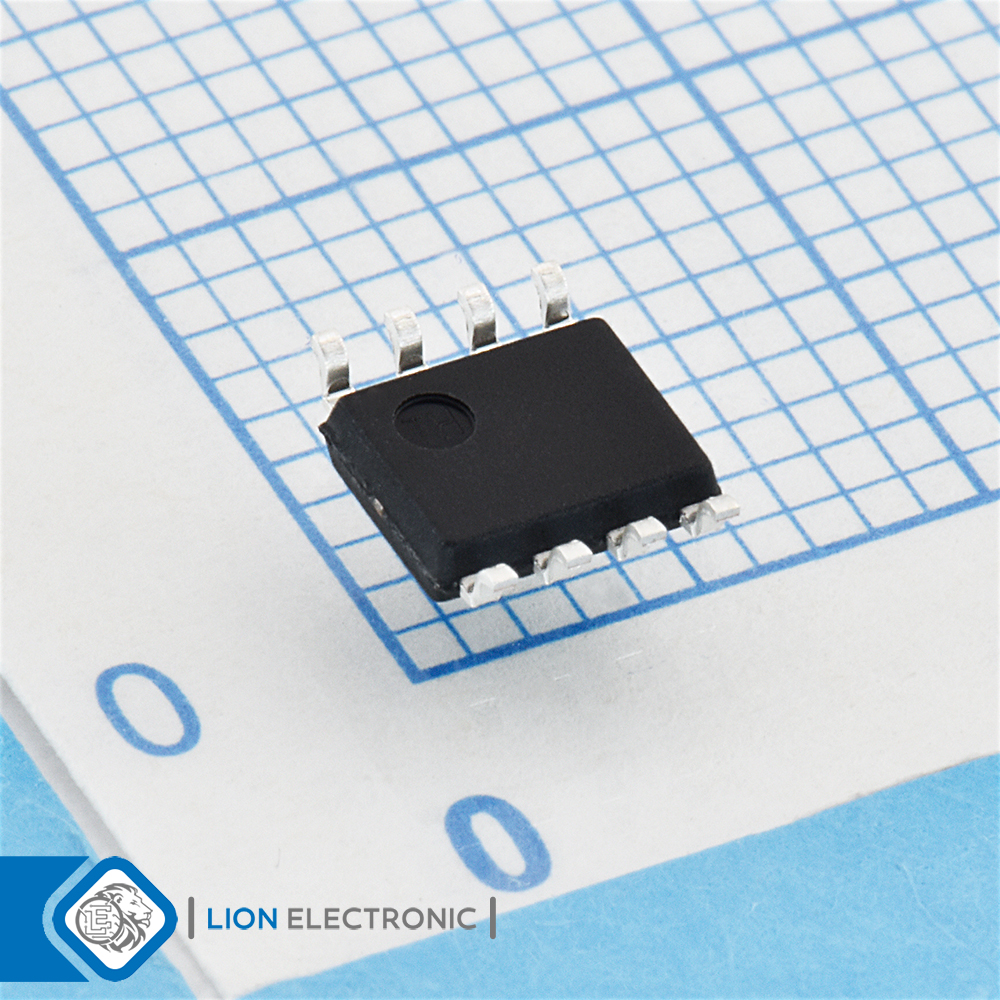

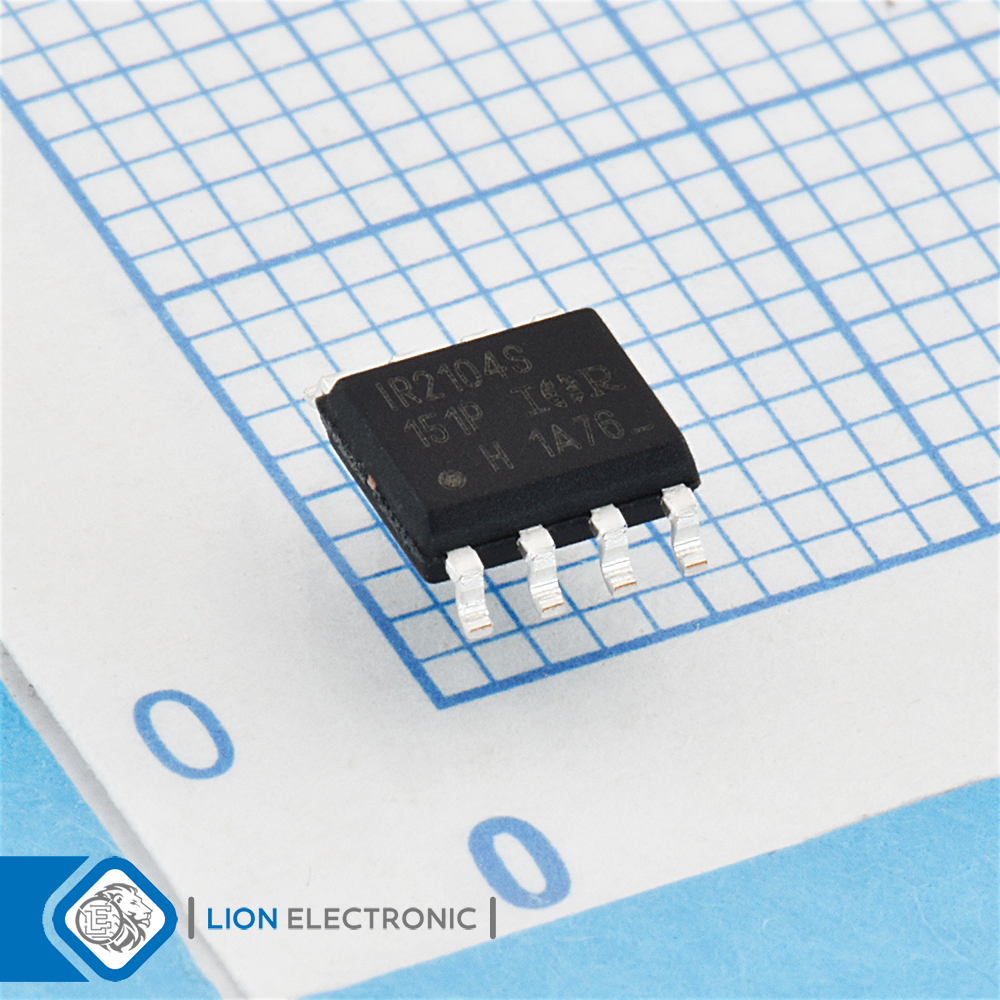

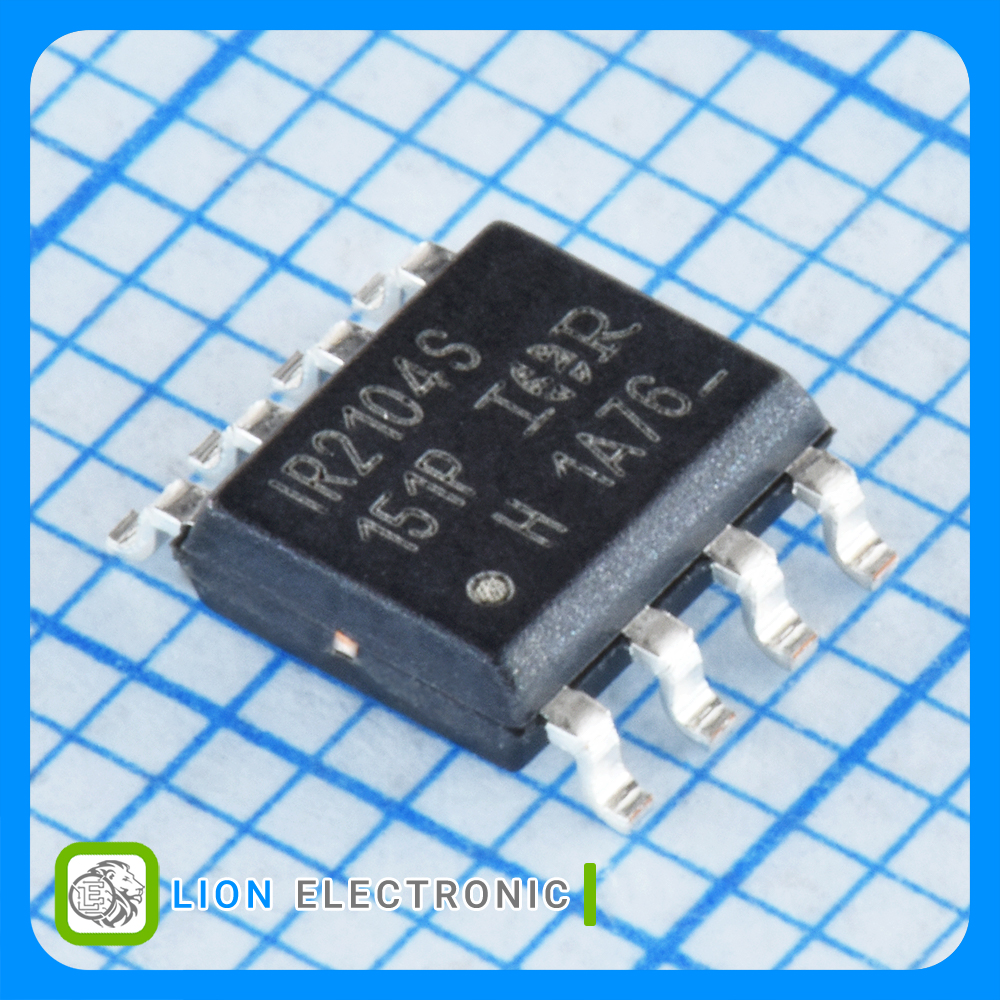

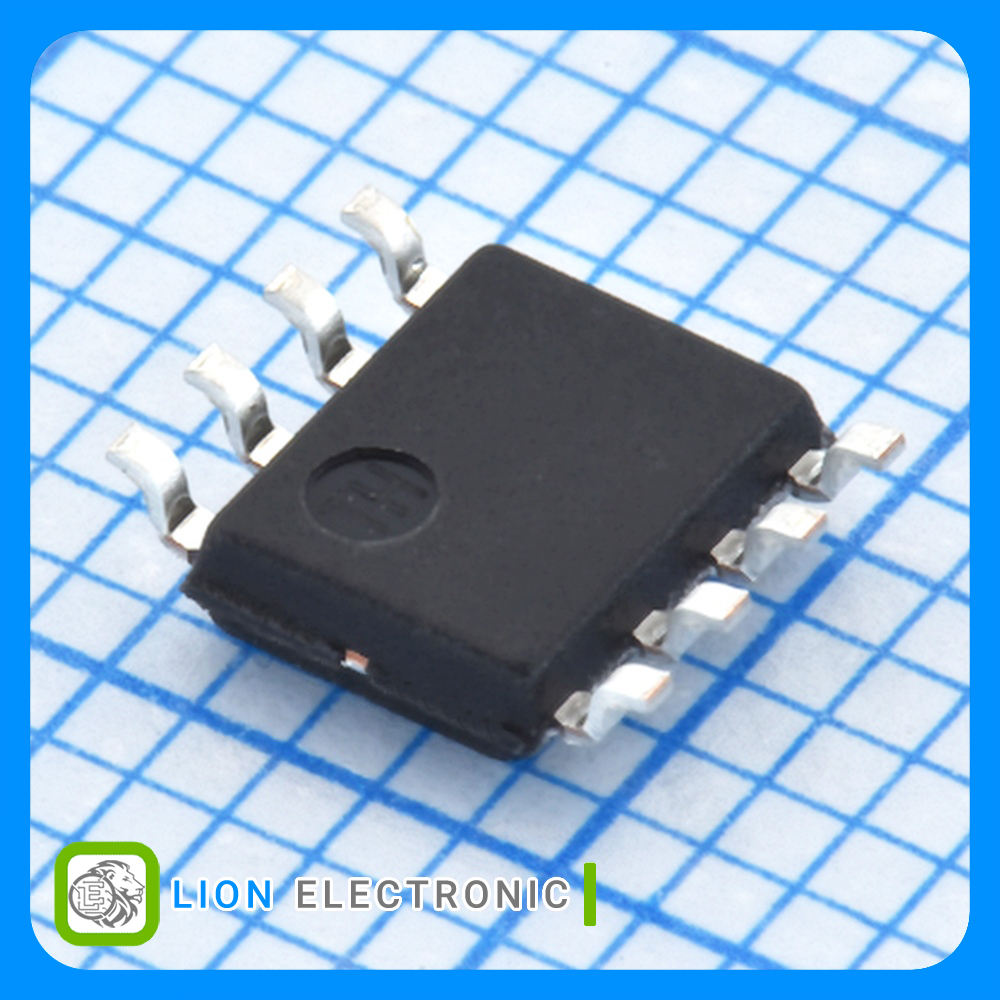

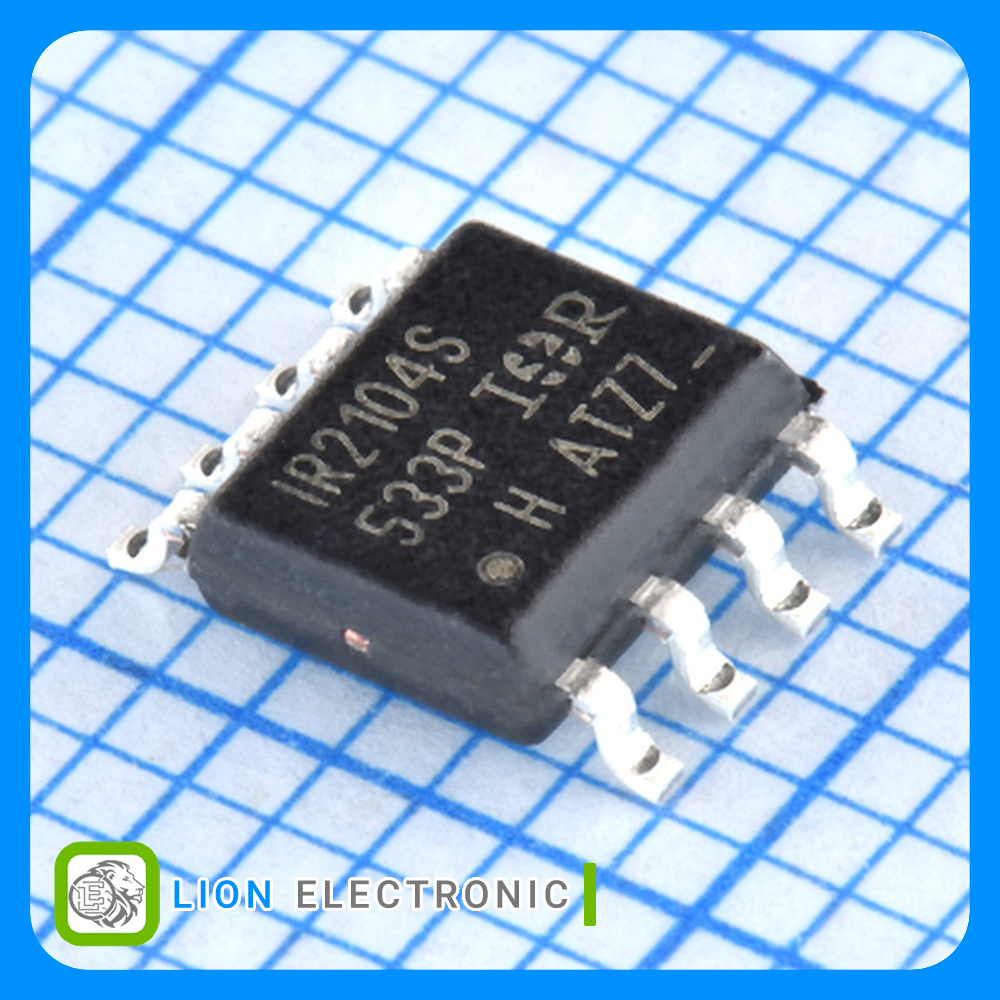

IR2104STRPBF
IR2104STRPBF
Part Number
749
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور نیمپل 20 ولت جریان خروجی 130 میلیآمپر با پکیج SOIC-8
Half-Bridge Gate Driver 20V, 130mA with SOIC-8 Package
معرفی
گیت درایور نیمپل 20 ولت جریان خروجی 130 میلیآمپر با پکیج SOIC-8
Half-Bridge Gate Driver 20V, 130mA with SOIC-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 130mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 150uA
- Dead Time: 520ns
- Propagation Delay - Max: 820ns
- Pd - Power Dissipation: 625mW
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات IR2104STRPBF
IR2104STRPBF
Part Number
2
Number of Outputs
600V
Floating Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
520ns
Dead Time
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
130mA
Output Current
625mW
Pd - Power Dissipation
820ns
Propagation Delay - Max
20V
Supply Voltage - Max
150uA
Operating Supply Current
10V
Supply Voltage - Min
SOIC-8
Package-Case
