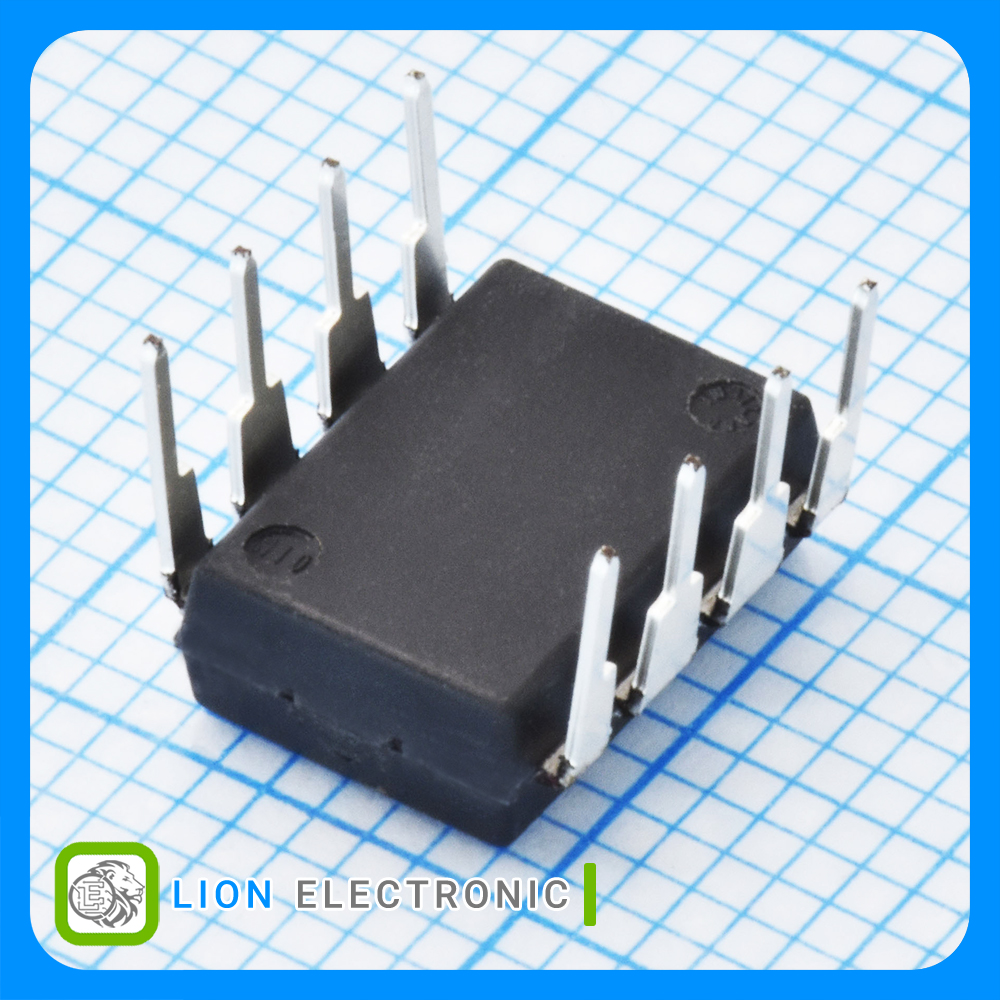

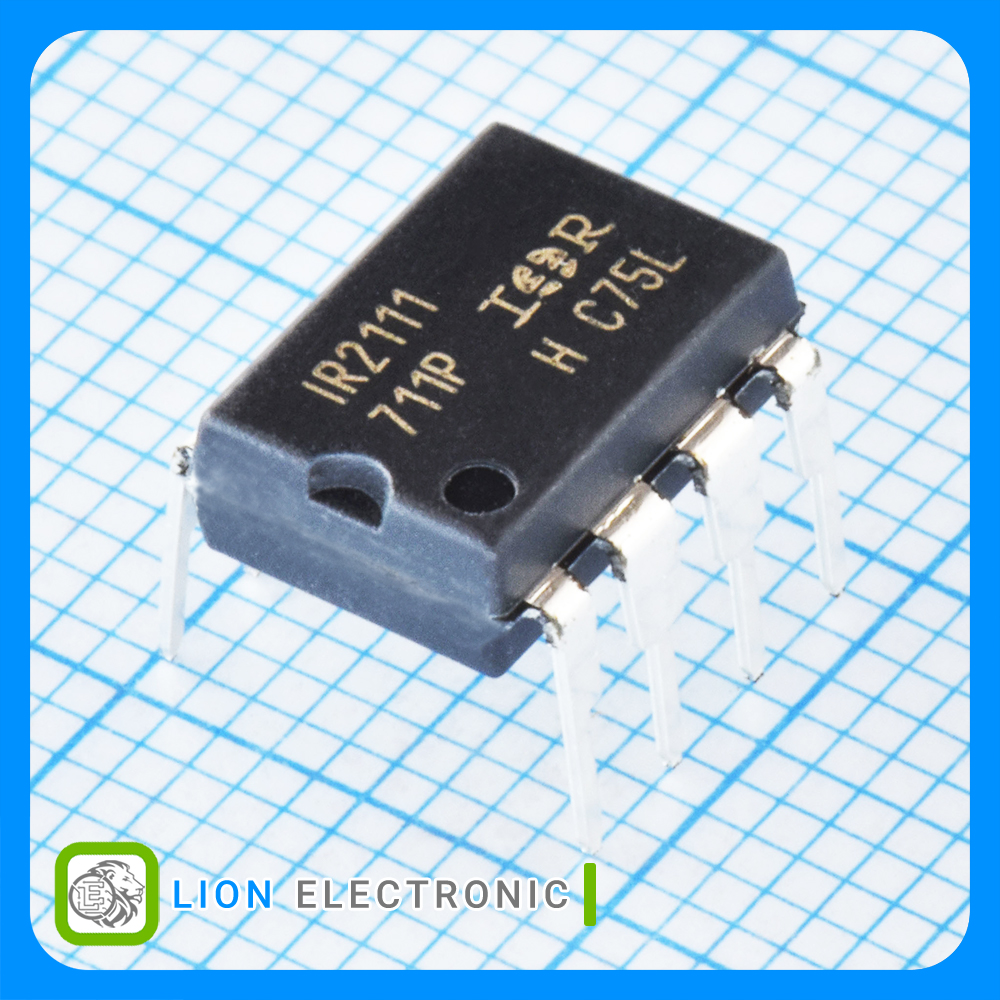

IR2111PBF
IR2111PBF
Part Number
751
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 200 میلیآمپر، ولتاژ کاری 10 تا 20 ولت با پکیج PDIP-8
Half-Bridge Gate Driver, 600V Floating Voltage, 200mA Output Current, 10V to 20V Supply, with PDIP-8 Package
معرفی
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 200 میلیآمپر، ولتاژ کاری 10 تا 20 ولت با پکیج PDIP-8
Half-Bridge Gate Driver, 600V Floating Voltage, 200mA Output Current, 10V to 20V Supply, with PDIP-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 200mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 180uA
- Dead Time: 650ns
- Propagation Delay - Max: 950ns
- Pd - Power Dissipation: 1W
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات IR2111PBF
IR2111PBF
Part Number
2
Number of Outputs
-40C
Minimum Operating Temperature
600V
Floating Voltage
Tube
Packaging
650ns
Dead Time
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
200mA
Output Current
950ns
Propagation Delay - Max
20V
Supply Voltage - Max
180uA
Operating Supply Current
1W
Pd - Power Dissipation
10V
Supply Voltage - Min
DIP-8
Package-Case
