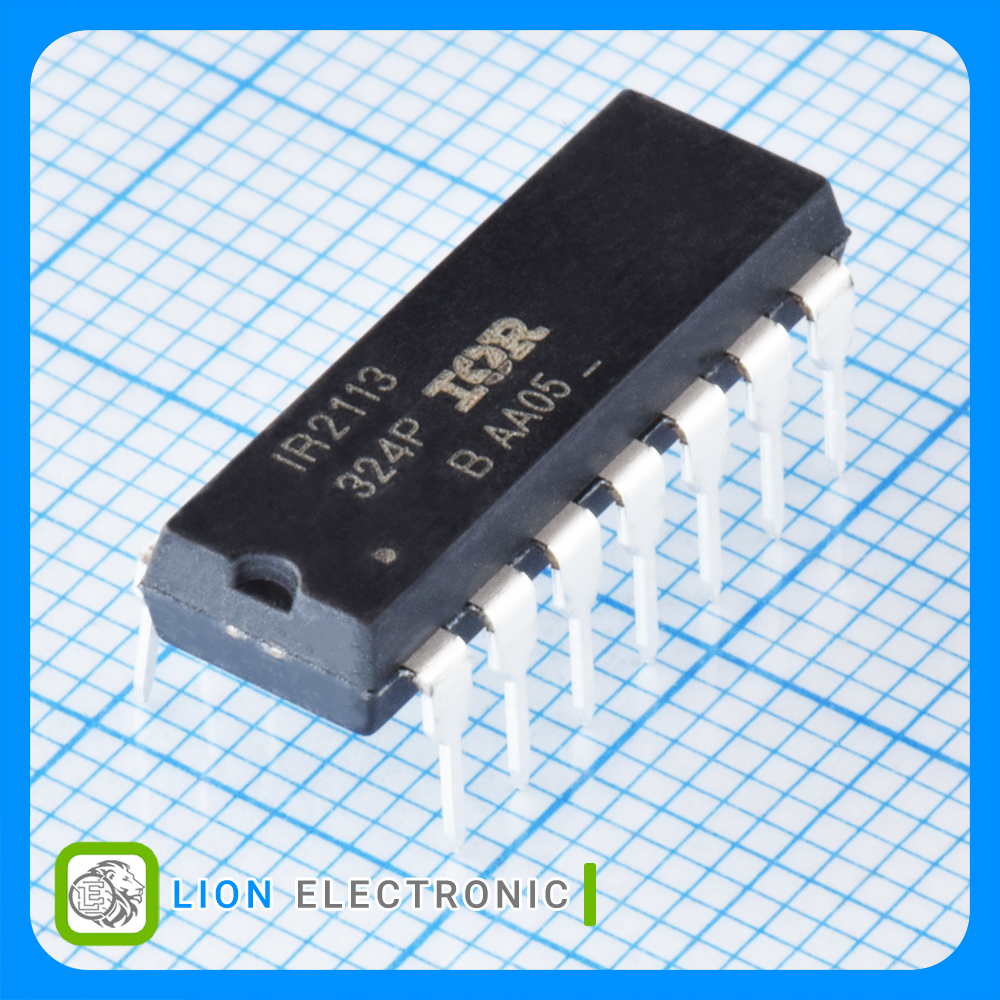

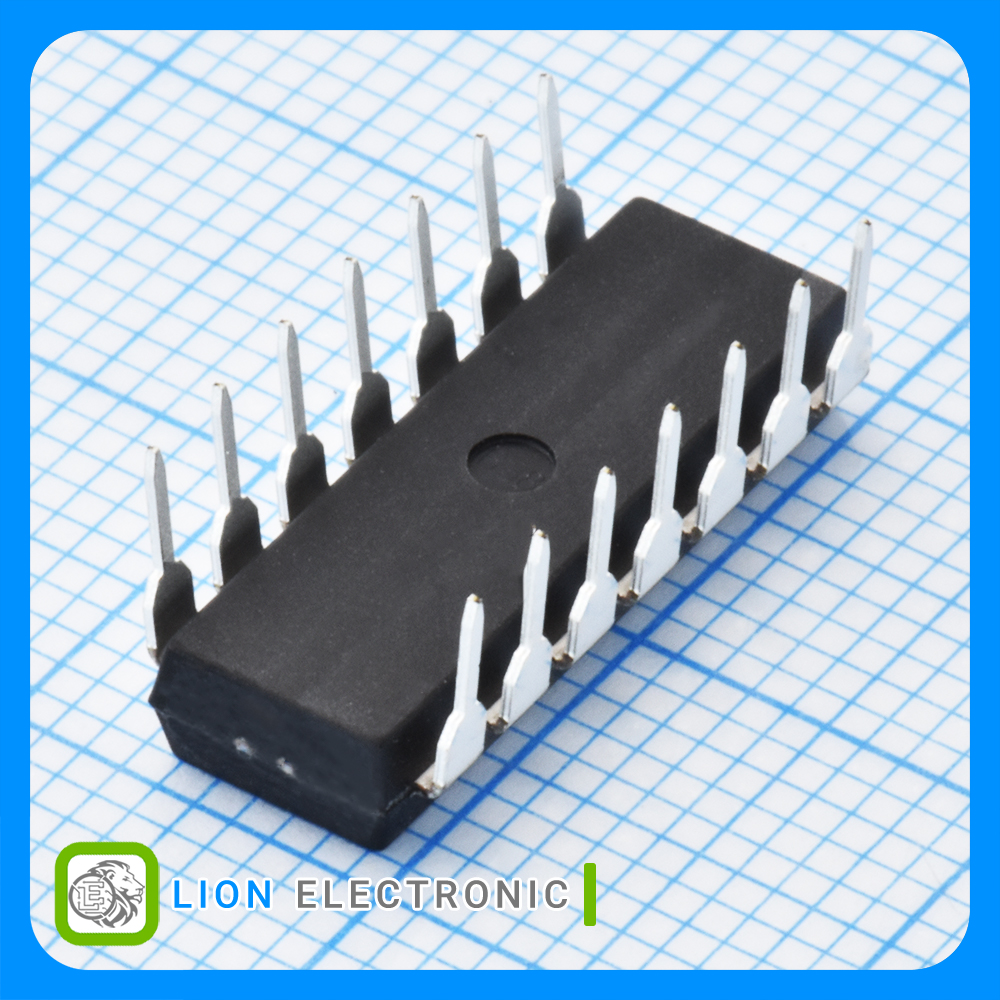

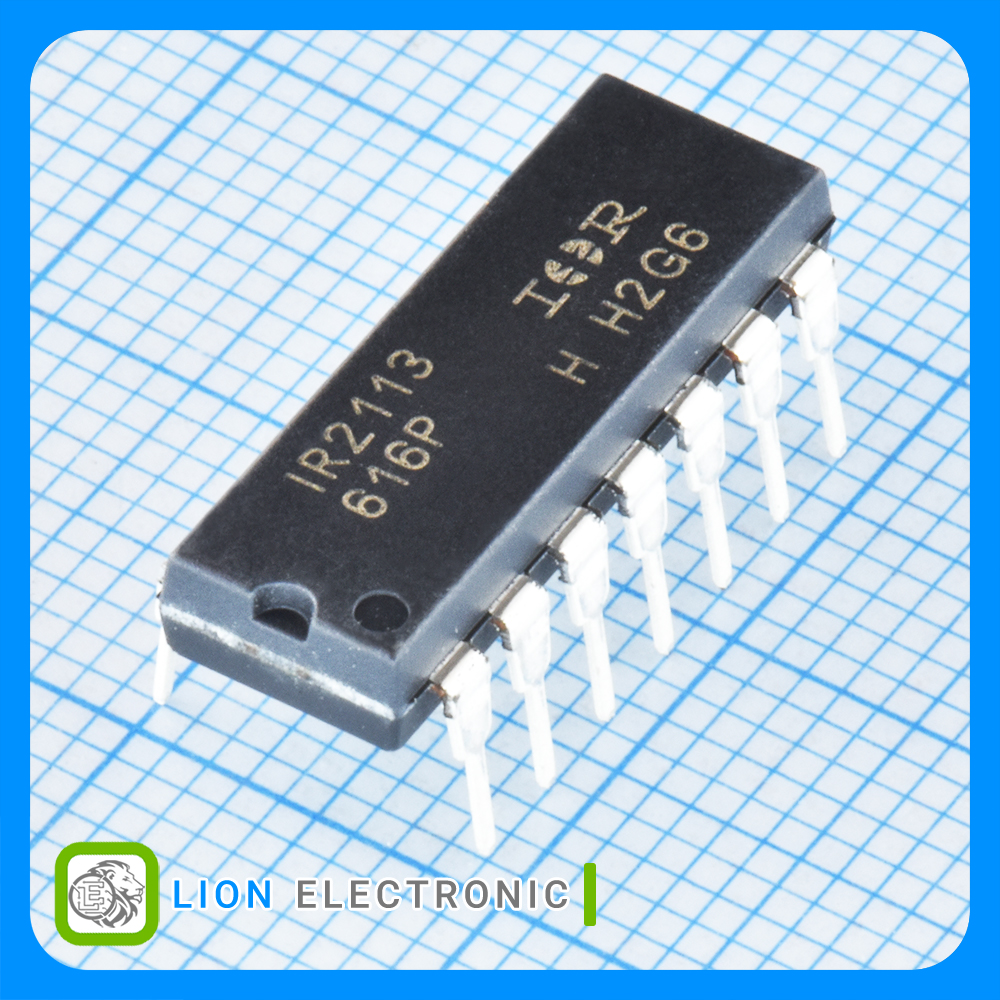

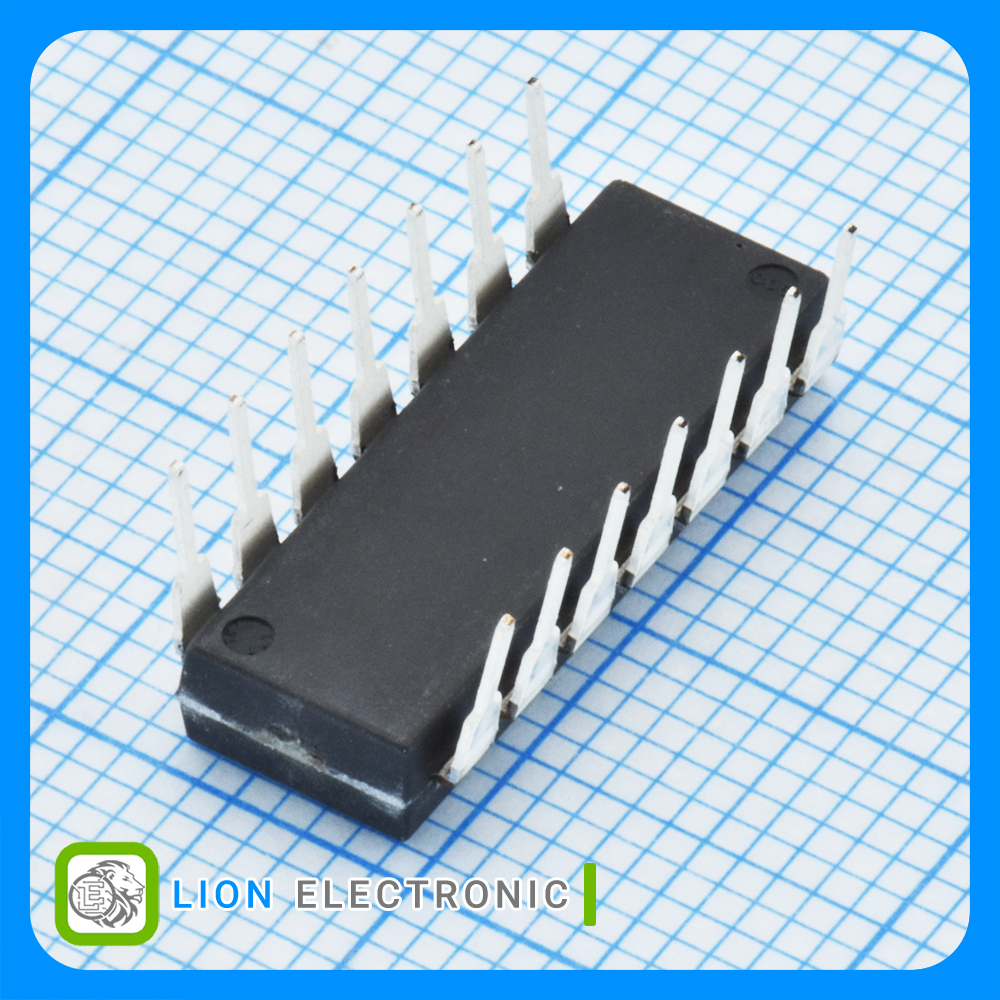

IR2113PBF
IR2113PBF
Part Number
752
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 2.5 آمپر، ولتاژ کاری 10 تا 20 ولت با پکیج PDIP-14
Half-Bridge Gate Driver, 600V Floating Voltage, 2.5A Output Current, 10V to 20V Supply, with PDIP-14 Package
معرفی
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 2.5 آمپر، ولتاژ کاری 10 تا 20 ولت با پکیج PDIP-14
Half-Bridge Gate Driver, 600V Floating Voltage, 2.5A Output Current, 10V to 20V Supply, with PDIP-14 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 2.5A
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 340uA
- Propagation Delay - Max: 150ns
- Pd - Power Dissipation: 1.6W
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات IR2113PBF
IR2113PBF
Part Number
2
Number of Outputs
600V
Floating Voltage
-40C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
150ns
Propagation Delay - Max
20V
Supply Voltage - Max
340uA
Operating Supply Current
10V
Supply Voltage - Min
1.6W
Pd - Power Dissipation
2.5A
Output Current
DIP-14
Package-Case
