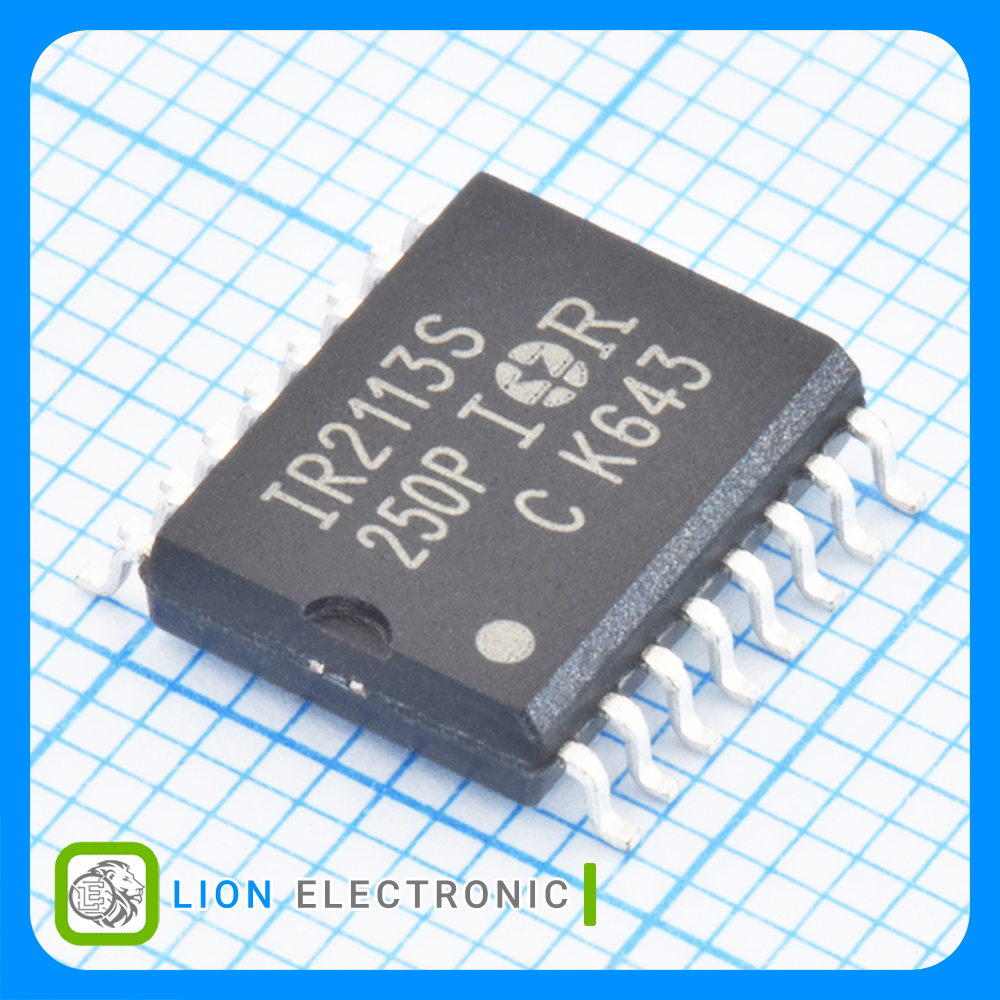

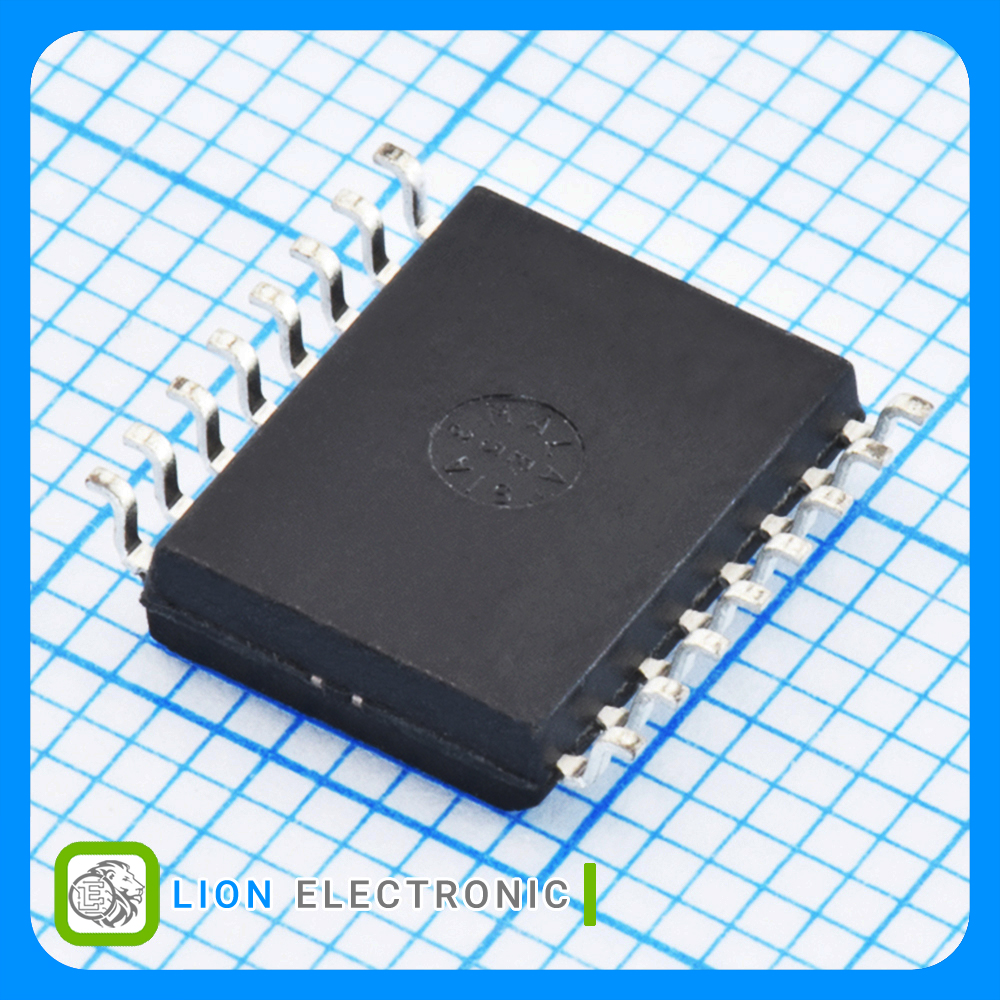

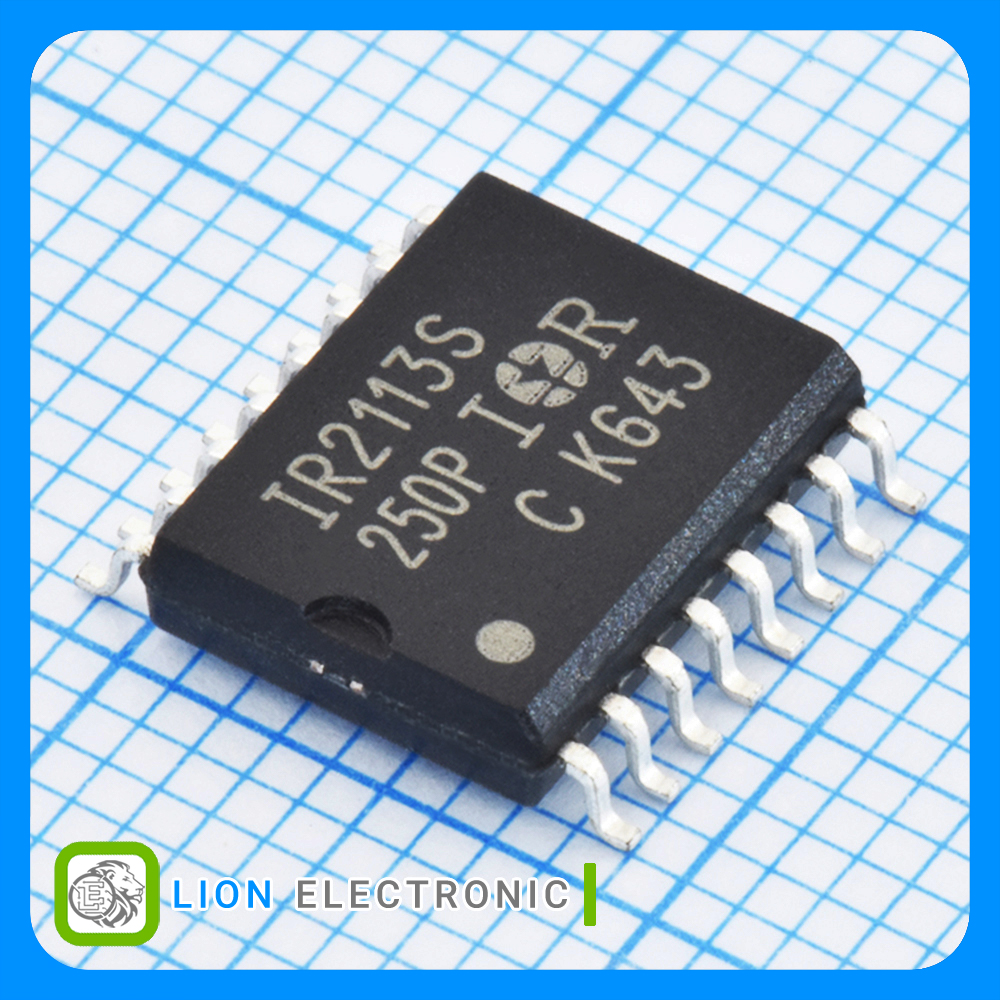

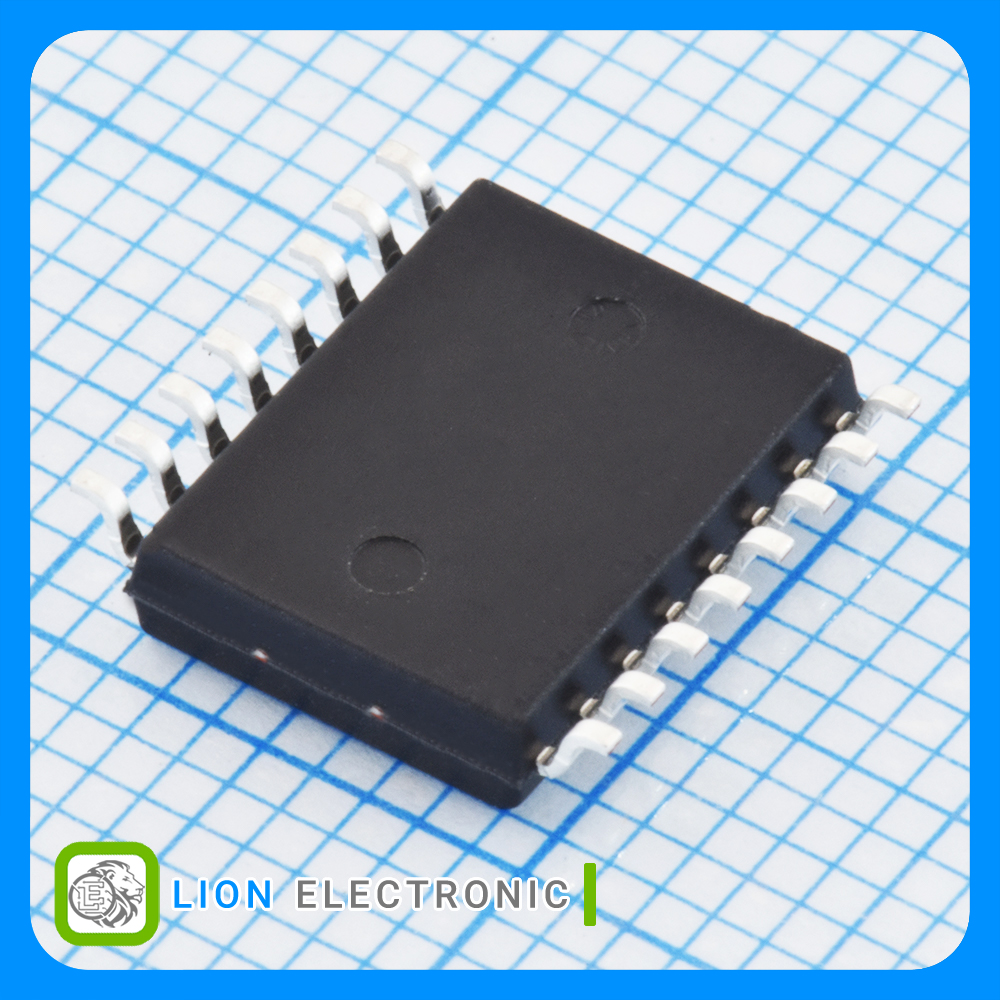

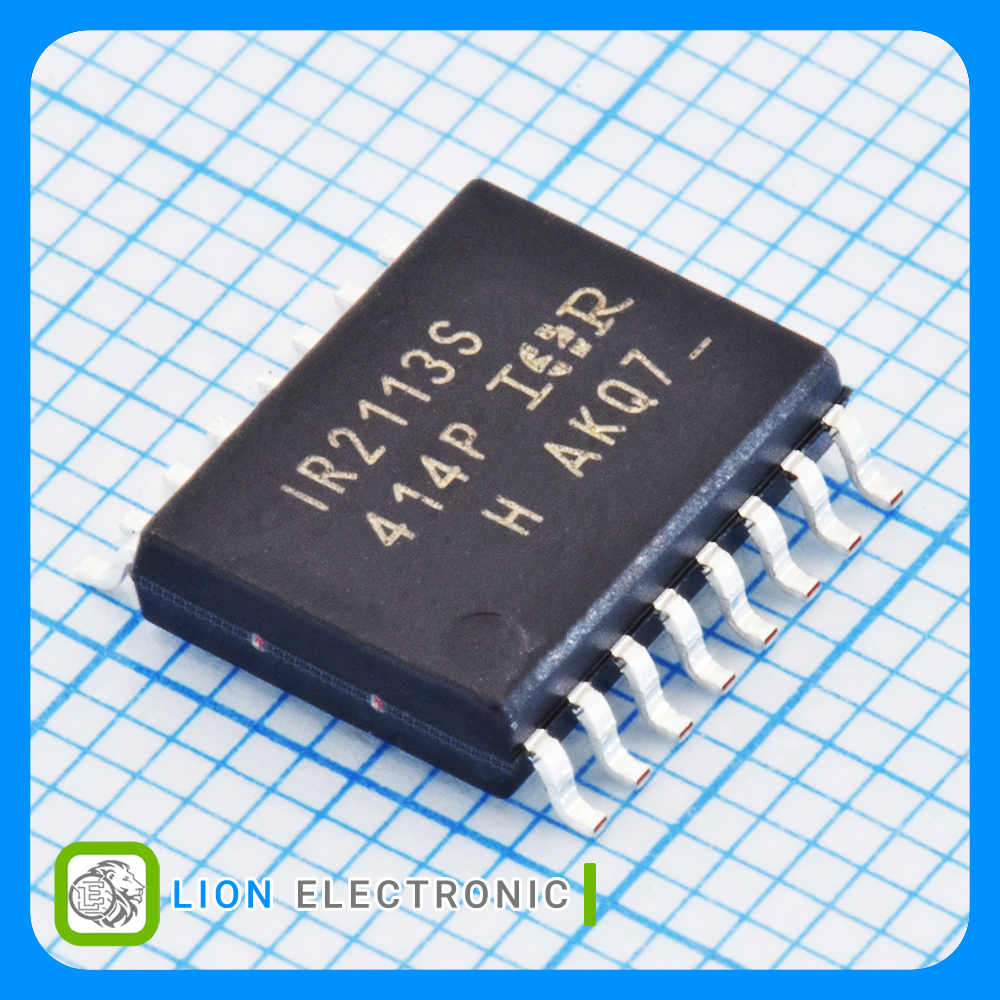

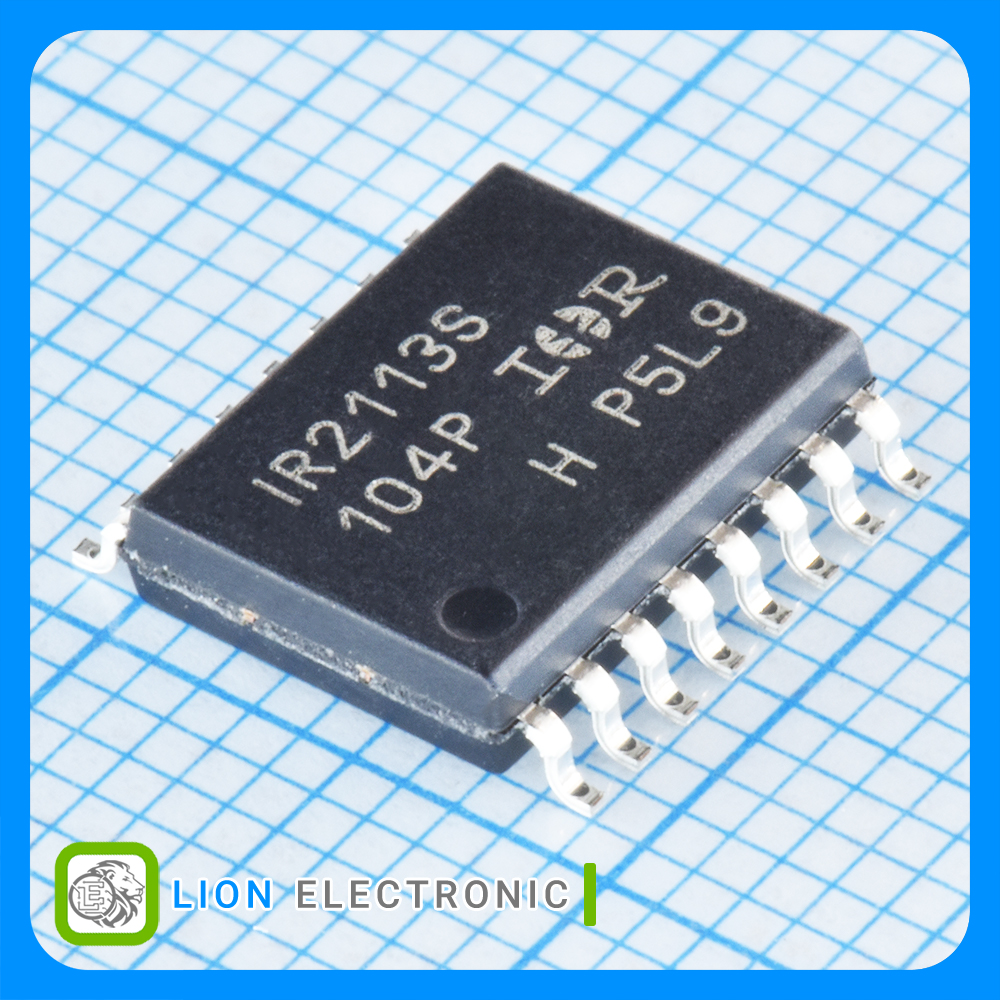

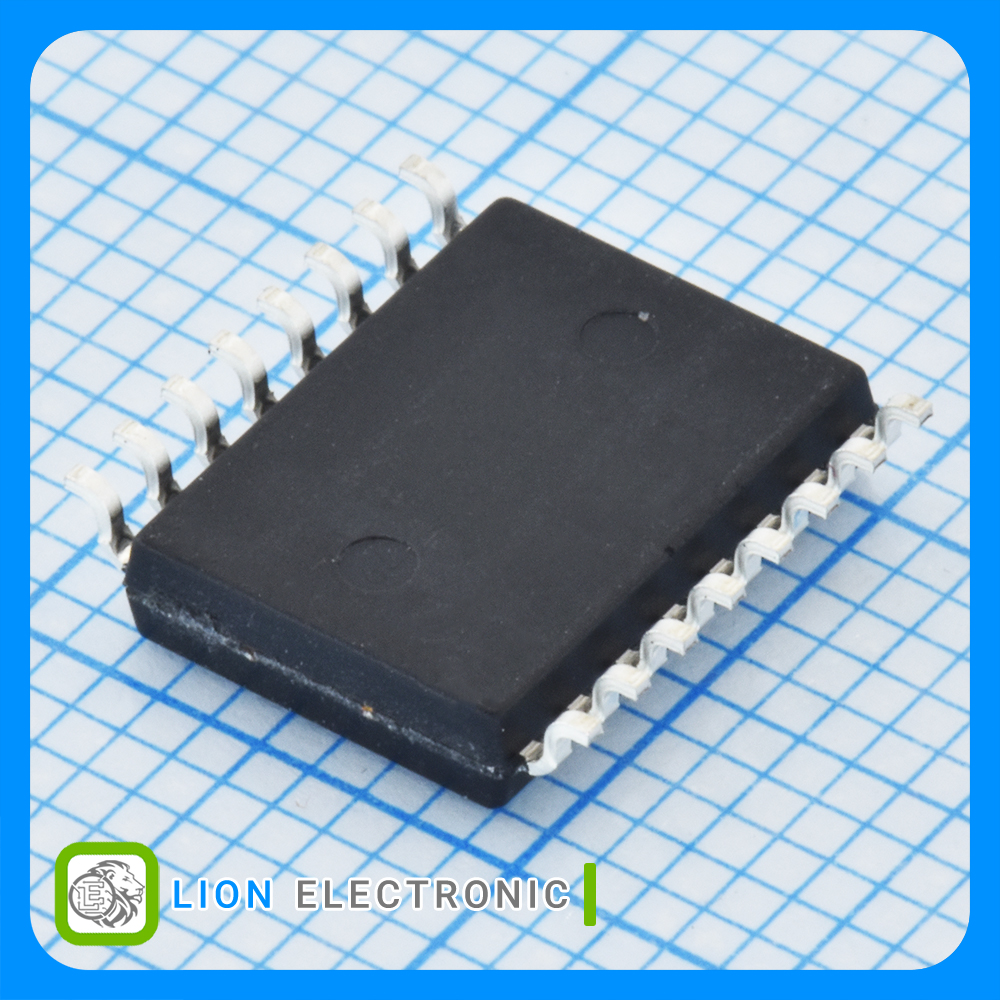

IR2113SPBF
IR2113SPBF
Part Number
753
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 2.5 آمپر، ولتاژ کاری 10 تا 20 ولت با پکیج SOIC-16
Half-Bridge Gate Driver, 600V Floating Voltage, 2.5A Output Current, 10V to 20V Supply, with SOIC-16 Package
معرفی
گیت درایور نیمپل با ولتاژ شناور 600 ولت، جریان خروجی 2.5 آمپر، ولتاژ کاری 10 تا 20 ولت با پکیج SOIC-16
Half-Bridge Gate Driver, 600V Floating Voltage, 2.5A Output Current, 10V to 20V Supply, with SOIC-16 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 2.5A
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 340uA
- Propagation Delay - Max: 150ns
- Pd - Power Dissipation: 1.25W
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات IR2113SPBF
IR2113SPBF
Part Number
2
Number of Outputs
Reel
Packaging
600V
Floating Voltage
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
150ns
Propagation Delay - Max
20V
Supply Voltage - Max
1.25W
Pd - Power Dissipation
340uA
Operating Supply Current
10V
Supply Voltage - Min
2.5A
Output Current
SOIC-16
Package-Case
