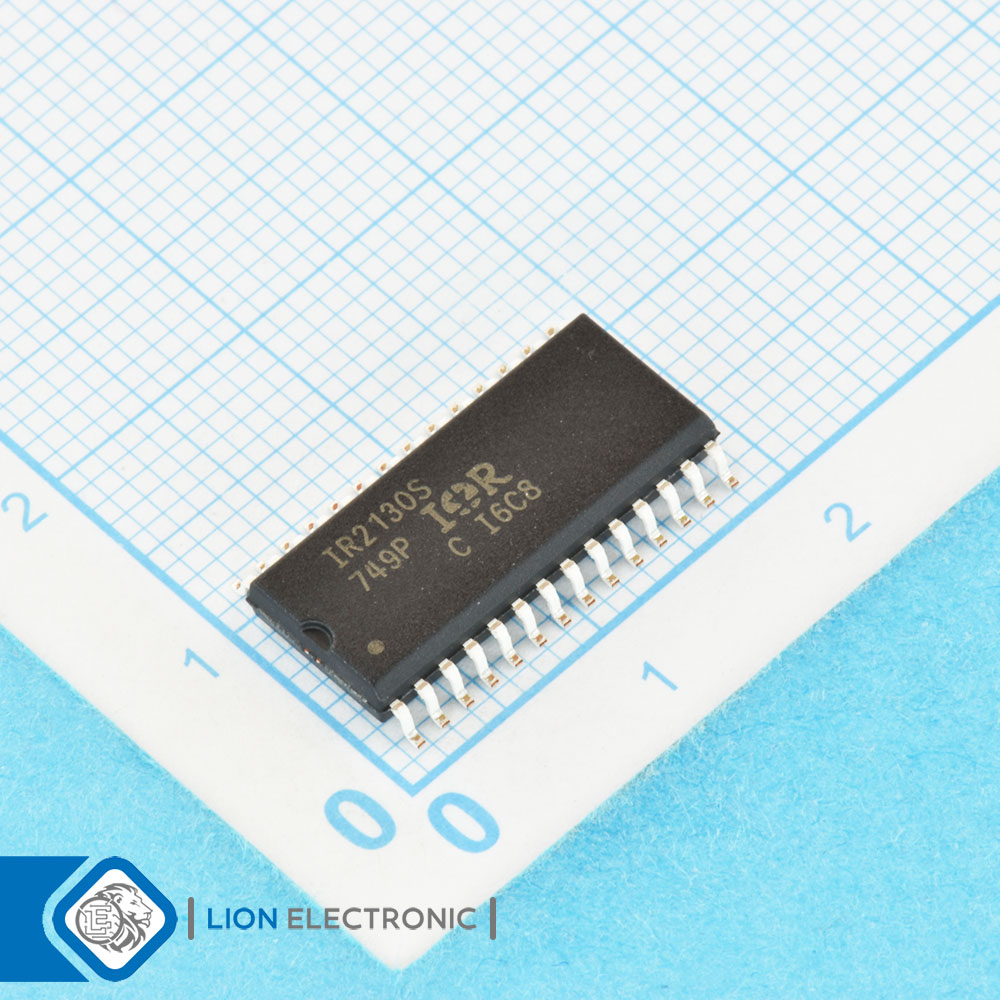

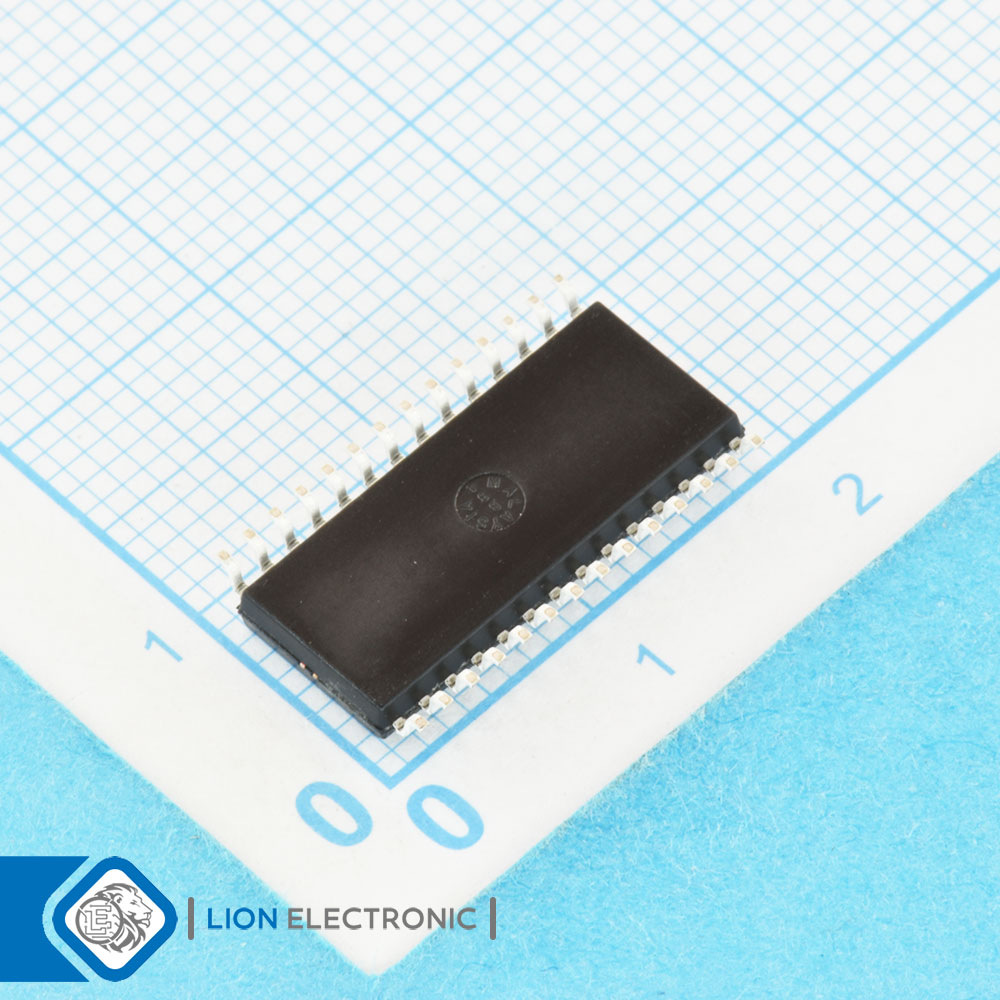

IR2130SPBF
IR2130SPBF
Part Number
754
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور سهفاز با ولتاژ شناور 600 ولت، جریان خروجی 200 میلیآمپر، ولتاژ کاری 10 تا 20 ولت با پکیج SOIC-28
3-Phase Gate Driver, 600V Floating Voltage, 200mA Output Current, 10V to 20V Supply, with SOIC-28 Package
معرفی
گیت درایور سهفاز با ولتاژ شناور 600 ولت، جریان خروجی 200 میلیآمپر، ولتاژ کاری 10 تا 20 ولت با پکیج SOIC-28
3-Phase Gate Driver, 600V Floating Voltage, 200mA Output Current, 10V to 20V Supply, with SOIC-28 Package
Specifications
- Configuration: 3-Phase
- Output Current: 200mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 30uA
- Dead Time: 2.5us
- Propagation Delay - Max: 850ns
- Pd - Power Dissipation: 1.6W
- Floating Voltage: 600V
- Number of Outputs: 6
- Mounting Style: SMD/SMT
- Package/Case: SOIC-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات IR2130SPBF
IR2130SPBF
Part Number
2.5us
Dead Time
6
Number of Outputs
-40C
Minimum Operating Temperature
600V
Floating Voltage
SMD/SMT
Mounting Style
Tube
Packaging
3-Phase
Configuration
+125C
Maximum Operating Temperature
30uA
Operating Supply Current
200mA
Output Current
850ns
Propagation Delay - Max
20V
Supply Voltage - Max
10V
Supply Voltage - Min
1.6W
Pd - Power Dissipation
SOIC-28
Package-Case
