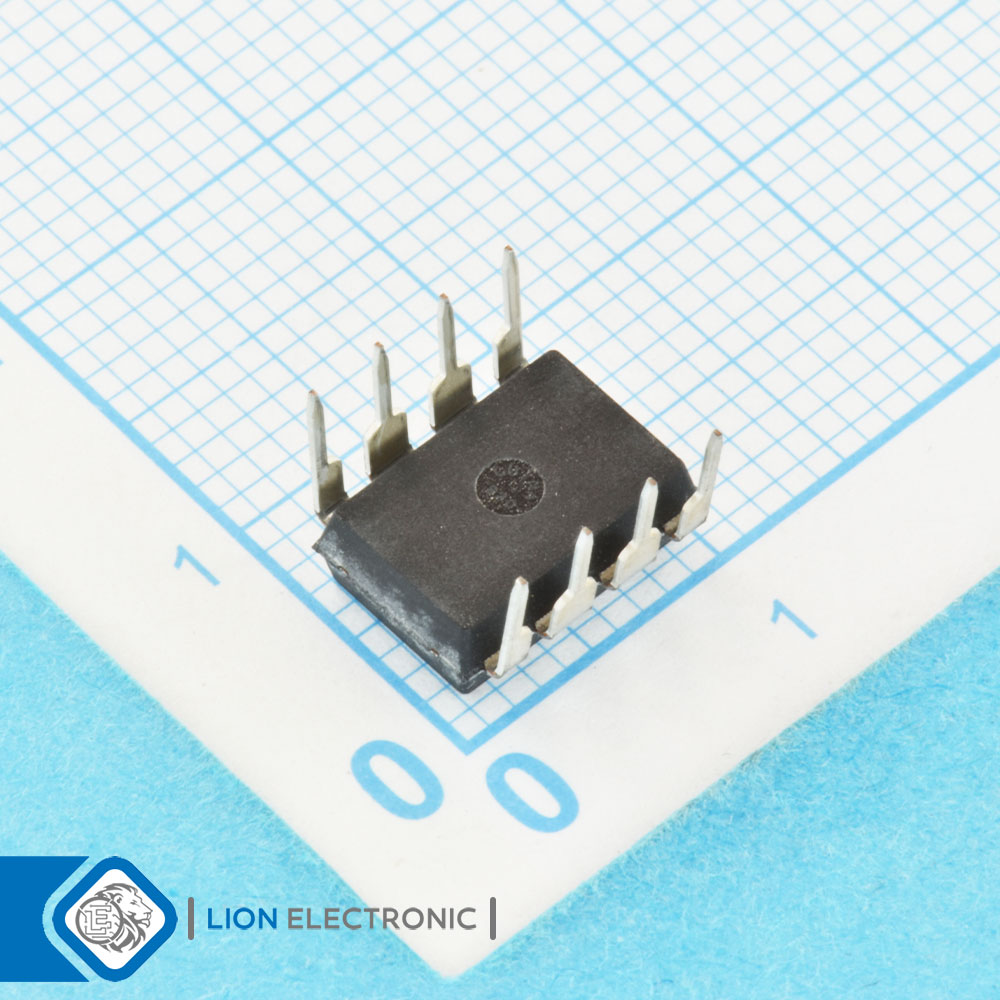

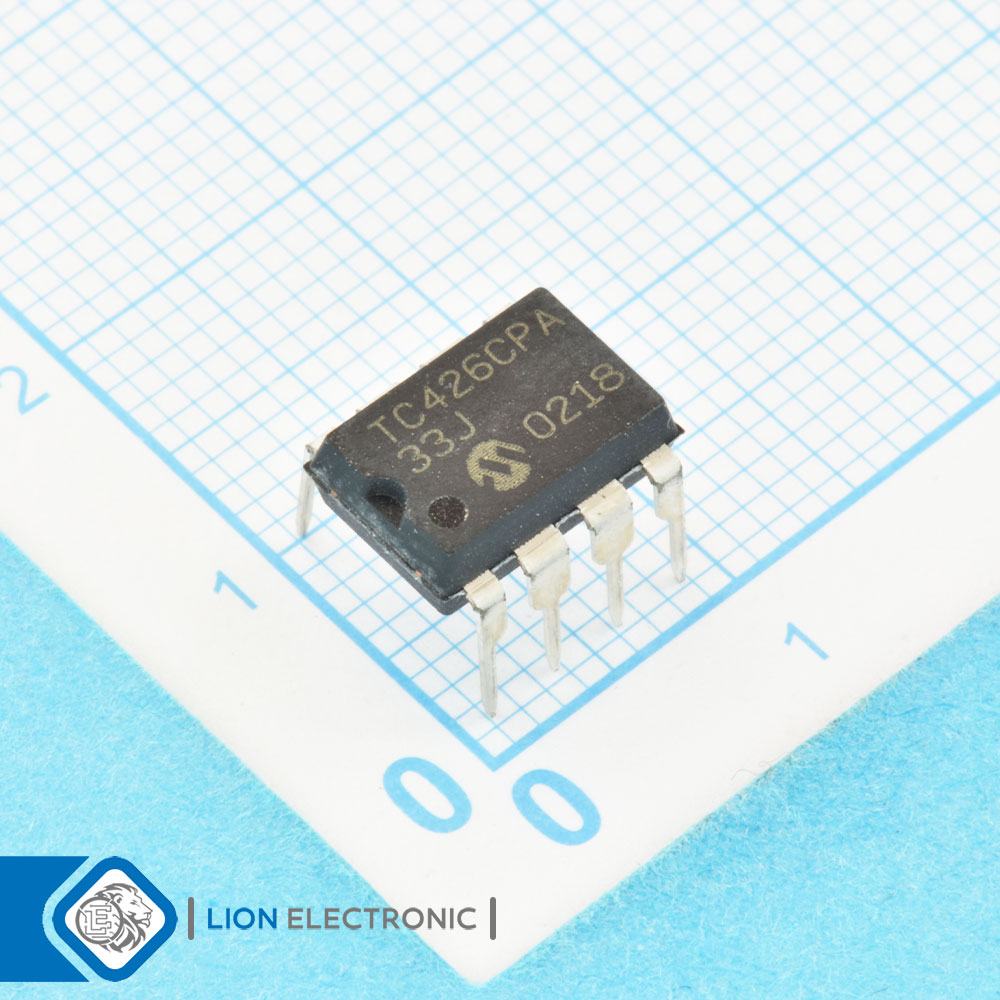

TC426CPA
TC426CPA
Part Number
760
Lion Part
Datasheet
Microchip Technology Manufacture
گیت درایور دوتایی با ولتاژ کاری 4.5 تا 16 ولت، جریان خروجی 1.5 آمپر با پکیج PDIP-8
Dual Gate Driver, 4.5V to 16V Supply, 1.5A Output Current, with PDIP-8 Package
معرفی
گیت درایور دوتایی با ولتاژ کاری 4.5 تا 16 ولت، جریان خروجی 1.5 آمپر با پکیج PDIP-8
Dual Gate Driver, 4.5V to 16V Supply, 1.5A Output Current, with PDIP-8 Package
Specifications
- Configuration: Dual
- Output Current: 1.5A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 16V
- Operating Supply Current: 8mA
- Propagation Delay - Max: 120ns
- Pd - Power Dissipation: 730mW
- Number of Outputs: 2
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات TC426CPA
TC426CPA
Part Number
2
Number of Outputs
+70C
Maximum Operating Temperature
N/A
Floating Voltage
Tube
Packaging
Through Hole
Mounting Style
N/A
Dead Time
0C
Minimum Operating Temperature
Dual
Configuration
120ns
Propagation Delay - Max
16V
Supply Voltage - Max
730mW
Pd - Power Dissipation
4.5V
Supply Voltage - Min
1.5A
Output Current
DIP-8
Package-Case
8mA
Operating Supply Current
