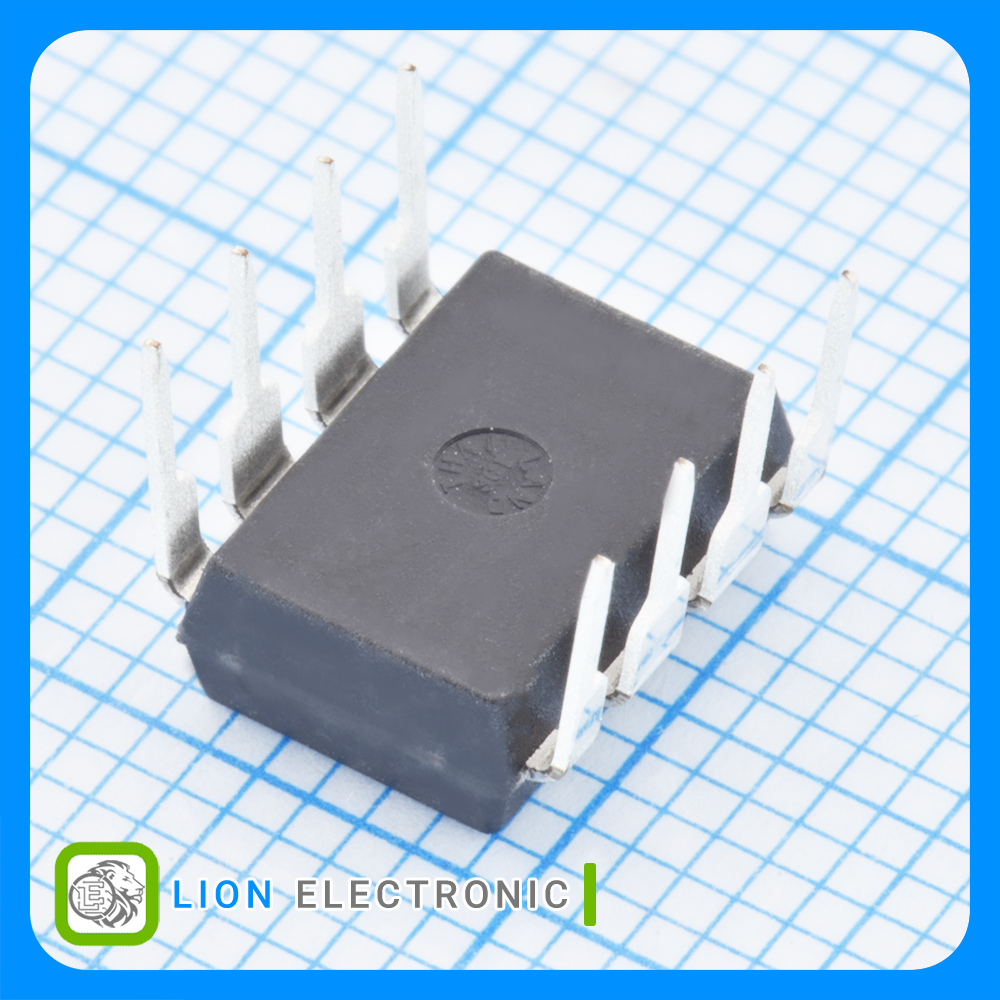

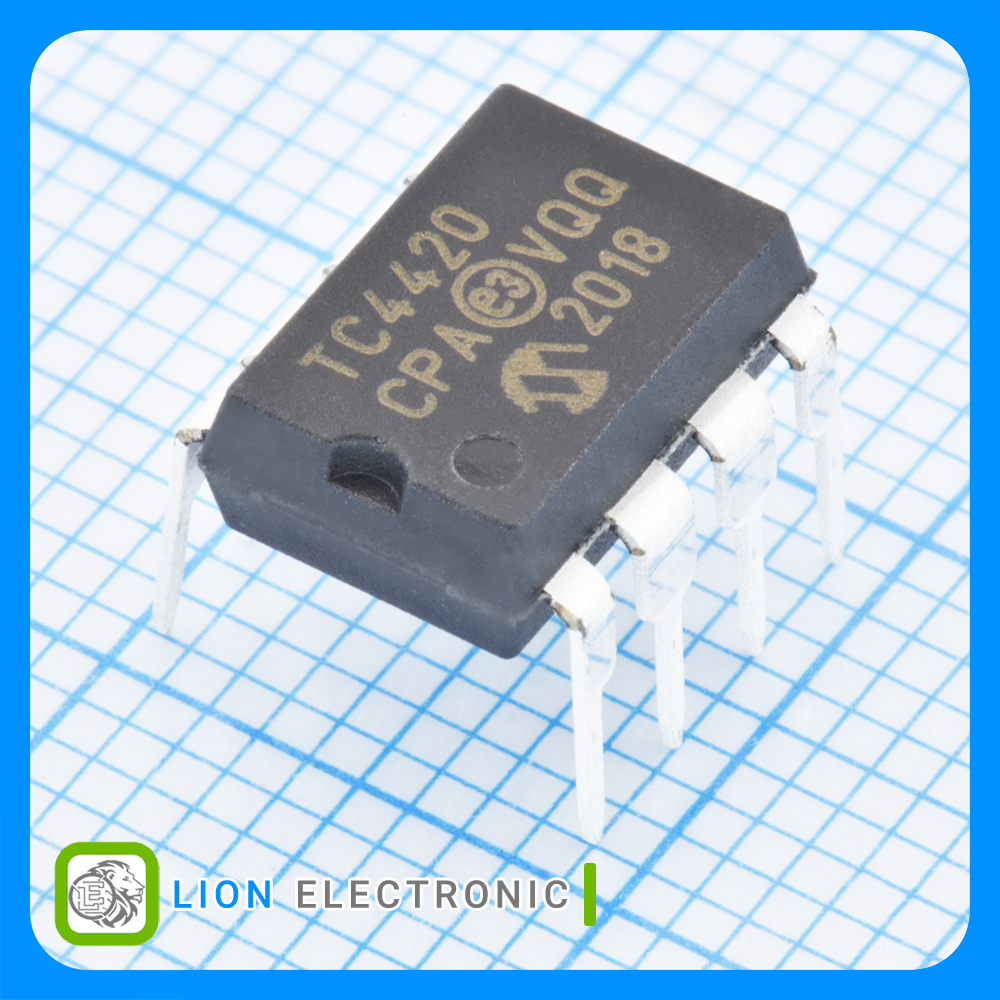

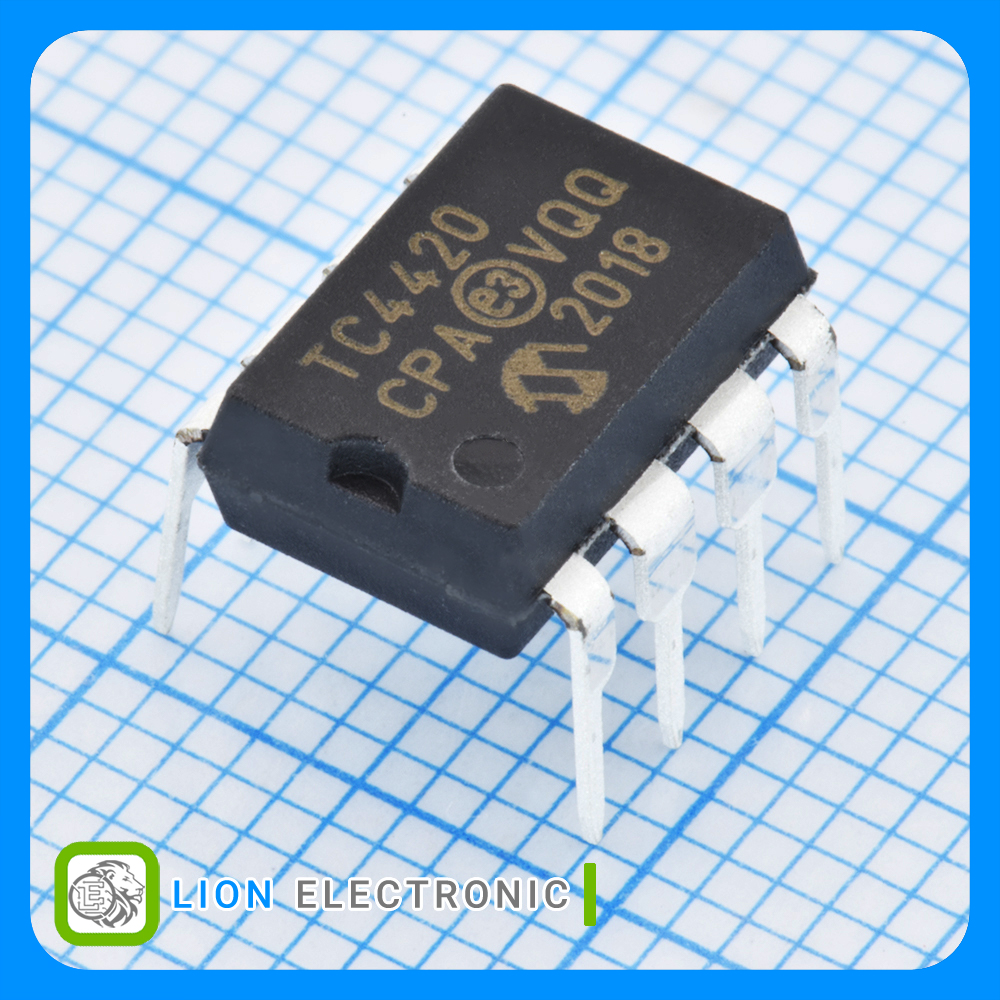

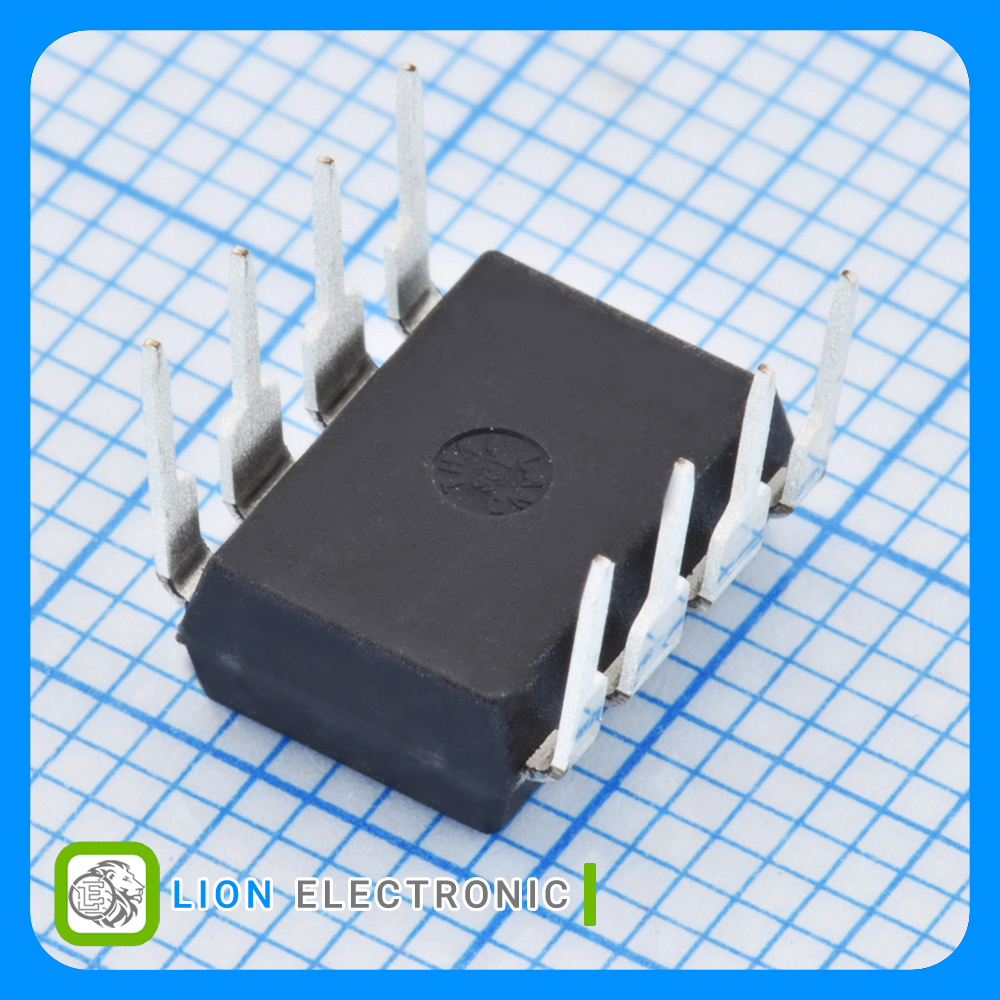

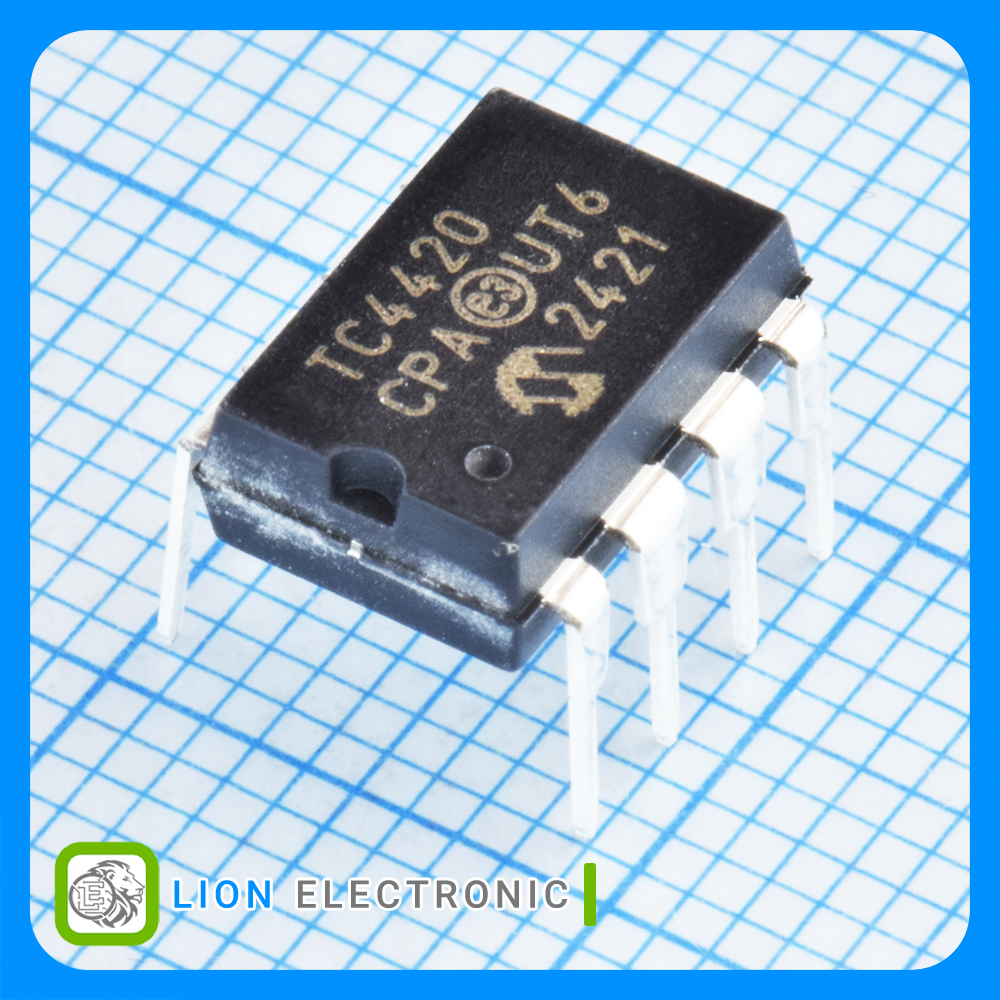

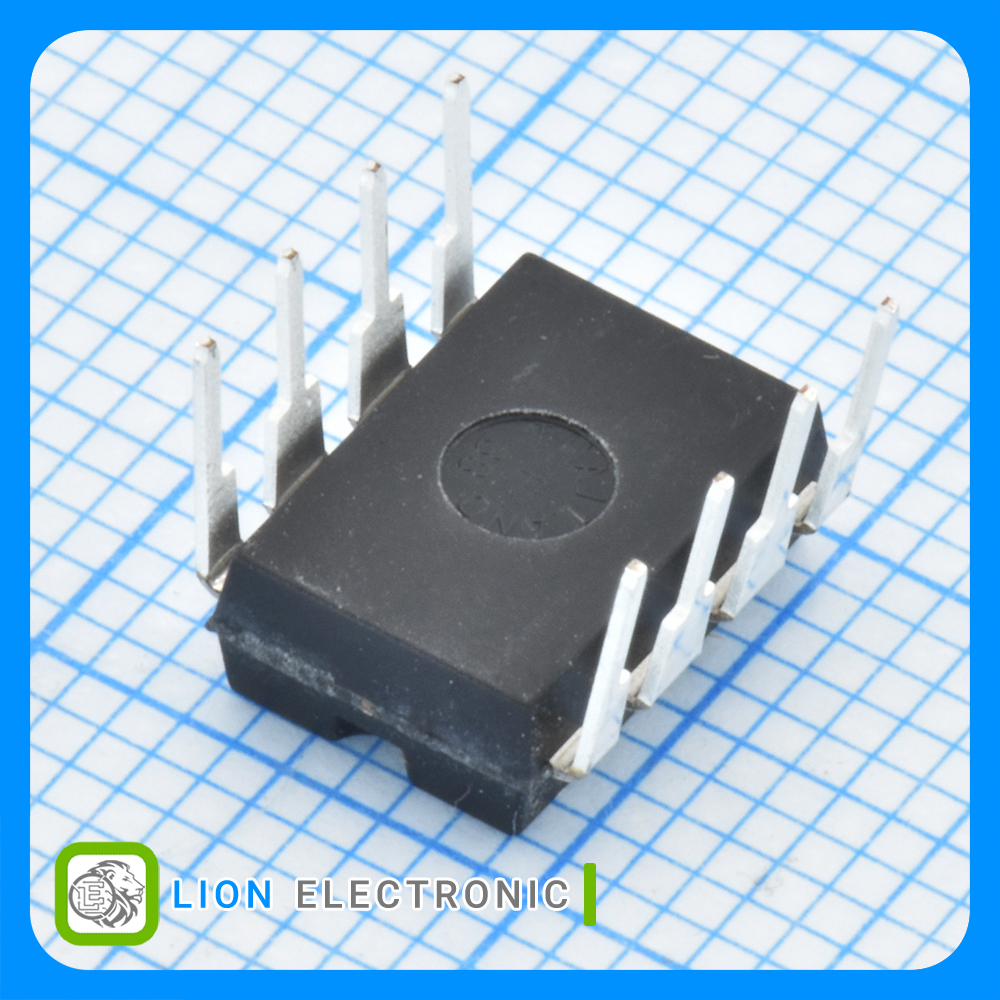

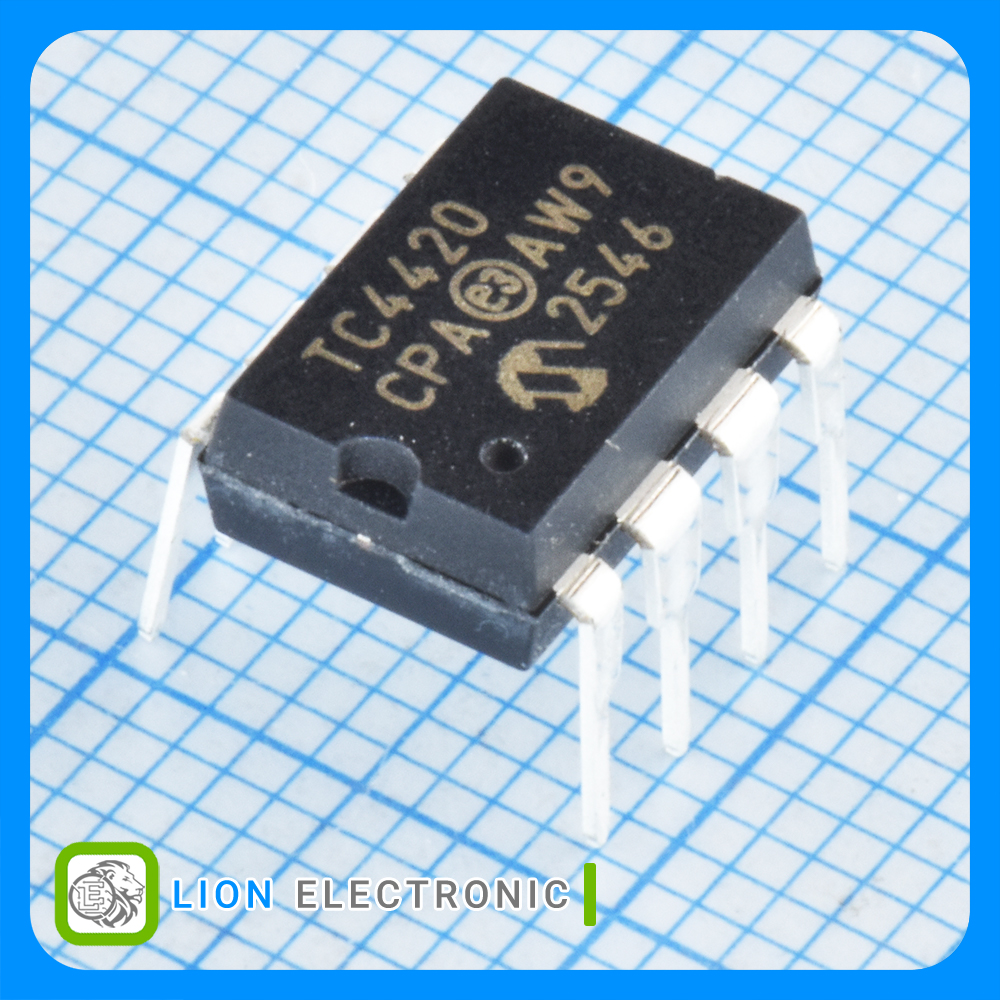

TC4420CPA
TC4420CPA
Part Number
763
Lion Part
Datasheet
Microchip Technology Manufacture
گیت درایور تکی با ولتاژ کاری 4.5 تا 18 ولت، جریان خروجی 6 آمپر با پکیج PDIP-8
Single Gate Driver, 4.5V to 18V Supply, 6A Output Current, with PDIP-8 Package
معرفی
گیت درایور تکی با ولتاژ کاری 4.5 تا 18 ولت، جریان خروجی 6 آمپر با پکیج PDIP-8
Single Gate Driver, 4.5V to 18V Supply, 6A Output Current, with PDIP-8 Package
Specifications
- Configuration: Single
- Output Current: 6A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 18V
- Operating Supply Current: 3mA
- Propagation Delay - Max: 75ns
- Pd - Power Dissipation: 730mW
- Number of Outputs: 1
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات TC4420CPA
TC4420CPA
Part Number
1
Number of Outputs
+70C
Maximum Operating Temperature
Tube
Packaging
N/A
Floating Voltage
Through Hole
Mounting Style
N/A
Dead Time
0C
Minimum Operating Temperature
75ns
Propagation Delay - Max
Single
Configuration
18V
Supply Voltage - Max
730mW
Pd - Power Dissipation
4.5V
Supply Voltage - Min
6A
Output Current
DIP-8
Package-Case
3mA
Operating Supply Current
