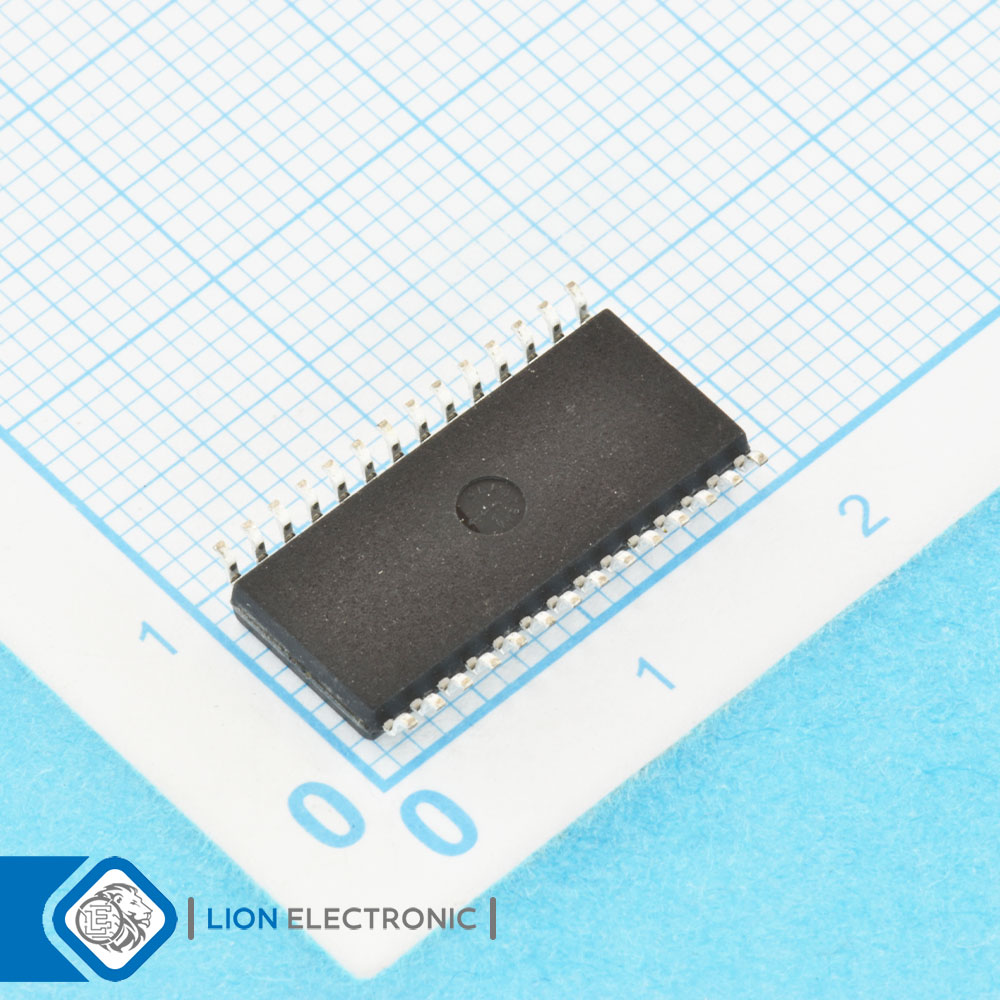

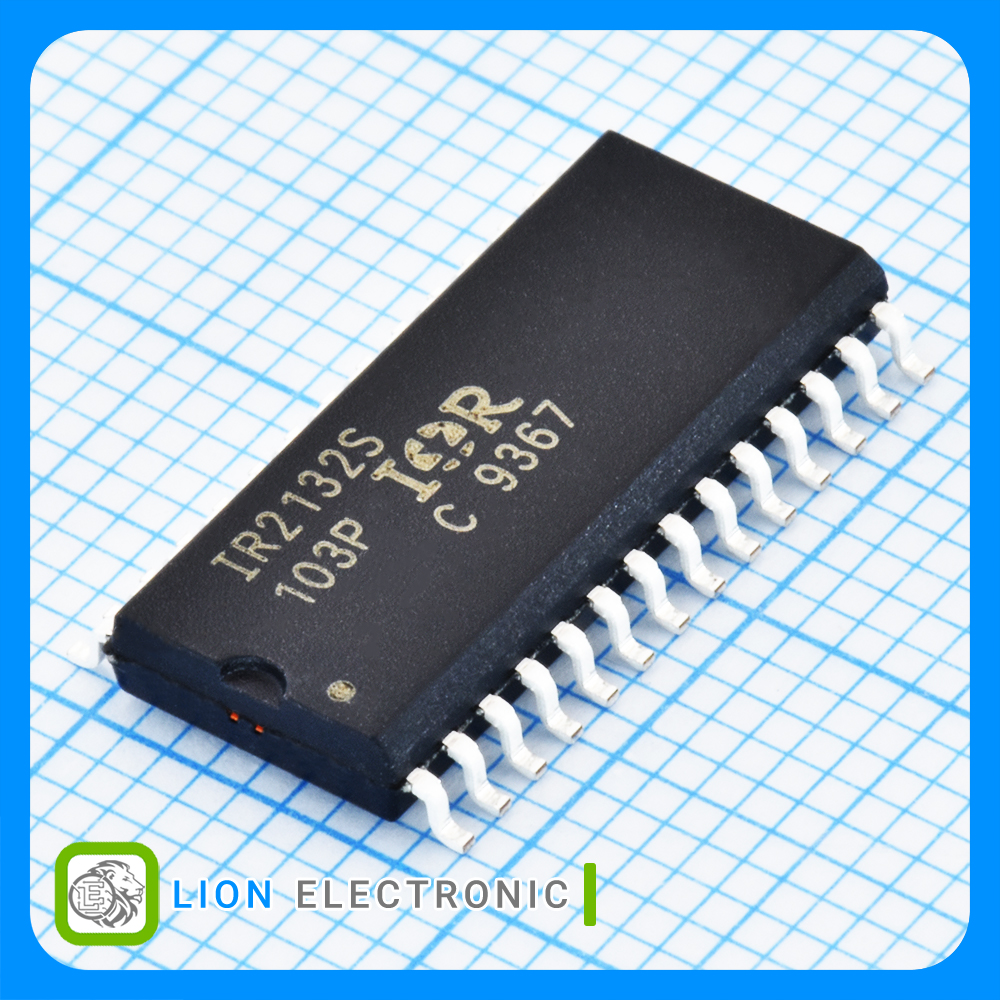

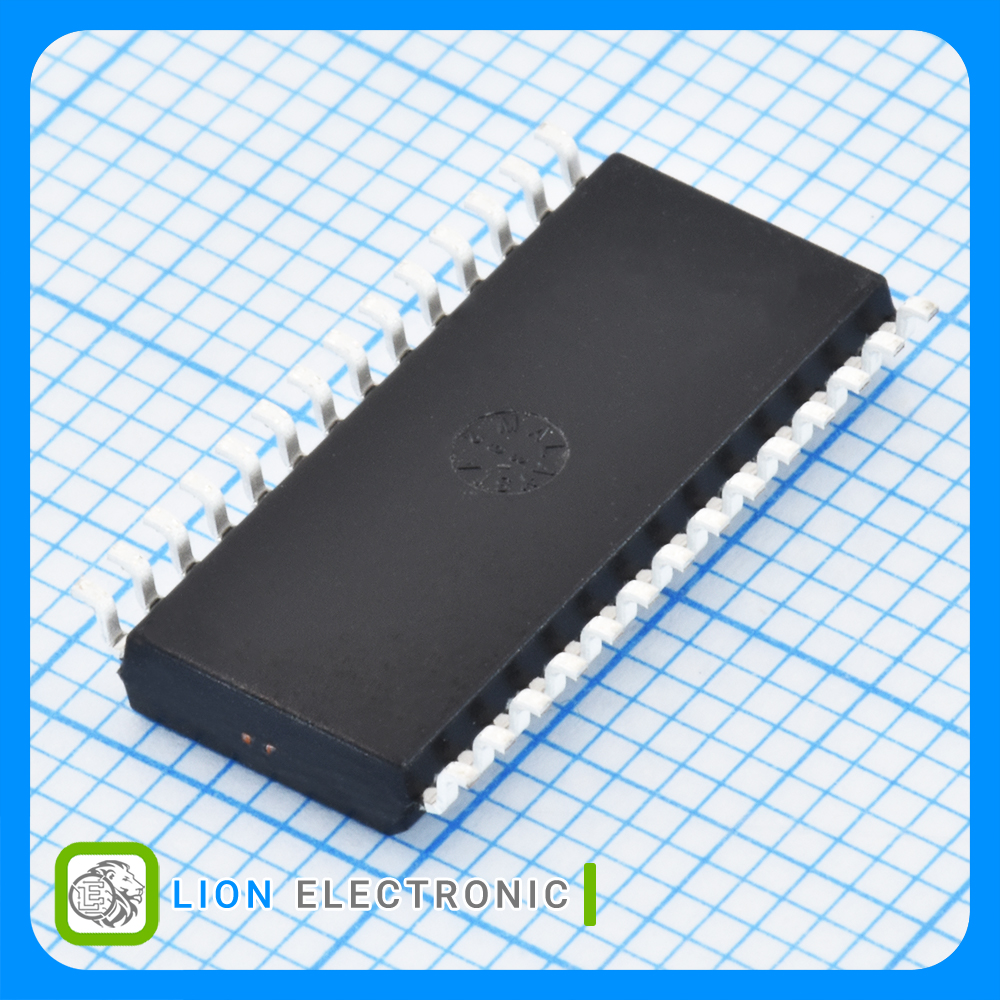

IR2132SPBF
IR2132SPBF
Part Number
771
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور سهفاز 20 ولت جریان خروجی 200 میلیآمپر ولتاژ شناور 600 ولت با پکیج SOIC-28
3-Phase Gate Driver 20V, 200mA, 600V Floating Voltage with SOIC-28 Package
معرفی
گیت درایور سهفاز 20 ولت جریان خروجی 200 میلیآمپر ولتاژ شناور 600 ولت با پکیج SOIC-28
3-Phase Gate Driver 20V, 200mA, 600V Floating Voltage with SOIC-28 Package
Specifications
- Configuration: 3-Phase
- Output Current: 200mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 30uA
- Dead Time: 0.8us
- Propagation Delay - Max: 850ns
- Pd - Power Dissipation: 1.6W
- Floating Voltage: 600V
- Number of Outputs: 6
- Mounting Style: SMD/SMT
- Package/Case: SOIC-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات IR2132SPBF
IR2132SPBF
Part Number
0.8us
Dead Time
6
Number of Outputs
600V
Floating Voltage
-40C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
3-Phase
Configuration
+125C
Maximum Operating Temperature
30uA
Operating Supply Current
200mA
Output Current
850ns
Propagation Delay - Max
20V
Supply Voltage - Max
10V
Supply Voltage - Min
1.6W
Pd - Power Dissipation
SOIC-28
Package-Case
