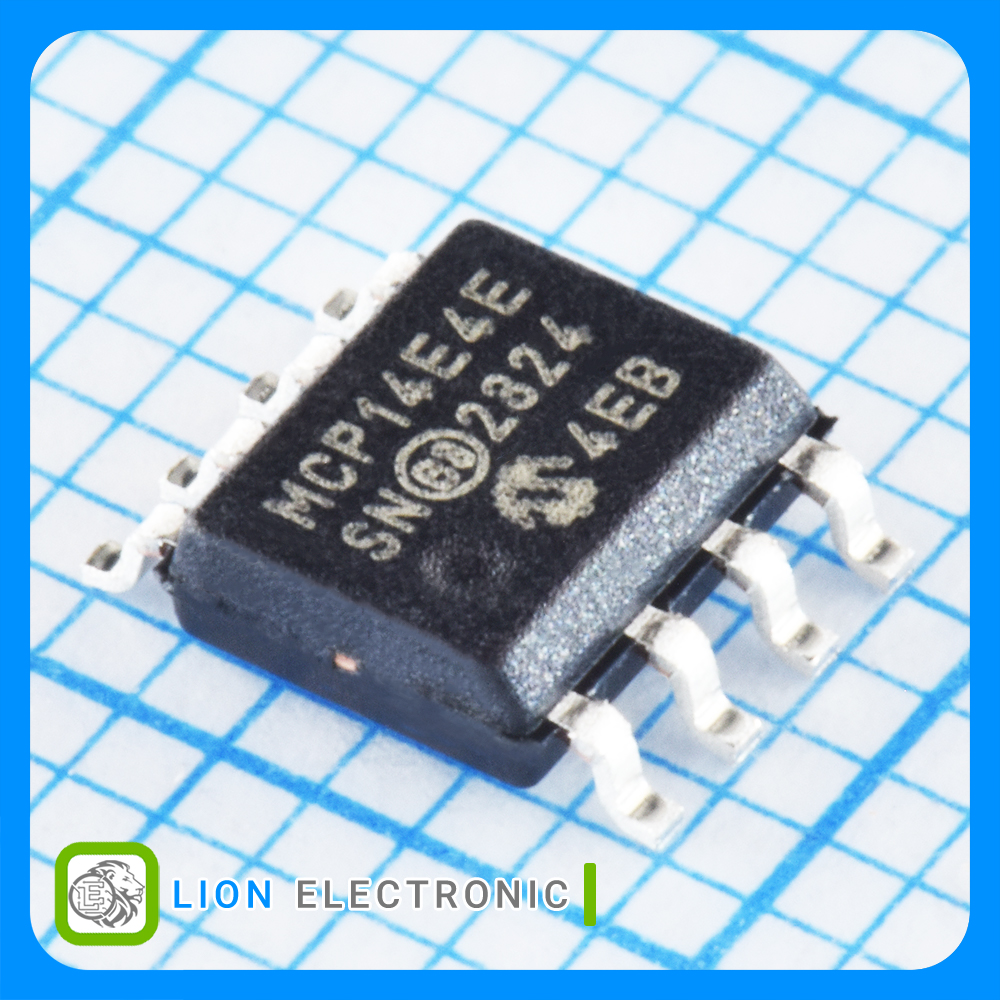

MCP14E4-E/SN
MCP14E4-E/SN
Part Number
773
Lion Part
Datasheet
Microchip Technology Manufacture
گیت درایور دوتایی 18 ولت جریان خروجی 4 آمپر با پکیج SOIC-8
Dual Gate Driver 18V, 4A with SOIC-8 Package
معرفی
گیت درایور دوتایی 18 ولت جریان خروجی 4 آمپر با پکیج SOIC-8
Dual Gate Driver 18V, 4A with SOIC-8 Package
Specifications
- Configuration: Dual
- Output Current: 4A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 18V
- Operating Supply Current: 750uA
- Propagation Delay - Max: 70ns
- Pd - Power Dissipation: 665mW
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات MCP14E4-E/SN
MCP14E4-E/SN
Part Number
2
Number of Outputs
-40C
Minimum Operating Temperature
N/A
Floating Voltage
Tube
Packaging
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Dual
Configuration
70ns
Propagation Delay - Max
665mW
Pd - Power Dissipation
18V
Supply Voltage - Max
4.5V
Supply Voltage - Min
4A
Output Current
750uA
Operating Supply Current
SOIC-8
Package-Case
