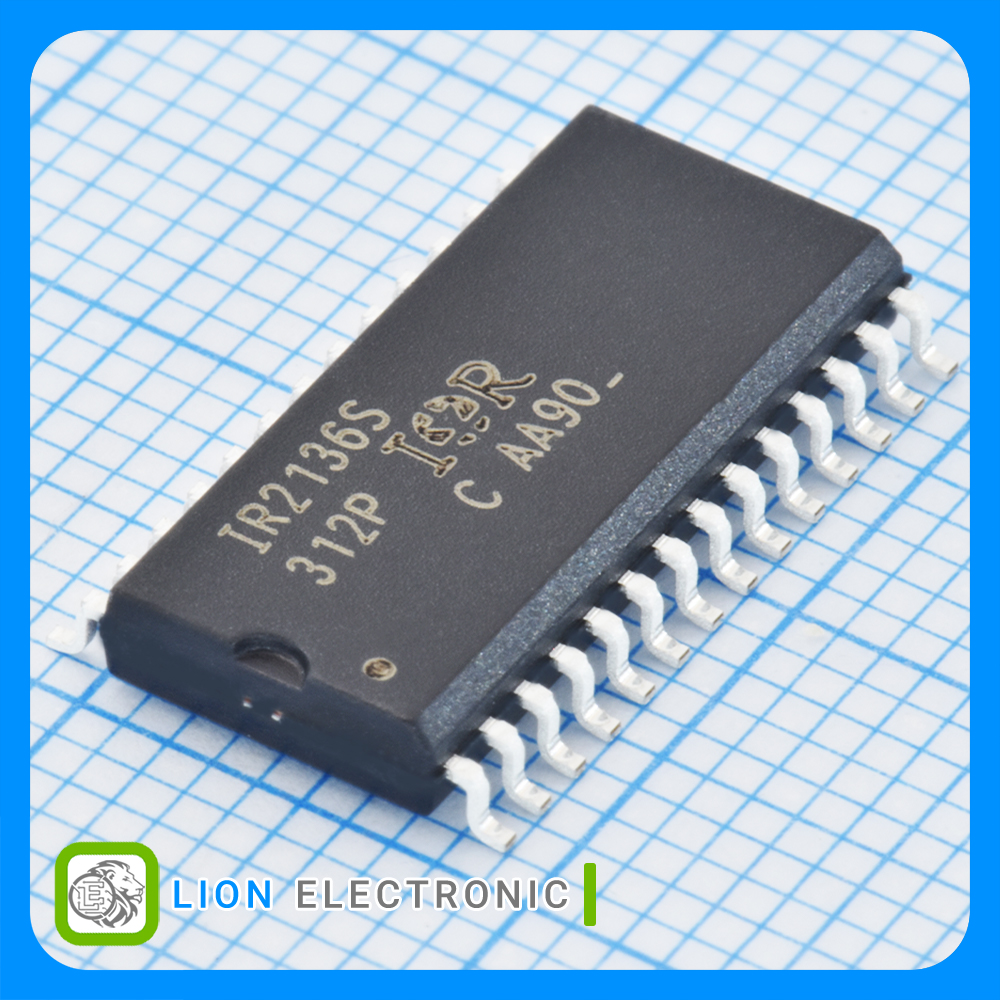

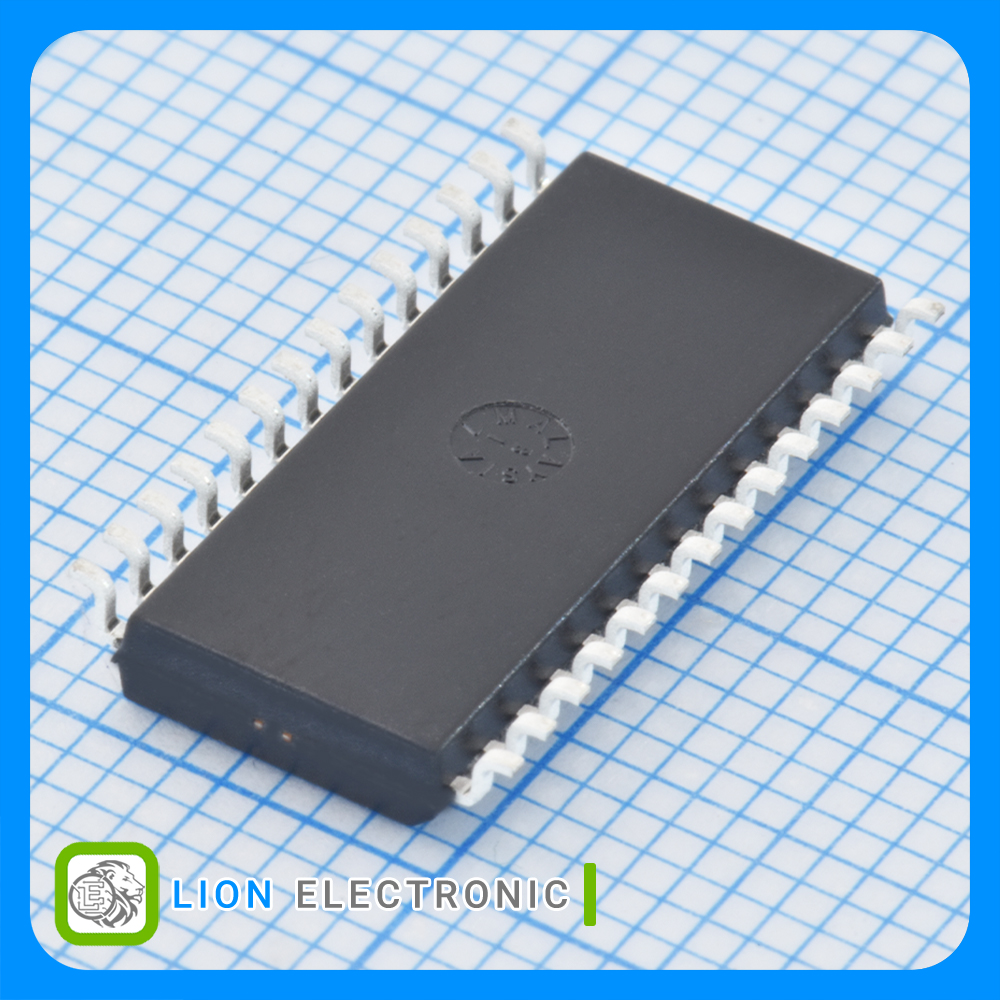

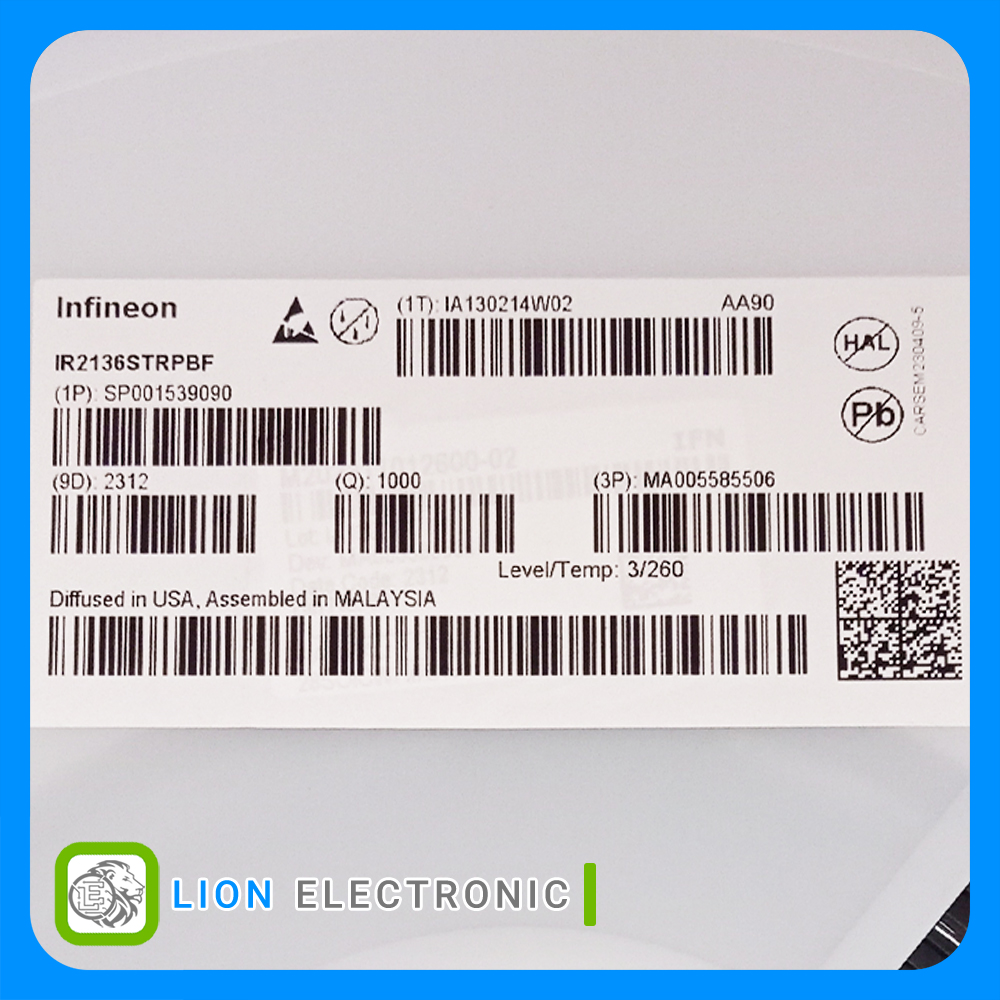

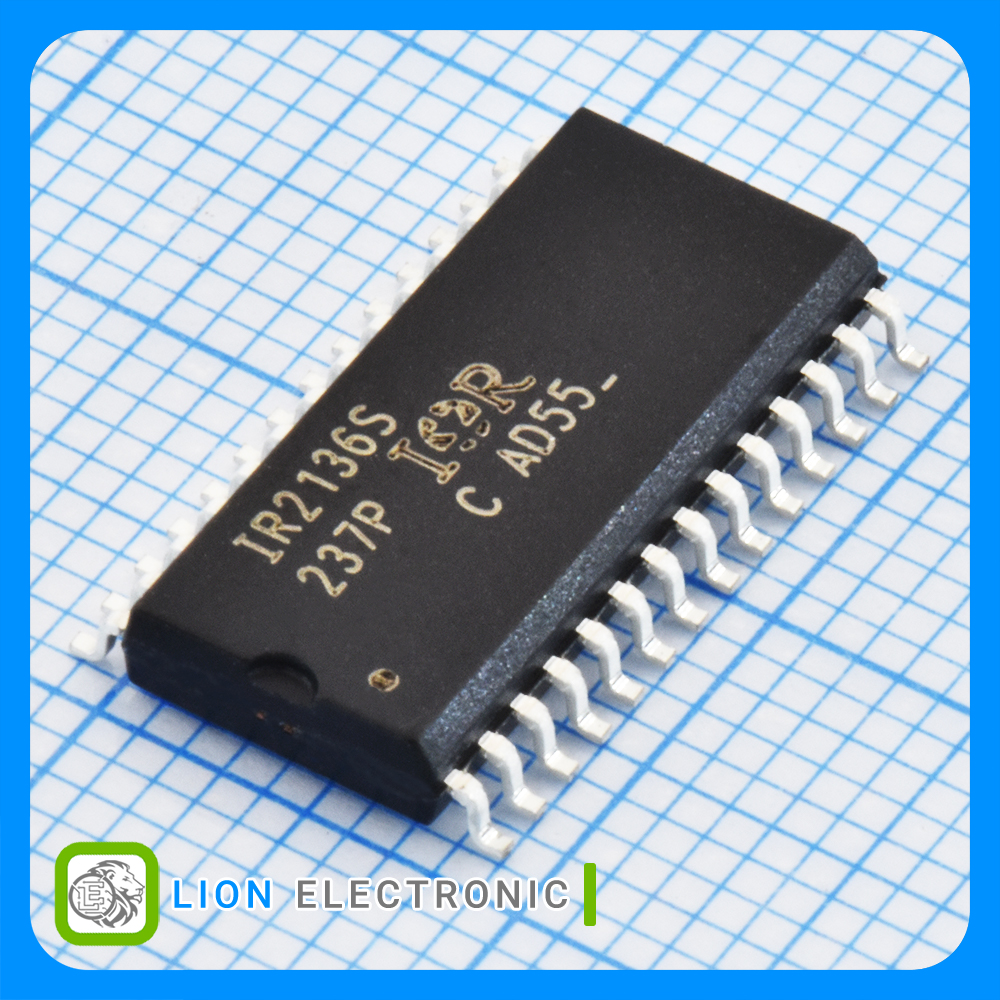

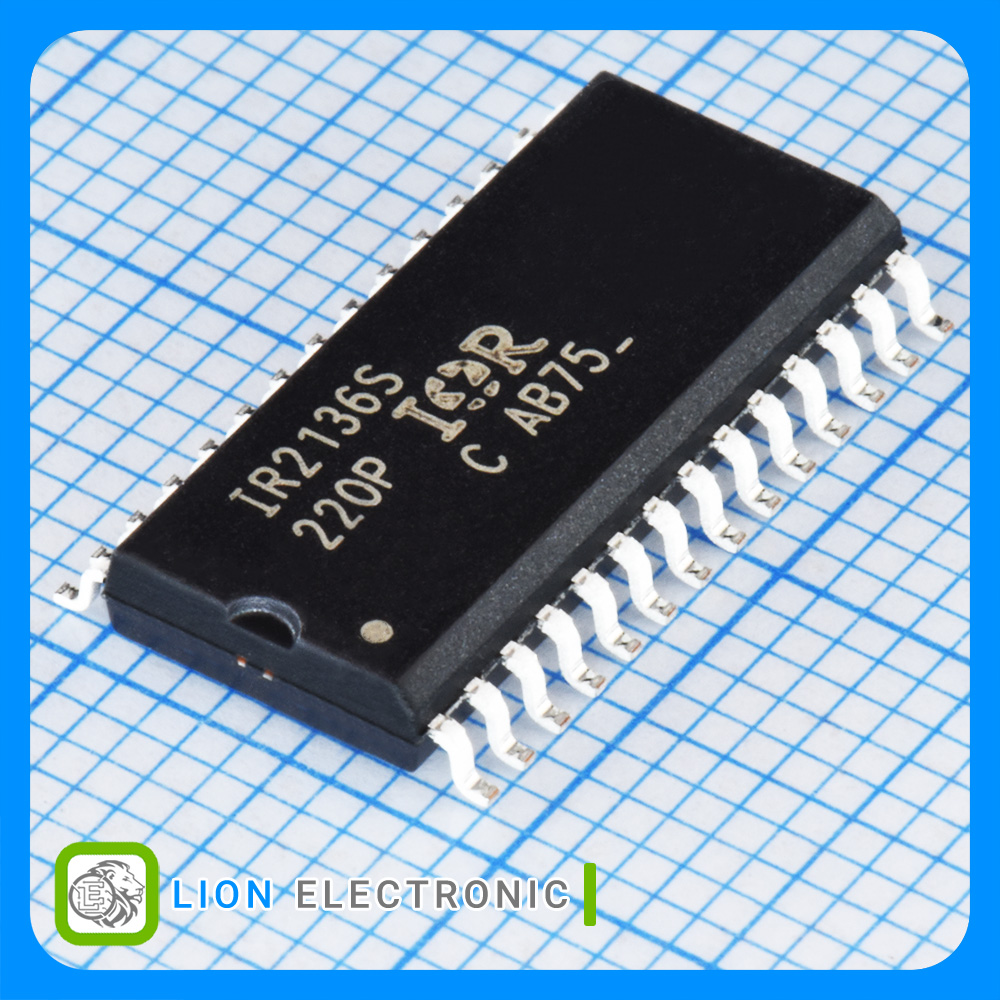

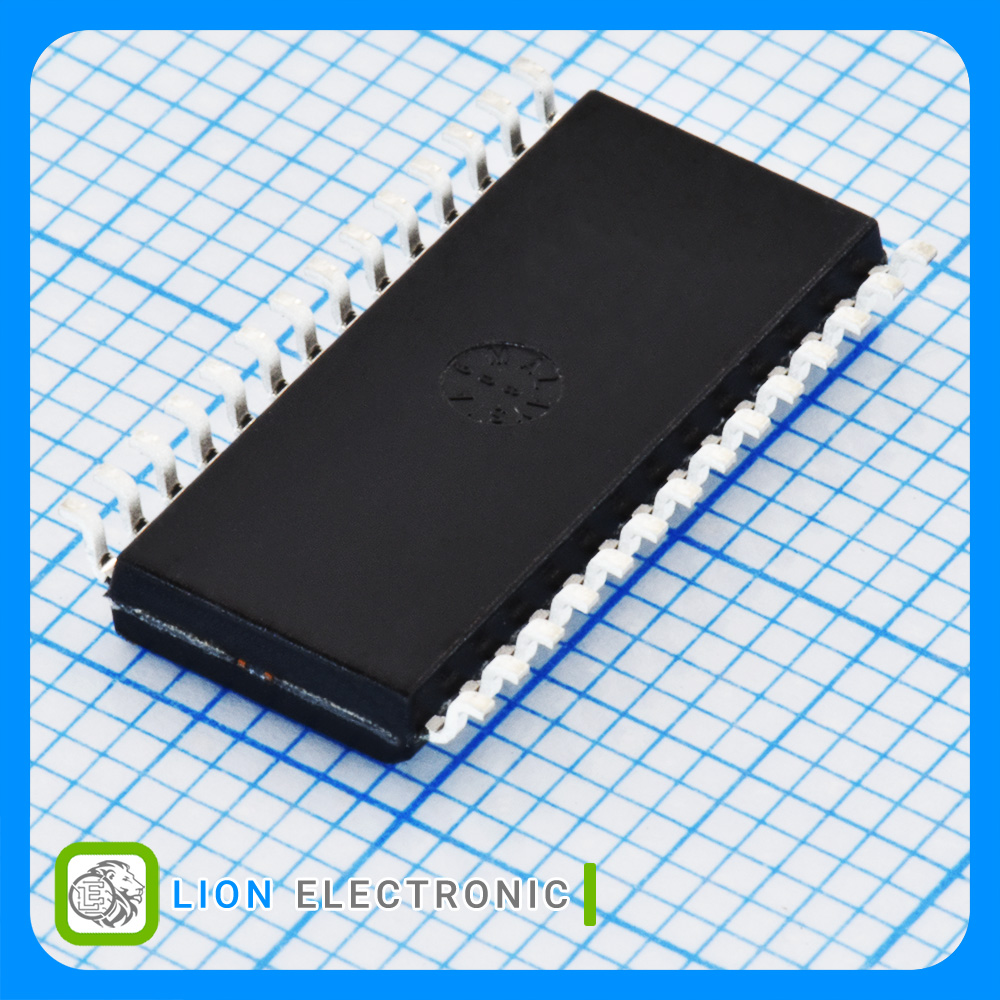

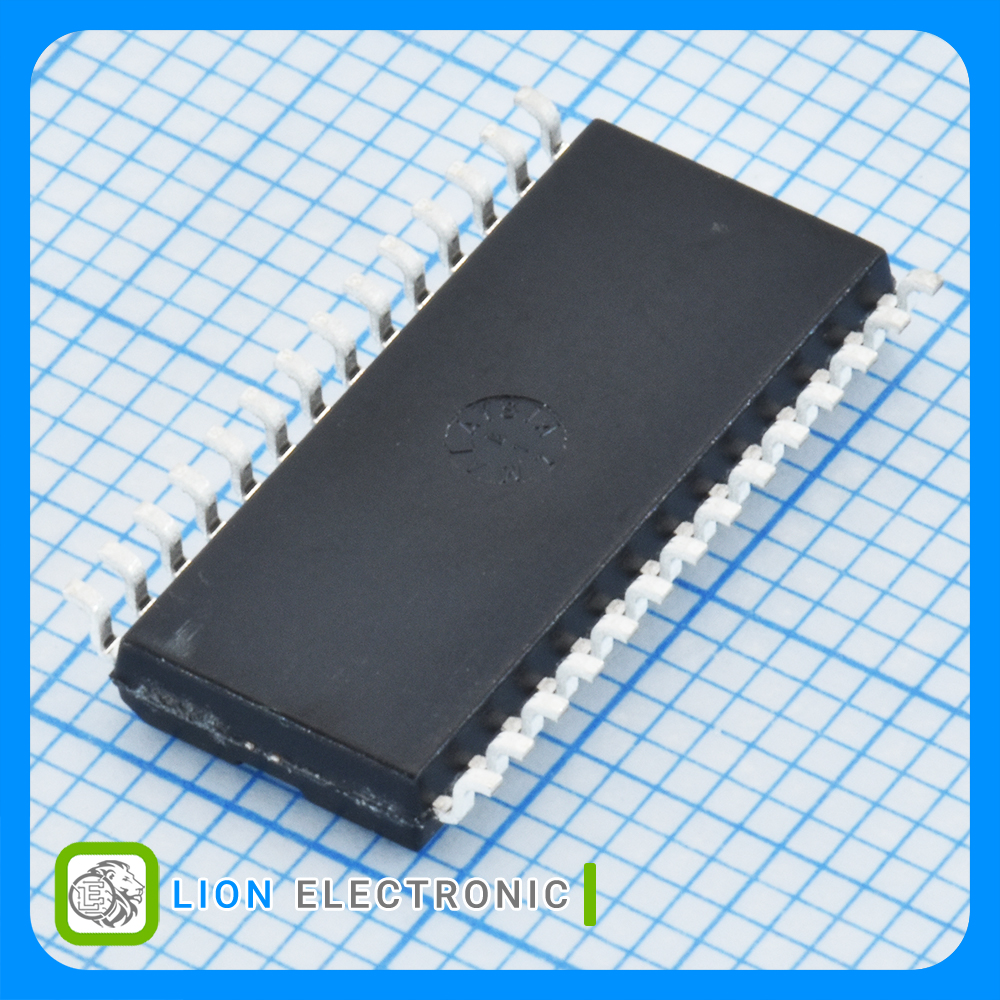

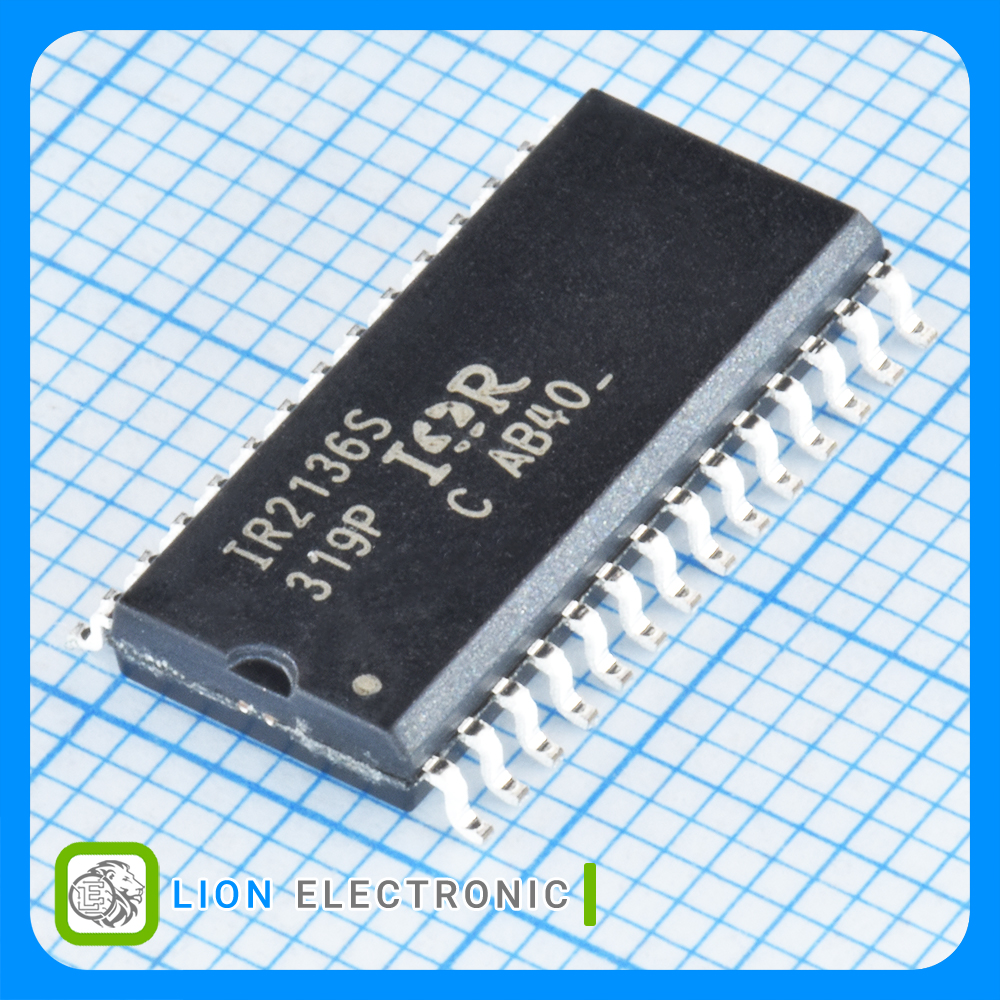

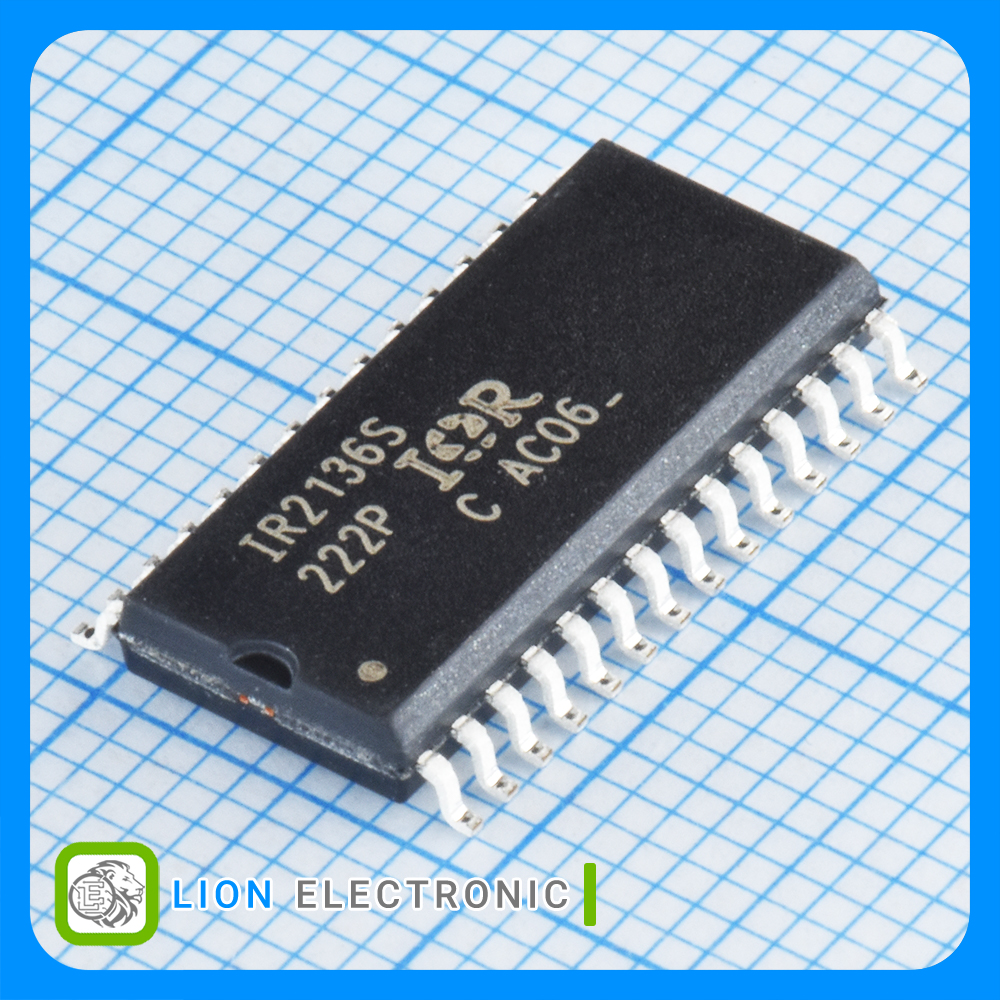

IR2136STRPBF
IR2136STRPBF
Part Number
775
Lion Part
Datasheet
International Rectifier Manufacture
گیت درایور 3-Phase 20 ولت جریان خروجی 200 میلیآمپر با پکیج SOIC-28
3-Phase Gate Driver 20V, 200mA with SOIC-28 Package
معرفی
گیت درایور 3-Phase 20 ولت جریان خروجی 200 میلیآمپر با پکیج SOIC-28
3-Phase Gate Driver 20V, 200mA with SOIC-28 Package
Specifications
- Configuration: 3-Phase
- Output Current: 200mA
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 1.6mA
- Dead Time: 360ns
- Propagation Delay - Max: 425ns
- Pd - Power Dissipation: 1.6W
- Floating Voltage: 600V
- Number of Outputs: 6
- Mounting Style: SMD/SMT
- Package/Case: SOIC-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات IR2136STRPBF
IR2136STRPBF
Part Number
6
Number of Outputs
360ns
Dead Time
600V
Floating Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3-Phase
Configuration
+125C
Maximum Operating Temperature
200mA
Output Current
425ns
Propagation Delay - Max
20V
Supply Voltage - Max
10V
Supply Voltage - Min
1.6W
Pd - Power Dissipation
1.6mA
Operating Supply Current
SOIC-28
Package-Case
