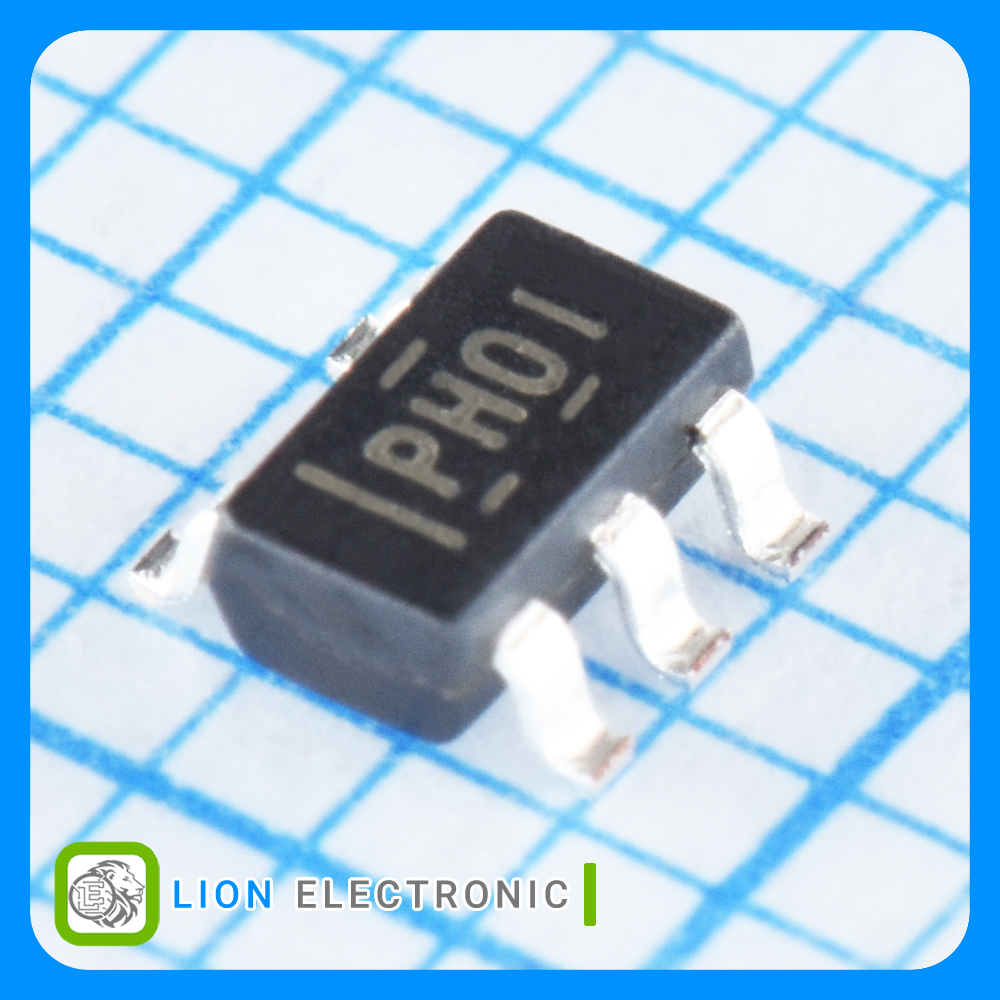

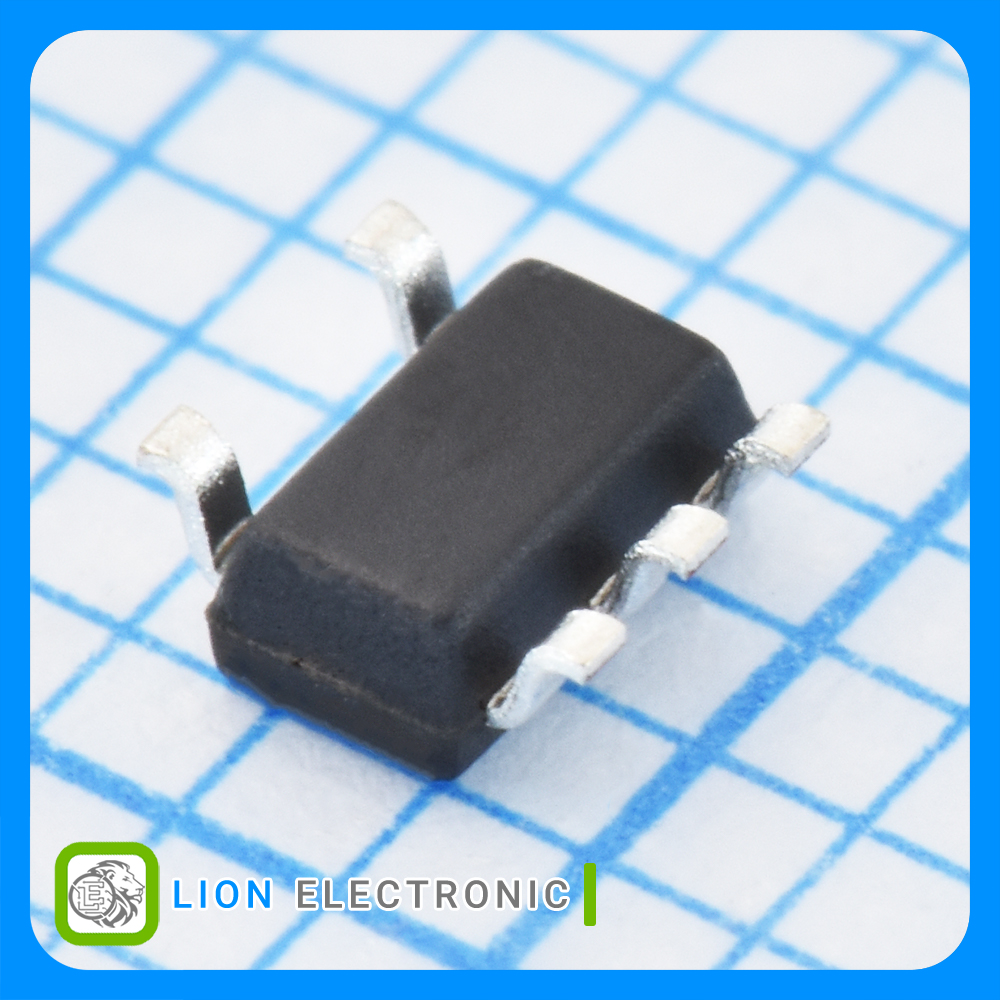

TPS61040DBVR
TPS61040DBVR
Part Number
791
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور سوئیچینگ بوست خروجی 1.8 تا 28 ولت 400 میلیآمپر ورودی 1.8 تا 6 ولت با پکیج SOT-23-5
Low-Power DC-DC Boost Switching Regulator 1.8-28V, 400mA Output, 1.8V-6V Input with SOT-23-5 Package
معرفی
رگولاتور سوئیچینگ بوست خروجی 1.8 تا 28 ولت 400 میلیآمپر ورودی 1.8 تا 6 ولت با پکیج SOT-23-5
Low-Power DC-DC Boost Switching Regulator 1.8-28V, 400mA Output, 1.8V-6V Input with SOT-23-5 Package
Specifications
- Topology: Boost
- Switching Frequency: 1MHz
- Number of Outputs: 1
- Output Voltage: 1.8 - 28V
- Output Current: 400mA
- Synchronous Rectification: No
- Input Voltage Min: 1.8V
- Input Voltage Max: 6V
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TPS61040DBVR
TPS61040DBVR
Part Number
Boost
Topology
No
Synchronous Rectification
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
6V
Input Voltage Max
1.8V
Input Voltage Min
400mA
Output Current
1MHz
Switching Frequency
1.8 - 28V
Output Voltage
SOT-23-5
Package-Case
