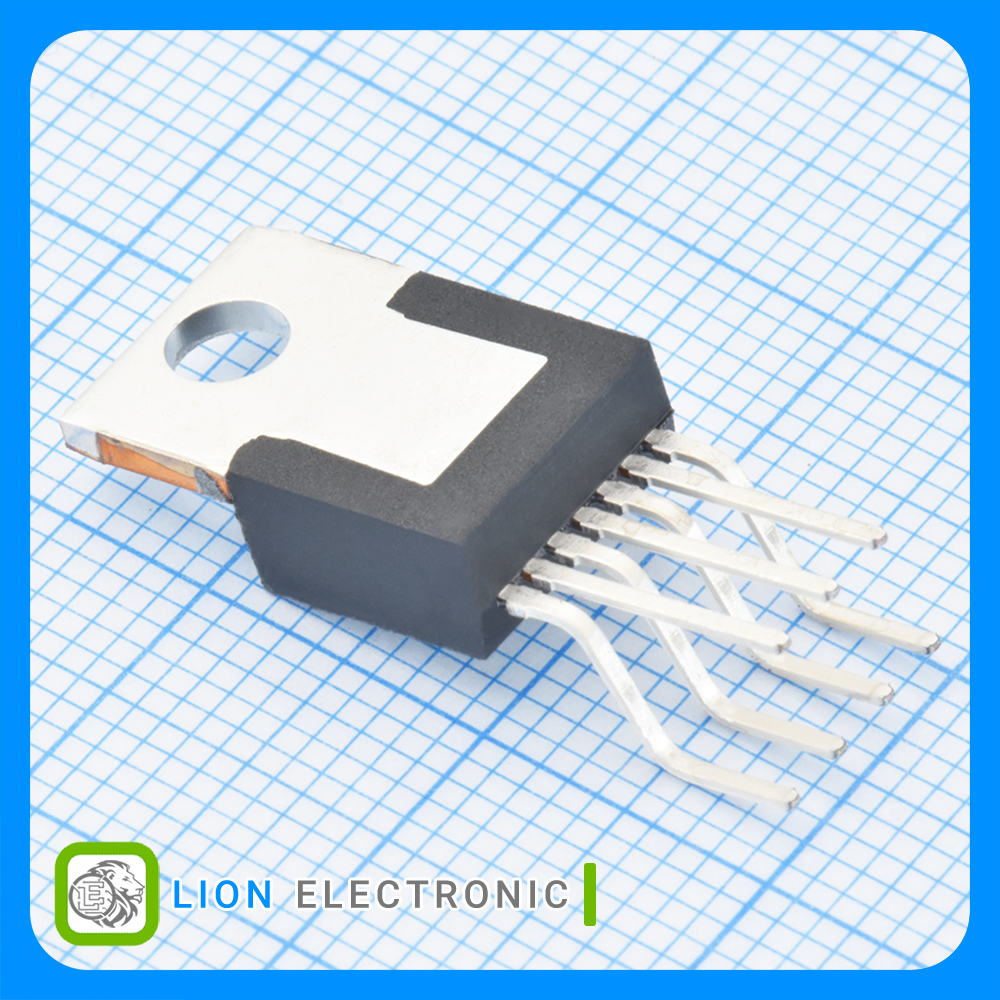

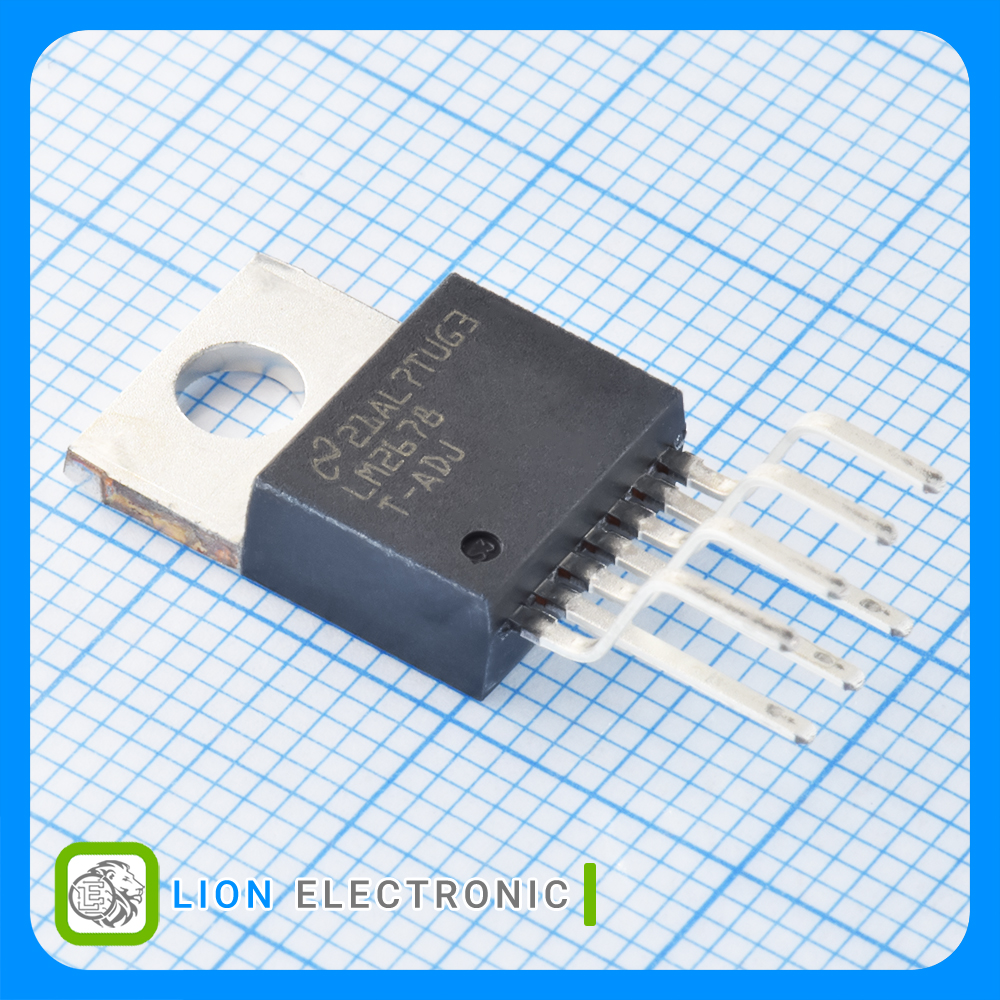

LM2678T-ADJ
LM2678T-ADJ
Part Number
841
Lion Part
Datasheet
National Semiconductor Manufacture
رگولاتور سوئیچینگ باک پر بازده 1.2 تا 37 ولت 5 آمپر ورودی 8 تا 40 ولت با پکیج TO-220-7
Simple Switcher High Efficiency 5A Step-Down Voltage Regulator Buck 1.2 - 37V, 5A Output, 8V-40V Input with TO-220-7 Package
معرفی
رگولاتور سوئیچینگ باک پر بازده 1.2 تا 37 ولت 5 آمپر ورودی 8 تا 40 ولت با پکیج TO-220-7
Simple Switcher High Efficiency 5A Step-Down Voltage Regulator Buck 1.2 - 37V, 5A Output, 8V-40V Input with TO-220-7 Package
Specifications
- Topology: Buck
- Switching Frequency: 260kHz
- Number of Outputs: 1
- Output Voltage: 1.2 - 37V
- Output Current: 5A
- Synchronous Rectification: No
- Input Voltage Min: 8V
- Input Voltage Max: 40V
- Mounting Style: Through Hole
- Package/Case: TO-220-7
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات LM2678T-ADJ
LM2678T-ADJ
Part Number
No
Synchronous Rectification
1
Number of Outputs
-40C
Minimum Operating Temperature
Tube
Packaging
Buck
Topology
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
40V
Input Voltage Max
260kHz
Switching Frequency
8V
Input Voltage Min
1.2 - 37V
Output Voltage
5A
Output Current
TO-220-7
Package-Case
