S3AB-13-F
S3AB-13-F
Part Number
91
Lion Part
Datasheet
Diodes Incorporated Manufacture
دیود 50 ولت 3 آمپر با پکیج DO-214AA (SMB)

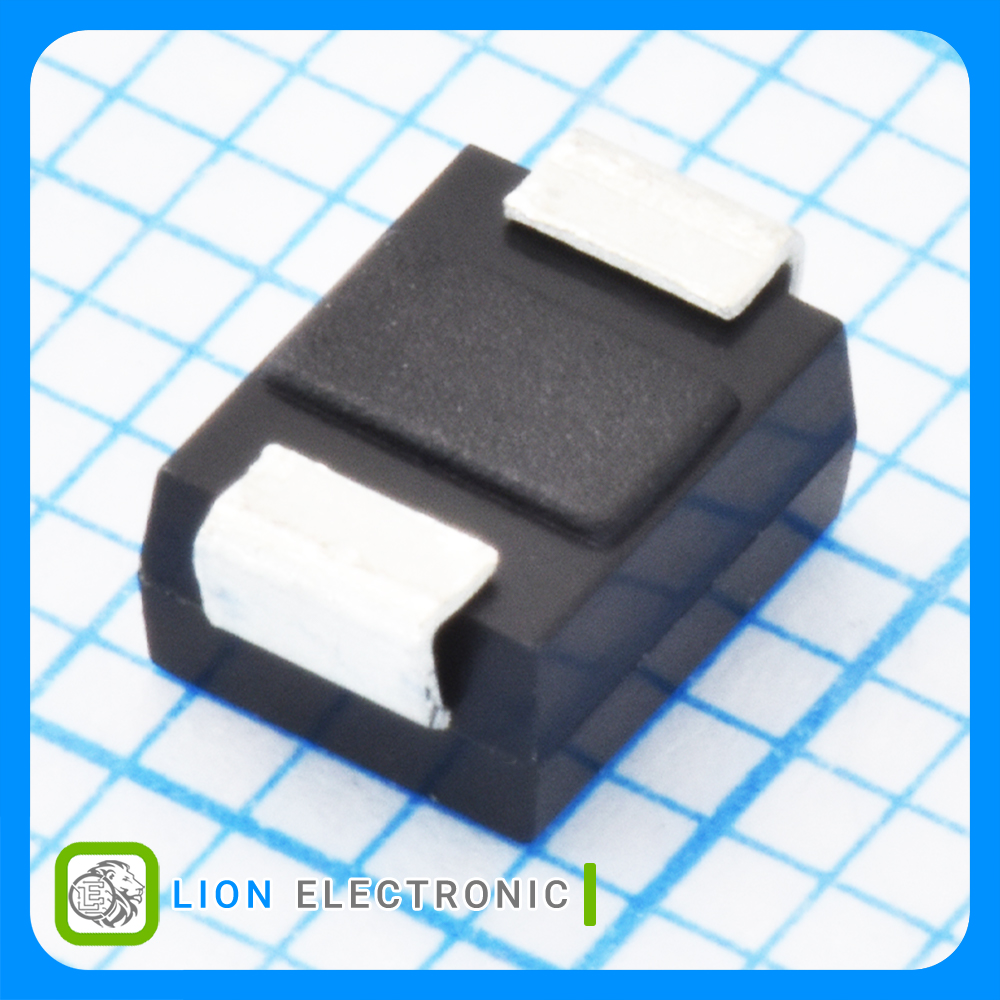

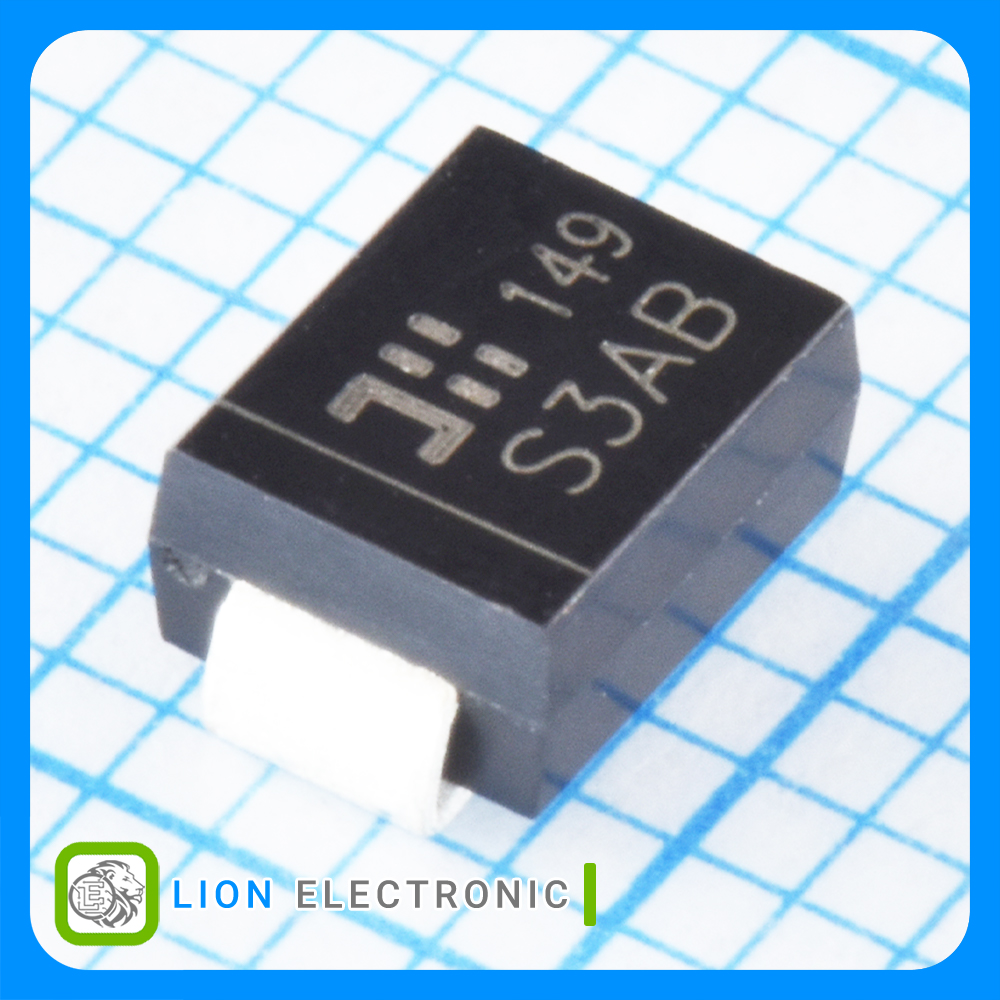

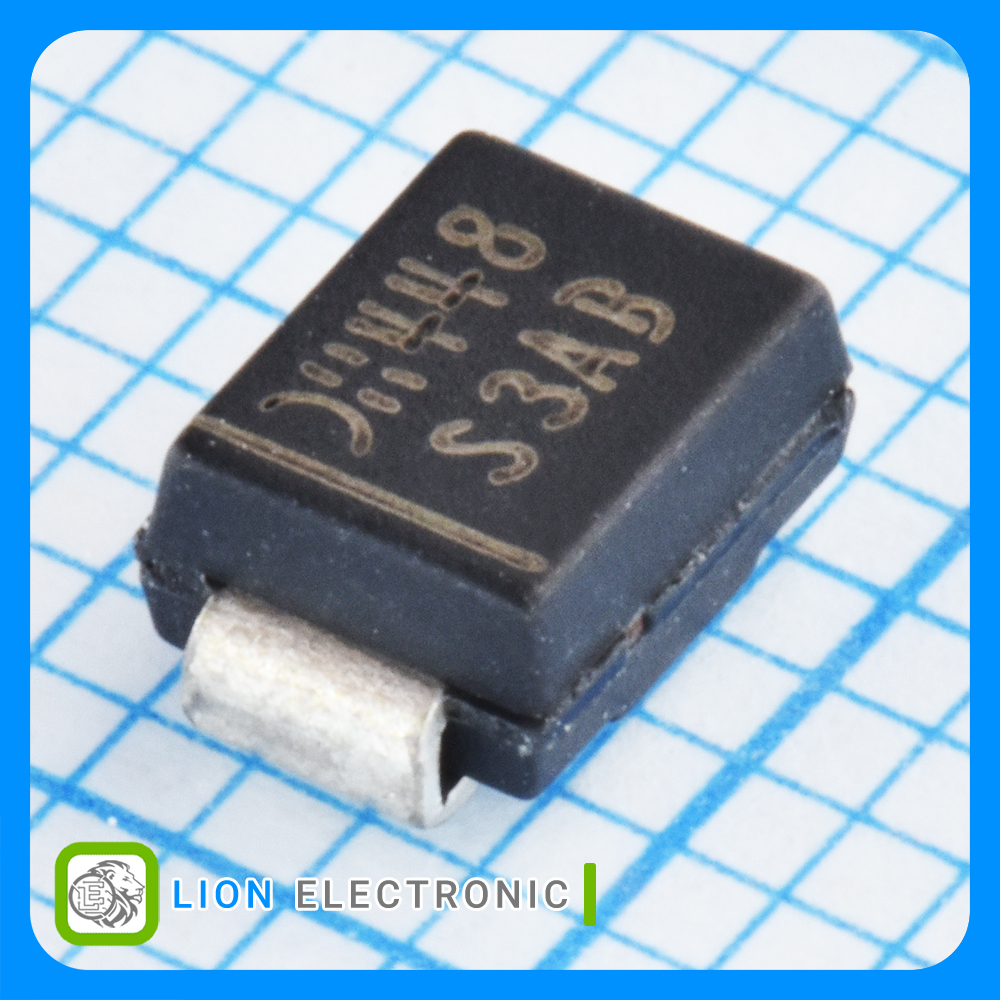

Diode 50V, 3A with DO-214AA (SMB) Package
معرفی
دیود 50 ولت 3 آمپر با پکیج DO-214AA (SMB)
Diode 50V, 3A with DO-214AA (SMB) Package
Specifications
- Configuration: Single
- Vr - Reverse Voltage: 50V
- If - Forward Current: 3A
- Max Surge Current: 100A
- Vf - Forward Voltage: 1.15V
- Ir - Reverse Current: 10uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود S3AB-13-F
دیود S3AB-13-F
Part Number
50V
Peak Reverse Voltage
-65C
Minimum Operating Temperature
50V
Vr - Reverse Voltage
Reel
Packaging
SMD/SMT
Mounting Style
10uA
Ir - Reverse Current
100A
Max Surge Current
+150C
Maximum Operating Temperature
N/A
Recovery Time
Single
Configuration
3A
If - Forward Current
1.15V
Vf - Forward Voltage
Rectifiers
Product
DO-214AA (SMB)
Package-Case
