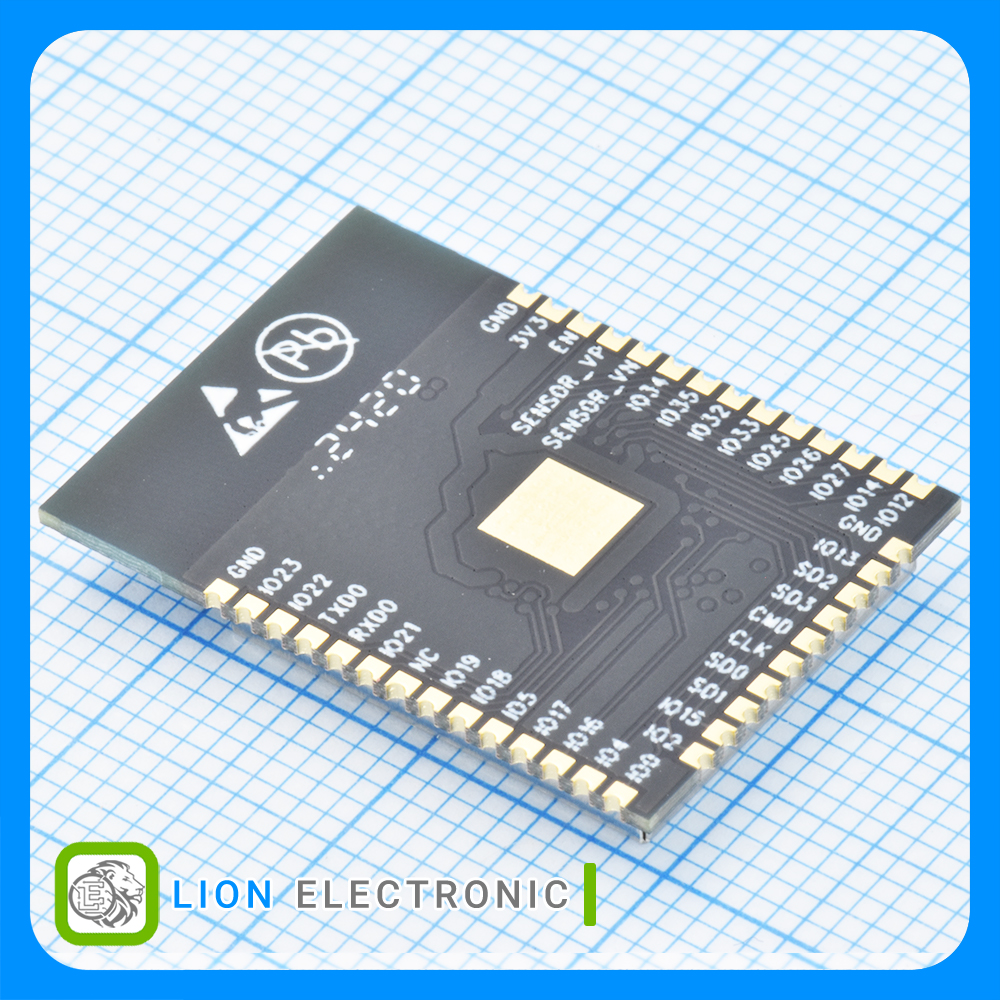

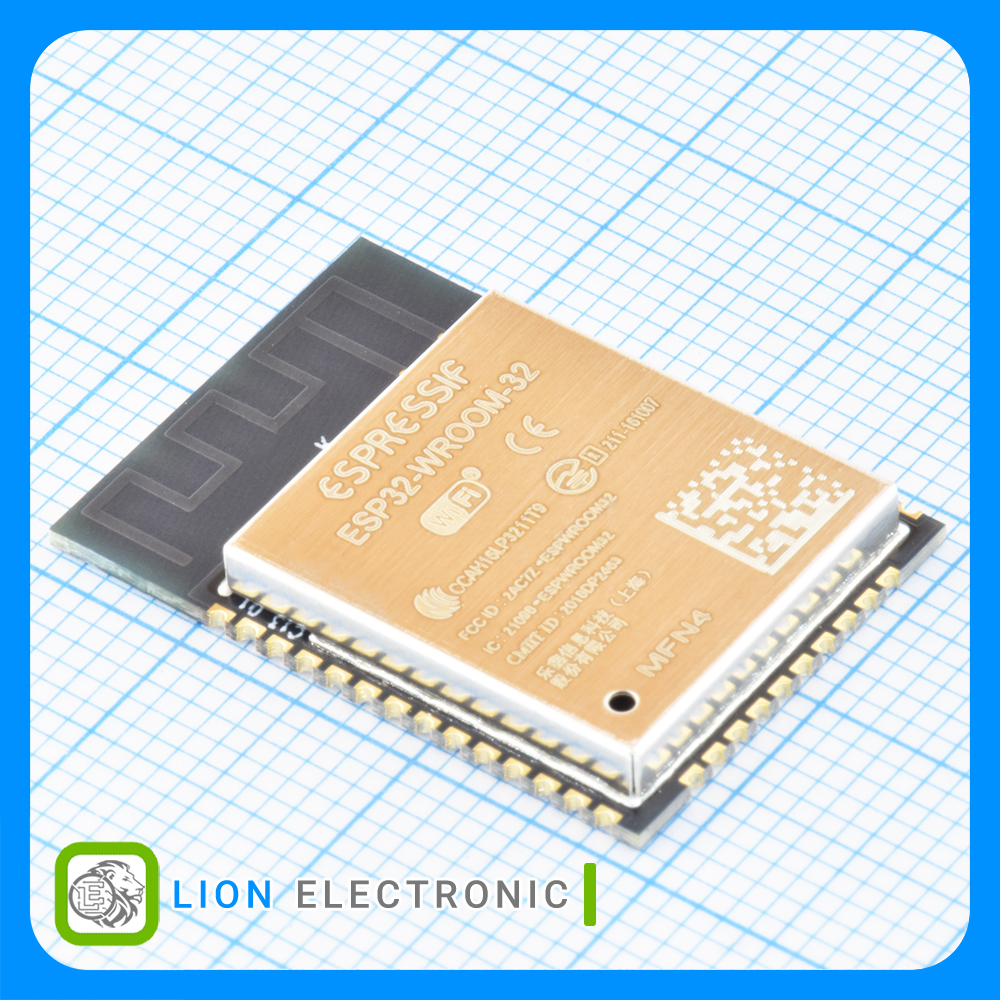

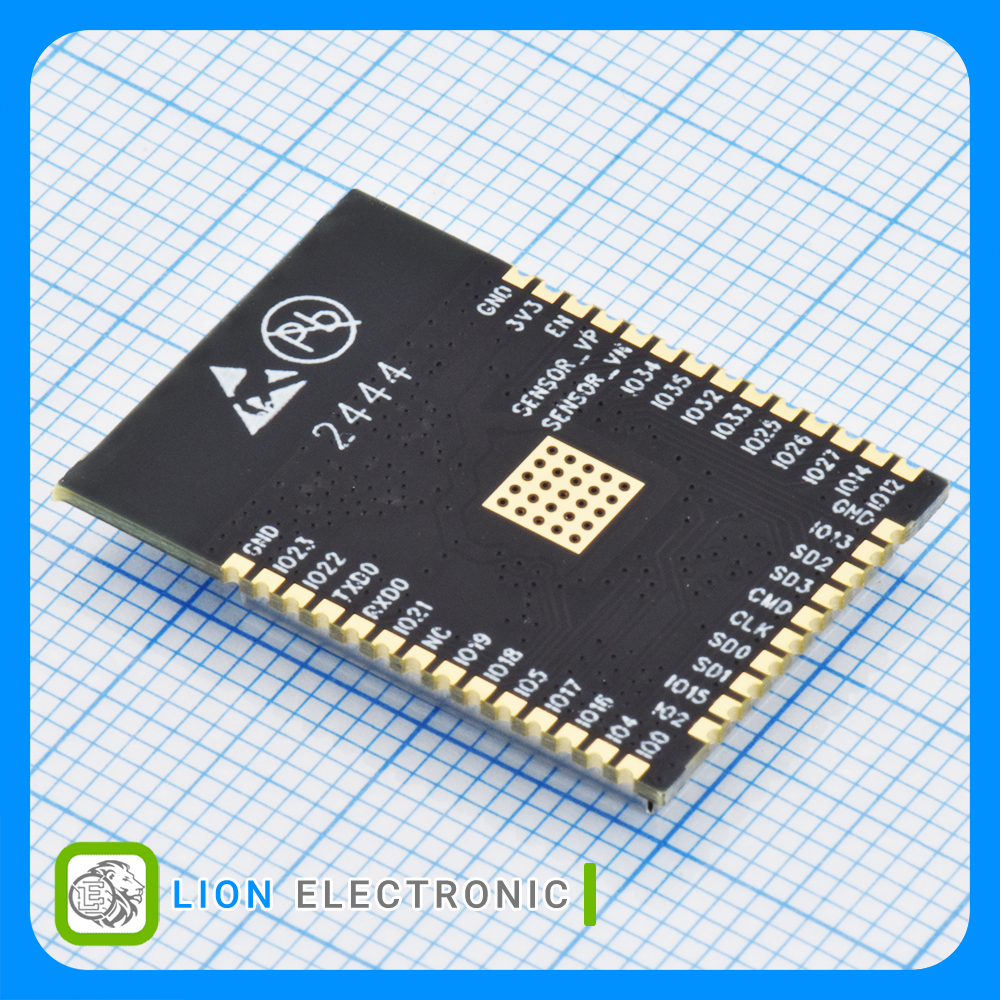

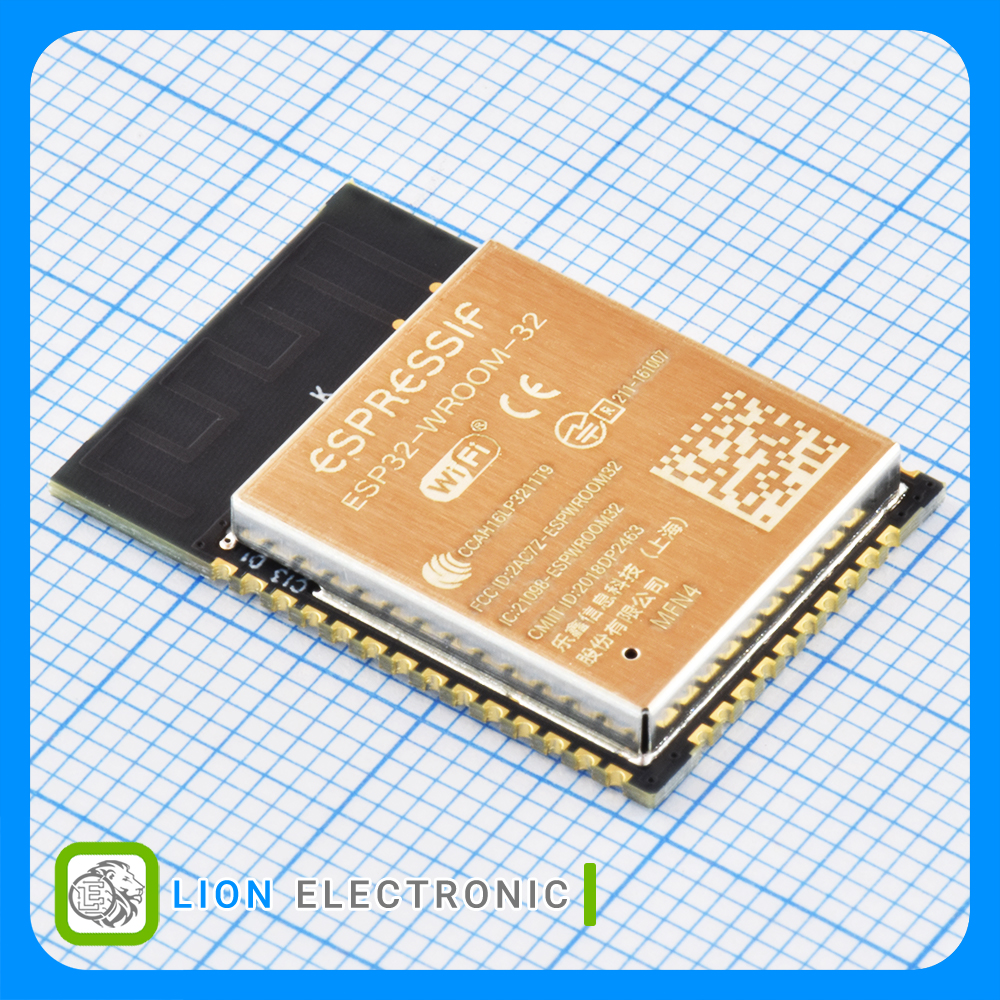

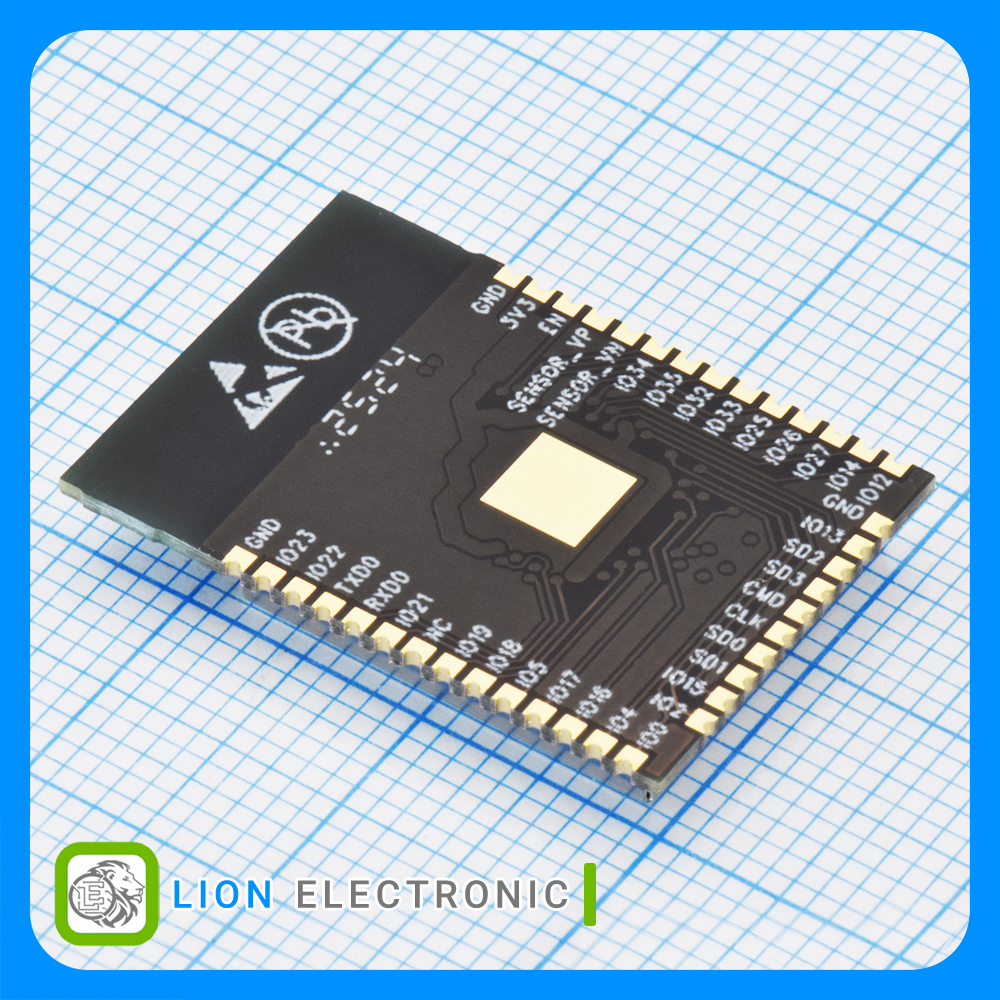

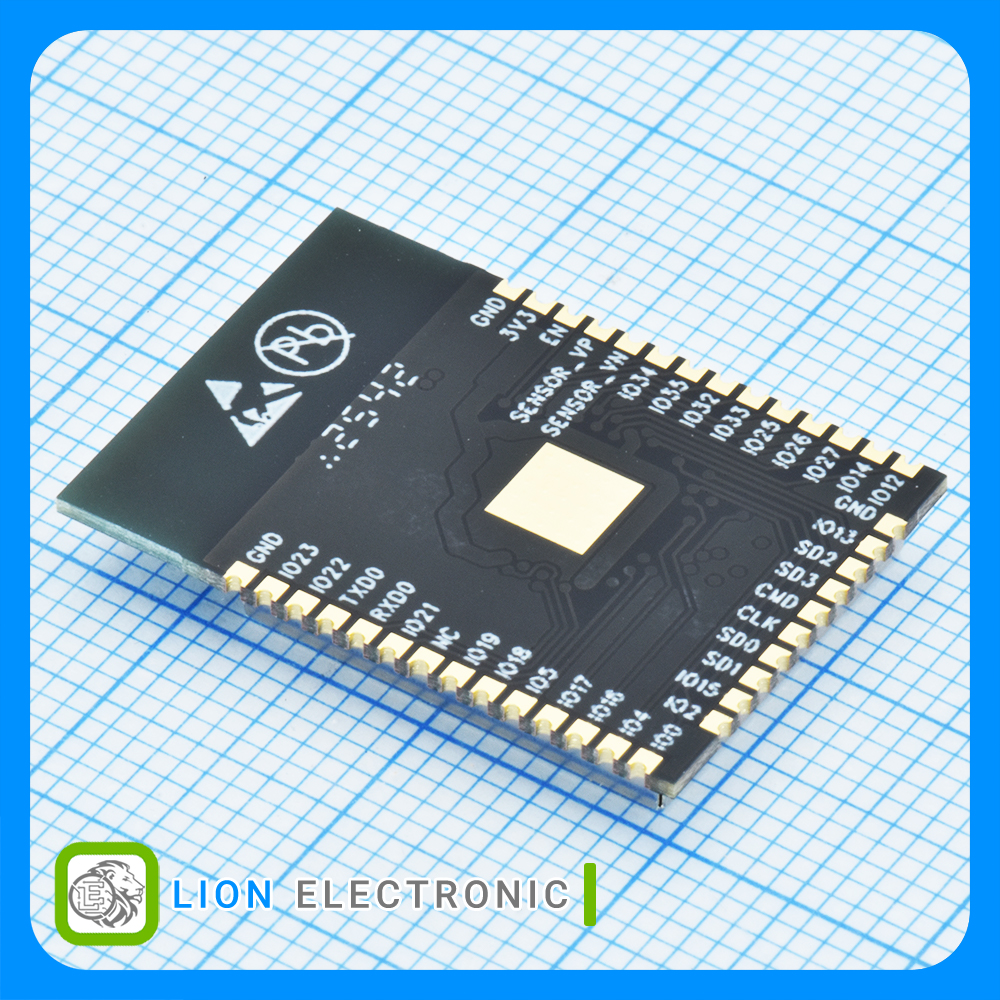

ESP32-WROOM-32
ESP32-WROOM-32
Part Number
970
Lion Part
Datasheet
Espressif Manufacture
ماژول ESP32 سری ESP32 مدل ESP32-WROOM-32 قدرتمند و همه‌منظوره Wi-Fi + Bluetooth LE با فرکانس 240 مگاهرتز و 32 پایه I/O، ولتاژ تغذیه 2.2 تا 3.6 ولت، حافظه 4MB SPI Flash با آنتن PCB
ESP32-WROOM-32 Powerful, Generic Wi-Fi + Bluetooth LE MCU Module, ESP32 Series, 240MHz with 32 I/Os, 2.2-3.6V, 4MB SPI Flash with PCB Antenna
معرفی
CPU and On-Chip Memory
- ESP32-D0WDQ6 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
- 448 KB ROM
- 520 KB SRAM
- 8 KB SRAM in RTC
Wi-Fi
- 802.11 b/g/n
- Bit rate: 802.11n up to 150 Mbps
- A-MPDU and A-MSDU aggregation
- 0.4 µs guard interval support
- Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
- Bluetooth v4.2 BR/EDR and BLE specifications
- NZIF receiver with –97 dBm sensitivity
- Class-1, class-2 and class-3 transmitter
- AFH (Adaptive Frequency Hopping)
Peripherals
- GPIO, SPI, UART, I2C, I2S, PWM, ADC, DAC, SDIO, Capacitive Touch Sensors, Hall Sensor, Temperature Sensor, Timers and Watchdogs
Integrated Components on Module
- 40 MHz crystal oscillator
- 4 MB SPI flash
Antenna Options
- On-board PCB antenna
Operating Conditions
- Operating voltage/Power supply: 3.0 ~ 3.6 V
- Operating ambient temperature: –40 ~ 85 °C
مشخصات ماژول وای فای و بلوتوث ESP32-WROOM-32

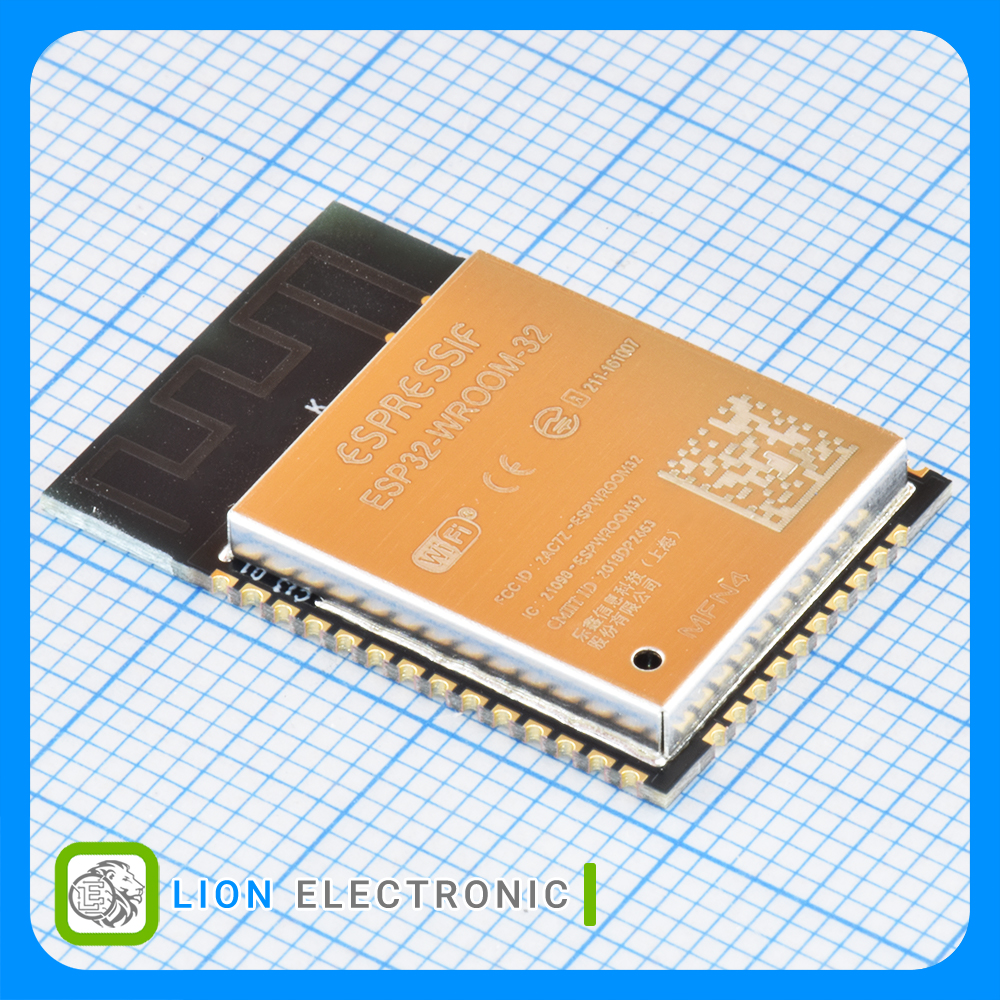

ماژول وای فای و بلوتوث ESP32-WROOM-32
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
32
Number of I-Os
ESP32
Series
240MHz
Frequency
112mA, 108mA
Supply Current Receiving
18mm x 25mm
Dimensions
379mA
Supply Current Transmitting
2.2 - 3.6V
Operating Supply Voltage
اگر نیاز به پشتیبانی از باند 5GHz دارید، ممکن است بخواهید به سراغ ماژول‌های دیگری مانند ESP32-C6 بروید که از وای‌فای دو باند (2.4GHz و 5GHz) پشتیبانی می‌کند.
