OPA376AIDBVR
OPA376AIDBVR
Part Number
1063
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ دقیق 1 کاناله با نویز کم و جریان سکون کم با پهنای باند 5.5 مگاهرتز و پکیج SOT-23-5
Single Low-Noise, Rail-to-Rail, Low Quiescent Current, Precision Operational Amplifier 1-Channel, 5.5MHz with SOT-23-5 Package
معرفی
آپامپ دقیق 1 کاناله با نویز کم و جریان سکون کم با پهنای باند 5.5 مگاهرتز و پکیج SOT-23-5
Single Low-Noise, Rail-to-Rail, Low Quiescent Current, Precision Operational Amplifier 1-Channel, 5.5MHz with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 30mA
- SR - Slew Rate: 2V/us
- GBP - Gain Bandwidth Product: 5.5MHz
- CMRR - Common Mode Rejection Ratio: 76dB to 90dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 5uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.2V
- Operating Supply Current: 760uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA376AIDBVR

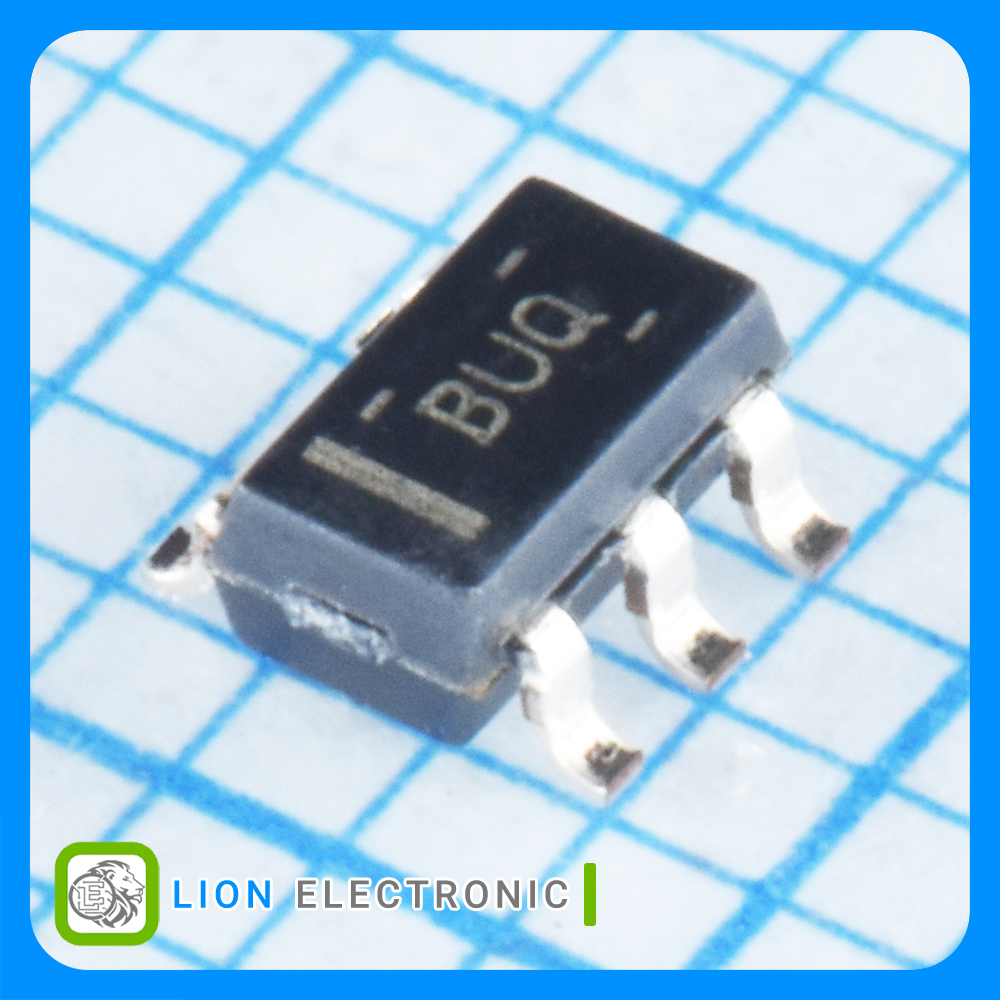

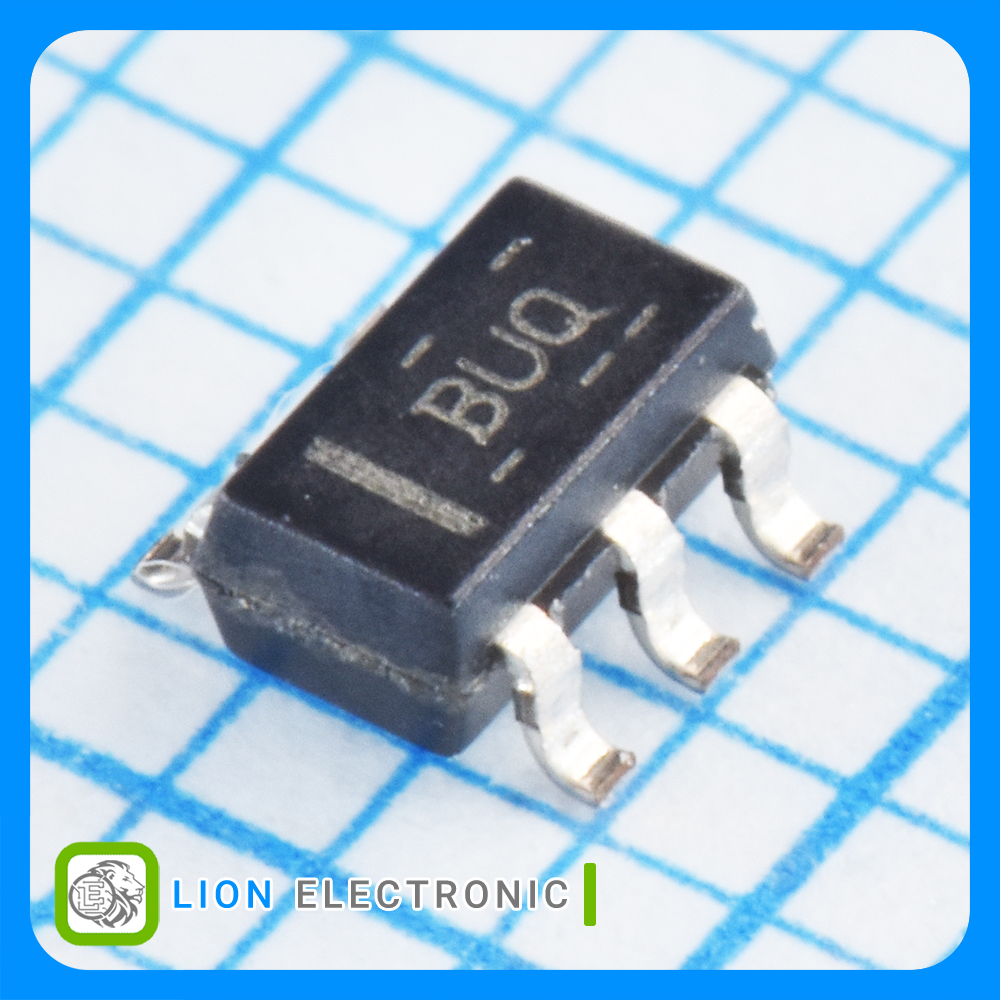

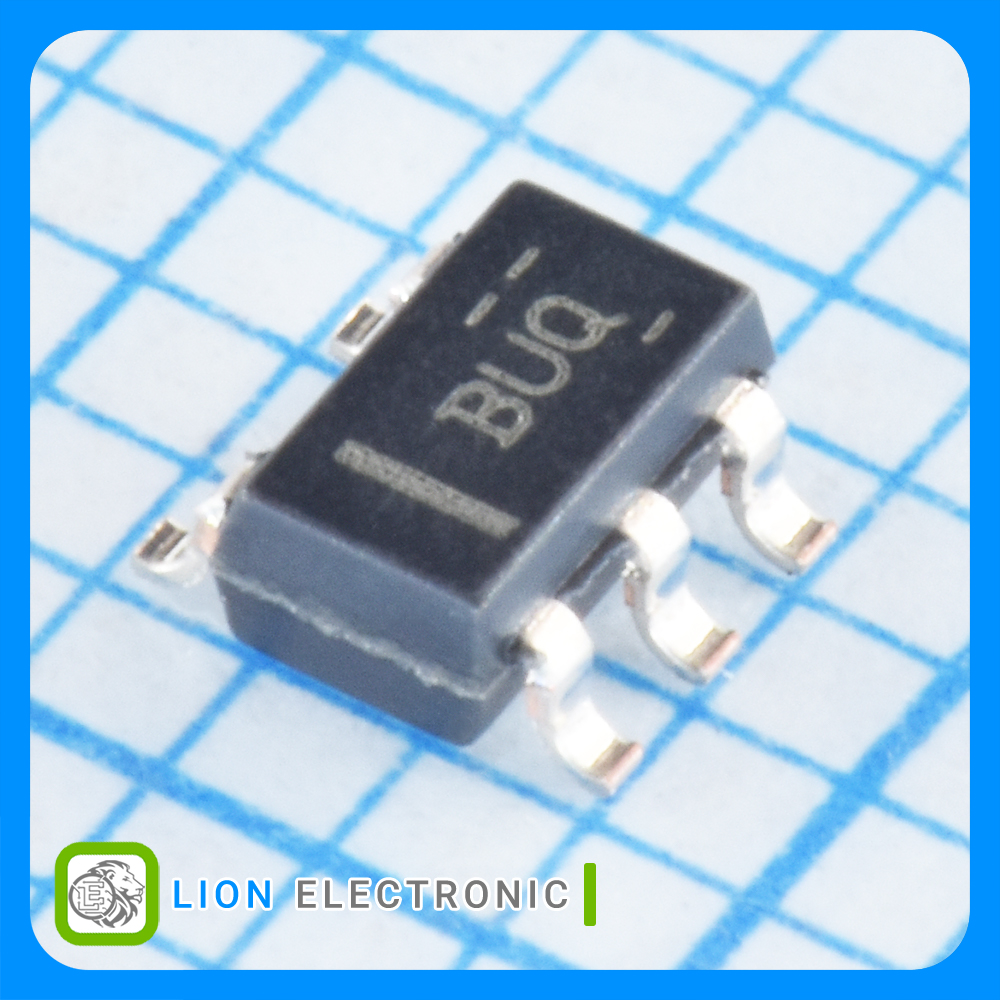

آپ امپ OPA376AIDBVR
Part Number
1
Number of Channels
No Shutdown
Shutdown
7.5nV/sqrt Hz
en - Input Voltage Noise Density
Reel
Packaging
-40C
Minimum Operating Temperature
5uV
Vos - Input Offset Voltage
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
30mA
Output Current per Channel
76dB to 90dB
CMRR - Common Mode Rejection Ratio
5.5V
Supply Voltage - Max
2V/us
SR - Slew Rate
2.2V
Supply Voltage - Min
5.5MHz
GBP - Gain Bandwidth Product
760uA
Operating Supply Current
SOT-23-5
Package-Case
