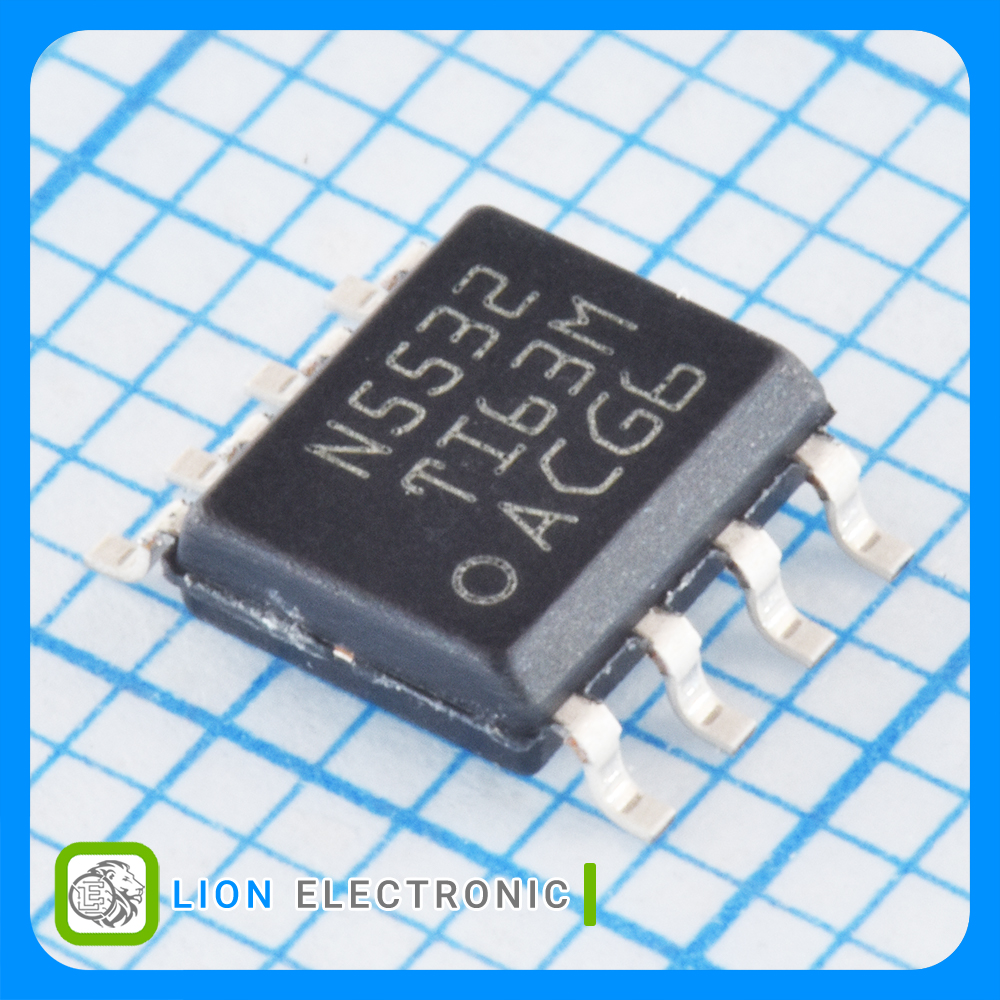

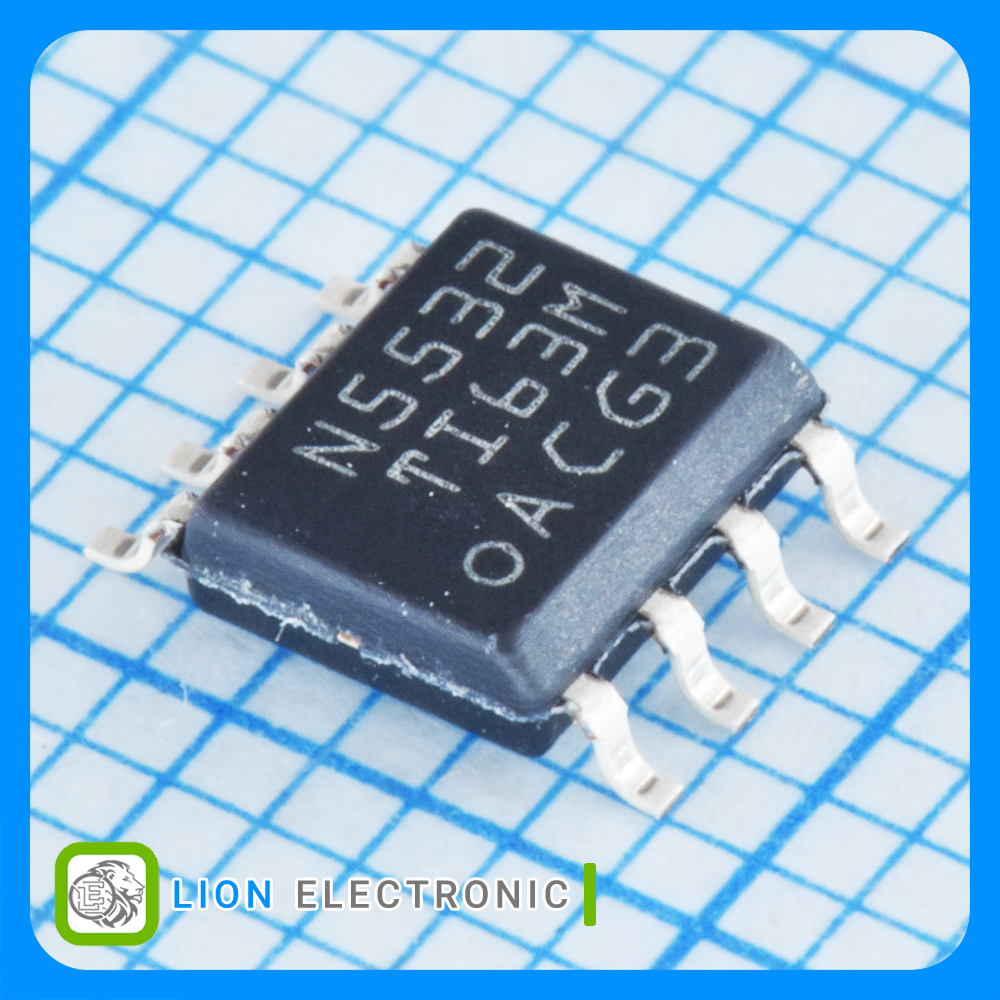

NE5532DR
NE5532DR
Part Number
6861
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 10 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 10MHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 10 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 10MHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 38mA
- SR - Slew Rate: 9V/us
- GBP - Gain Bandwidth Product: 10MHz
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 200nA
- Vos - Input Offset Voltage: 0.5mV
- Supply Voltage - Max: ±15V
- Supply Voltage - Min: ±5V
- Operating Supply Current: 8mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tape&Reel
مشخصات NE5532DR
NE5532DR
Part Number
2
Number of Channels
+70C
Maximum Operating Temperature
SMD/SMT
Mounting Style
Tape&Reel
Packaging
0C
Minimum Operating Temperature
38mA
Output Current per Channel
9V/us
SR - Slew Rate
±15V
Supply Voltage - Max
100dB
CMRR - Common Mode Rejection Ratio
10MHz
GBP - Gain Bandwidth Product
200nA
Ib - Input Bias Current
±5V
Supply Voltage - Min
0.5mV
Vos - Input Offset Voltage
8mA
Operating Supply Current
SOIC-8
Package-Case
