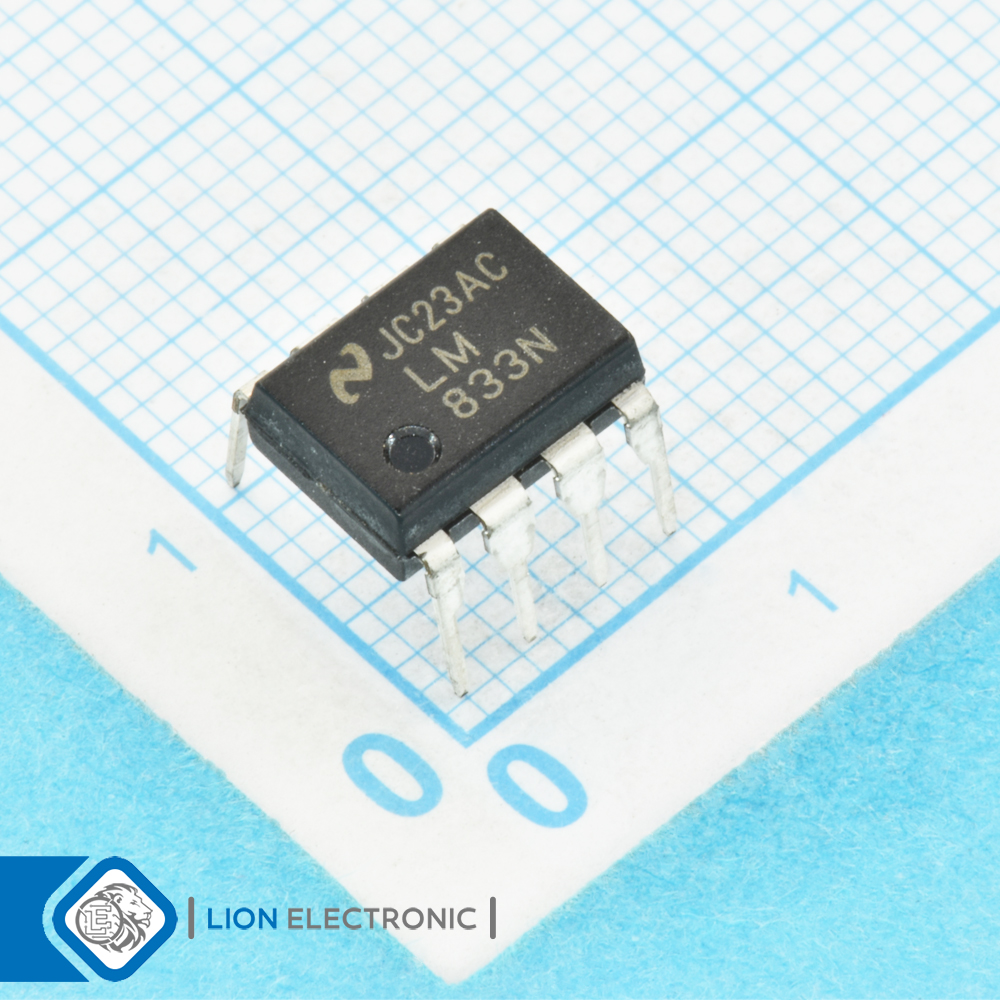

مشخصات LM833N

  • Part Number
    LM833N
  • Mounting Style
    Through Hole
  • Number of Channels
    2
  • Minimum Operating Temperature
    -40C
  • Packaging
    Tube
  • Maximum Operating Temperature
    +85C
  • Output Current per Channel
    29mA
  • SR - Slew Rate
    7V/us
  • CMRR - Common Mode Rejection Ratio
    80dB
  • Vos - Input Offset Voltage
    5mV
  • GBP - Gain Bandwidth Product
    15MHz
  • Supply Voltage - Max
    36V
  • Supply Voltage - Min
    10V
  • Ib - Input Bias Current
    1uA
  • Package-Case
    PDIP-8
  • Operating Supply Current
    8mA
