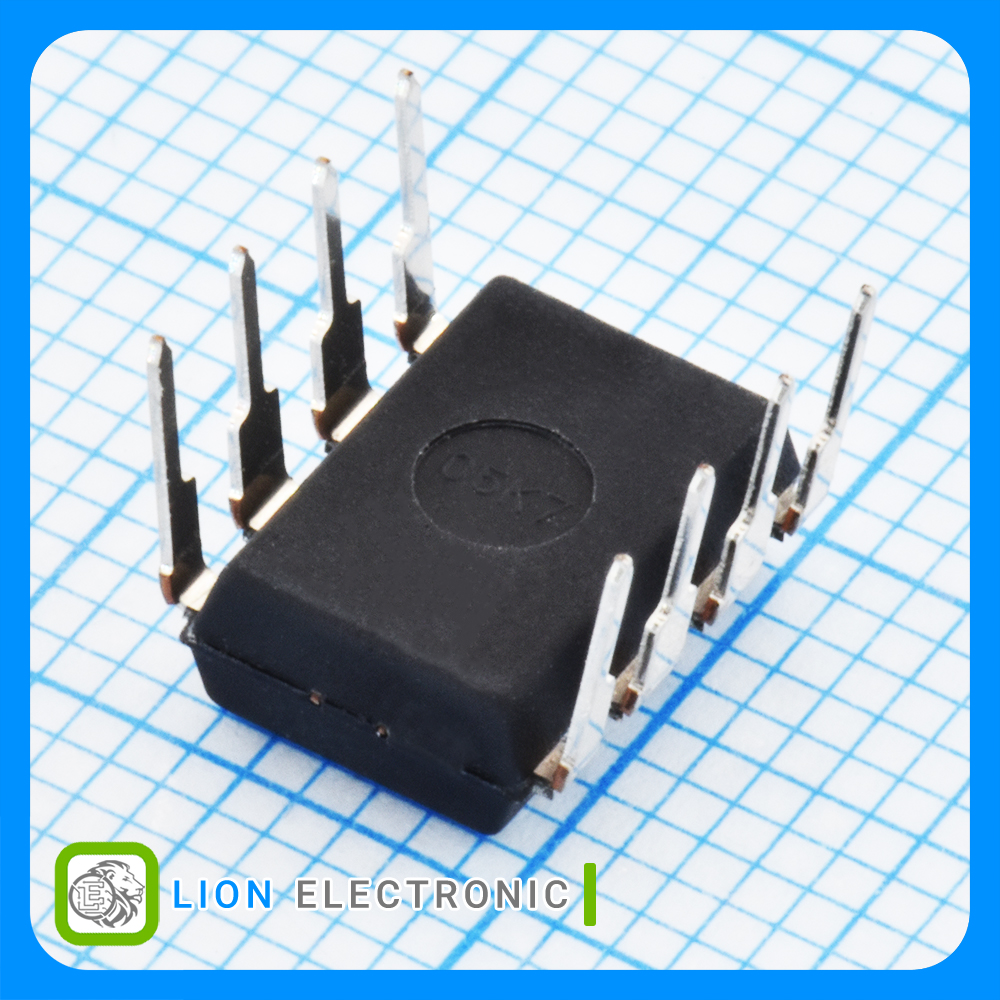

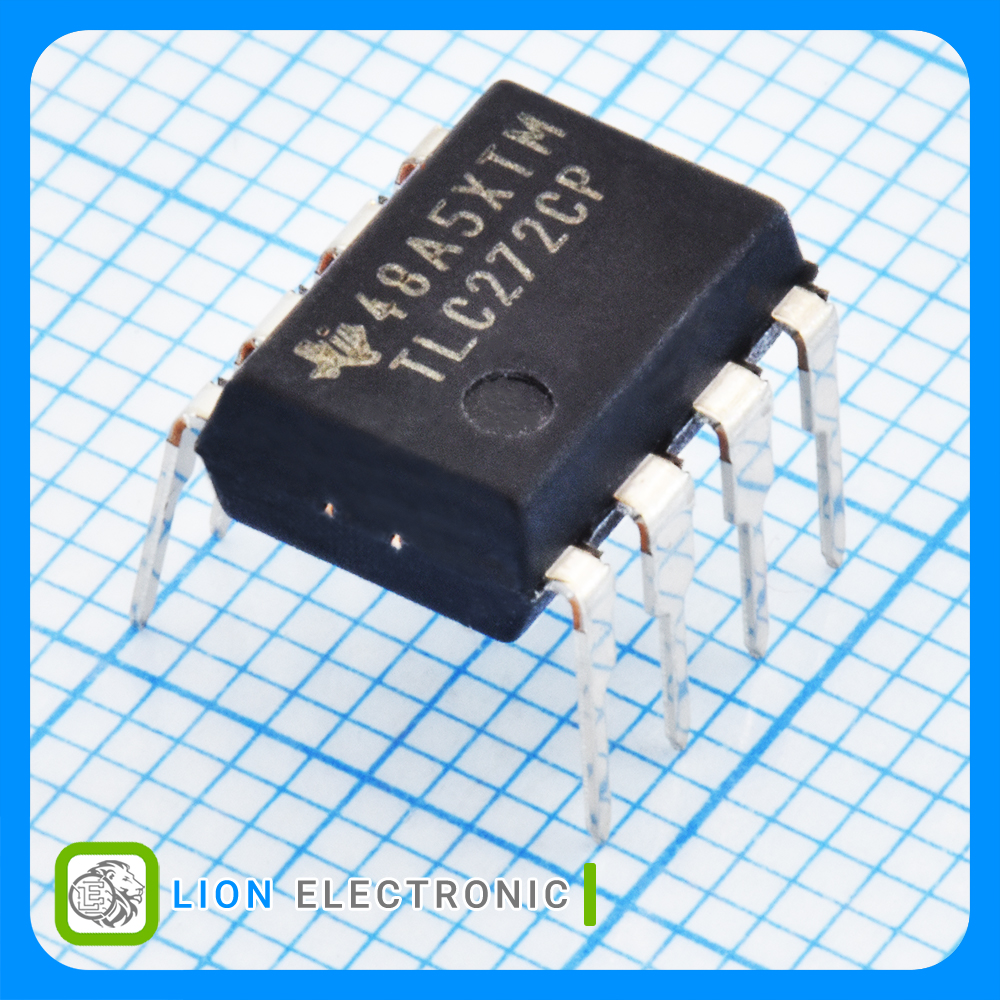

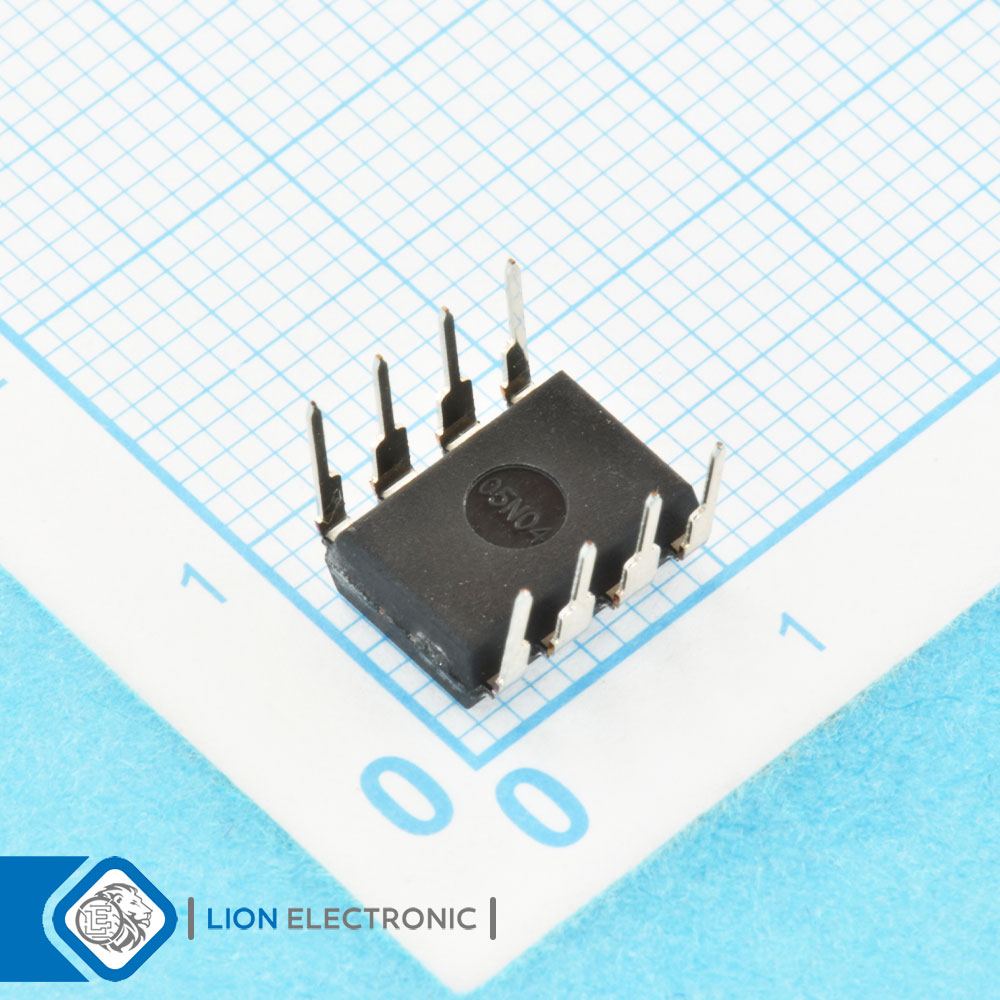

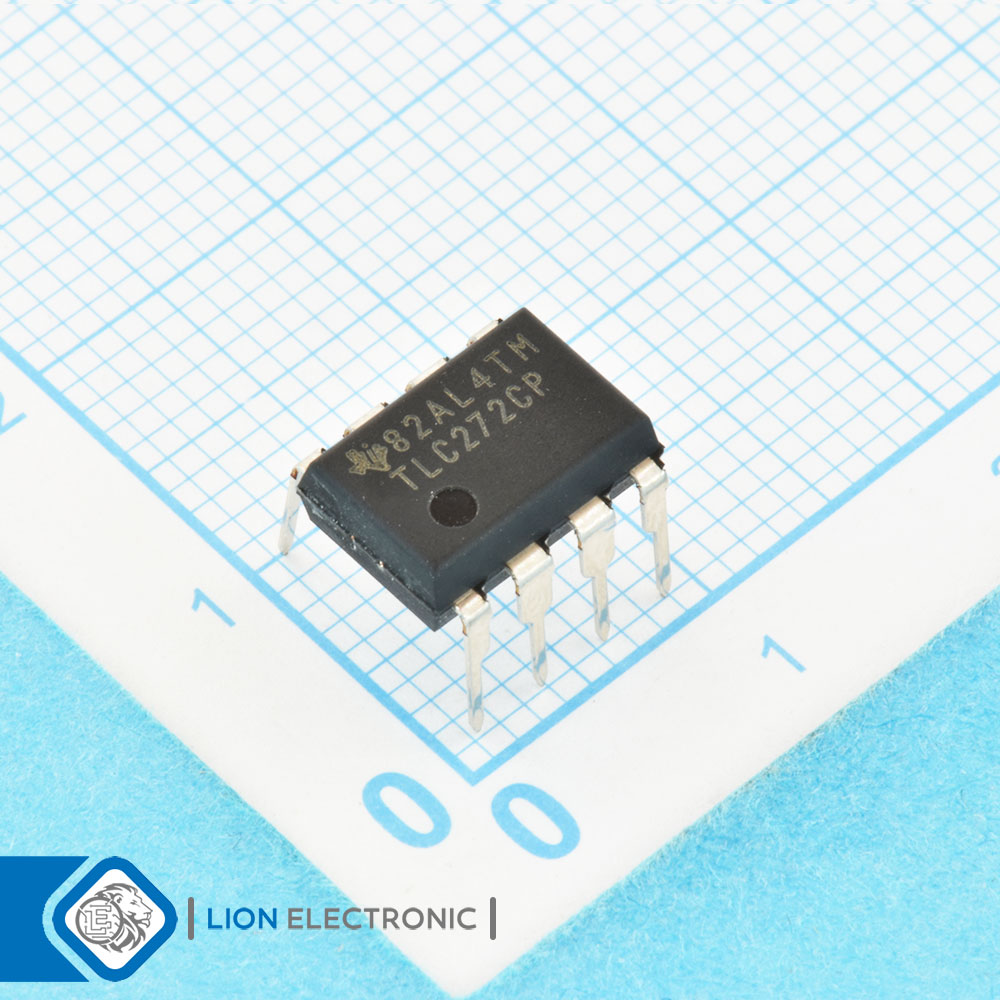

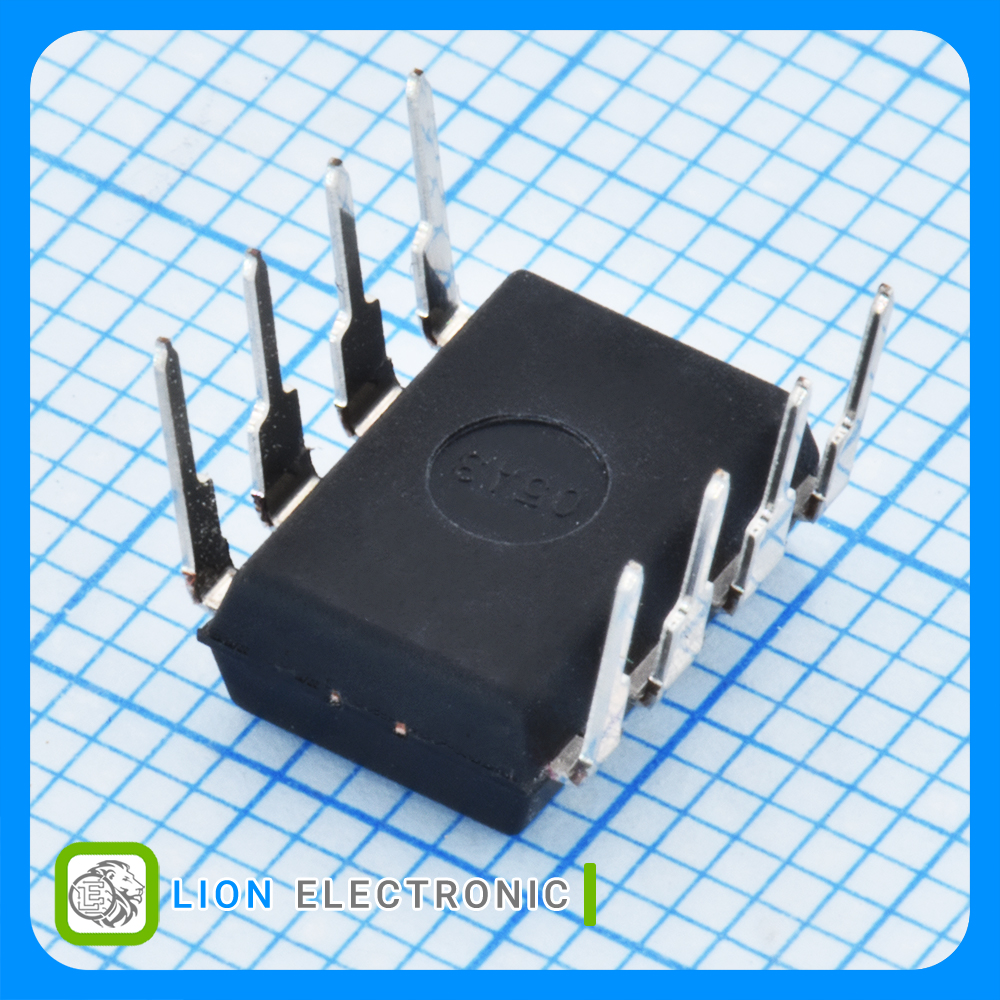

TLC272CP
TLC272CP
Part Number
1525
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ دقیق LinCMOS دو کاناله با پهنای باند 1.7 مگاهرتز، پکیج DIP-8
LinCMOS Precision Dual Operational Amplifier 2-Channel, 1.7MHz with DIP-8 Package
معرفی
آپامپ دقیق LinCMOS دو کاناله با پهنای باند 1.7 مگاهرتز، پکیج DIP-8
LinCMOS Precision Dual Operational Amplifier 2-Channel, 1.7MHz with DIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 30mA
- SR - Slew Rate: 3.6V/us
- GBP - Gain Bandwidth Product: 1.7MHz
- CMRR - Common Mode Rejection Ratio: 65dB to 80dB
- Ib - Input Bias Current: 60pA
- Vos - Input Offset Voltage: 1.1mV
- Supply Voltage - Max: 16V
- Supply Voltage - Min: 3V
- Operating Supply Current: 700uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ TLC272CP
آپ امپ TLC272CP
Part Number
No Shutdown
Shutdown
2
Number of Channels
-40C
Minimum Operating Temperature
Tube
Packaging
25nV/sqrt Hz
en - Input Voltage Noise Density
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
65dB to 80dB
CMRR - Common Mode Rejection Ratio
60pA
Ib - Input Bias Current
30mA
Output Current per Channel
1.7MHz
GBP - Gain Bandwidth Product
3.6V/us
SR - Slew Rate
1.1mV
Vos - Input Offset Voltage
3V
Supply Voltage - Min
16V
Supply Voltage - Max
700uA
Operating Supply Current
DIP-8
Package-Case
