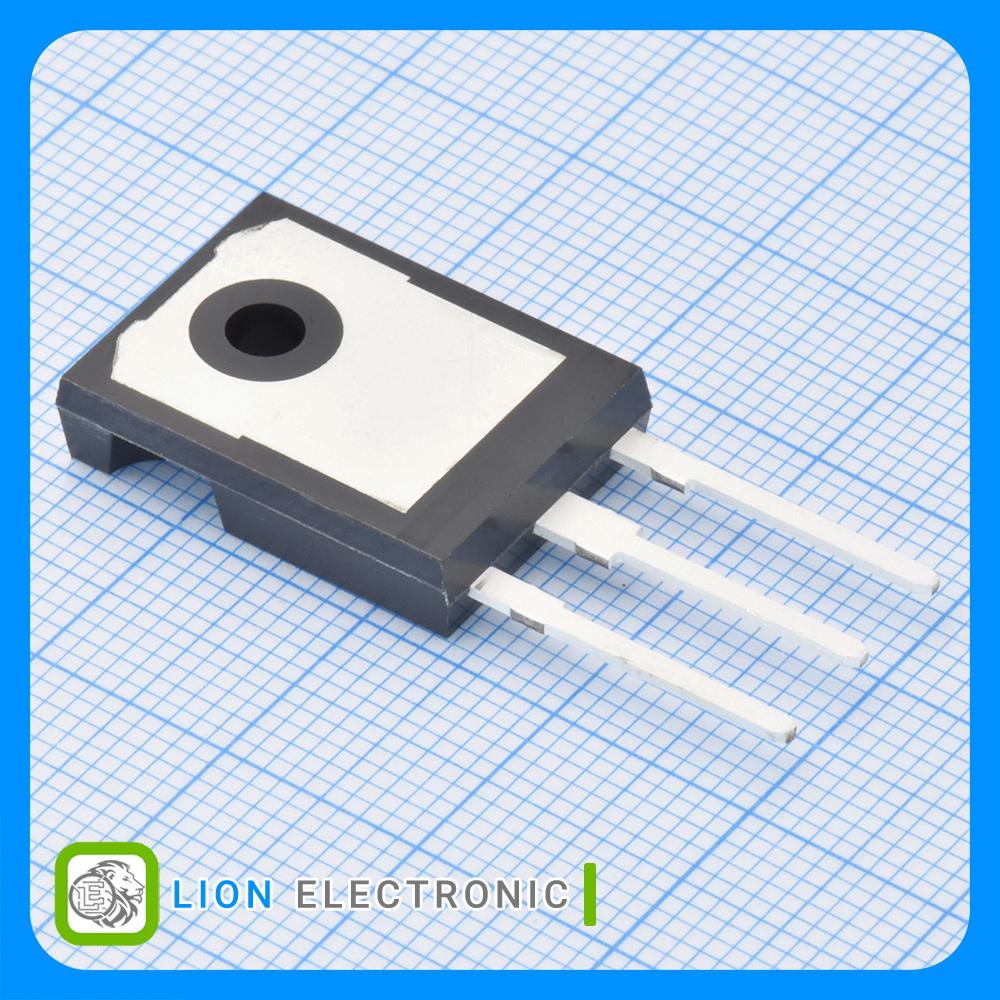

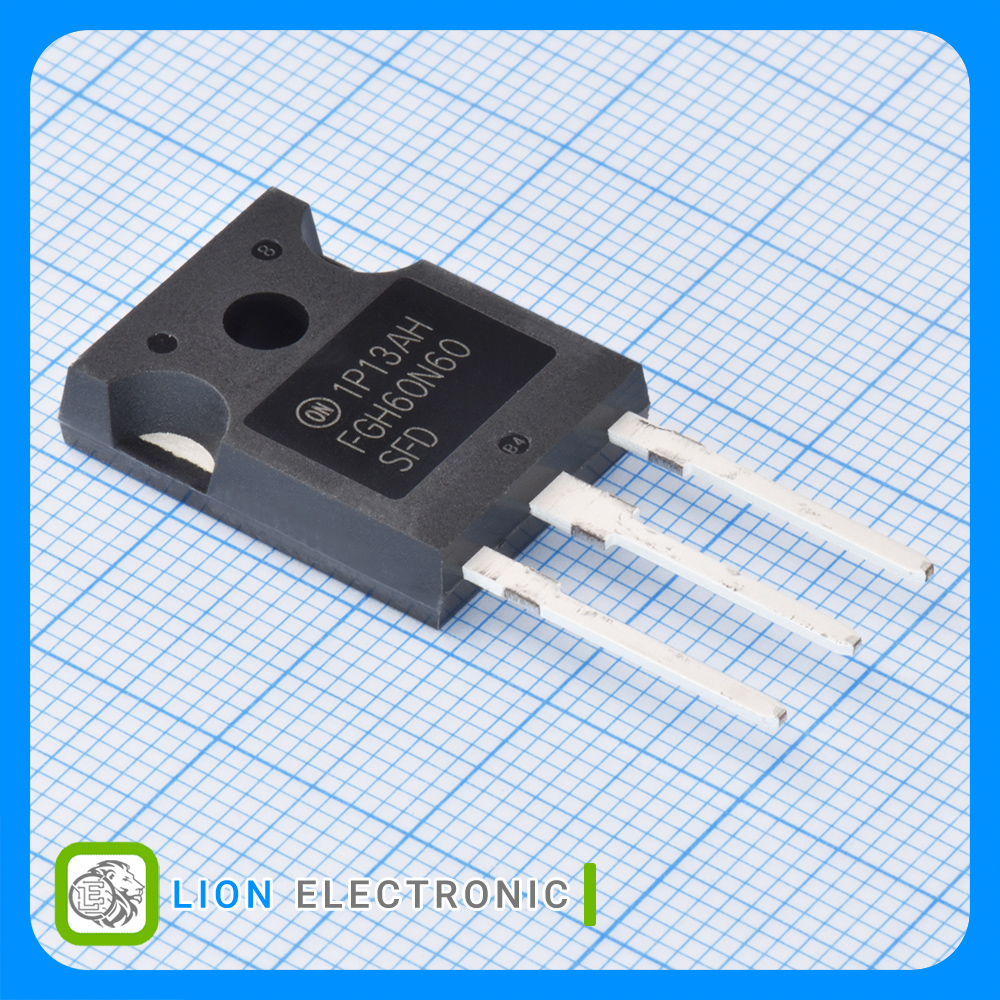

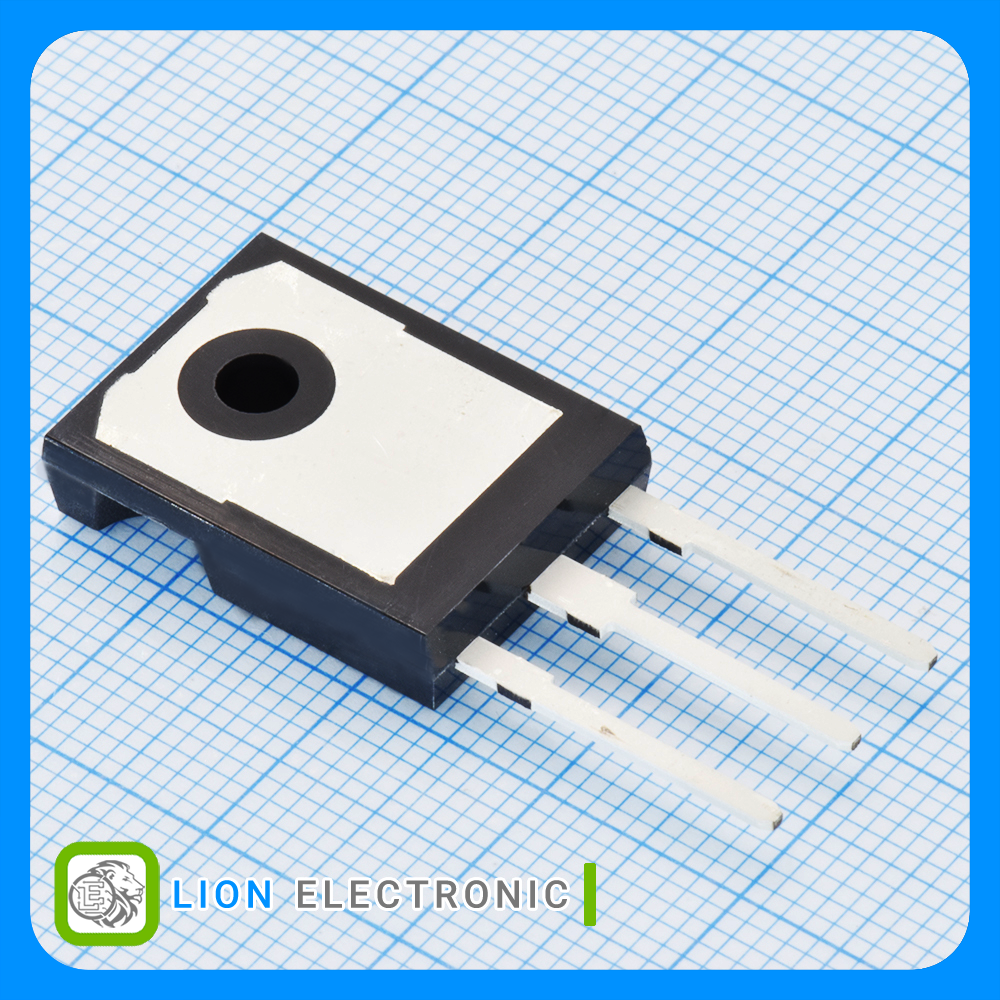

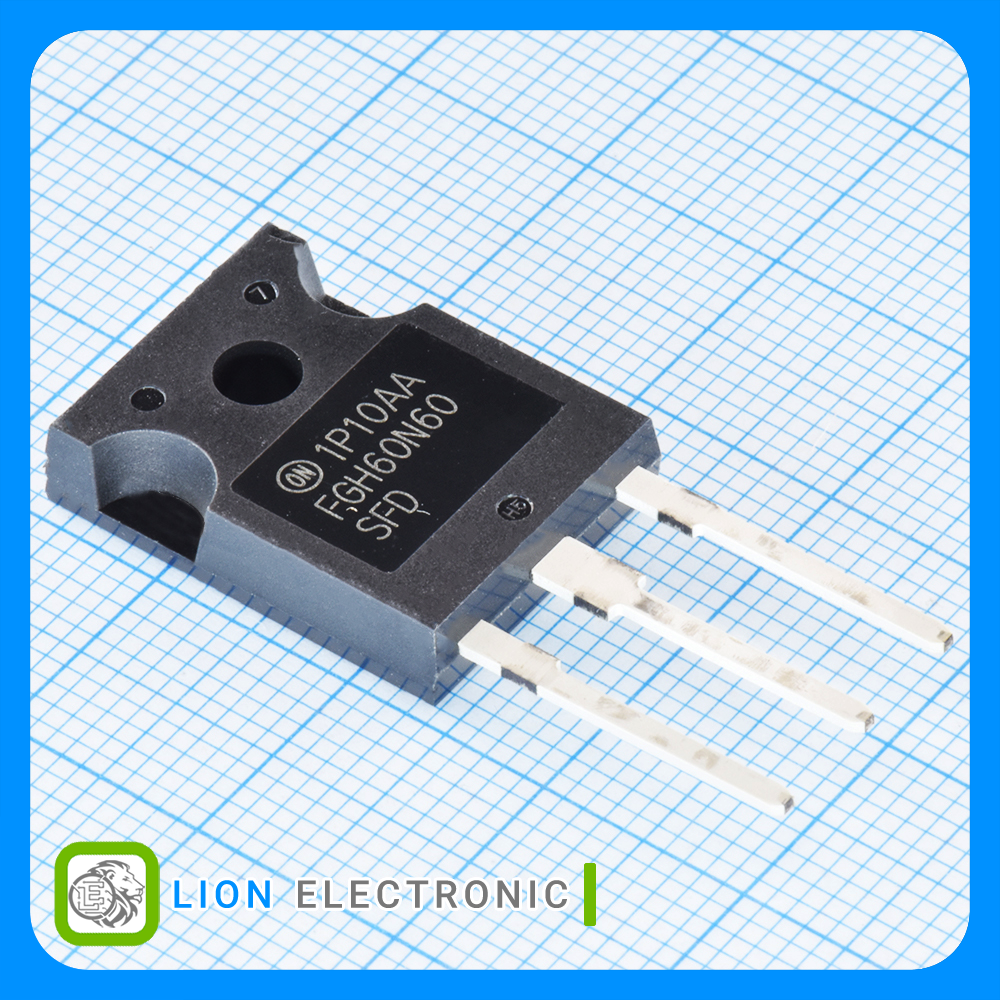

FGH60N60SFD
FGH60N60SFD
Part Number
179
Lion Part
Datasheet
ON Semiconductor Manufacture
ترانزیستور IGBT با ولتاژ 600 ولت و جریان 120 آمپر با پکیج TO-247
IGBT Transistor 600V, 120A with TO-247 Package
معرفی
ترانزیستور IGBT با ولتاژ 600 ولت و جریان 120 آمپر با پکیج TO-247
IGBT Transistor 600V, 120A with TO-247 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 120A
- Collector - Emitter Saturation Voltage: 2.2V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 378W
- Mounting Style: Through Hole
- Package/Case: TO-247
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +200C
- Packaging: Tube
مشخصات FGH60N60SFD
FGH60N60SFD
Part Number
20V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
Si
Technology
Tube
Packaging
Through Hole
Mounting Style
120A
Continuous Collector Current aT 25 c
+200C
Maximum Operating Temperature
600V
Collector - Emitter Voltage VCEO Max
2.2V
Collector - Emitter Saturation Voltage
378W
Pd - Power Dissipation
TO-247
Package-Case
