IXYS
معرفی

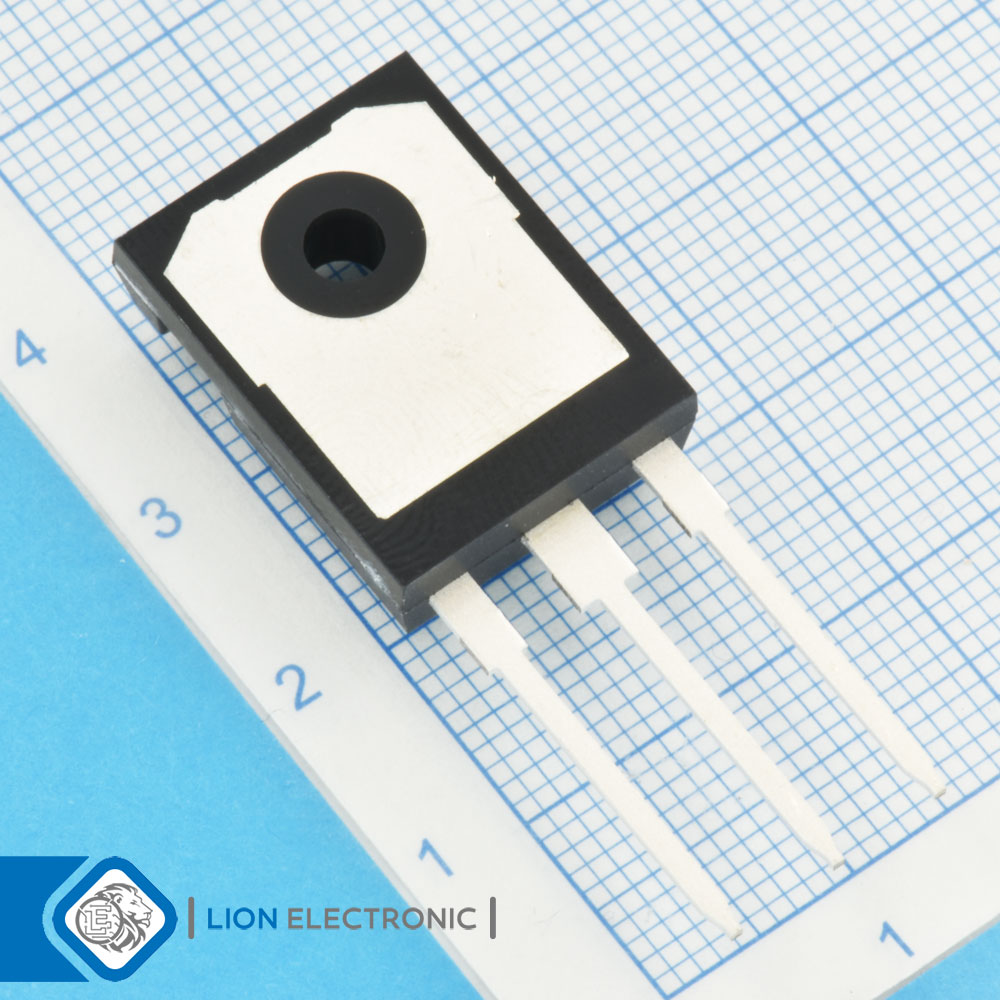

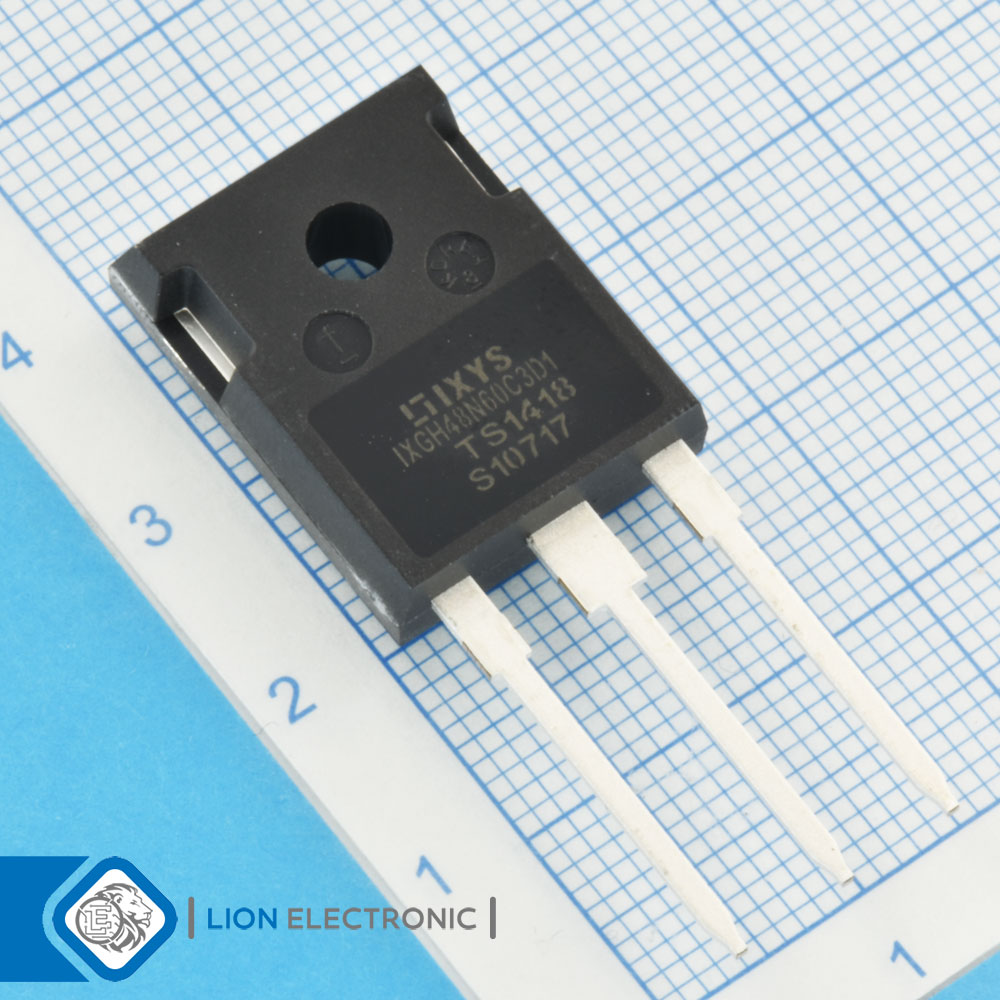

ترانزیستور آیجیبیتی 600 ولت 75 آمپر با پکیج TO-247
IGBT Transistor 600V, 75A with TO-247 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 75A
- Collector - Emitter Saturation Voltage: 2.5V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 300W
- Mounting Style: Through Hole
- Package/Case: TO-247
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات IXGH48N60C3D1
IXGH48N60C3D1
Part Number
20V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
Si
Technology
Tube
Packaging
Through Hole
Mounting Style
75A
Continuous Collector Current aT 25 c
+150C
Maximum Operating Temperature
600V
Collector - Emitter Voltage VCEO Max
2.5V
Collector - Emitter Saturation Voltage
300W
Pd - Power Dissipation
TO-247
Package-Case
