IKW15N120T2
IKW15N120T2
Part Number
188
Lion Part
Datasheet
Infineon Technologies Manufacture
ترانزیستور آیجیبیتی 1.2 کیلو ولت 30 آمپر با پکیج TO-247

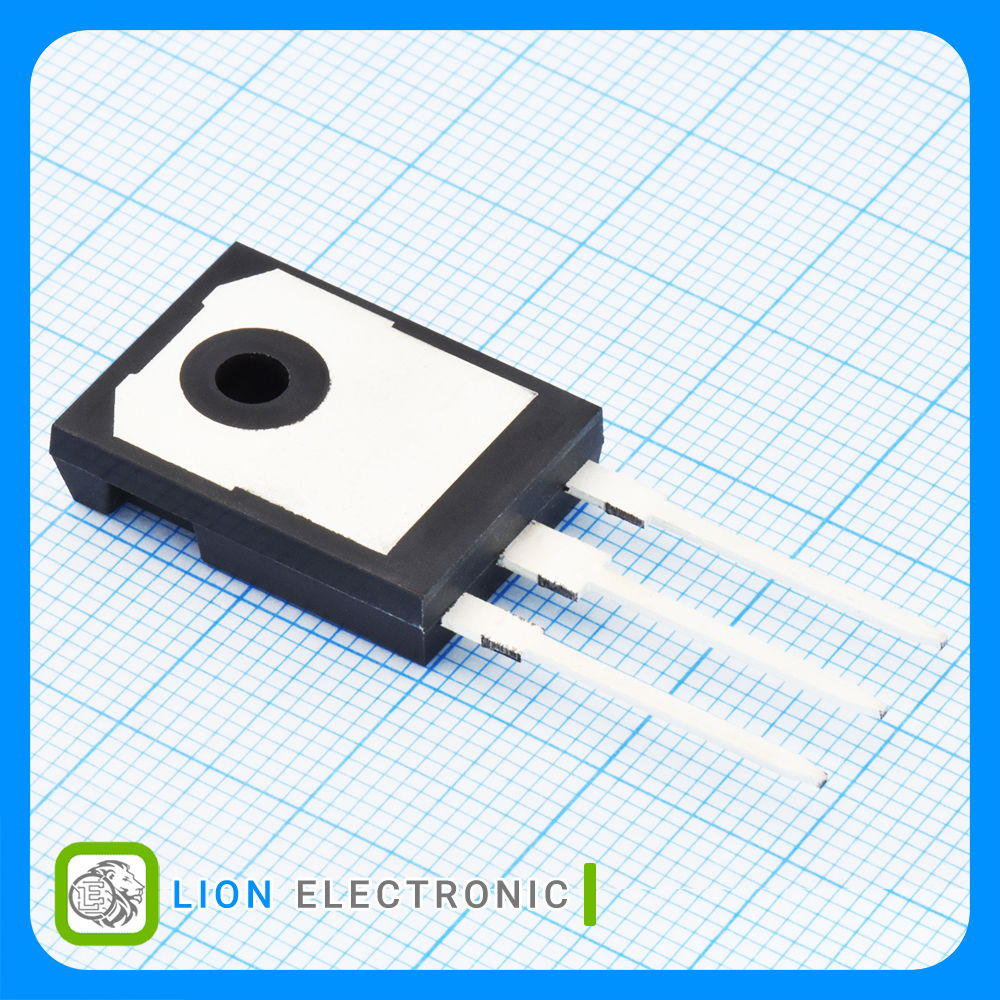

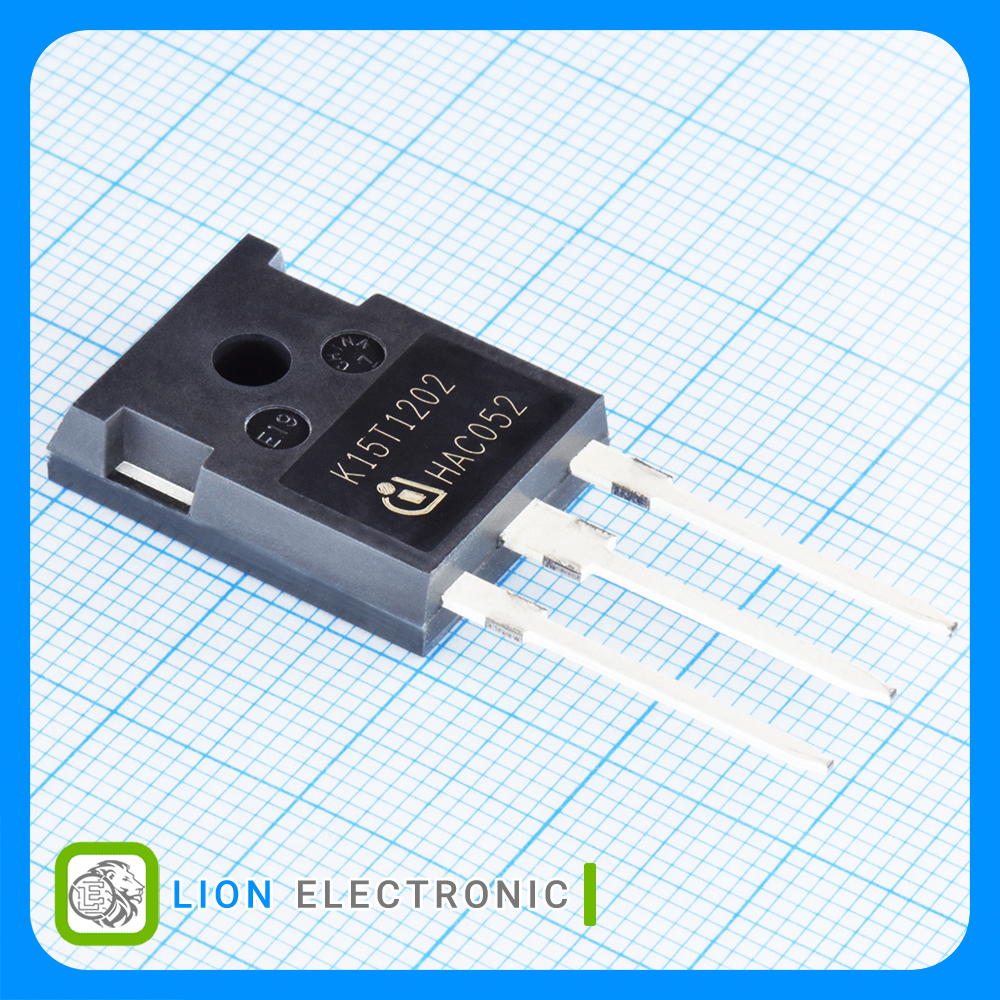

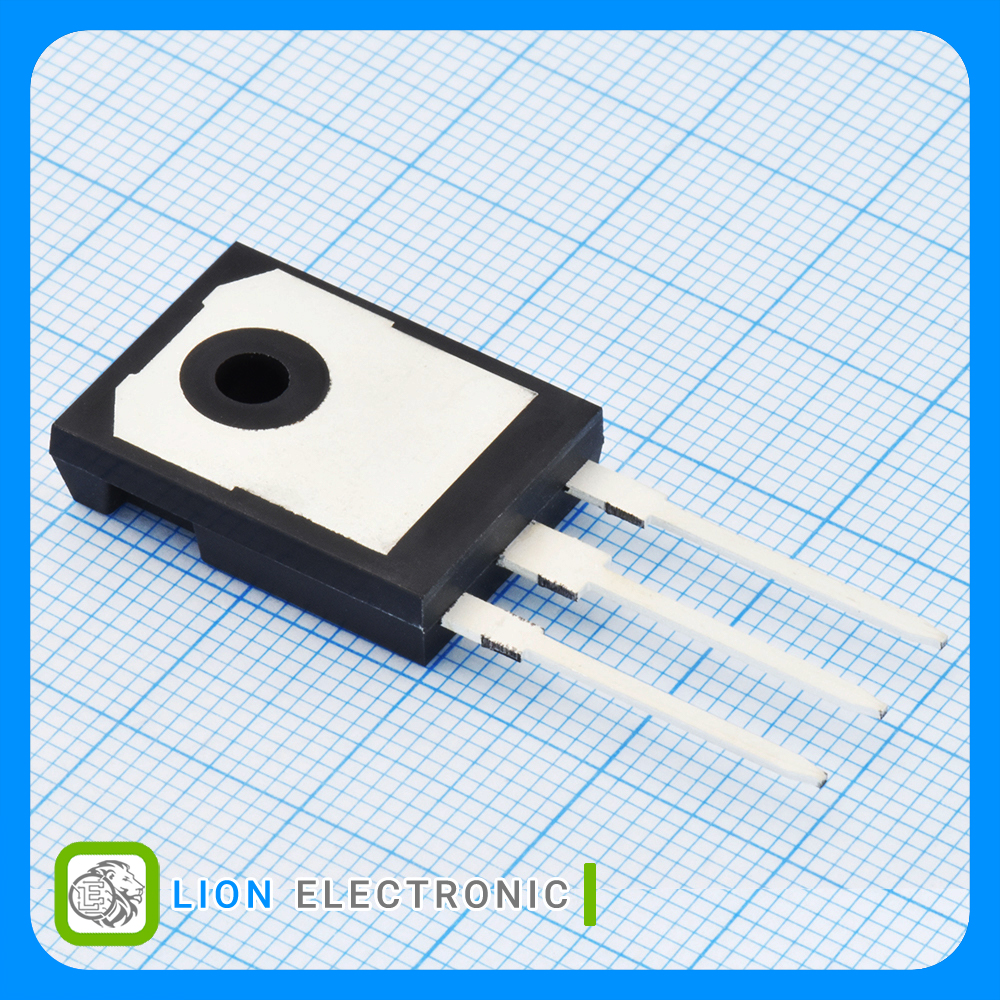

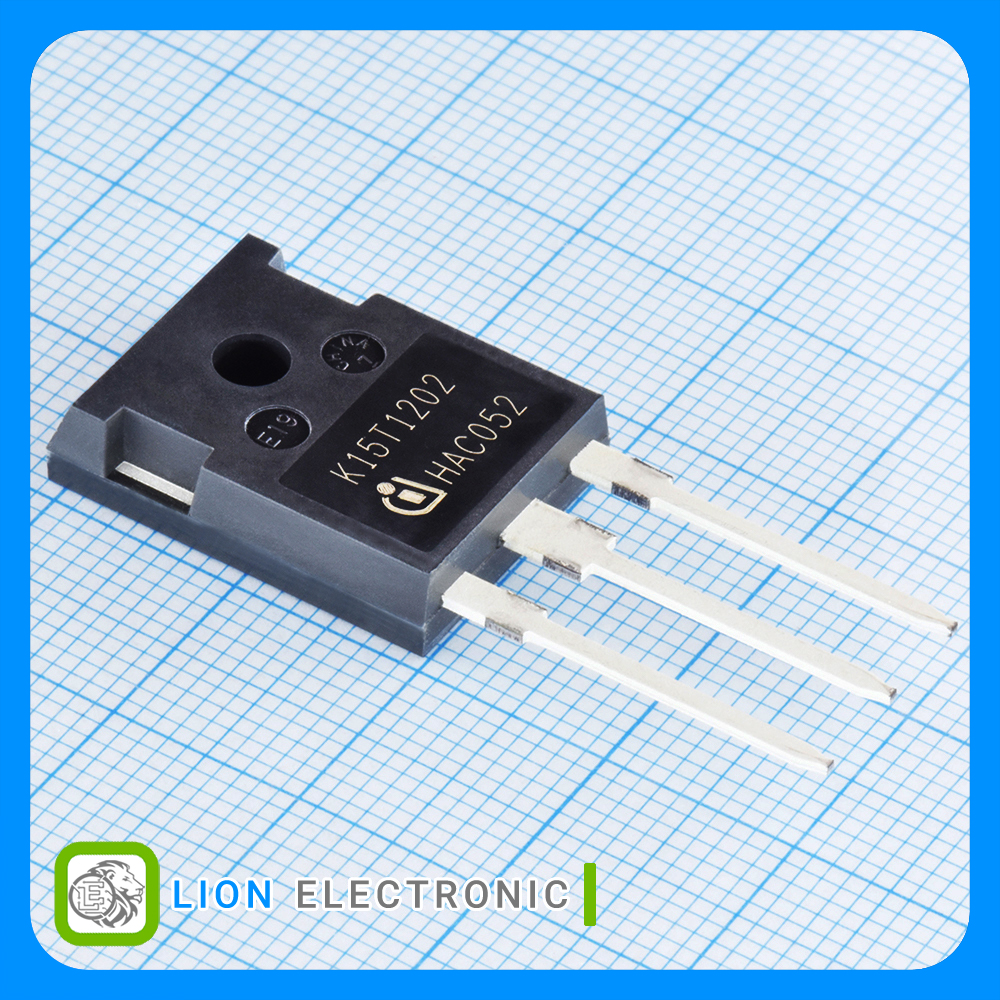

IGBT Transistor 1.2kV, 30A with TO-247 Package
معرفی
ترانزیستور آیجیبیتی 1.2 کیلو ولت 30 آمپر با پکیج TO-247
IGBT Transistor 1.2kV, 30A with TO-247 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Continuous Collector Current aT 25 c: 30A
- Collector - Emitter Saturation Voltage: 1.7V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 235W
- Mounting Style: Through Hole
- Package/Case: TO-247
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات IKW15N120T2
IKW15N120T2
Part Number
20V
Maximum Gate Emitter Voltage
Si
Technology
30A
Continuous Collector Current aT 25 c
-40C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
+175C
Maximum Operating Temperature
1.7V
Collector - Emitter Saturation Voltage
1.2kV
Collector - Emitter Voltage VCEO Max
235W
Pd - Power Dissipation
TO-247
Package-Case
