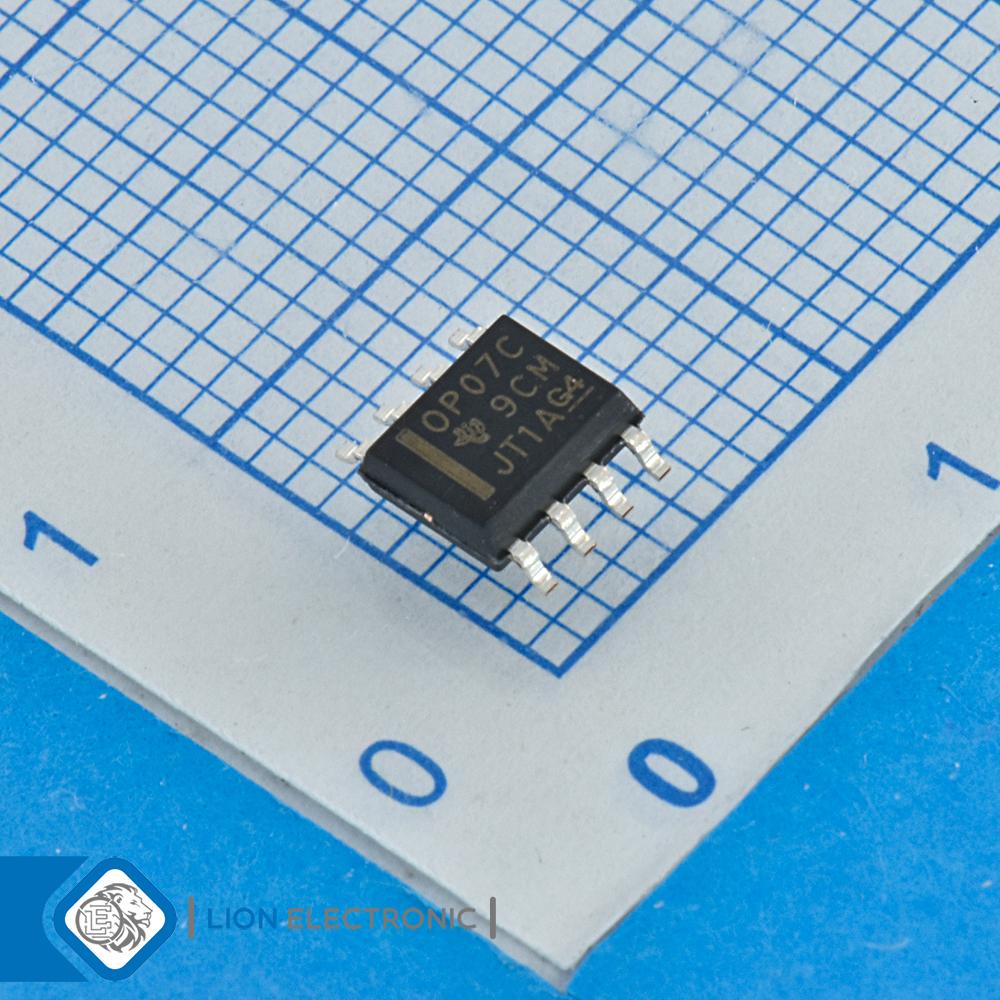

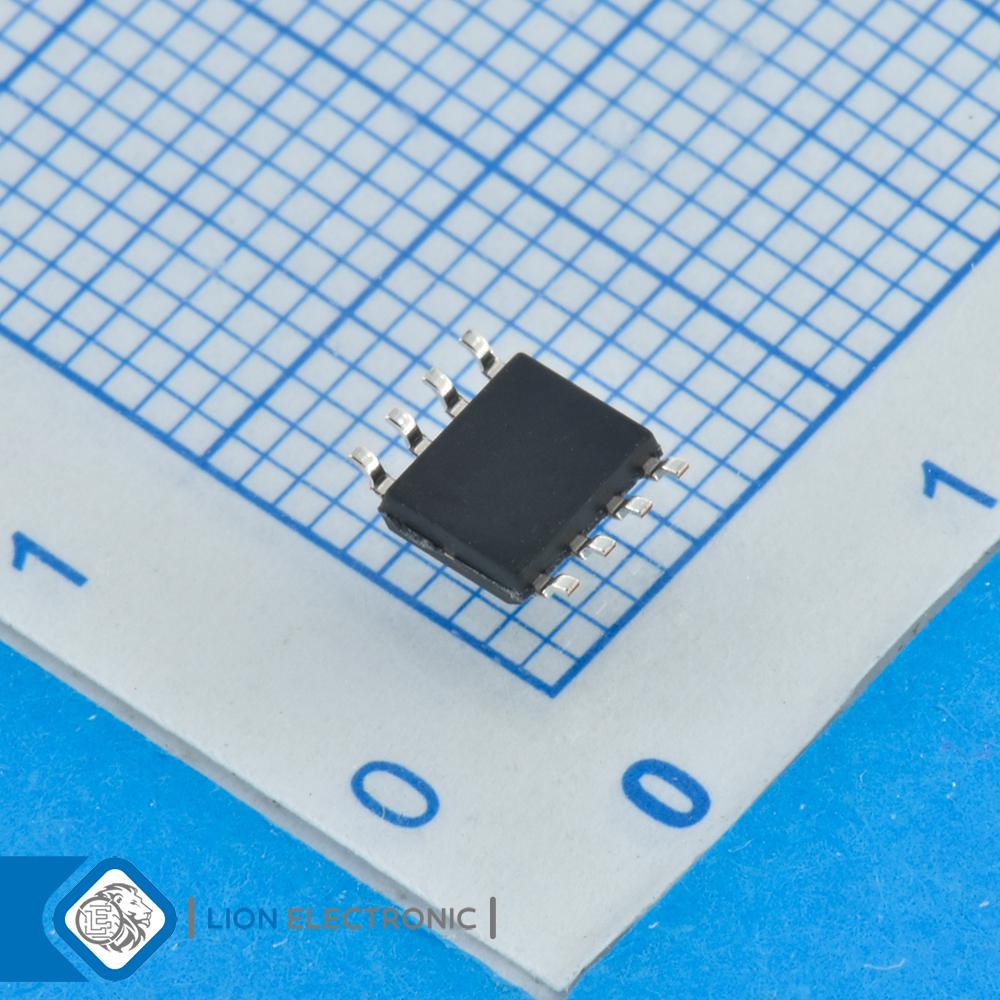

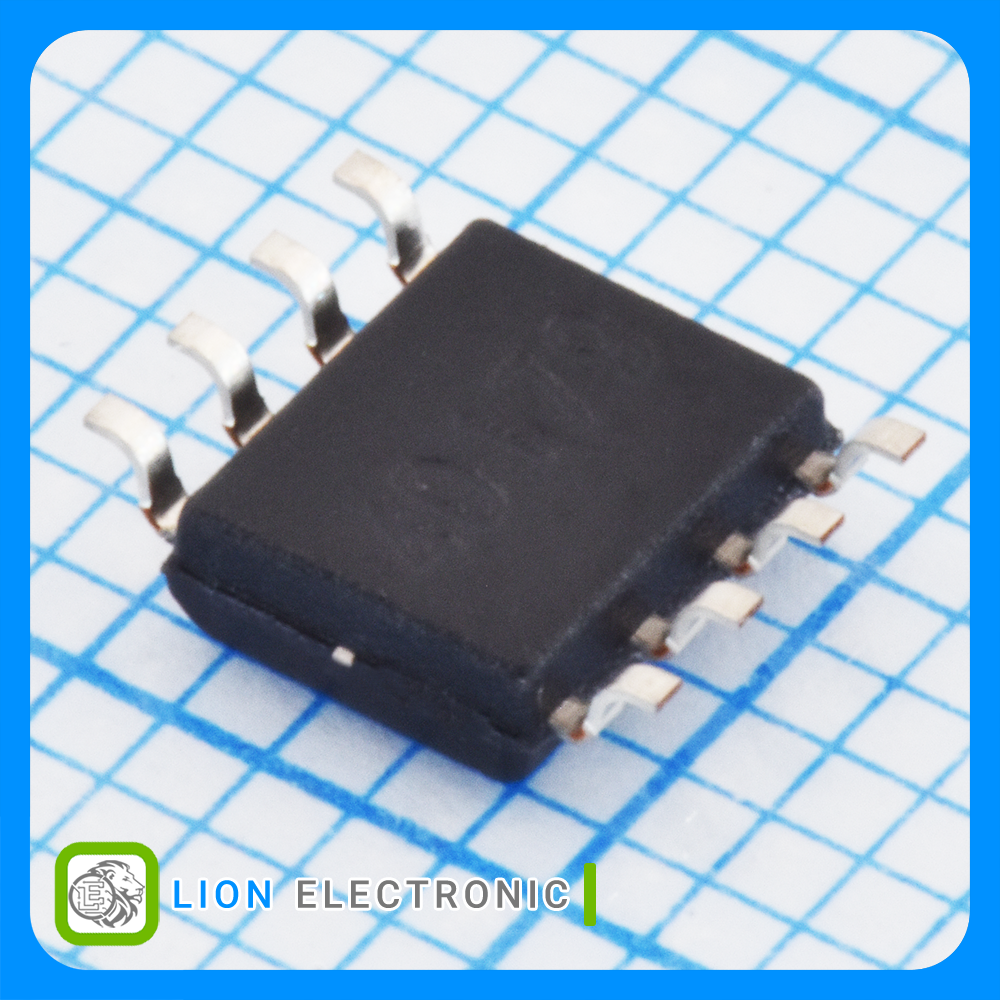

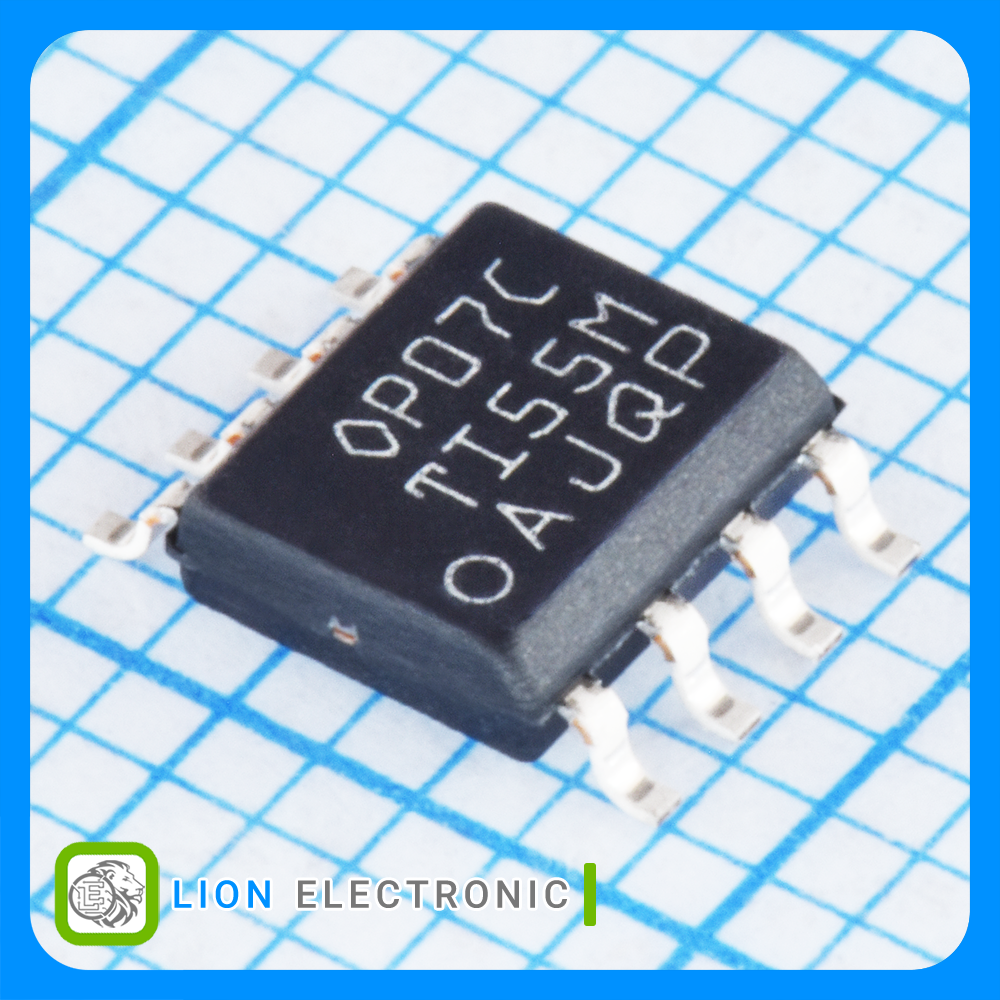

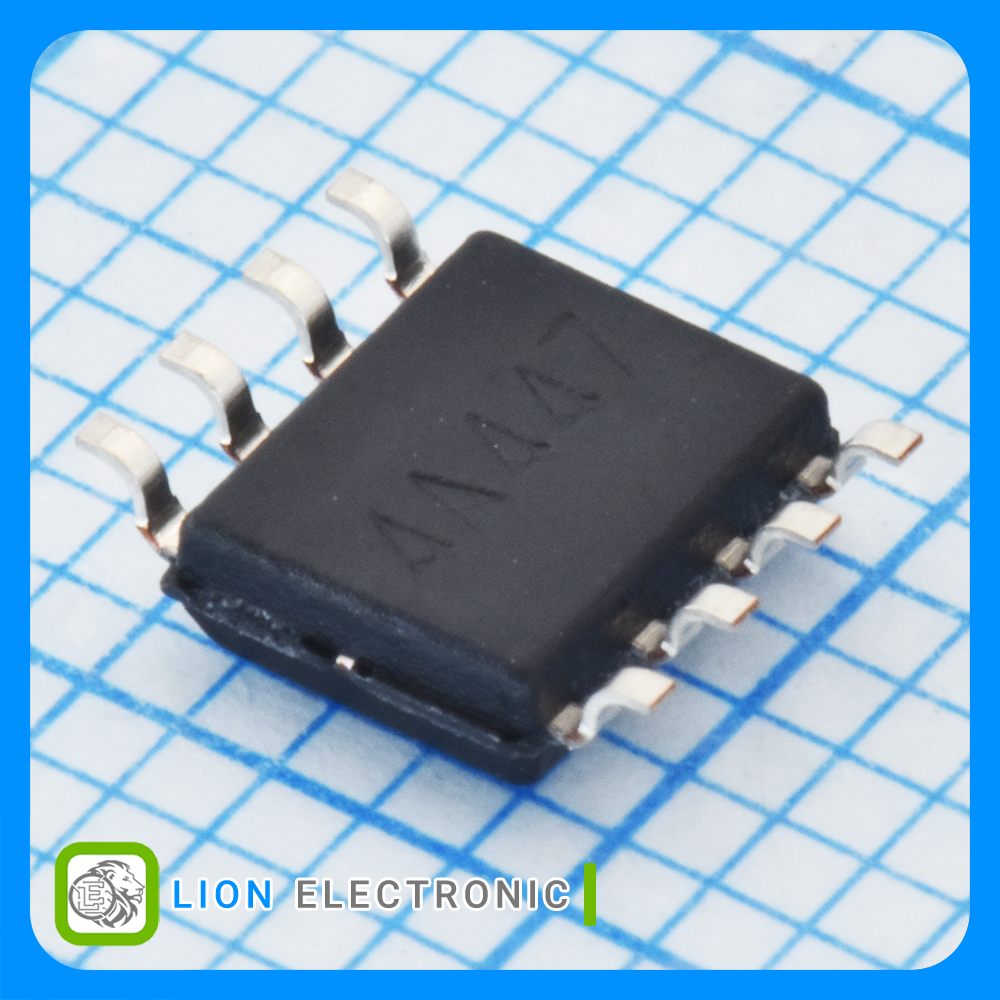

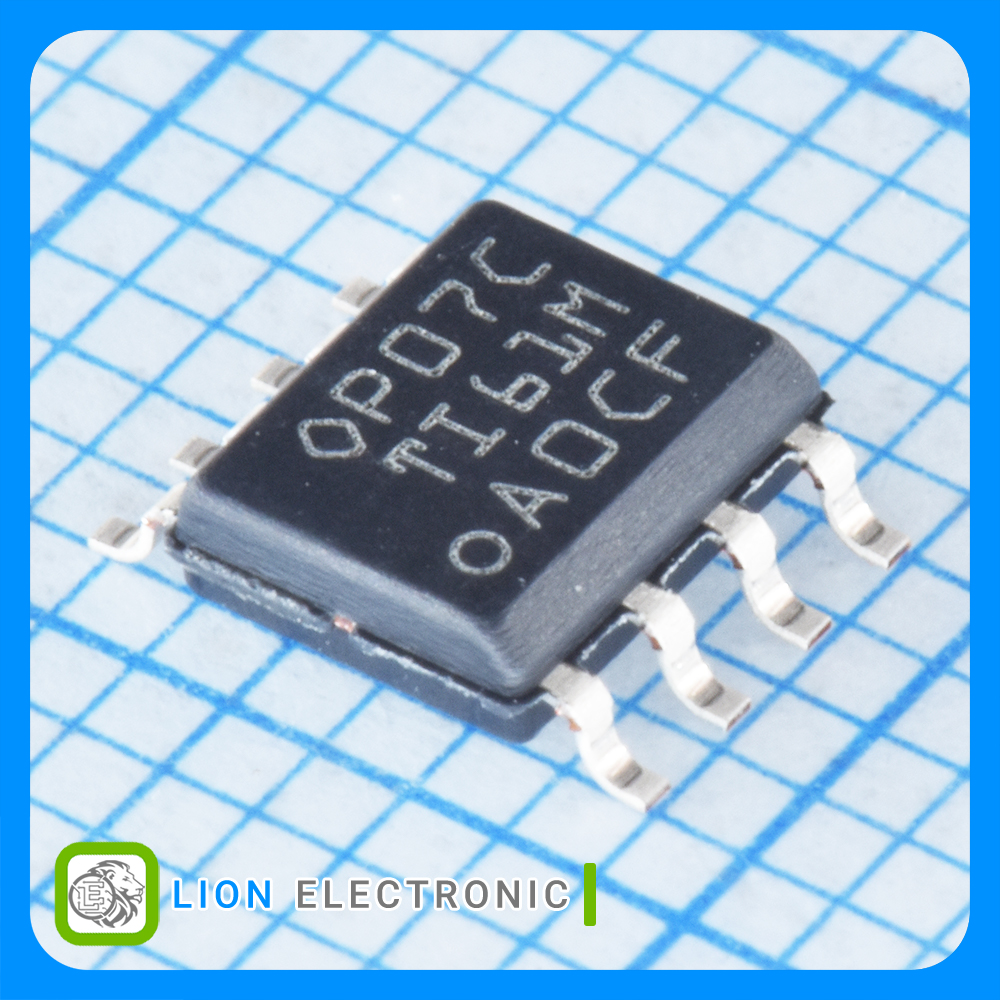

آپ امپ OP07CDR
OP07CDR
Part Number
2269
Lion Part
Datasheet
Texas Instruments Manufacture
تقویت کننده دقیق 1 کاناله پکیج SOIC-8
Precision Operational Amplifiers Low Offset Voltage SOIC-8
مشخصات آپ امپ OP07CDR
آپ امپ OP07CDR
Part Number
No Shutdown
Shutdown
1
Number of Channels
1.2mA
Output Current per Channel
Reel
Packaging
+70C
Maximum Operating Temperature
10.5nV/sqrt Hz
en - Input Voltage Noise Density
SMD/SMT
Mounting Style
300mV/us
SR - Slew Rate
0C
Minimum Operating Temperature
600KHz
GBP - Gain Bandwidth Product
250uV
Vos - Input Offset Voltage
1.7nA
Ib - Input Bias Current
3V
Supply Voltage - Min
100dB to 120dB
CMRR - Common Mode Rejection Ratio
18V
Supply Voltage - Max
2.4mA
Operating Supply Current
SOIC-8
Package-Case
