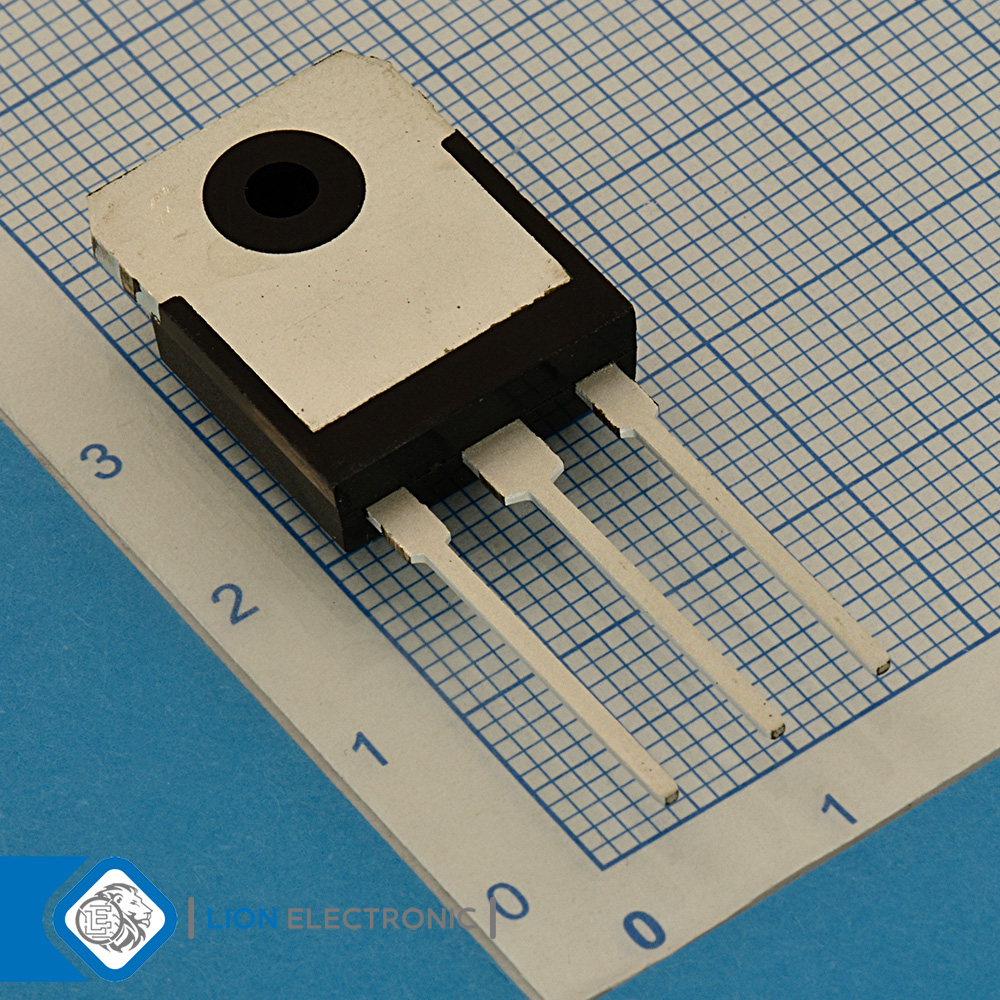

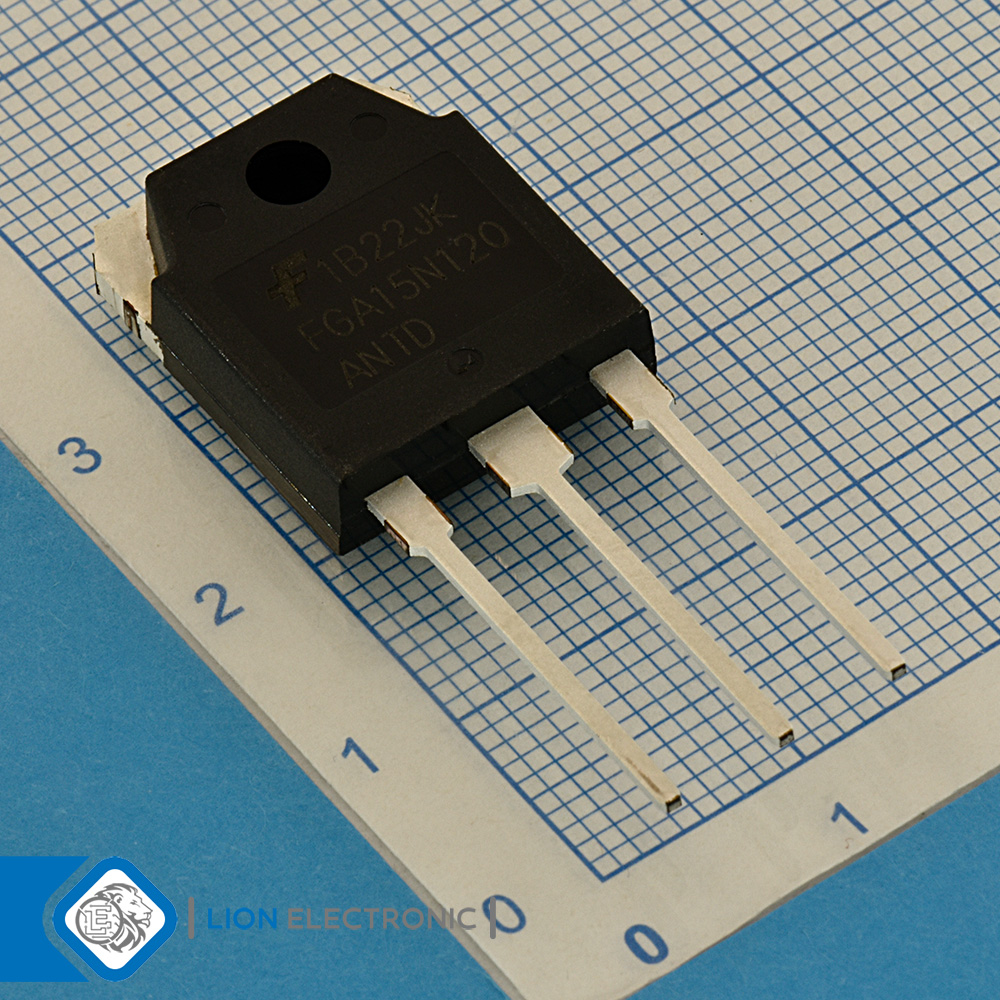

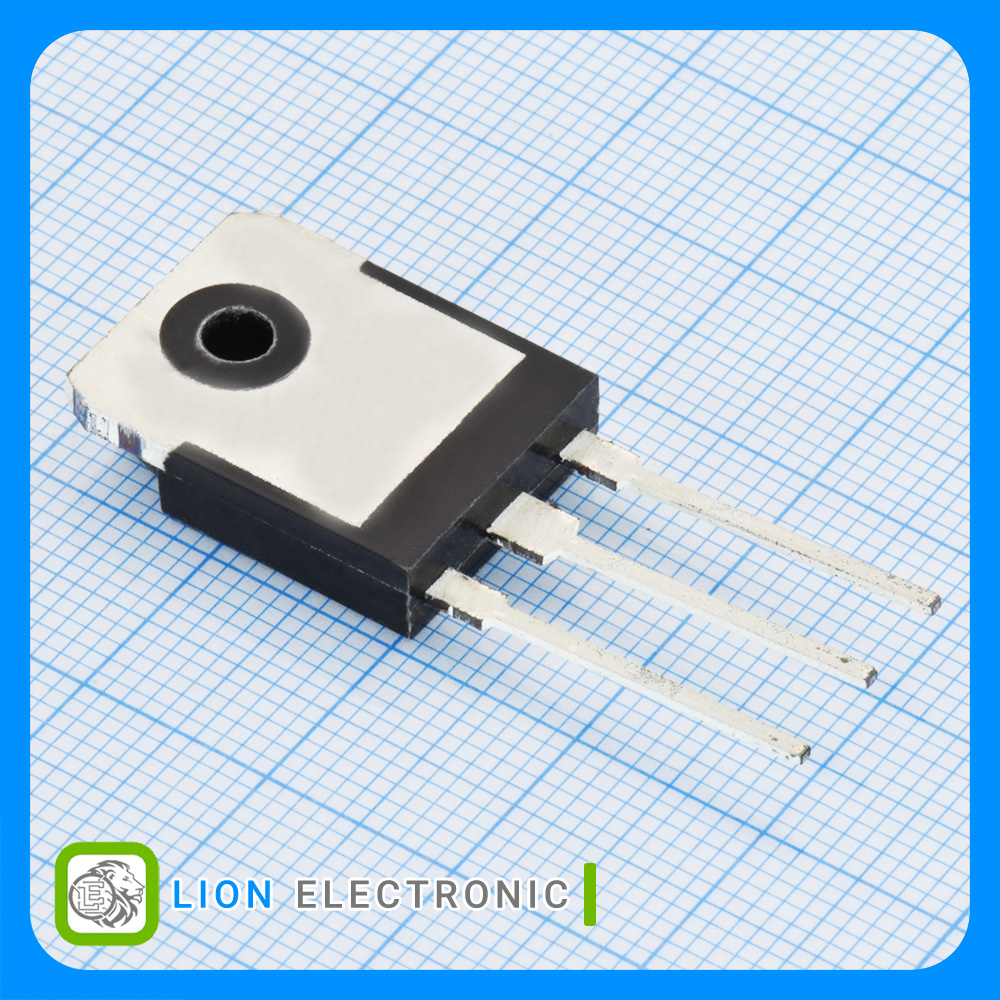

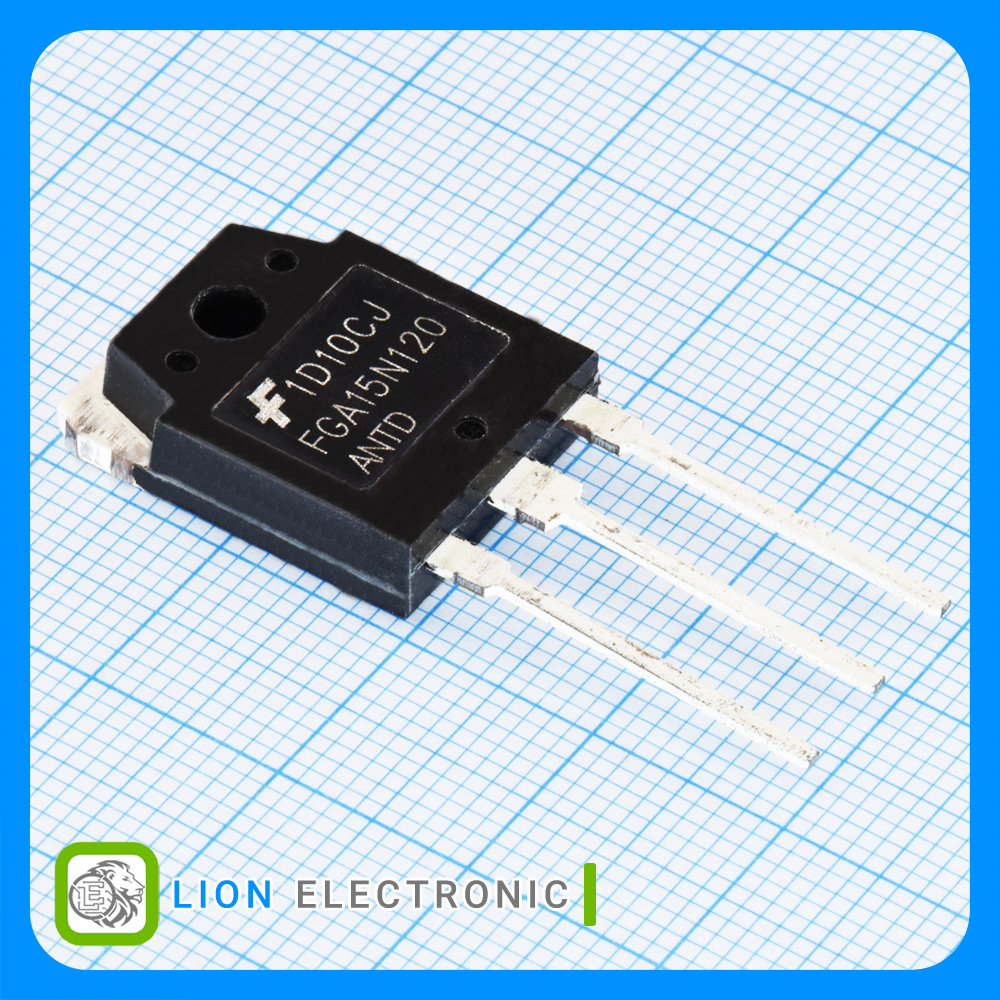

FGA15N120ANTD
FGA15N120ANTD
Part Number
2518
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ترانزیستور IGBT با ولتاژ 1.2 کیلوولت و جریان 30 آمپر با پکیج TO-3P-3
IGBT Transistor 1.2kV, 30A with TO-3P-3 Package
معرفی
ترانزیستور IGBT با ولتاژ 1.2 کیلوولت و جریان 30 آمپر با پکیج TO-3P-3
IGBT Transistor 1.2kV, 30A with TO-3P-3 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Continuous Collector Current aT 25 c: 30A
- Collector - Emitter Saturation Voltage: 2.4V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 74W
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات FGA15N120ANTD
FGA15N120ANTD
Part Number
20V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
Si
Technology
30A
Continuous Collector Current aT 25 c
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
2.4V
Collector - Emitter Saturation Voltage
1.2kV
Collector - Emitter Voltage VCEO Max
74W
Pd - Power Dissipation
TO-3P
Package-Case
