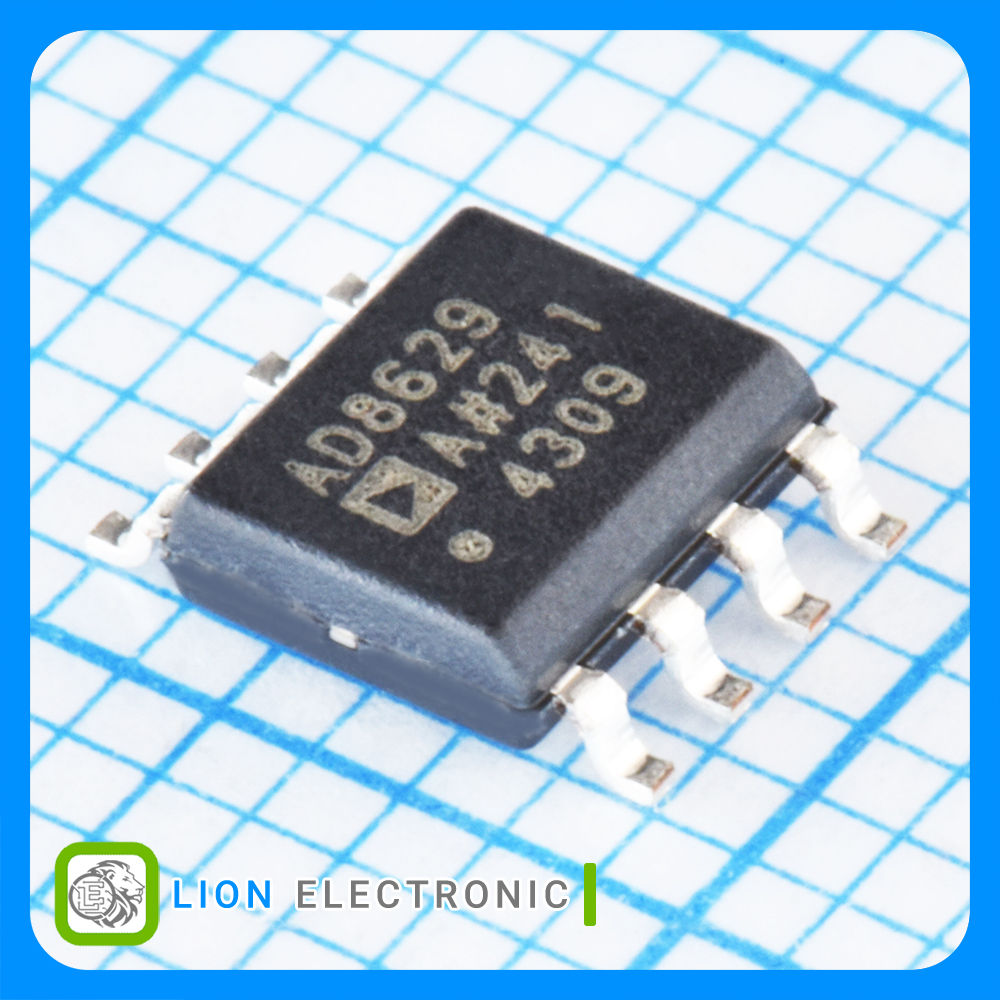

AD8629ARZ
AD8629ARZ
Part Number
2520
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ 2 کاناله دریفت صفر تکتغذیه ریل تو ریل ورودی/خروجی با پهنای باند 2.5 مگاهرتز و مصرف توان پایین با پکیج SOIC-8
Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier 2-Channel, 2.5MHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله دریفت صفر تکتغذیه ریل تو ریل ورودی/خروجی با پهنای باند 2.5 مگاهرتز و مصرف توان پایین با پکیج SOIC-8
Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier 2-Channel, 2.5MHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 30mA
- SR - Slew Rate: 1V/us
- GBP - Gain Bandwidth Product: 2.5MHZ
- CMRR - Common Mode Rejection Ratio: 140dB
- Ib - Input Bias Current: 100pA
- Vos - Input Offset Voltage: 1uV
- Supply Voltage - Max: 5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 1mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ AD8629ARZ

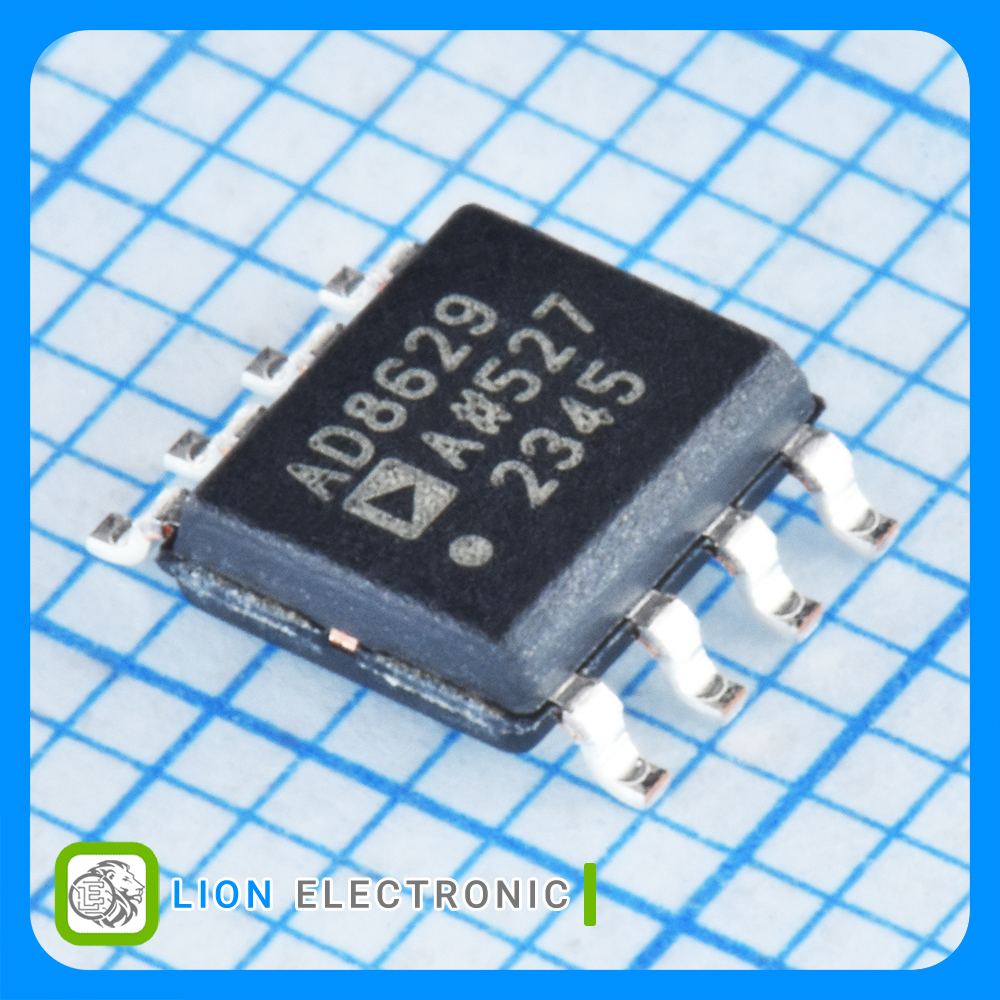

آپ امپ AD8629ARZ
Part Number
No Shutdown
Shutdown
2
Number of Channels
1uV
Vos - Input Offset Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
22nV/sqrt Hz
en - Input Voltage Noise Density
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5V
Supply Voltage - Max
1V/us
SR - Slew Rate
100pA
Ib - Input Bias Current
30mA
Output Current per Channel
2.5MHZ
GBP - Gain Bandwidth Product
2.7V
Supply Voltage - Min
140dB
CMRR - Common Mode Rejection Ratio
1mA
Operating Supply Current
SOIC-8
Package-Case
