ADA4807-2ARMZ
ADA4807-2ARMZ
Part Number
2525
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ 2 کاناله ریل تو ریل ورودی/خروجی با پهنای باند 180 مگاهرتز و پکیج MSOP-8
Rail to Rail Input/Output Operational Amplifier 2-Channel, 180MHz with MSOP-8 Package
معرفی
آپامپ 2 کاناله ریل تو ریل ورودی/خروجی با پهنای باند 180 مگاهرتز و پکیج MSOP-8
Rail to Rail Input/Output Operational Amplifier 2-Channel, 180MHz with MSOP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 50mA
- SR - Slew Rate: 225V/us
- GBP - Gain Bandwidth Product: 180MHz
- CMRR - Common Mode Rejection Ratio: 96dB
- Ib - Input Bias Current: 1uA
- Vos - Input Offset Voltage: 140uV
- Supply Voltage - Max: 11V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 1mA
- Mounting Style: SMD/SMT
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ ADA4807-2ARMZ

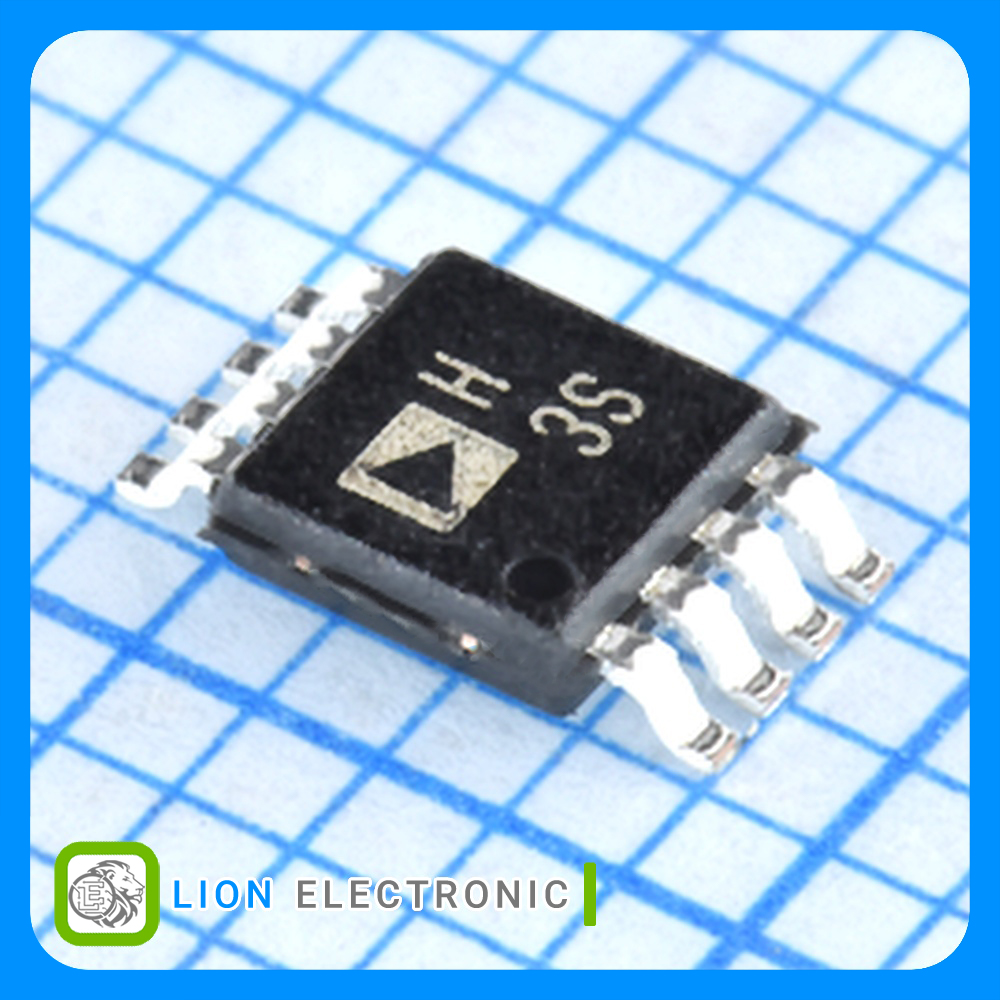

آپ امپ ADA4807-2ARMZ
Part Number
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
140uV
Vos - Input Offset Voltage
50mA
Output Current per Channel
11V
Supply Voltage - Max
2.7V
Supply Voltage - Min
96dB
CMRR - Common Mode Rejection Ratio
225V/us
SR - Slew Rate
1uA
Ib - Input Bias Current
180MHz
GBP - Gain Bandwidth Product
1mA
Operating Supply Current
MSOP-8
Package-Case
