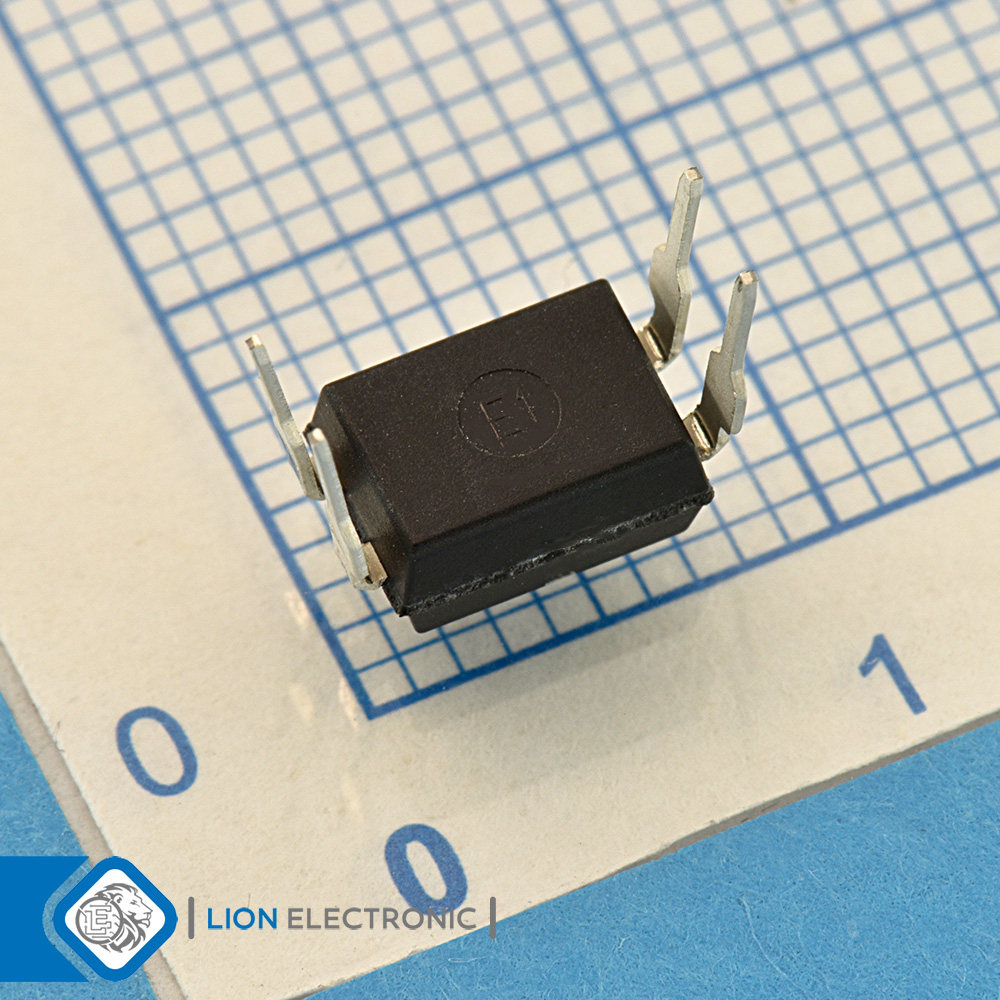

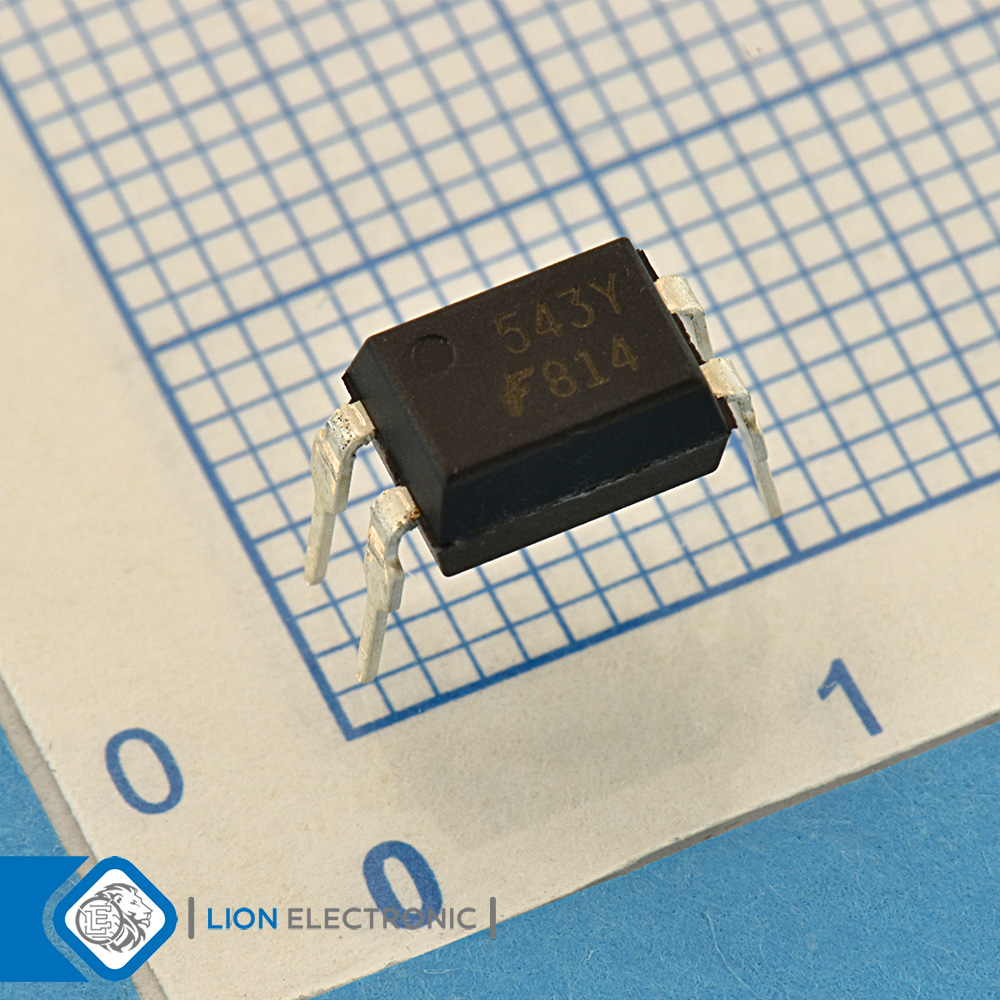

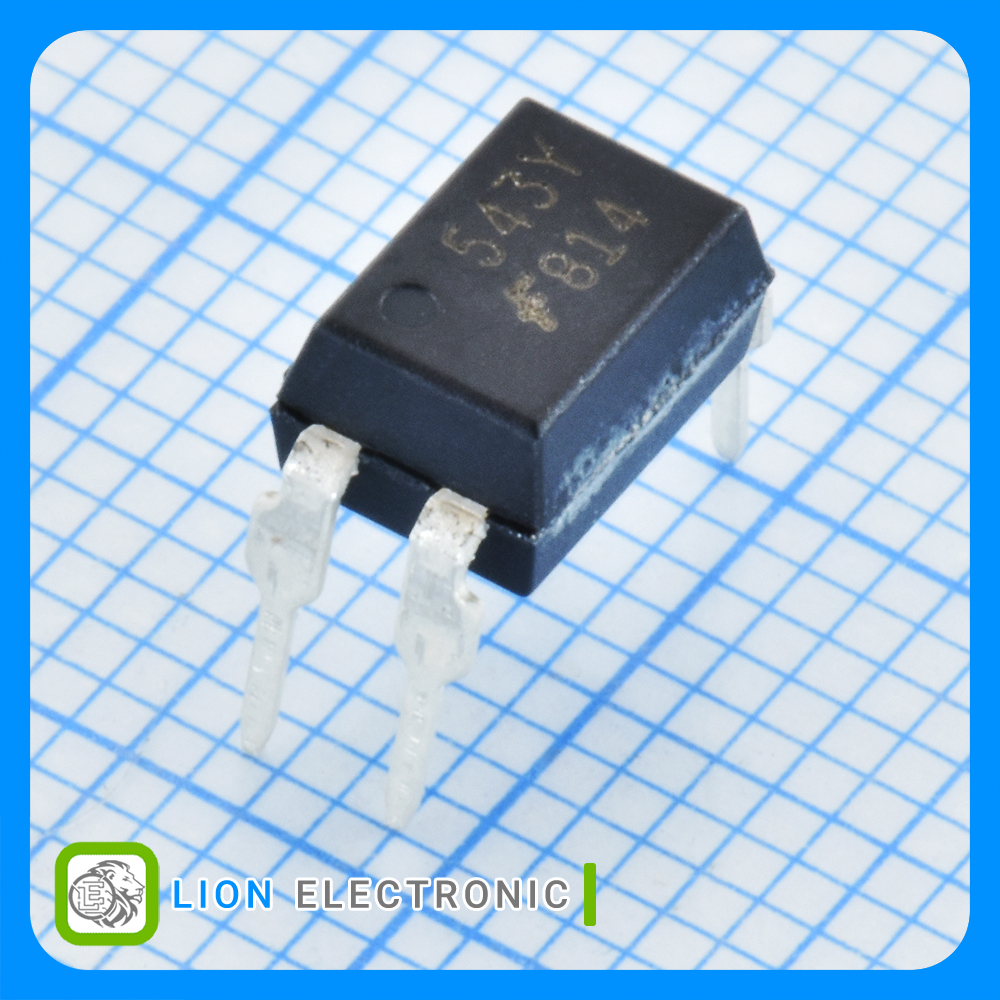

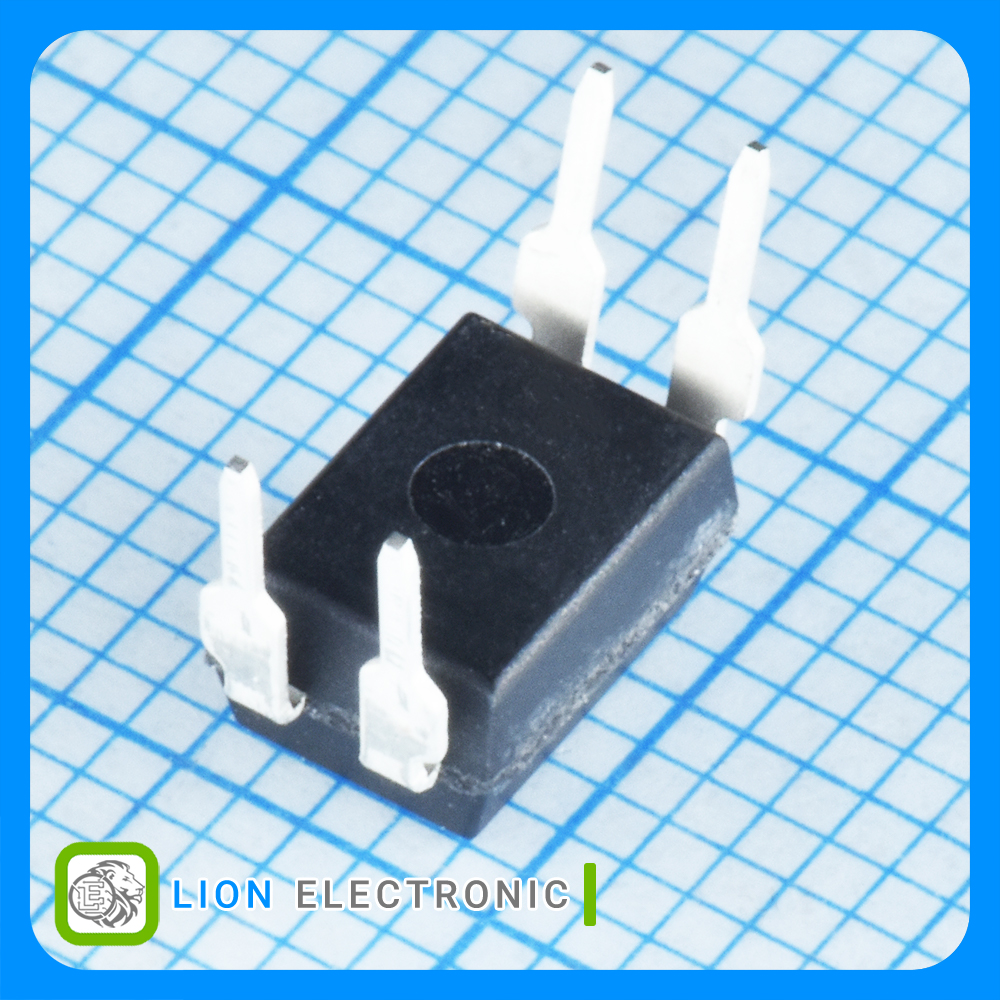

FOD814
FOD814
Part Number
2527
Lion Part
Datasheet
ON Semiconductor Manufacture
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 70 ولت ایزولاسیون 5 کیلوولت RMS با پکیج DIP-4 (با 4 پایه)
NPN Phototransistor Output Optocoupler 1 Channel, 70V, 5kVrms Isolation with DIP-4 (4Pin) Package
معرفی
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 70 ولت ایزولاسیون 5 کیلوولت RMS با پکیج DIP-4 (با 4 پایه)
NPN Phototransistor Output Optocoupler 1 Channel, 70V, 5kVrms Isolation with DIP-4 (4Pin) Package
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 1
- Input Type: AC
- Vf - Forward Voltage: 1.4V
- Maximum CTR: 300%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 200mW
- Collector - Emitter Voltage VCEO Max: 70V
- Isolation Voltage: 5kVrms
- Mounting Style: Through Hole
- Package/Case: 1.6 x 2.0mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Tube
مشخصات FOD814
FOD814
Part Number
1
Number of Channels
AC
Input Type
-55C
Minimum Operating Temperature
300%
Maximum CTR
Tube
Packaging
Through Hole
Mounting Style
5kVrms
Isolation Voltage
+105C
Maximum Operating Temperature
50mA
If - Forward Current
200mW
Pd - Power Dissipation
NPN Phototransistor
Output Type
70V
Collector - Emitter Voltage VCEO Max
1.4V
Vf - Forward Voltage
Transistor Output Optocouplers
Product Type
SMD2016-4P
Package-Case
