TOSHIBA
معرفی
اپتوکوپلر خروجی فتوترانزیستور 1 کاناله 80 ولت ایزولاسیون 3.75 کیلوولت RMS با پکیج SOP-4-1.27mm
Phototransistor Output Optocoupler 1 Channel, 80V, 3.75kVrms Isolation with SOP-4-1.27mm Package
Specifications
- Output Type: Phototransistor
- Number of Channels: 1
- Input Type: AC
- Vf - Forward Voltage: 1.4V
- Maximum CTR: 600%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 100mW
- Collector - Emitter Voltage VCEO Max: 80V
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SOP-4-1.27mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +110C
- Packaging: Reel

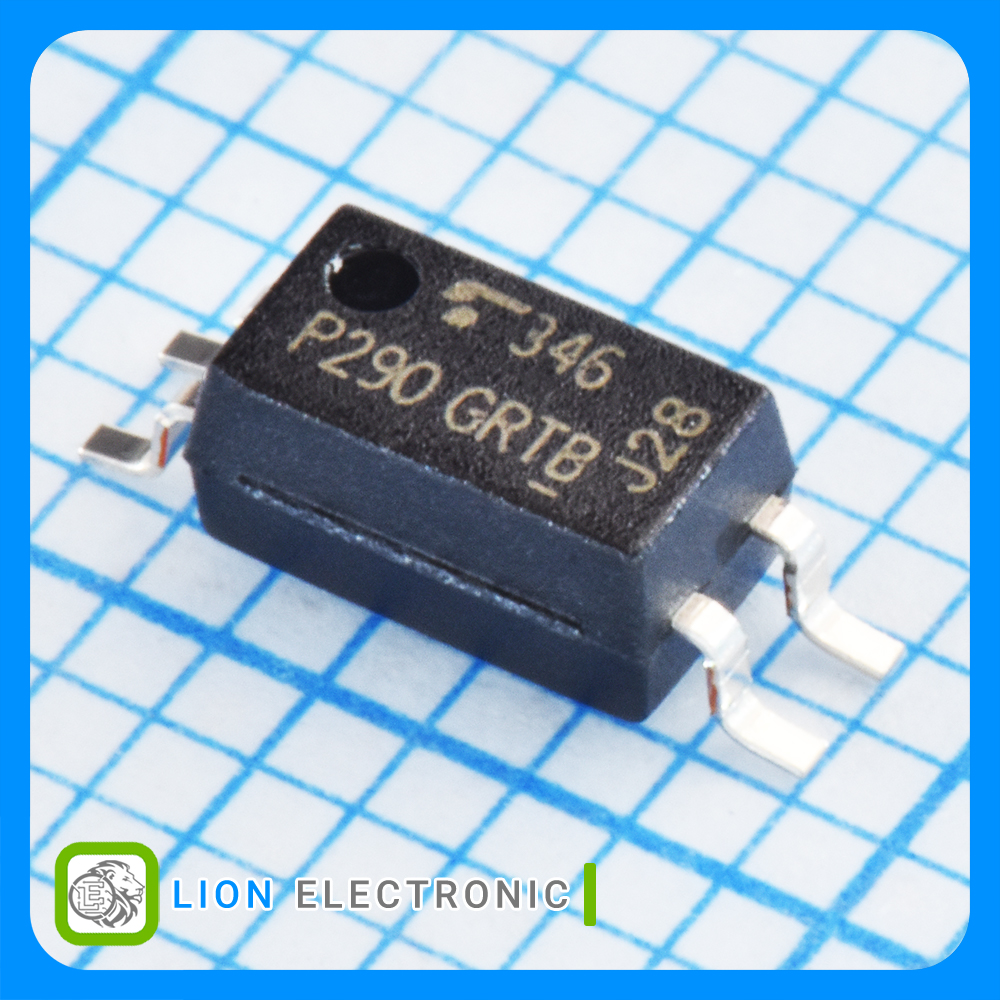

مشخصات TLP290(GR-TP,SE
TLP290(GR-TP,SE
Part Number
1
Number of Channels
AC
Input Type
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
3.75kVrms
Isolation Voltage
600%
Maximum CTR
100mW
Pd - Power Dissipation
+110C
Maximum Operating Temperature
50mA
If - Forward Current
80V
Collector - Emitter Voltage VCEO Max
Phototransistor
Output Type
1.4V
Vf - Forward Voltage
SOP-4-1.27mm
Package-Case
