TLP290-4(GB-TP,E(T
TLP290-4(GB-TP,E(T
Part Number
3700
Lion Part
Datasheet
TOSHIBA Manufacture
اپتوکوپلر چهارتایی خروجی NPN فوتوترانزیستور، 80 ولت، ایزولاسیون 2.5 کیلوولت RMS با پکیج SOP-16

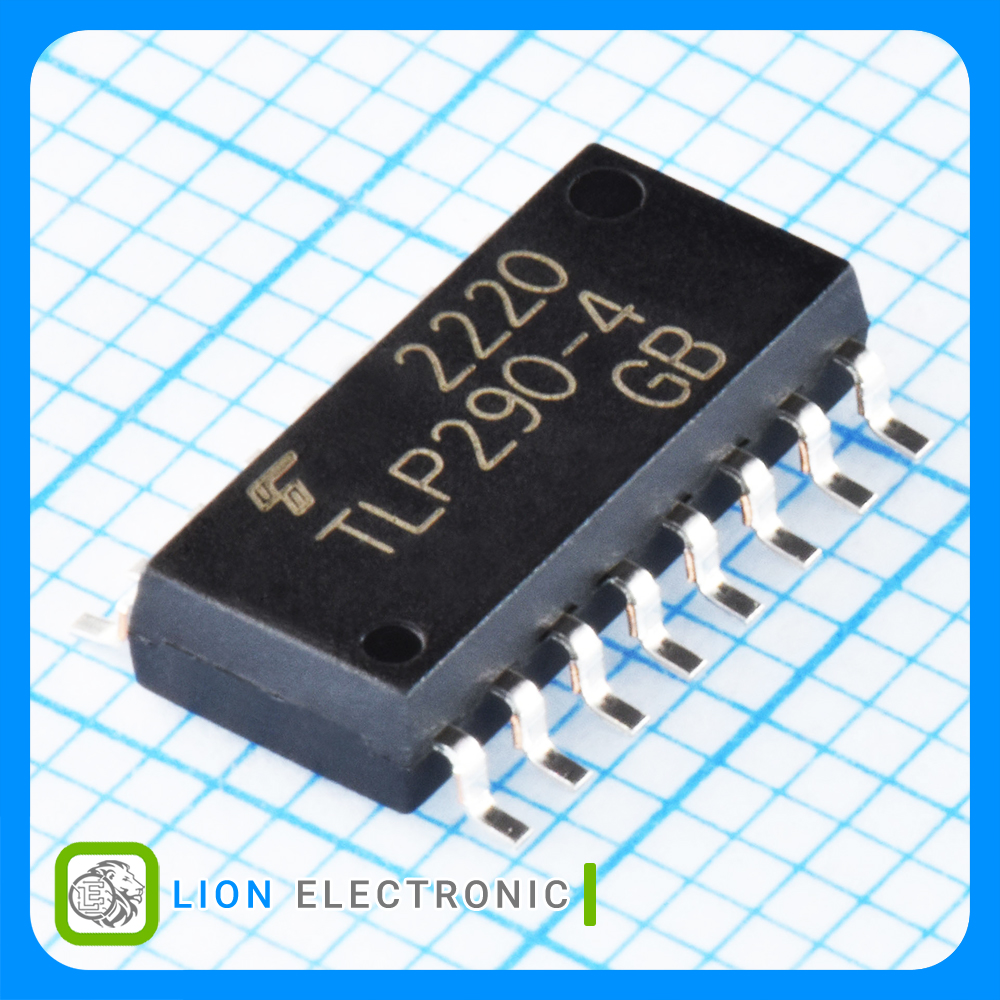

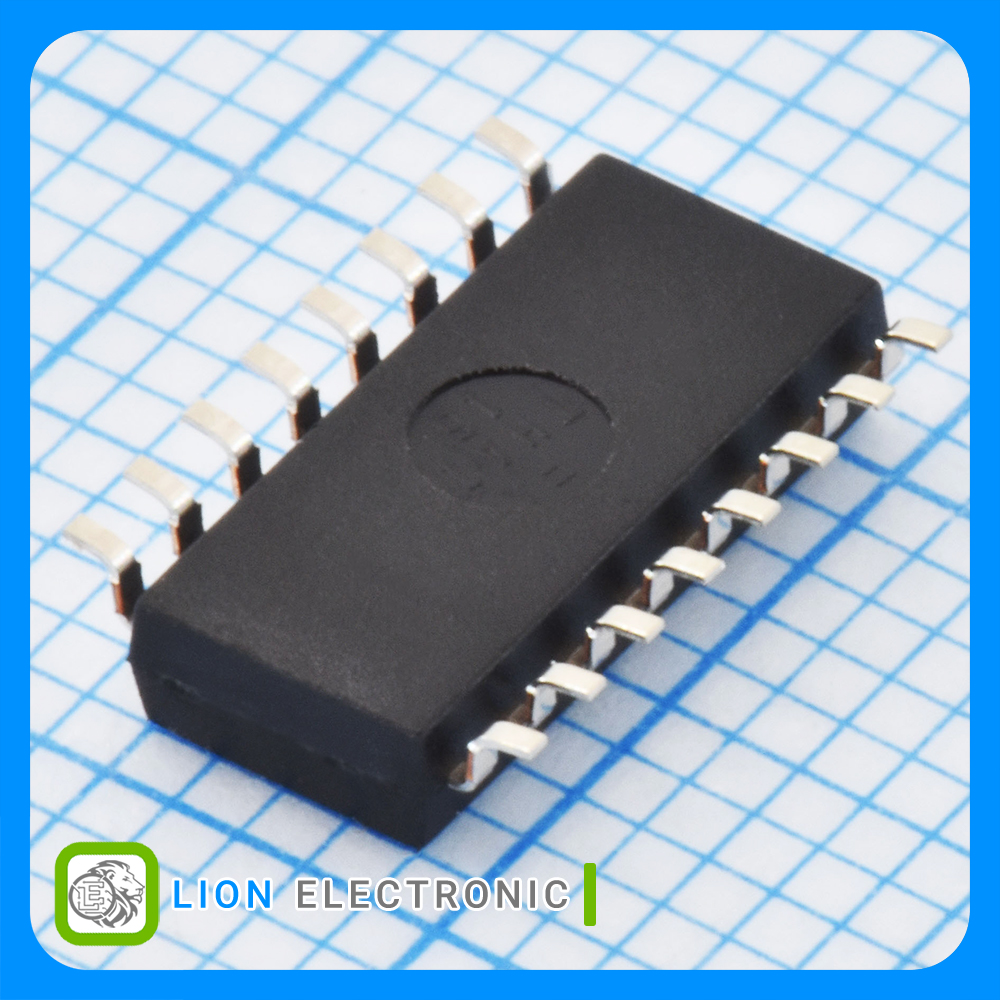

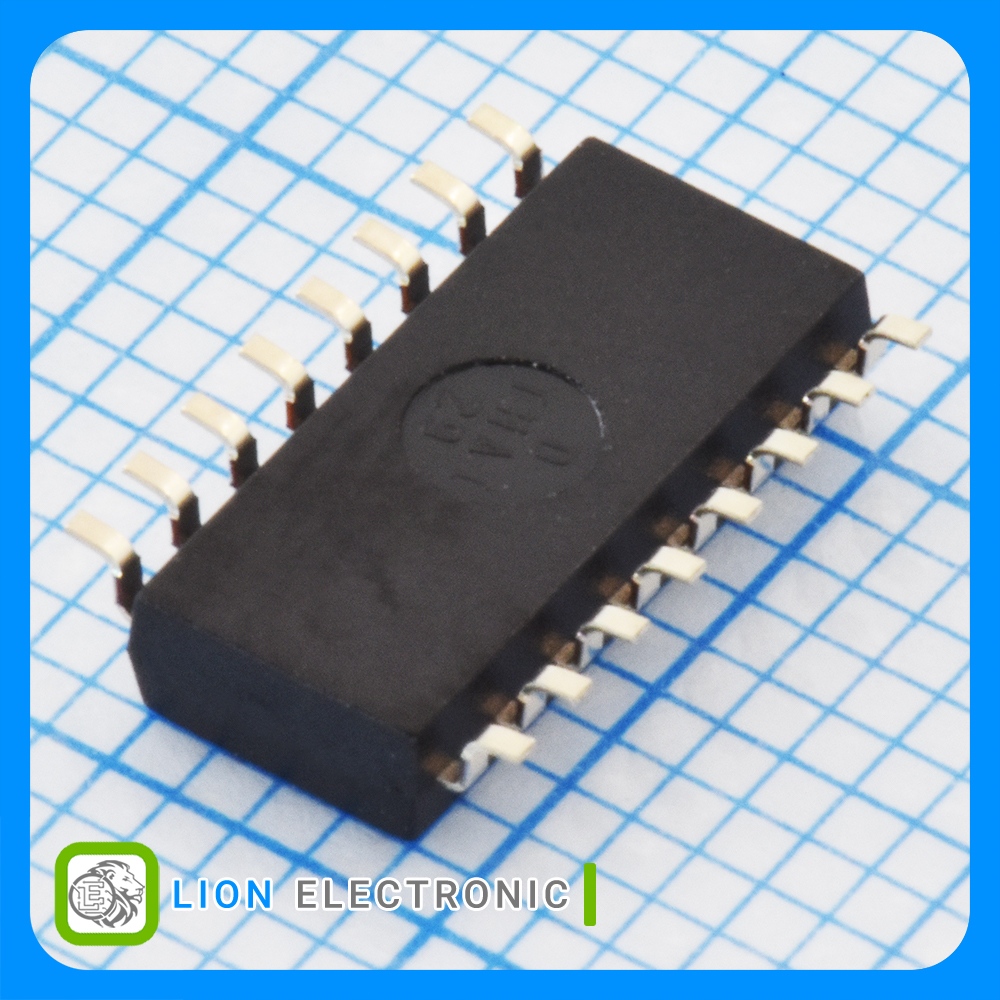

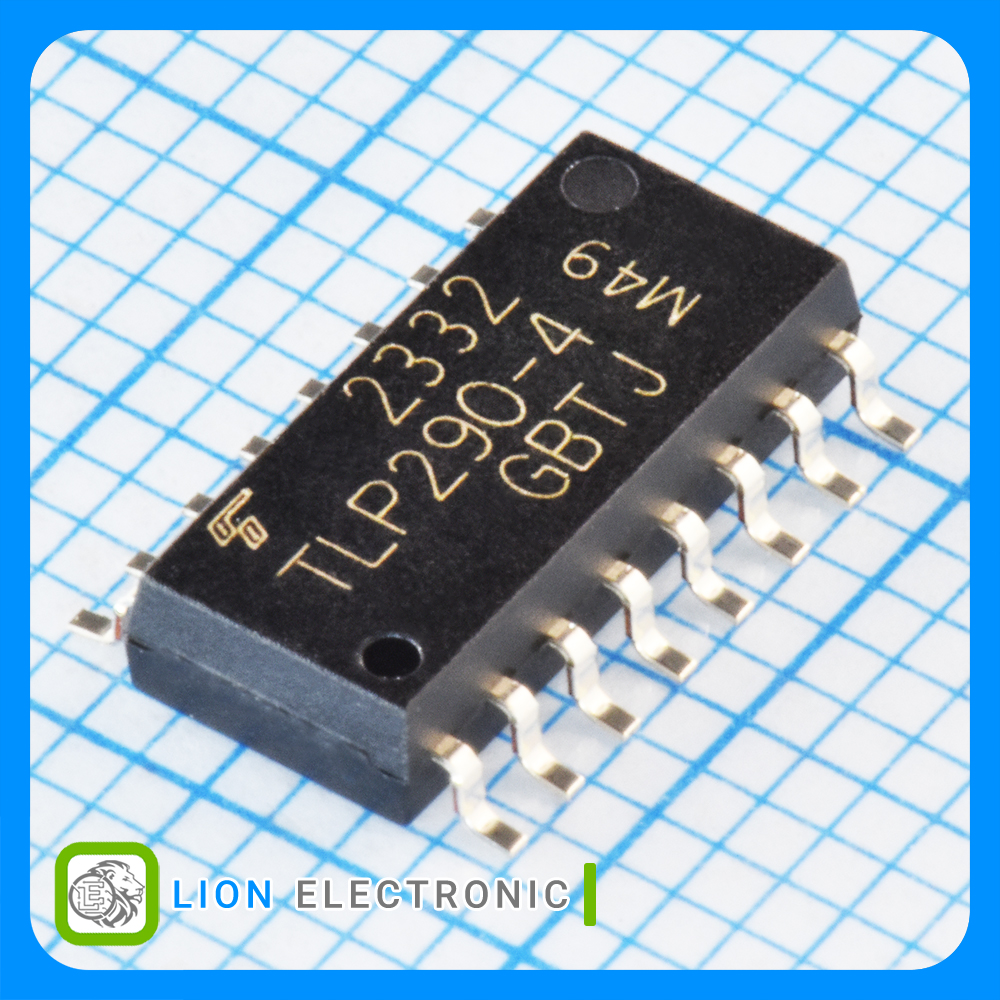

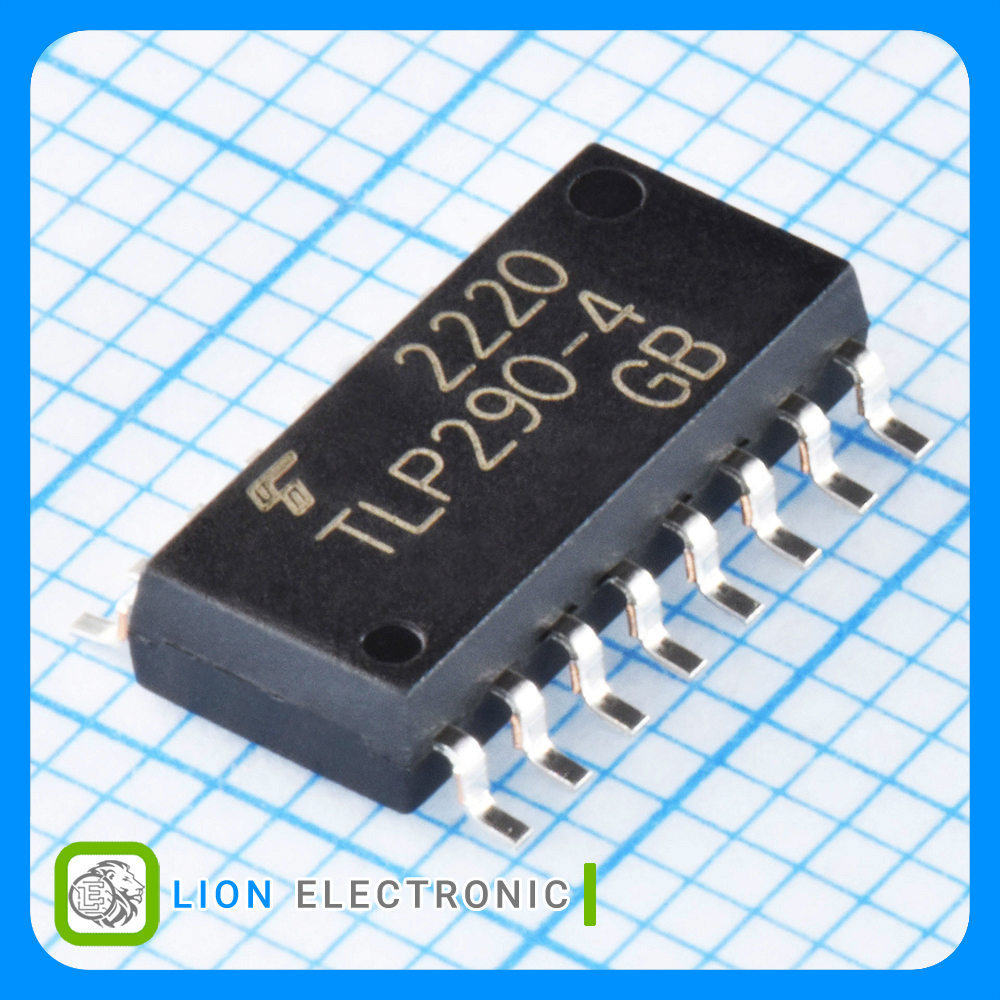

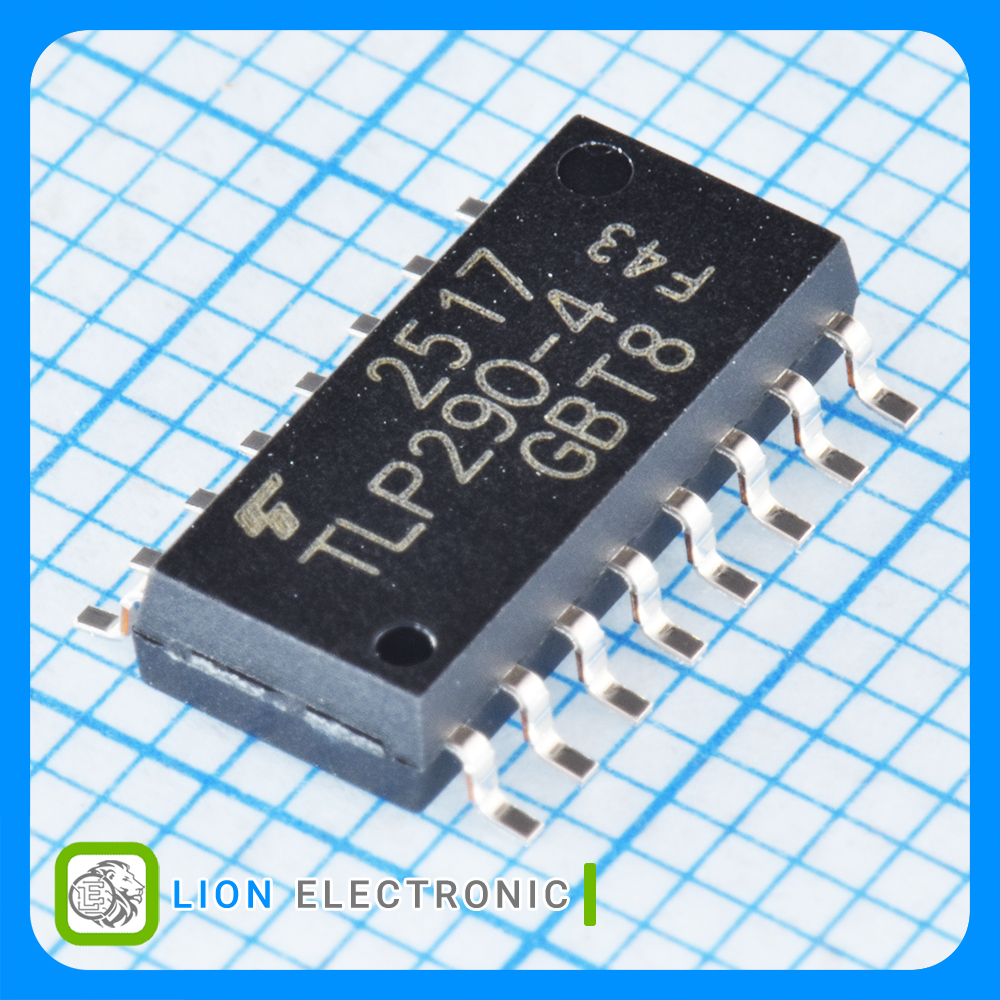

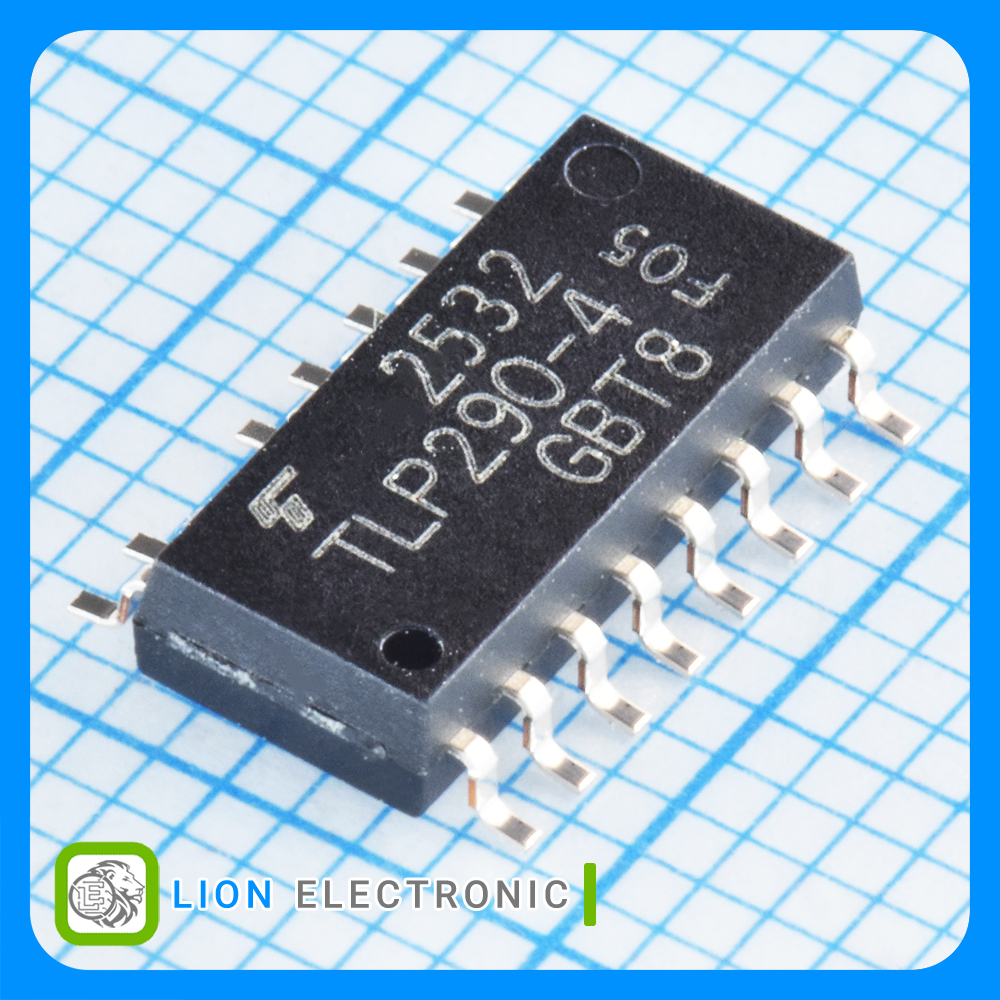

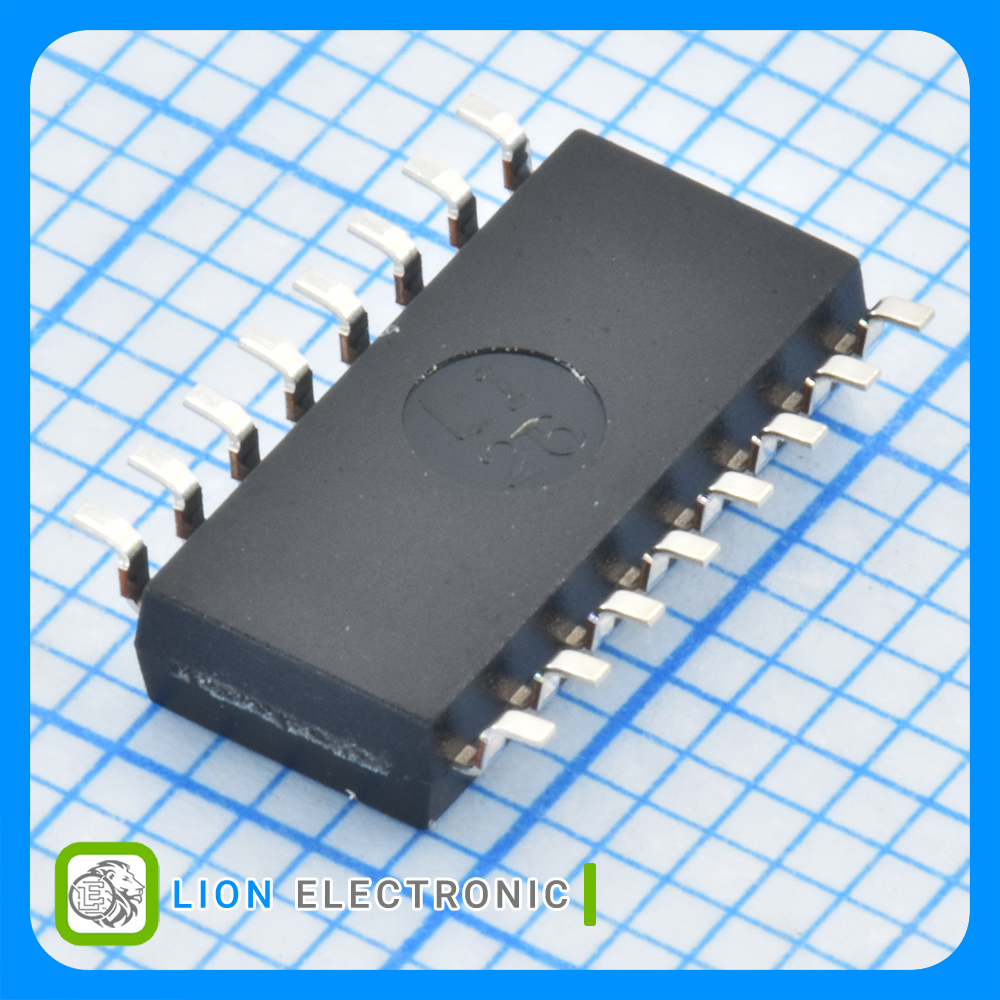

Toshiba TLP290-4 Consists of Phototransistors Optically Coupled to Gallium Arsenide Infrared Emitting Diodes, NPN Phototransistor Output 4 Channel, 80V, 2.5kVrms Isolation with SOP-16 Package
معرفی
اپتوکوپلر چهارتایی خروجی NPN فوتوترانزیستور، 80 ولت، ایزولاسیون 2.5 کیلوولت RMS با پکیج SOP-16
Toshiba TLP290-4 Consists of Phototransistors Optically Coupled to Gallium Arsenide Infrared Emitting Diodes, NPN Phototransistor Output 4 Channel, 80V, 2.5kVrms Isolation with SOP-16 Package
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 4
- Input Type: AC
- Vf - Forward Voltage: 1.2V
- Maximum CTR: 400%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 170mW
- Collector - Emitter Voltage VCEO Max: 80V
- Isolation Voltage: 2.5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SOP-16
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +110C
- Packaging: Reel
مشخصات TLP290-4(GB-TP,E(T
TLP290-4(GB-TP,E(T
Part Number
AC
Input Type
-55C
Minimum Operating Temperature
4
Number of Channels
2.5kVrms
Isolation Voltage
Reel
Packaging
400%
Maximum CTR
SMD/SMT
Mounting Style
170mW
Pd - Power Dissipation
+110C
Maximum Operating Temperature
50mA
If - Forward Current
NPN Phototransistor
Output Type
80V
Collector - Emitter Voltage VCEO Max
1.2V
Vf - Forward Voltage
SOP-16
Package-Case
