TOSHIBA
معرفی

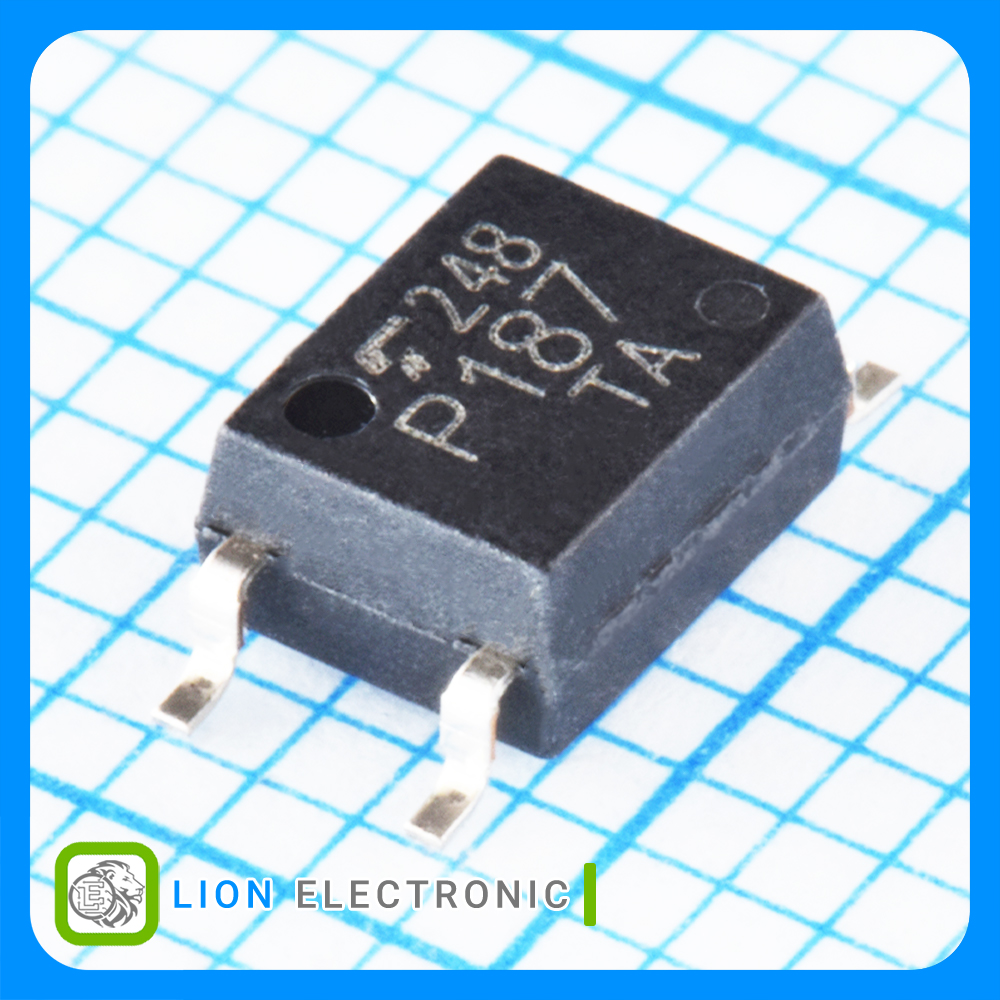

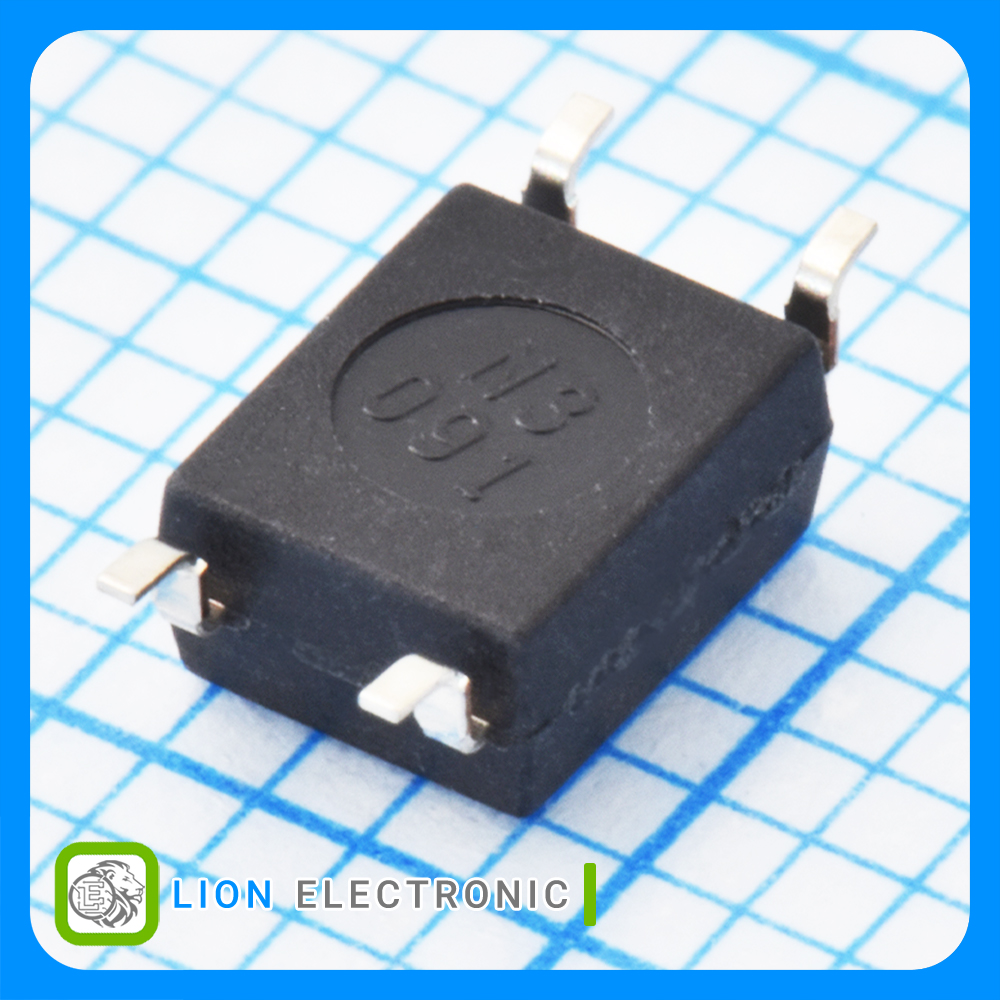

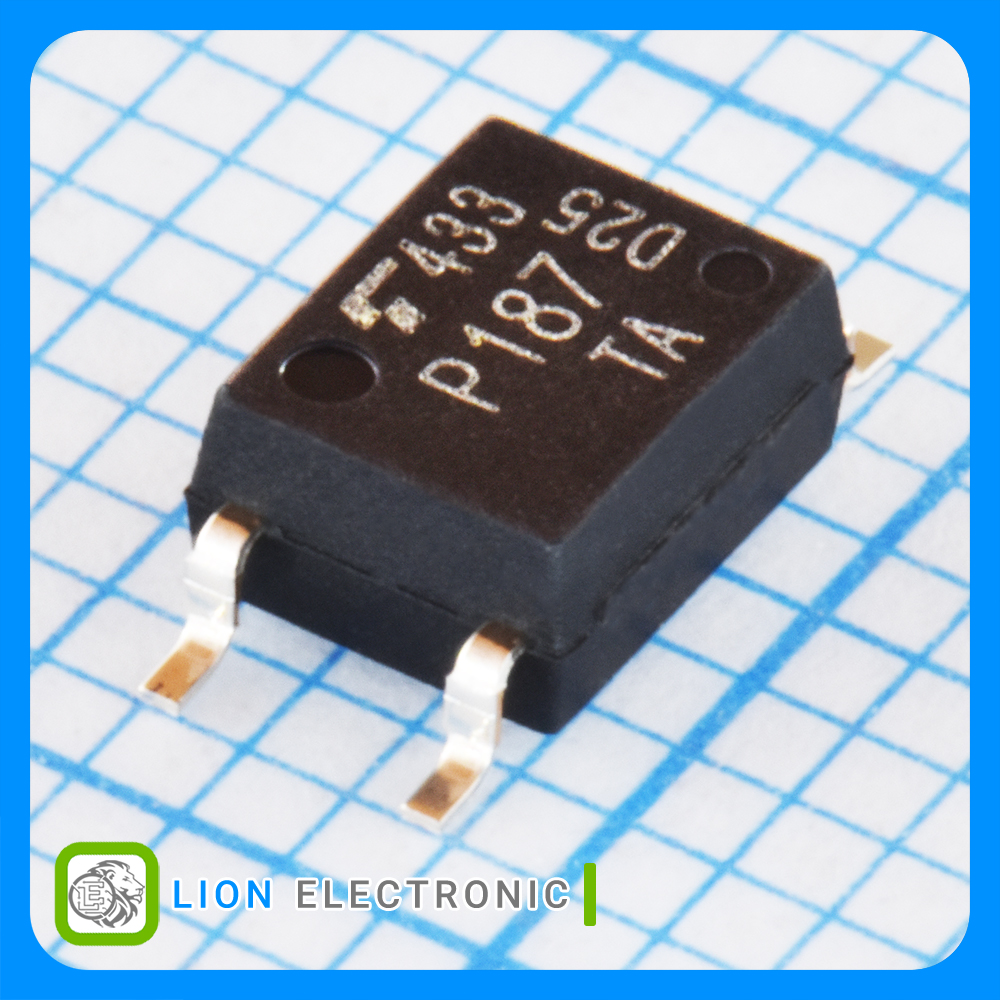

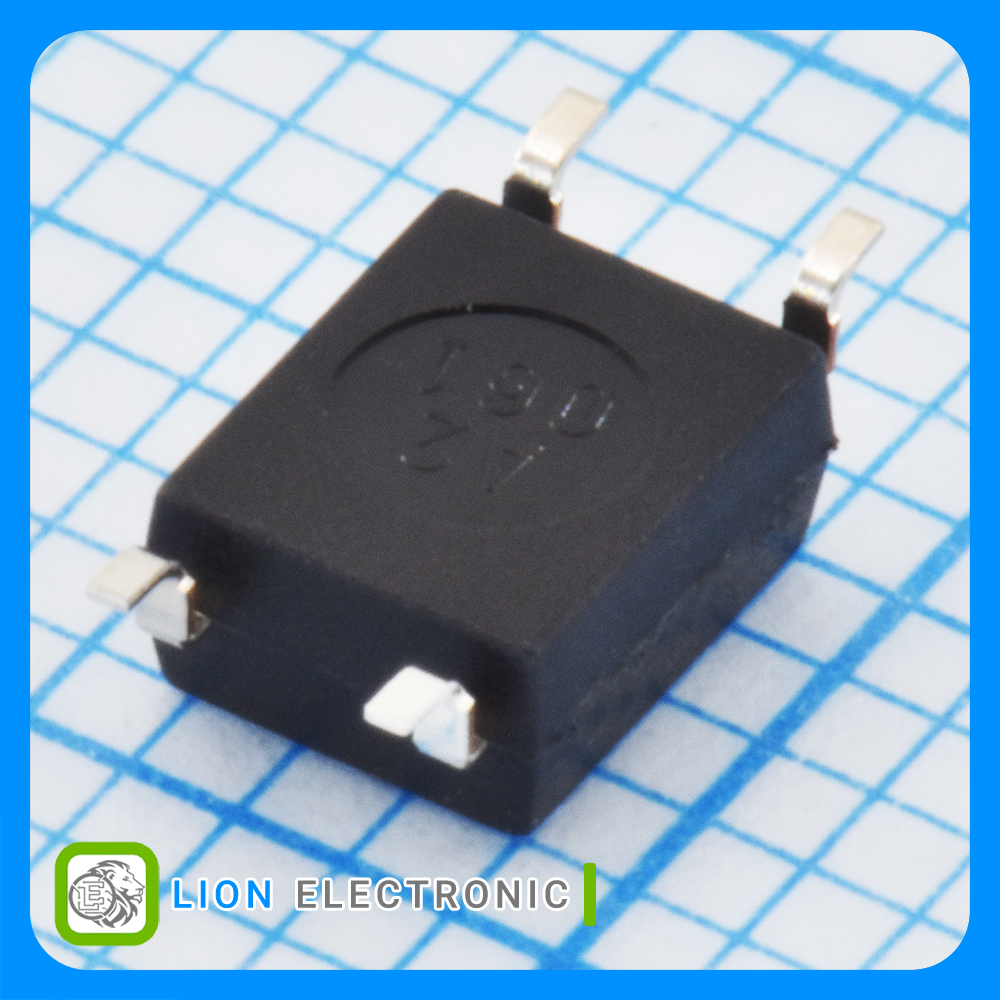

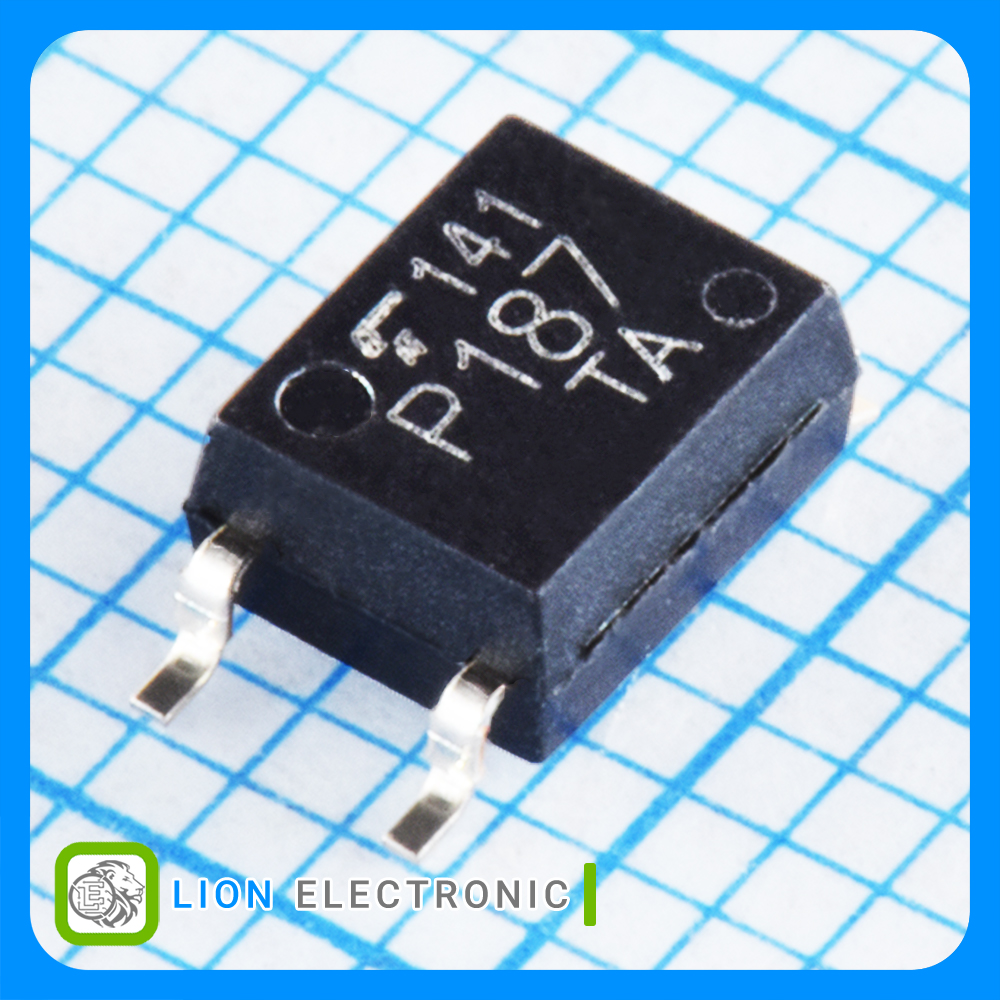

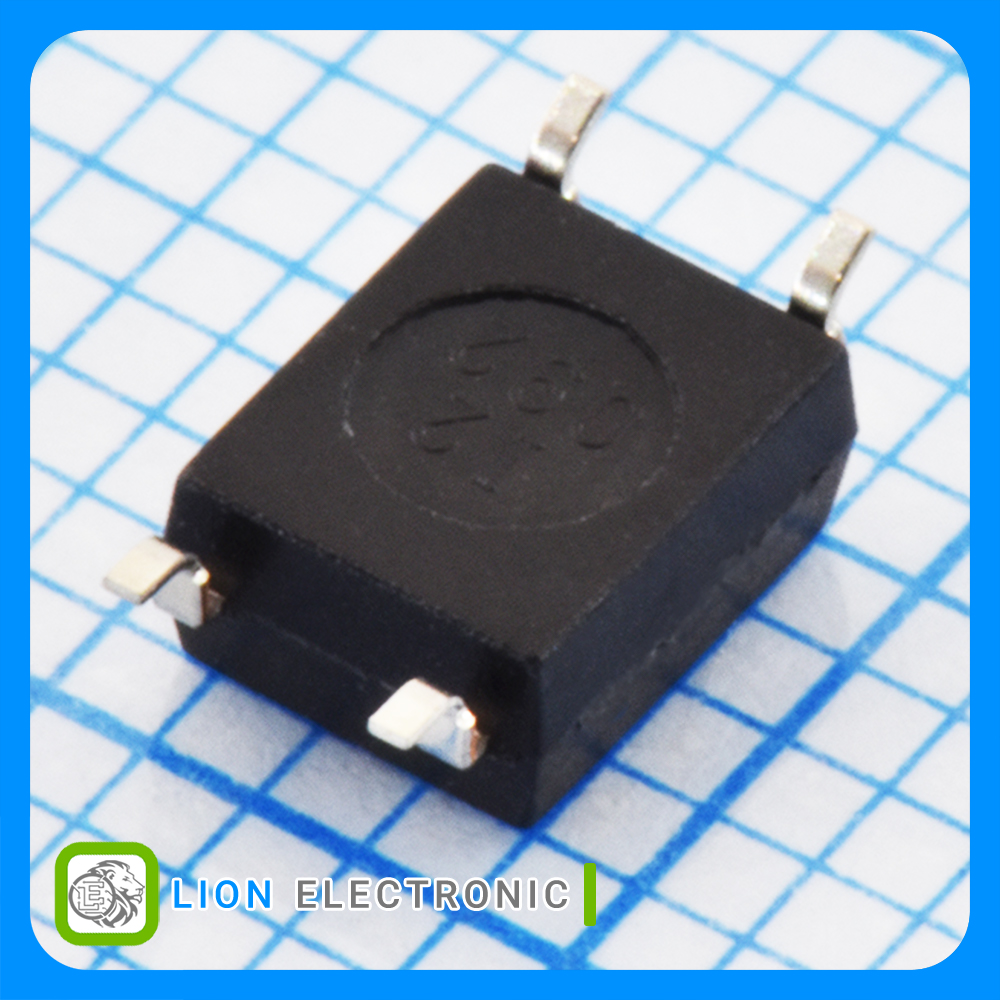

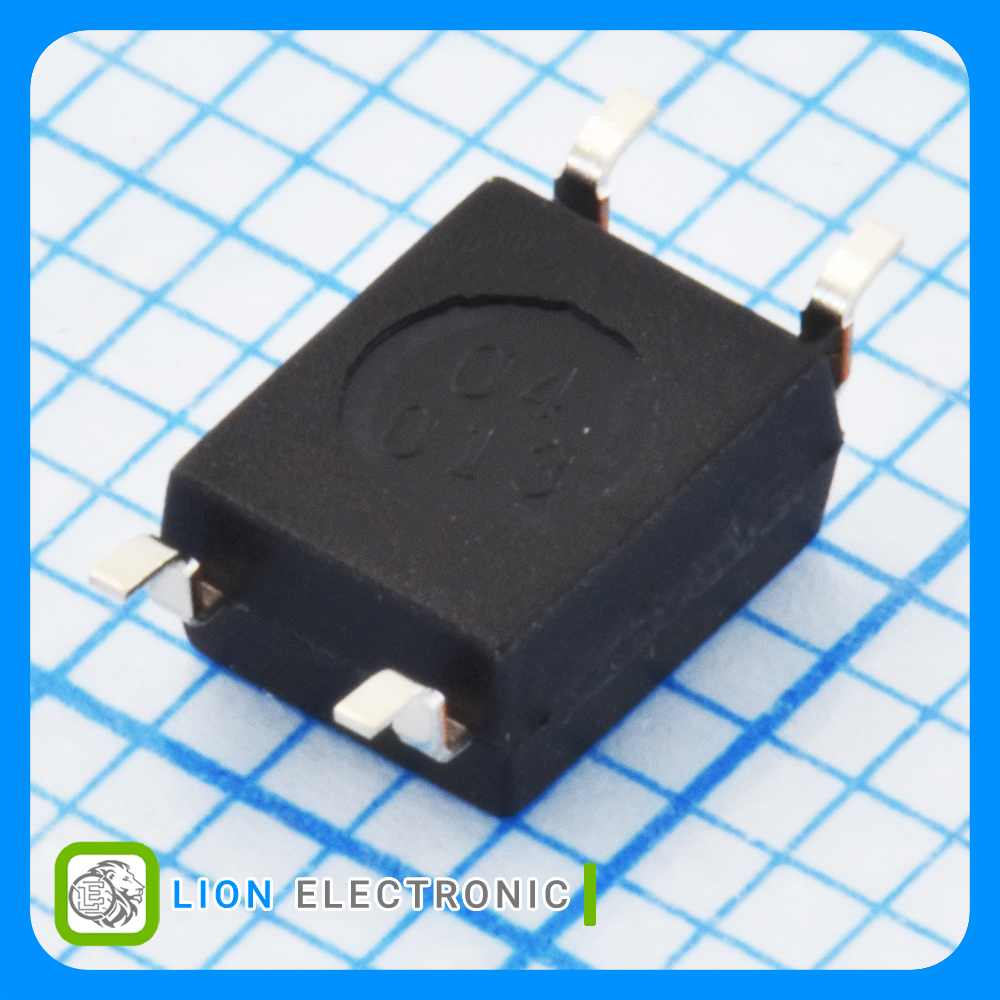

اپتوکوپلر خروجی فتودارلینگتون 1 کاناله 300 ولت ایزولاسیون 3.75 کیلوولت RMS با پکیج SO-4-4.6mm
Photodarlington Output Optocoupler 1 Channel, 300V, 3.75kVrms Isolation with SO-4-4.6mm Package
Specifications
- Output Type: Photodarlington
- Number of Channels: 1
- Input Type: DC
- Vf - Forward Voltage: 1.25V
- Maximum CTR: 4000%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 200mW
- Collector - Emitter Voltage VCEO Max: 300V
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SO-4-4.6mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +110C
- Packaging: Reel
مشخصات اپتوکوپلر TLP187(TPL,E(T

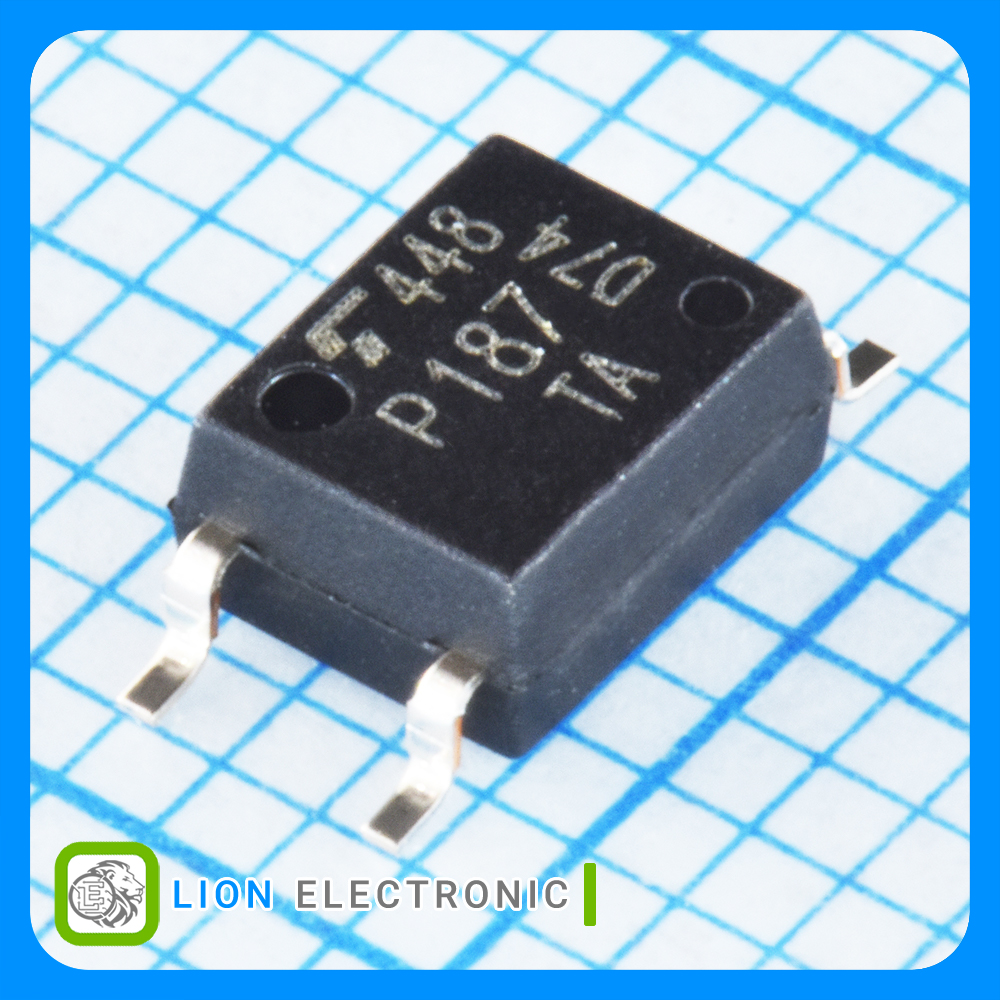

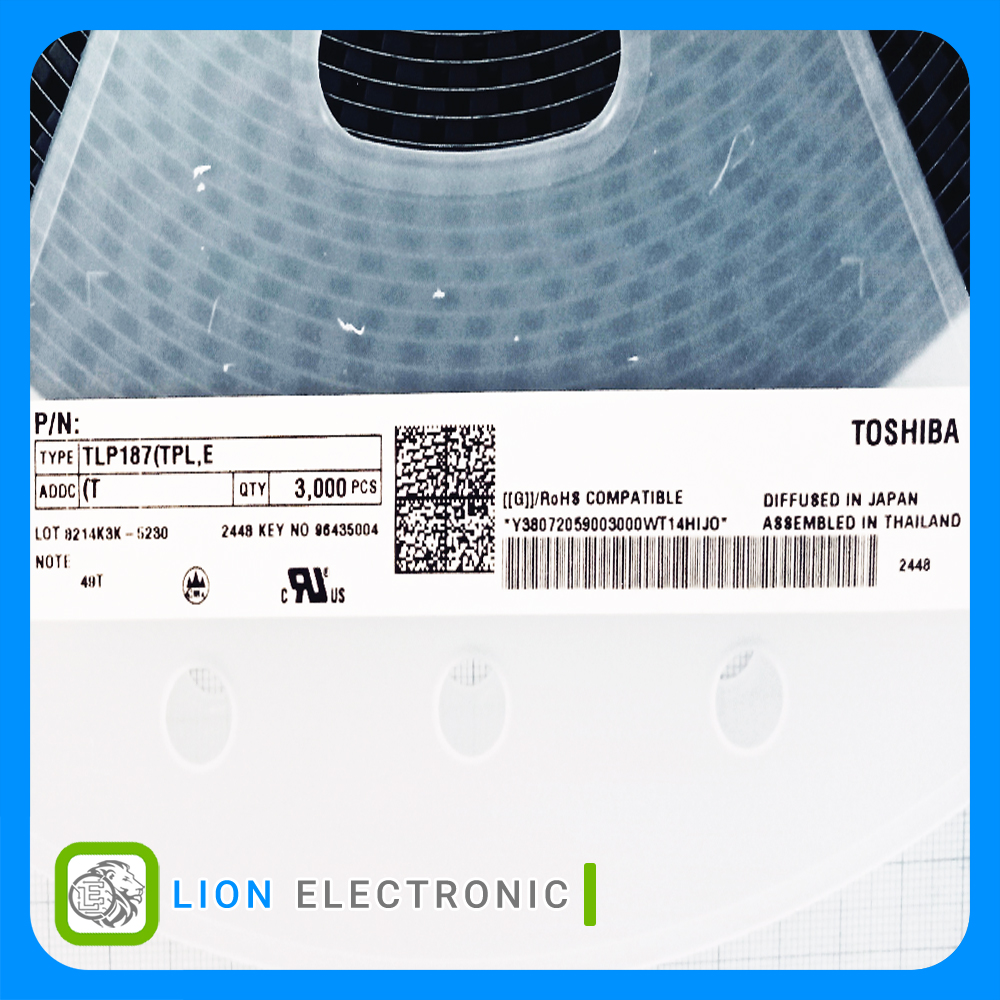

اپتوکوپلر TLP187(TPL,E(T
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
DC
Input Type
Reel
Packaging
SMD/SMT
Mounting Style
3.75kVrms
Isolation Voltage
4000%
Maximum CTR
+110C
Maximum Operating Temperature
50mA
If - Forward Current
200mW
Pd - Power Dissipation
Photodarlington
Output Type
300V
Collector - Emitter Voltage VCEO Max
1.25V
Vf - Forward Voltage
SO-4-4.6mm
Package-Case
