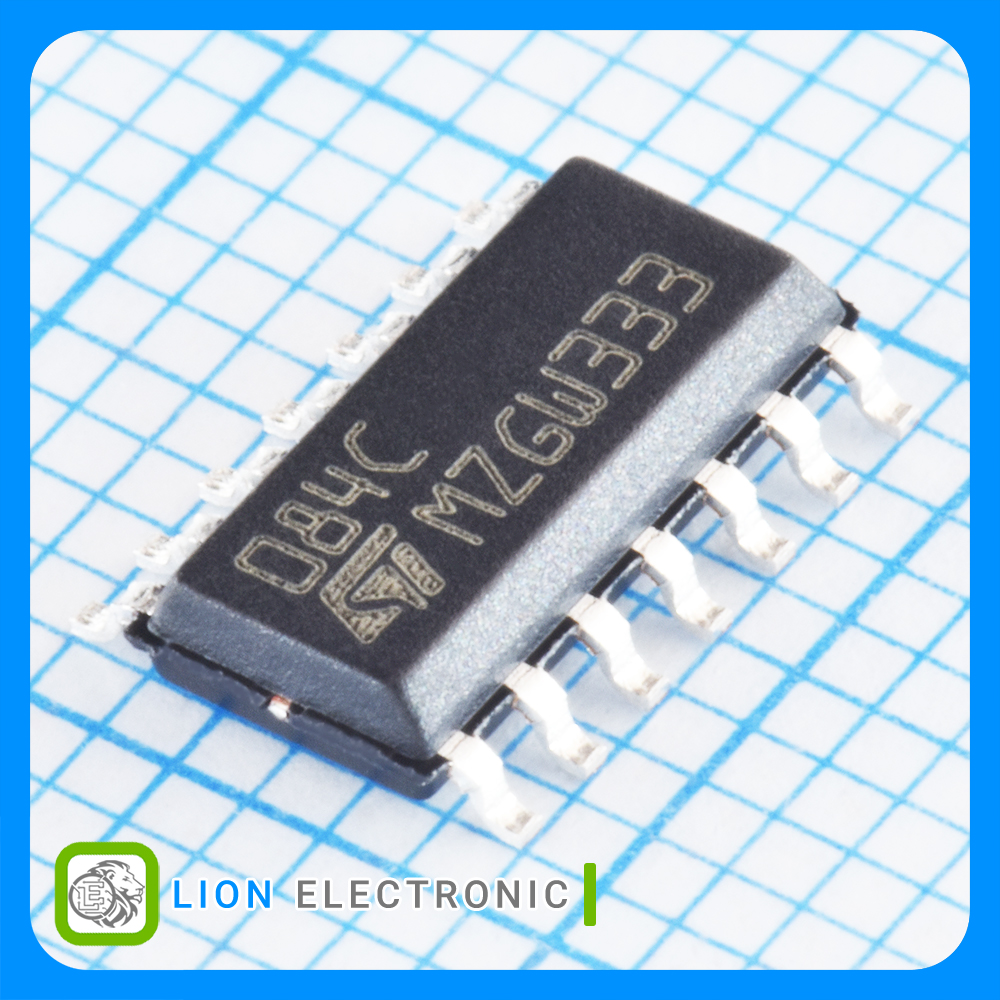

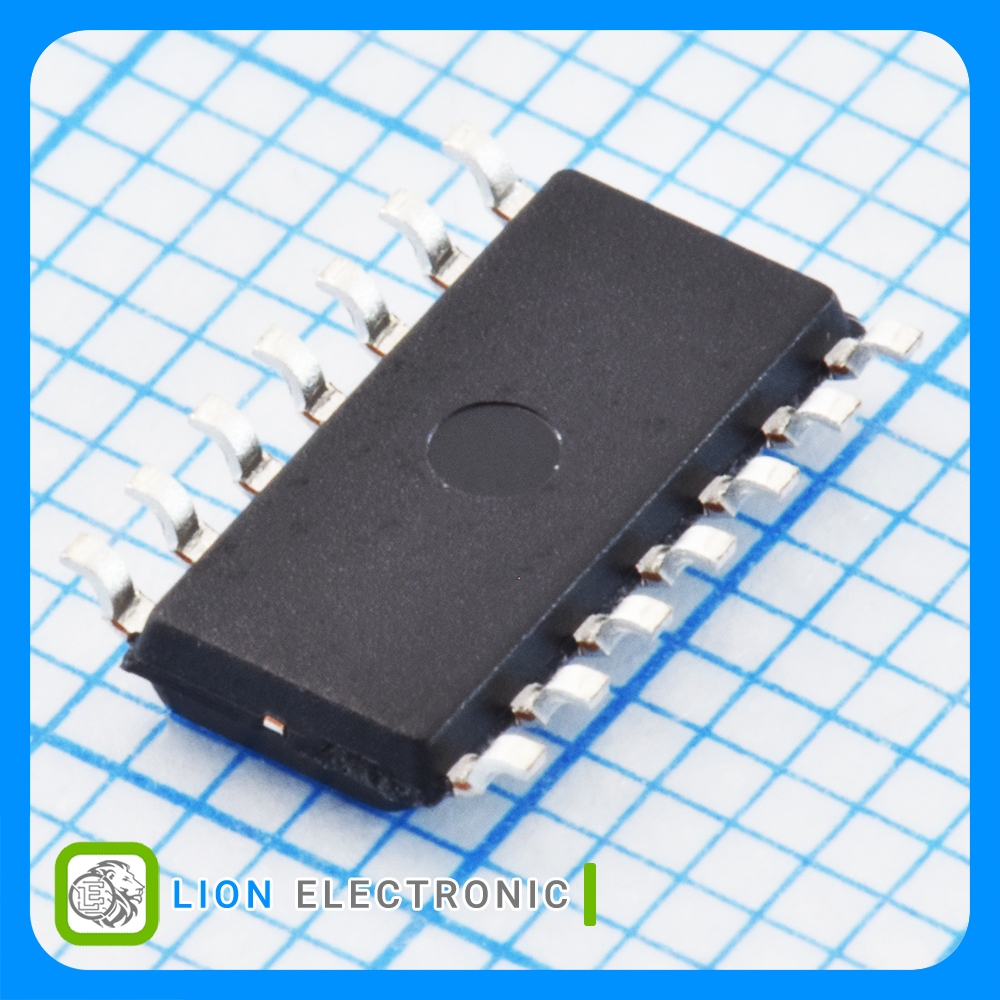

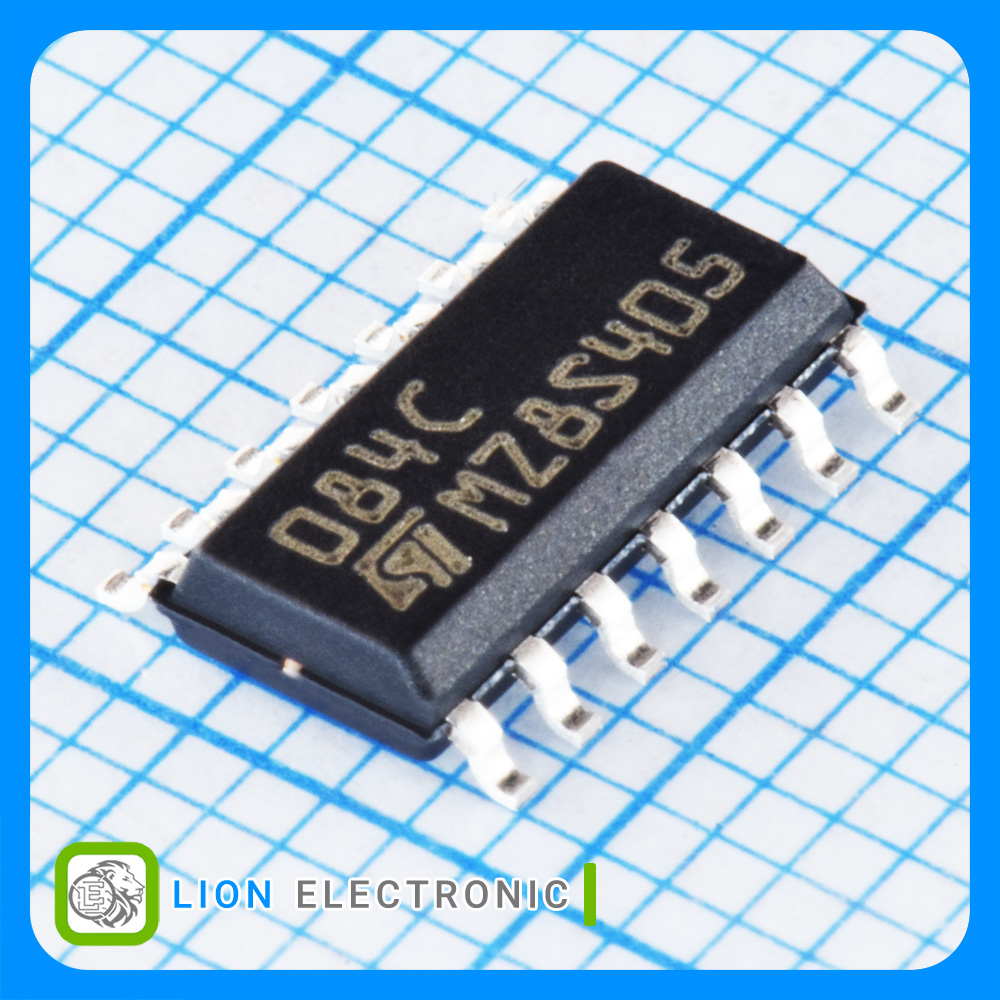

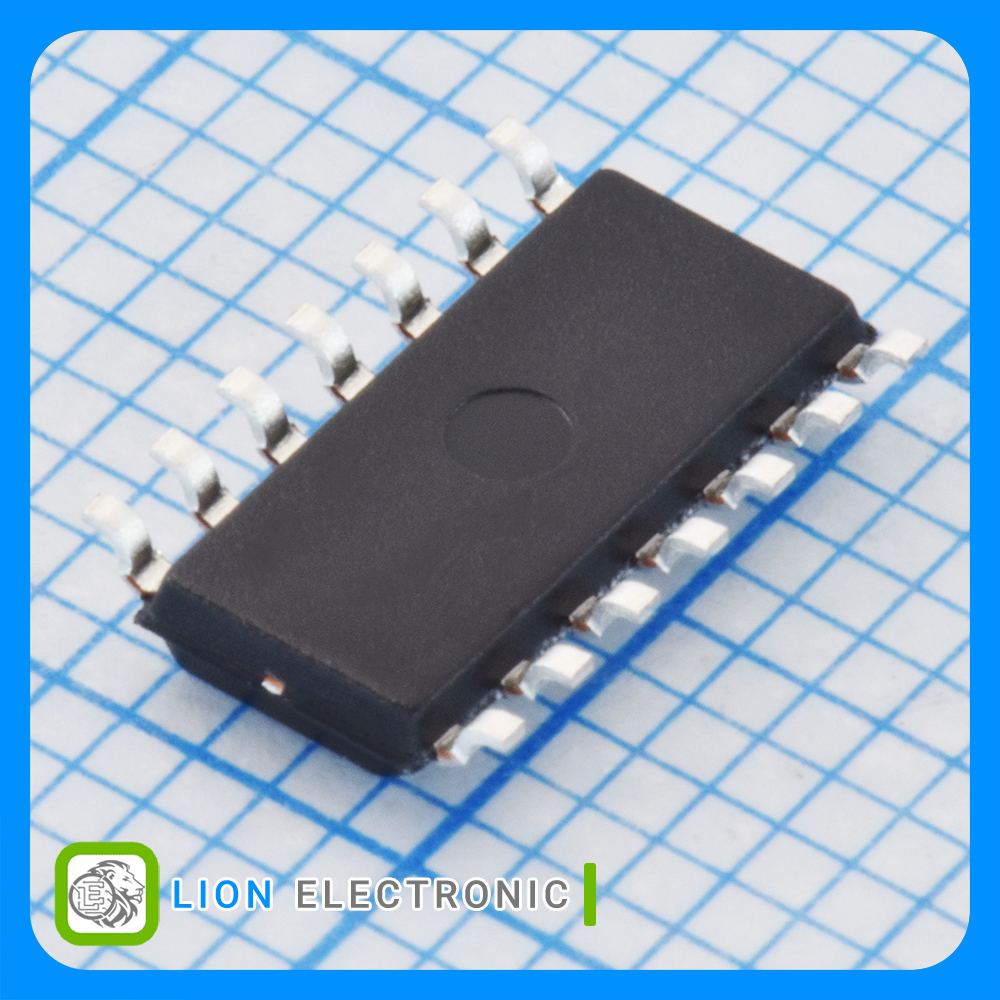

TL084CDT
TL084CDT
Part Number
2563
Lion Part
Datasheet
STMicroelectronics Manufacture
تقویت کننده عملیاتی JFET عمومی 4 کاناله با پهنای باند 4 مگاهرتز و پکیج SOIC-14
General purpose JFET Quad Operational Amplifier 4-Channel, 4MHz with SOIC-14 Package
معرفی
تقویت کننده عملیاتی JFET عمومی 4 کاناله با پهنای باند 4 مگاهرتز و پکیج SOIC-14
General purpose JFET Quad Operational Amplifier 4-Channel, 4MHz with SOIC-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 40mA
- SR - Slew Rate: 16V/us
- GBP - Gain Bandwidth Product: 4MHz
- CMRR - Common Mode Rejection Ratio: 86dB
- Ib - Input Bias Current: 200pA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 6V
- Operating Supply Current: 2.5mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات آپ امپ TL084CDT

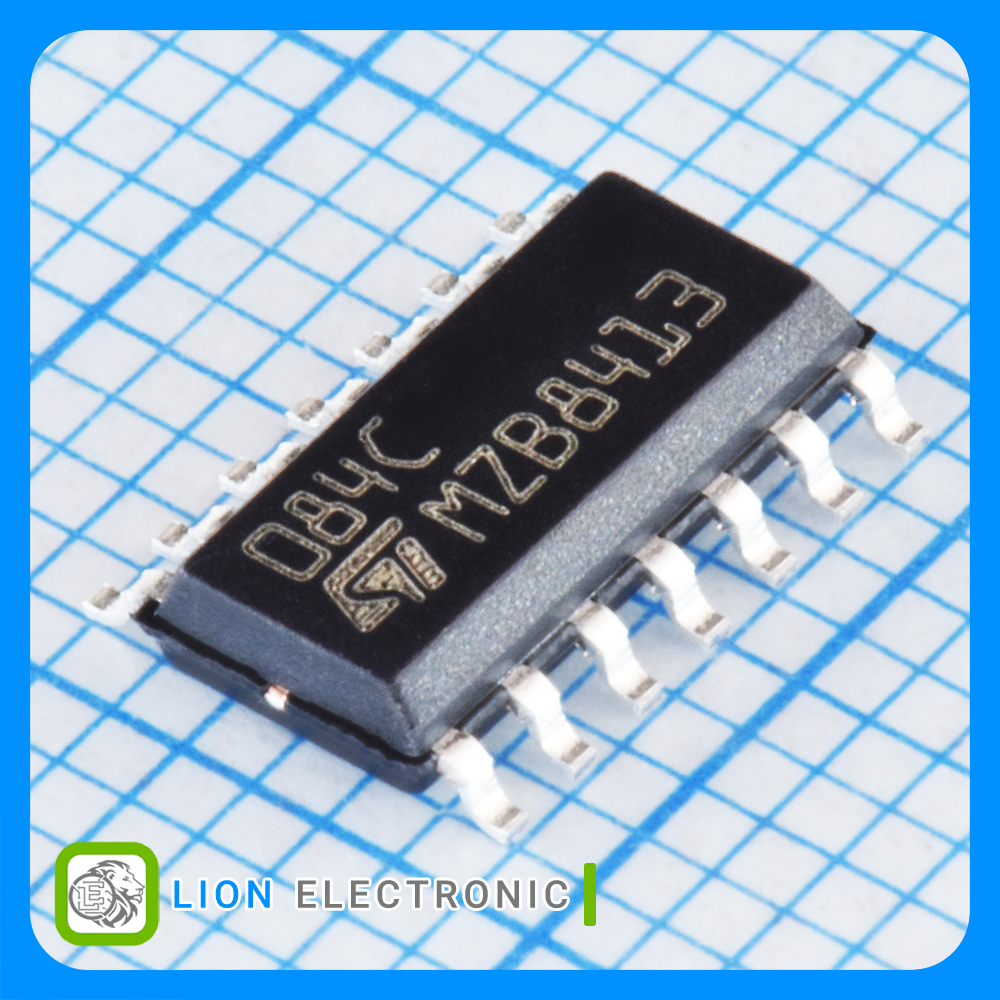

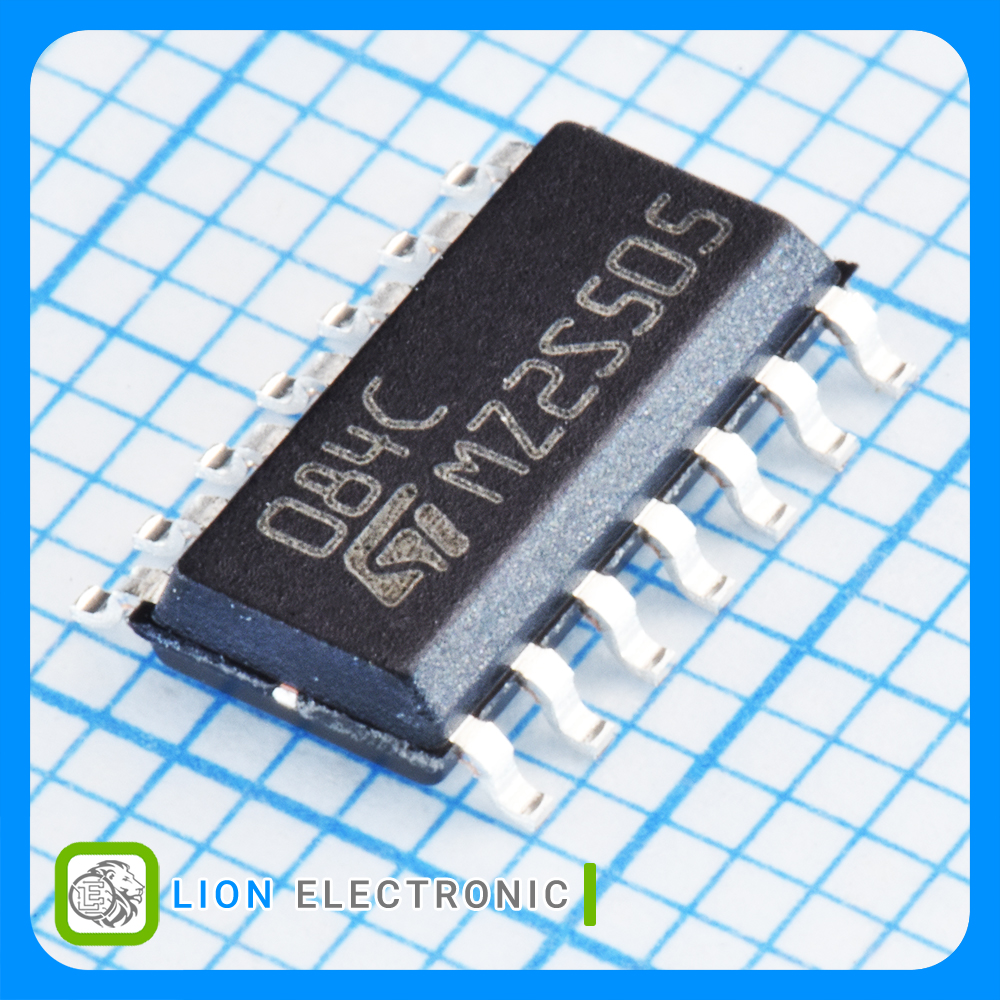

آپ امپ TL084CDT
Part Number
+70C
Maximum Operating Temperature
4
Number of Channels
Reel
Packaging
SMD/SMT
Mounting Style
0C
Minimum Operating Temperature
200pA
Ib - Input Bias Current
40mA
Output Current per Channel
86dB
CMRR - Common Mode Rejection Ratio
4MHz
GBP - Gain Bandwidth Product
16V/us
SR - Slew Rate
3mV
Vos - Input Offset Voltage
36V
Supply Voltage - Max
6V
Supply Voltage - Min
2.5mA
Operating Supply Current
SOIC-14
Package-Case
