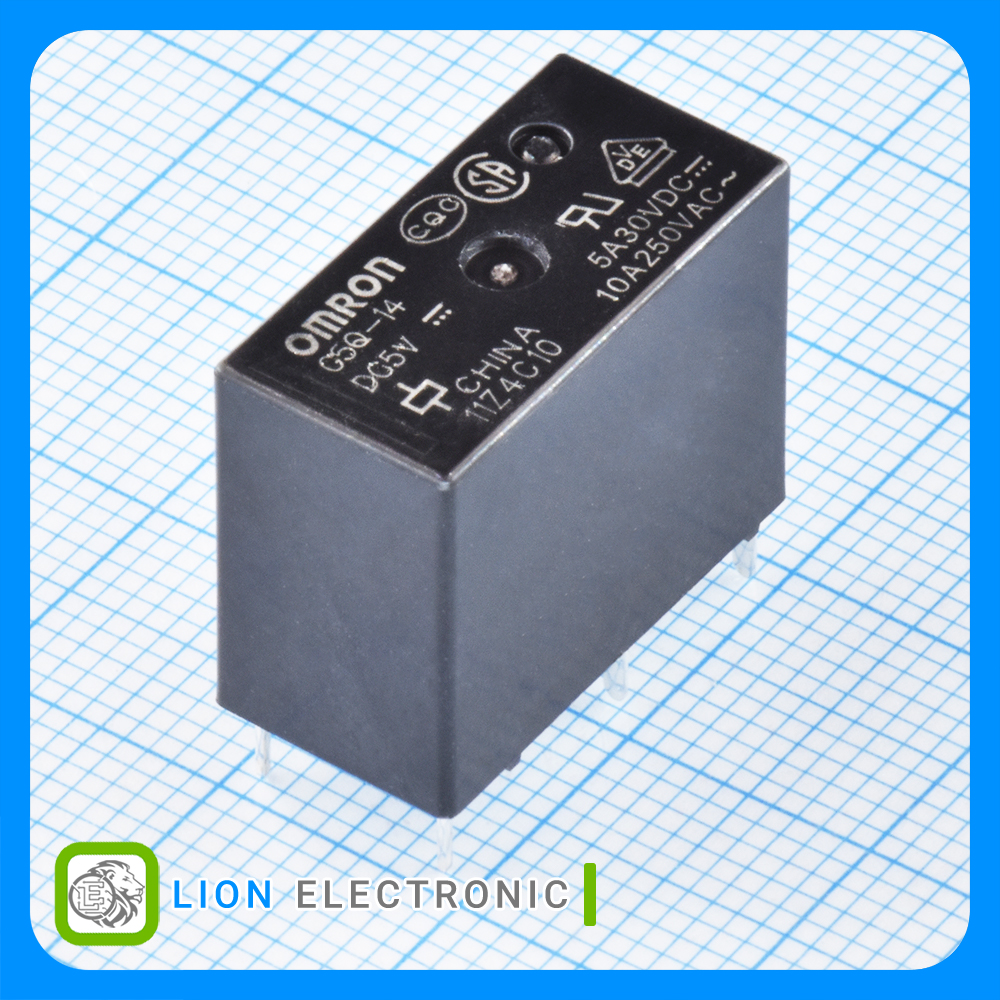

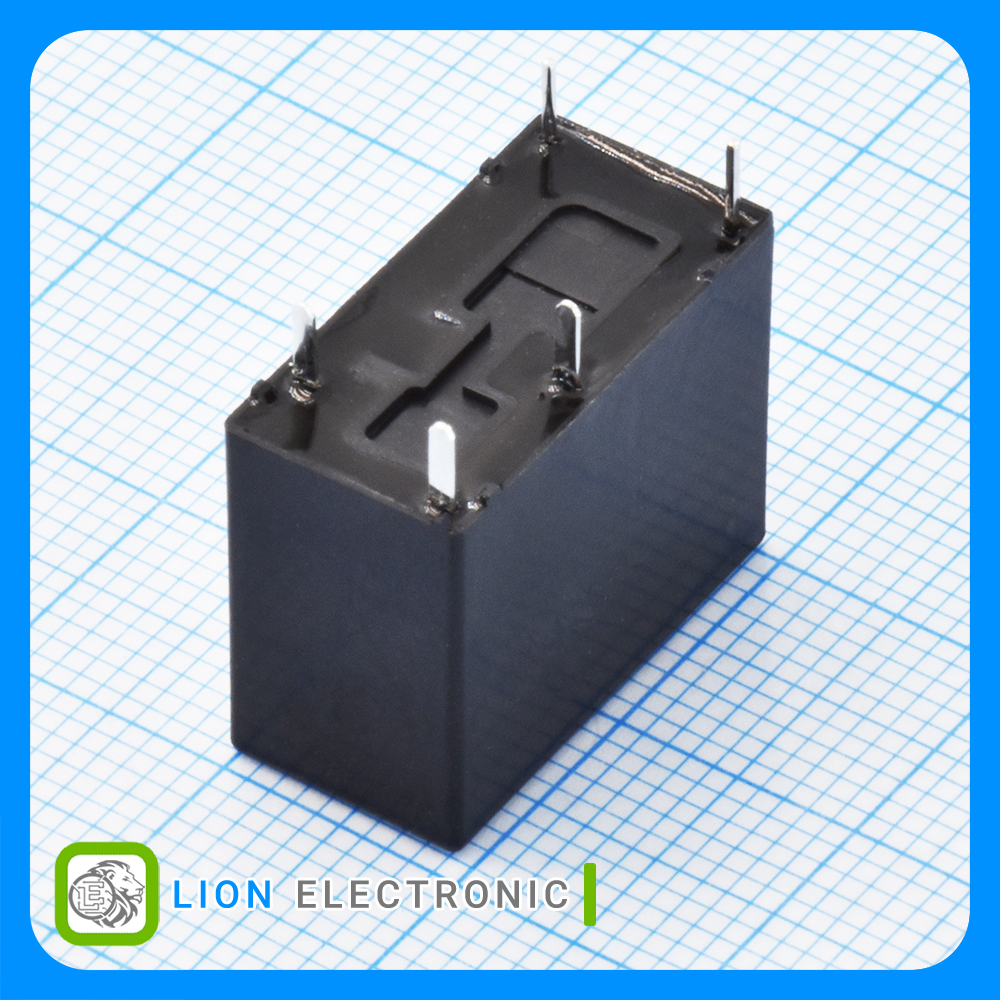

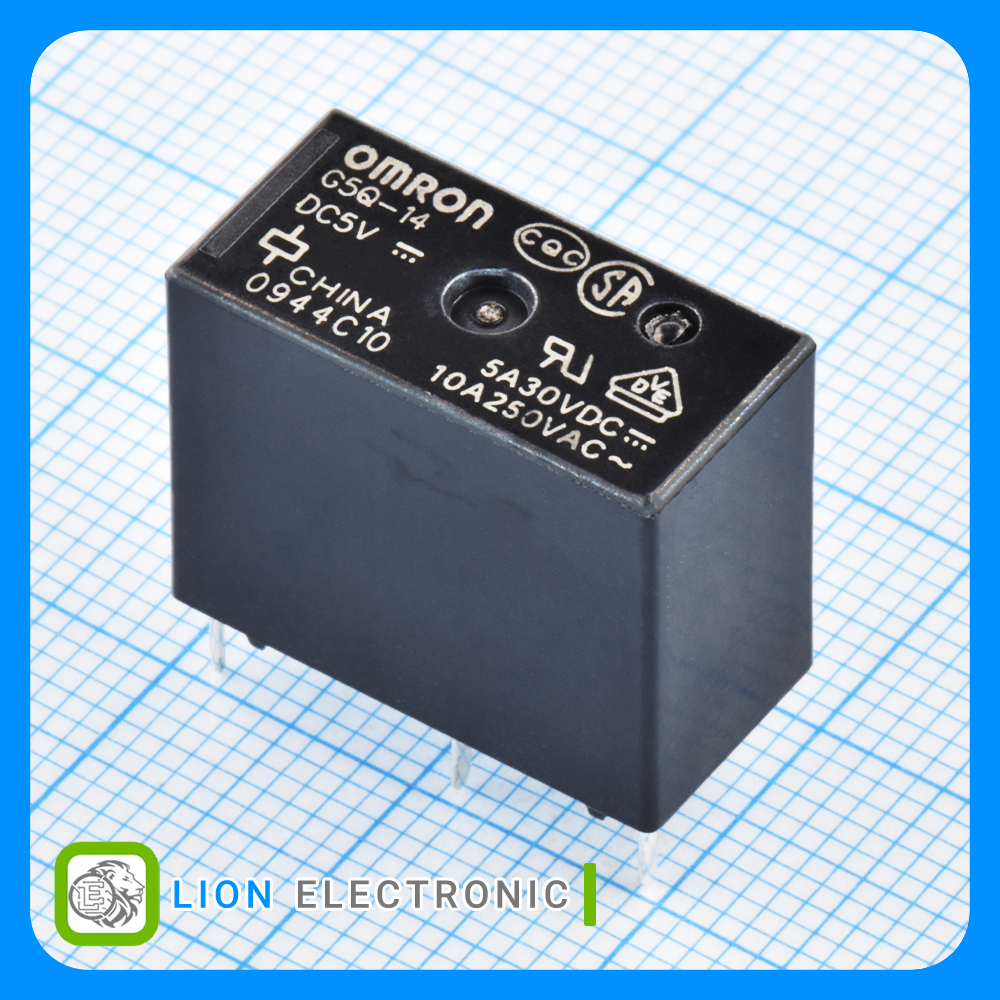

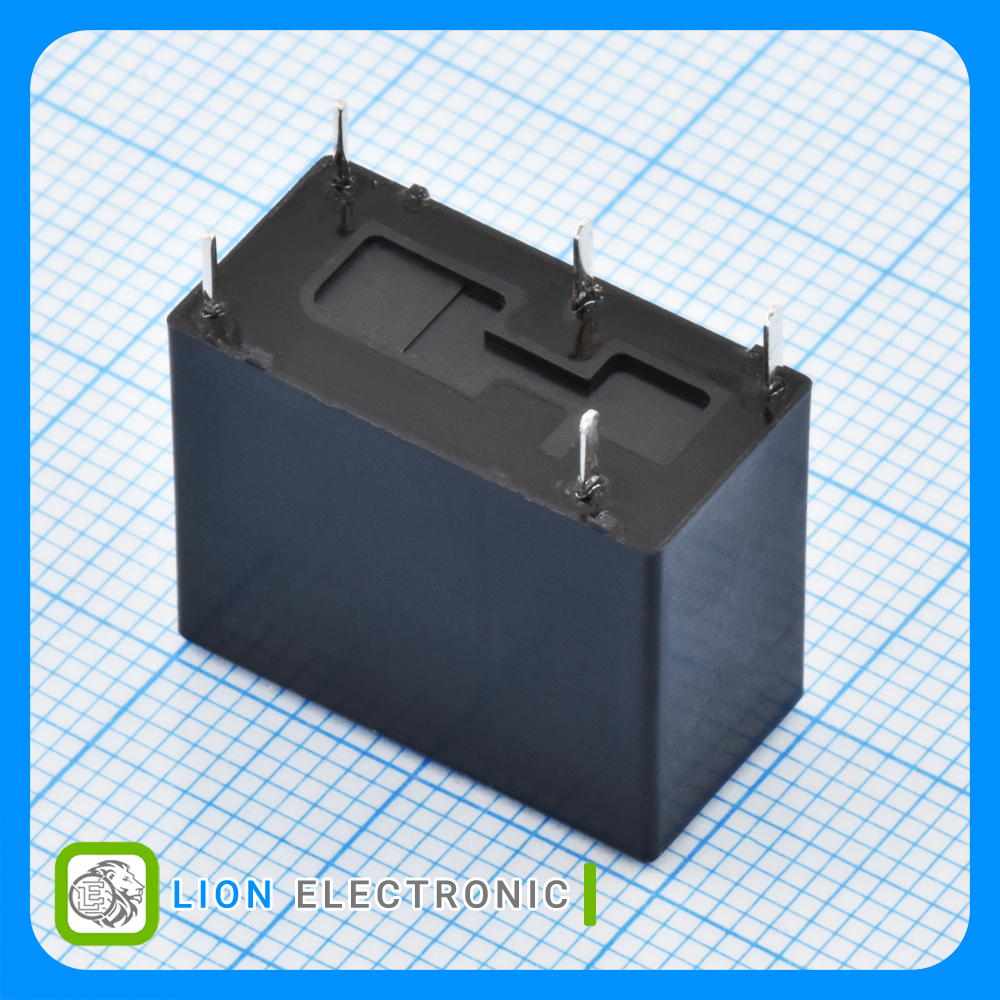

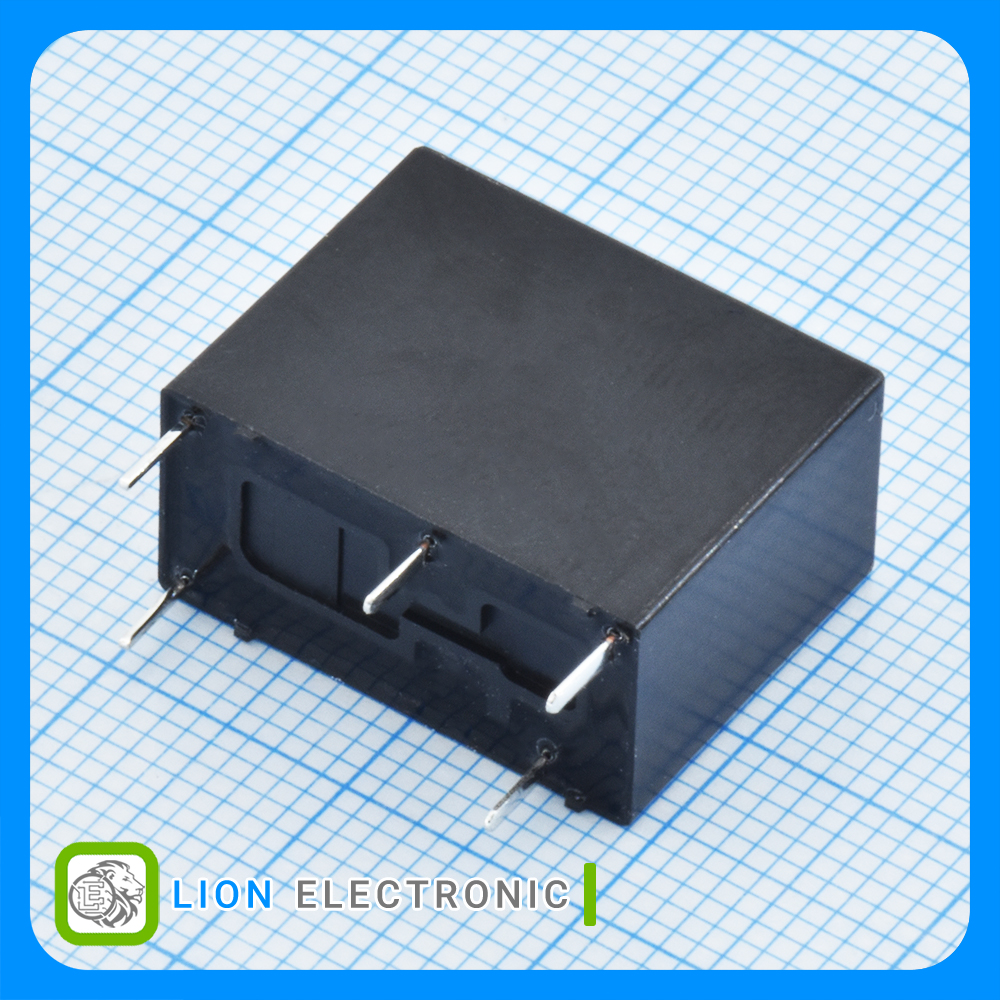

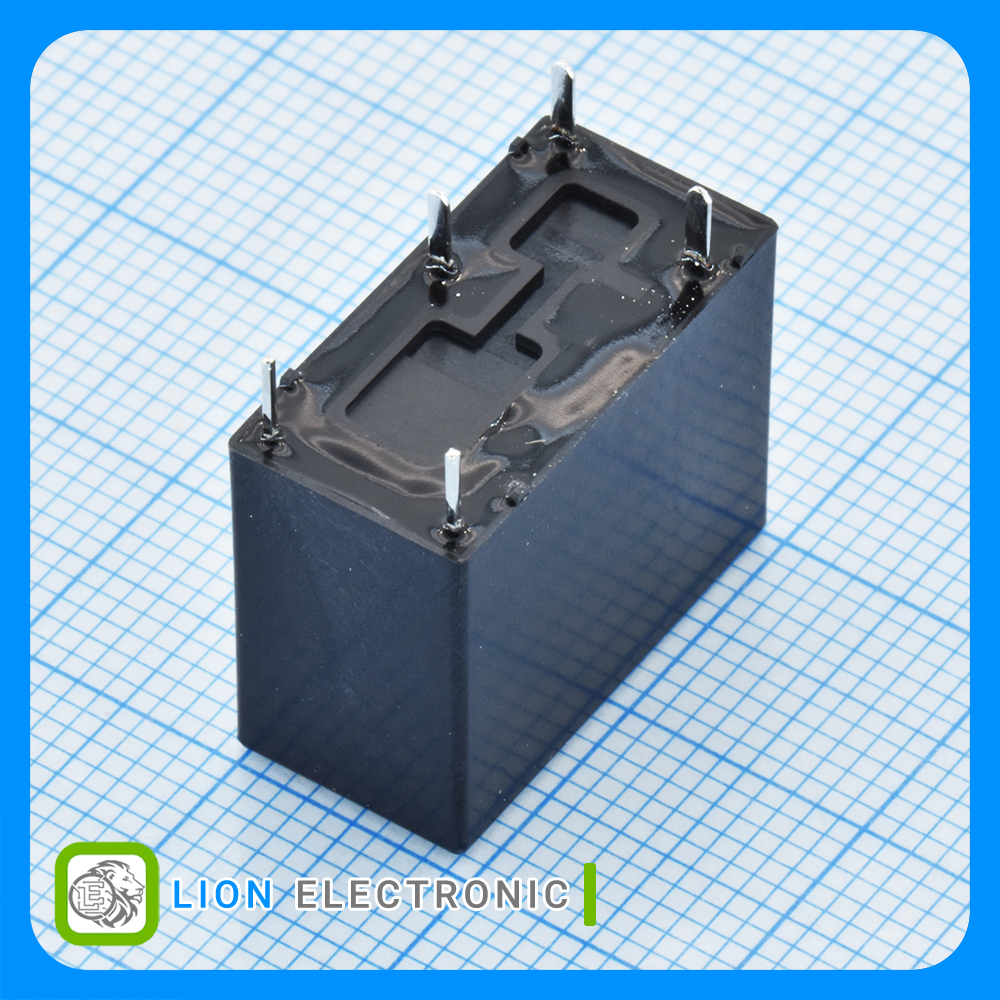

G5Q-14-DC5
OMRON
معرفی
رله یک کنتاکت باز و بسته 1 Form C (SPDT-NO, NC) ولتاژ کویل 5 ولت DC جریان کنتاکت 10 آمپر، آببندیشده، با نصب پایهدار
General Purpose Sealed Relay 1 Form C (SPDT-NO, NC), 5VDC Coil with 10A Contact Current, Through Hole
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class F
- Coil Voltage: 5VDC
- Contact Current Rating: 10A
- Coil Resistance: 125Ω
- Coil Current: 40mA
- Power Consumption: 200mW
- Height: 15.5mm
- Length: 20mm
- Width: 10mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 277VAC 30VDC
مشخصات رله G5Q-14-DC5

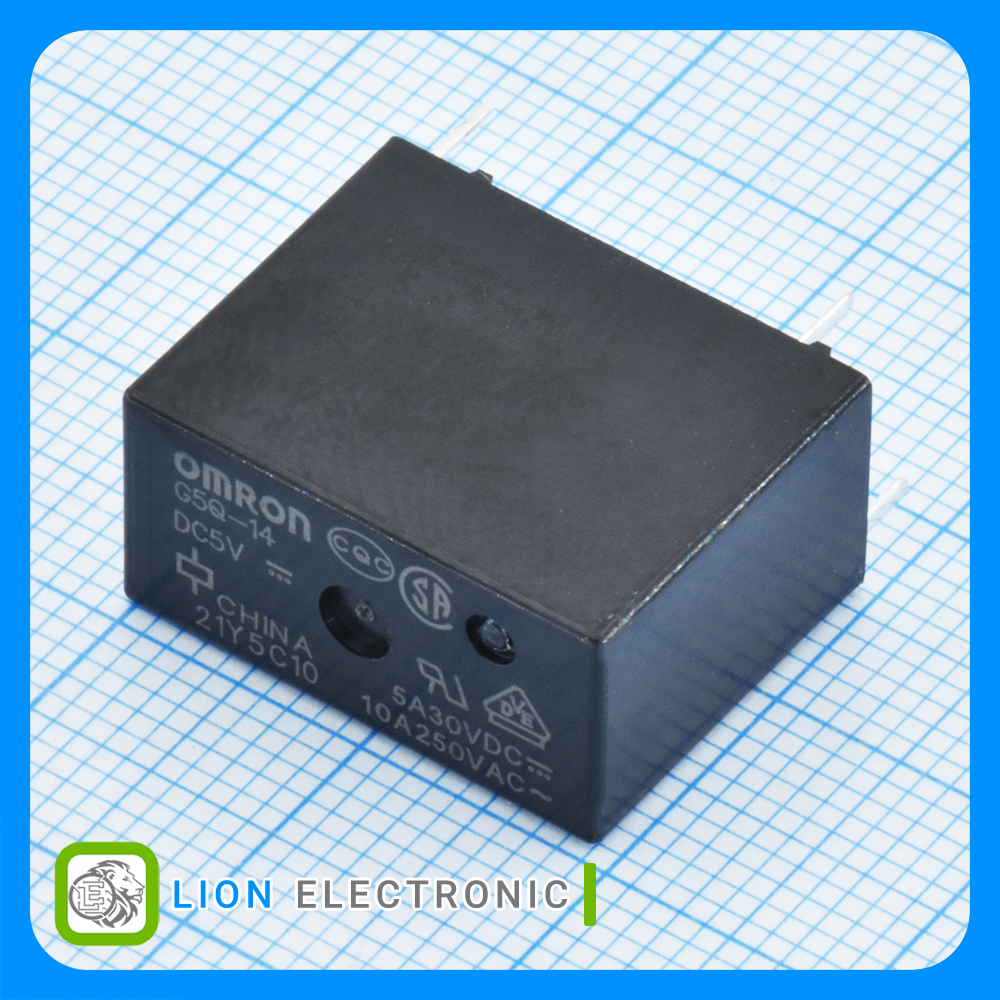

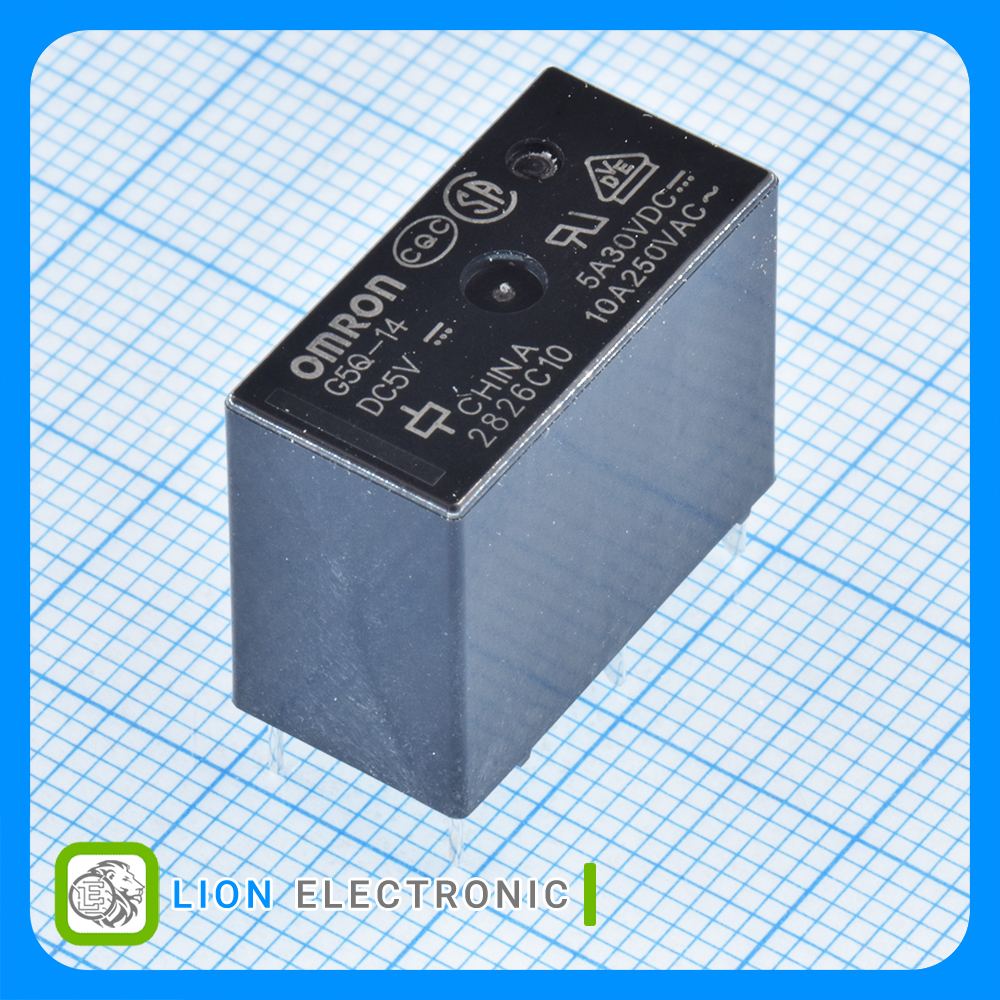

رله G5Q-14-DC5
Part Number
Non-Latching
Coil Type
200mW
Power Consumption
1 Form C (SPDT-NO, NC)
Relay Contact Form
5VDC
Coil Voltage
277VAC 30VDC
Max Switching Voltage
10A
Contact Current Rating
Class F
insulation class
125Ω
Coil Resistance
Tube
Packaging
Through Hole
Mounting Style
40mA
Coil Current
10mm
Width
20mm
Length
15.5mm
Height
