OMRON
معرفی

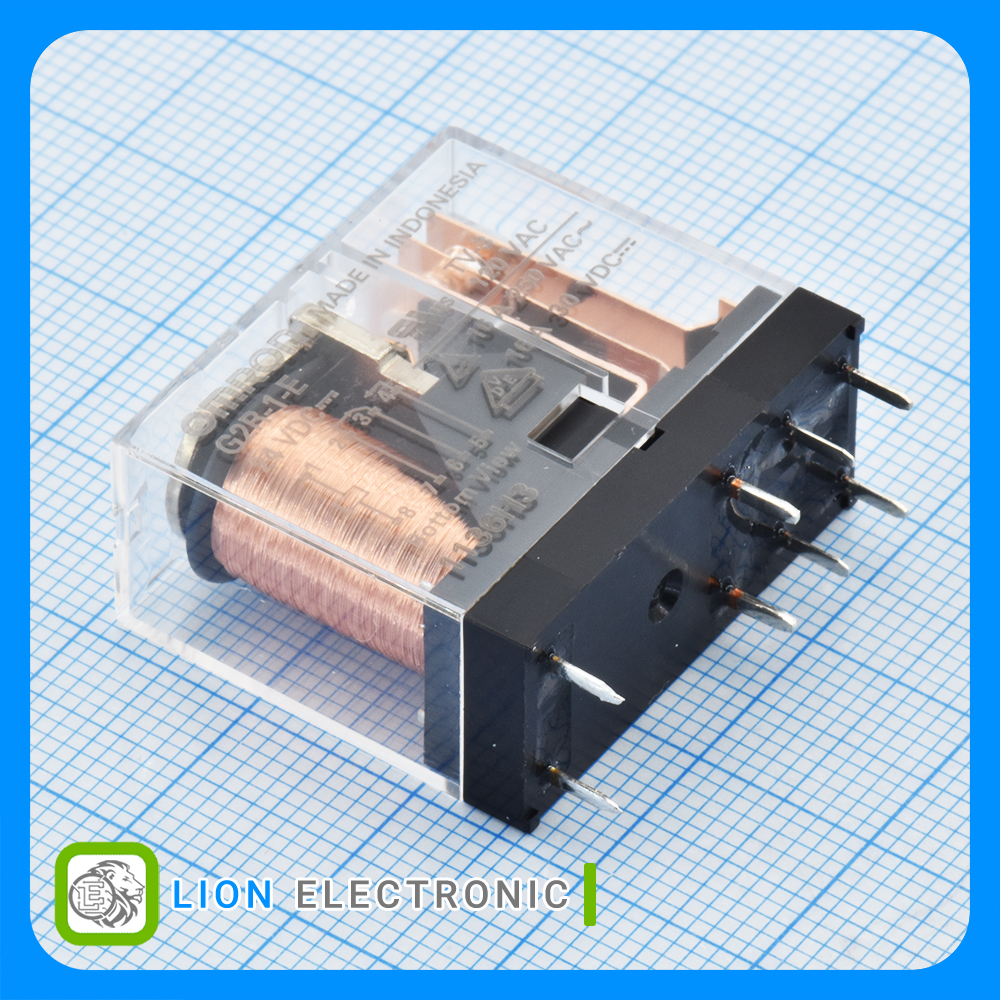

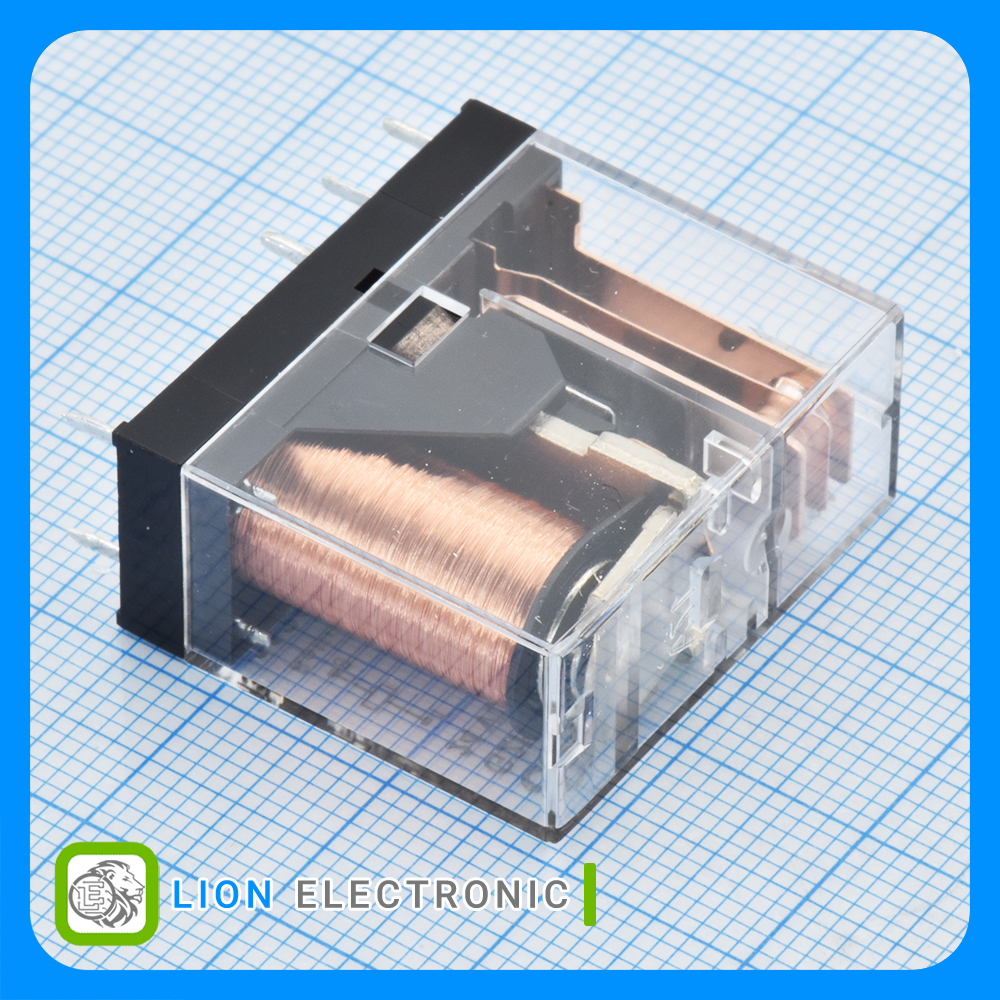

رله SPDT ولتاژ کویل 24 ولت DC جریان کنتاکت 16 آمپر با نصب پایهدار
General Purpose Sealed Relay SPDT, 24VDC with 16A Contact Current
Specifications
- Relay Contact Form: SPDT
- Coil Voltage: 24VDC
- Contact Current Rating: 16A
- Coil Resistance: 1.1kΩ
- Coil Current: 21.8mA
- Power Consumption: 530mW
- Height: 25.5mm
- Length: 29mm
- Width: 13mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Bag
- Max Switching Voltage: 380 VAC, 125 VDC
مشخصات G2R-1-E DC24
G2R-1-E DC24
Part Number
Non-Latching
Coil Type
Bag
Packaging
N/A
insulation class
24VDC
Coil Voltage
SPDT
Relay Contact Form
16A
Contact Current Rating
530mW
Power Consumption
380 VAC, 125 VDC
Max Switching Voltage
21.8mA
Coil Current
Through Hole
Mounting Style
1.1kΩ
Coil Resistance
29mm
Length
13mm
Width
25.5mm
Height
