OMRON
معرفی
رله SPDT ولتاژ کویل 12 ولت DC جریان کنتاکت 16 آمپر با نصب پایهدار

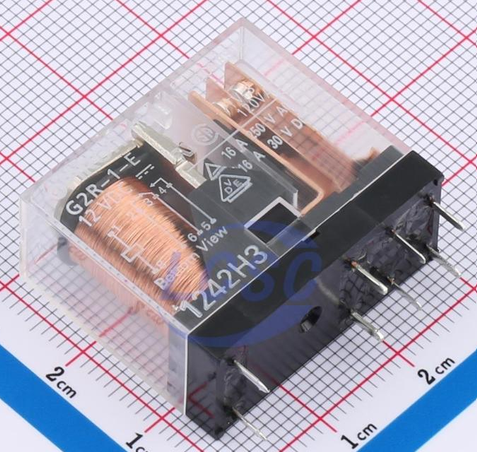

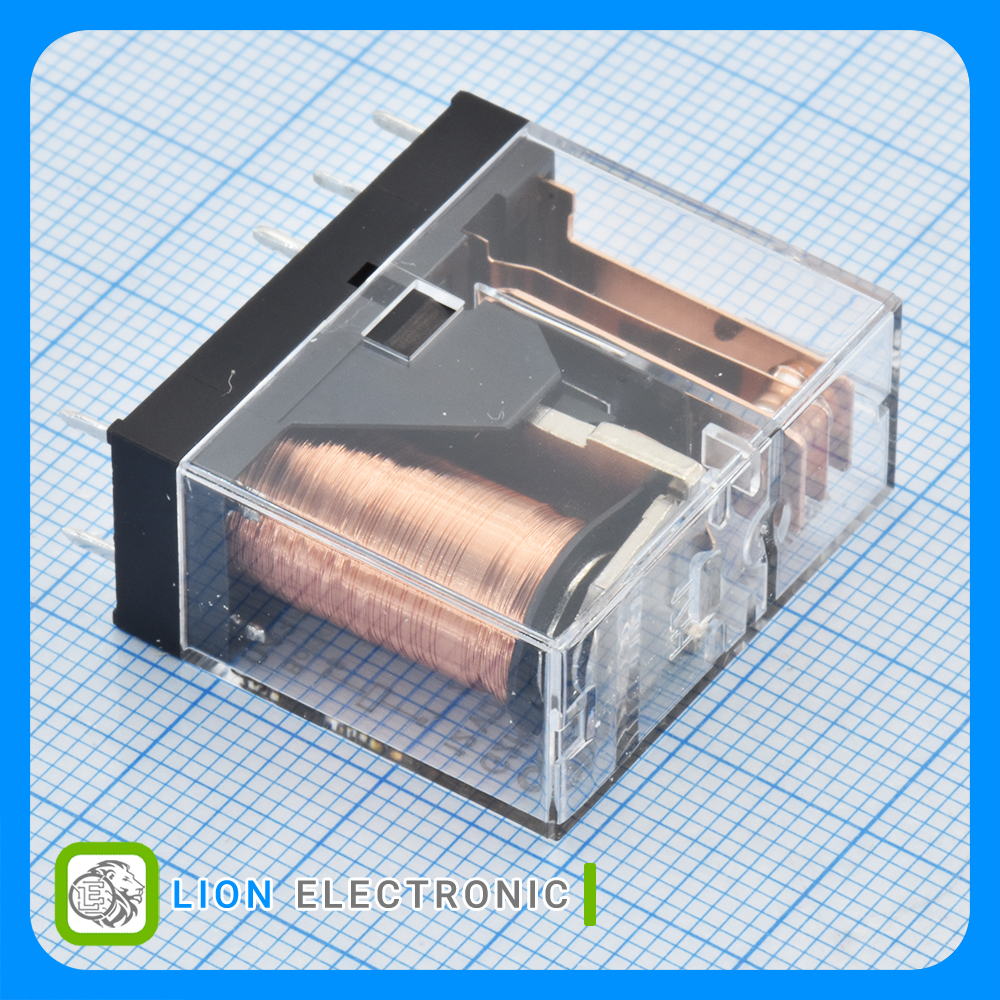

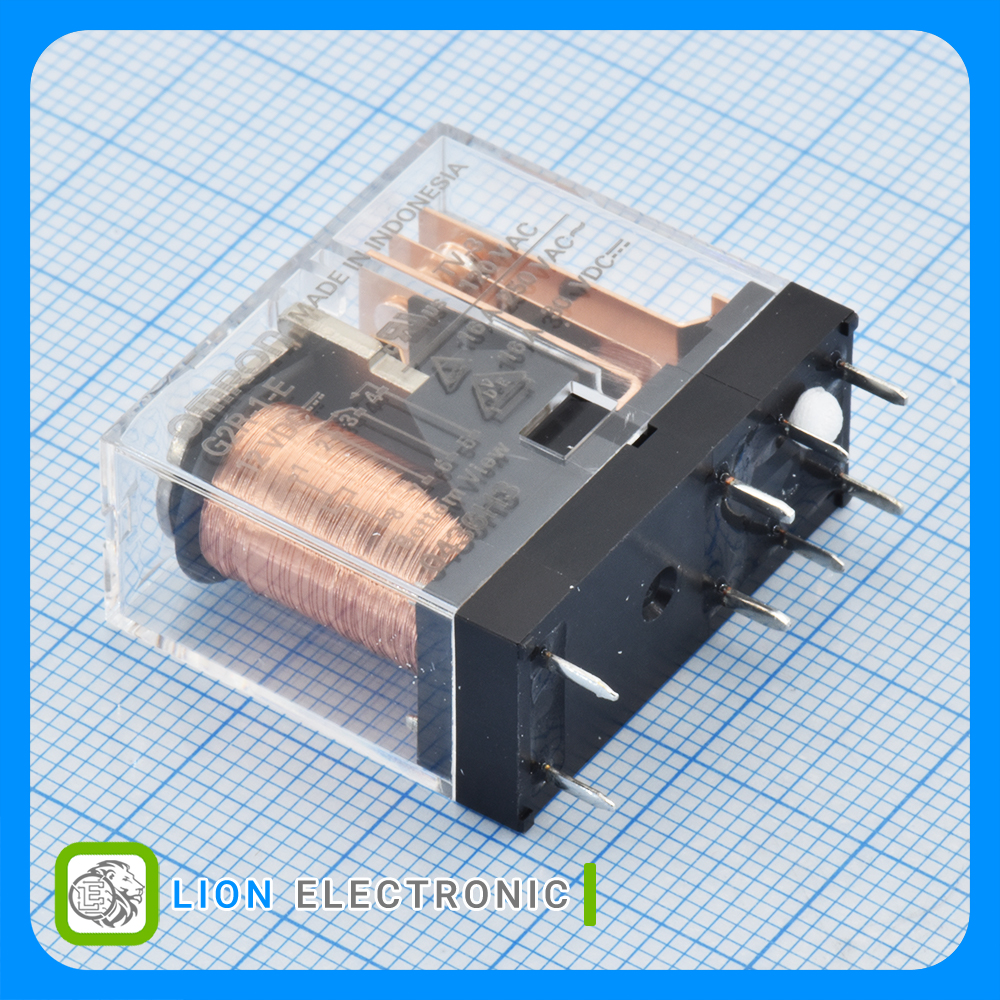

General Purpose Sealed Relay SPDT, 12VDC with 16A Contact Current
Specifications
- Relay Contact Form: SPDT
- Coil Voltage: 12VDC
- Contact Current Rating: 16A
- Coil Resistance: 275Ω
- Coil Current: 43.6mA
- Power Consumption: 530mW
- Height: 25.5mm
- Length: 29mm
- Width: 13mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Bag
- Max Switching Voltage: 380 VAC, 125 VDC
مشخصات G2R-1-E DC12
G2R-1-E DC12
Part Number
Non-Latching
Coil Type
Bag
Packaging
12VDC
Coil Voltage
N/A
insulation class
SPDT
Relay Contact Form
16A
Contact Current Rating
530mW
Power Consumption
380 VAC, 125 VDC
Max Switching Voltage
275Ω
Coil Resistance
Through Hole
Mounting Style
43.6mA
Coil Current
29mm
Length
13mm
Width
25.5mm
Height
