OMRON
معرفی
رله 1 Form A (SPST-NO) ولتاژ کویل 24 ولت DC جریان کنتاکت 5 آمپر
General Purpose Relay 1 Form A (SPST-NO), 24VDC Coil with 5A Contact Current
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- insulation class: Class B
- Coil Voltage: 24VDC
- Contact Current Rating: 5A
- Coil Resistance: 2.88kΩ
- Coil Current: 8.3mA
- Power Consumption: 200mW
- Height: 15mm
- Length: 20.4mm
- Width: 7mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tray
- Max Switching Voltage: 250VAC 30VDC
مشخصات G5NB-1A-E-DC24V

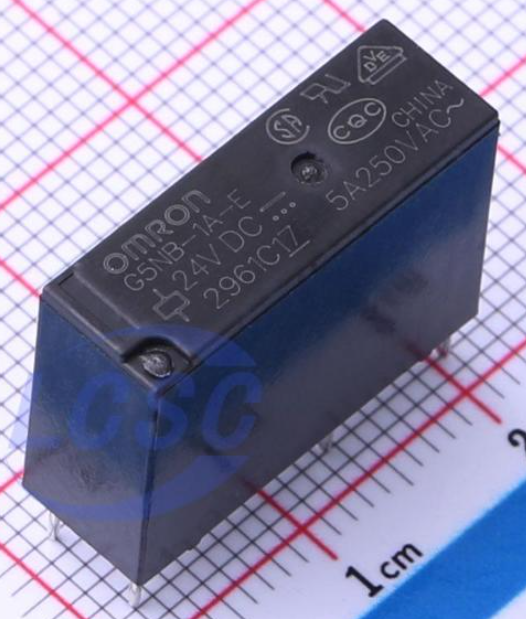

G5NB-1A-E-DC24V
Part Number
Non-Latching
Coil Type
Class B
insulation class
1 Form A (SPST-NO)
Relay Contact Form
5A
Contact Current Rating
200mW
Power Consumption
8.3mA
Coil Current
250VAC 30VDC
Max Switching Voltage
24VDC
Coil Voltage
Tray
Packaging
Through Hole
Mounting Style
2.88kΩ
Coil Resistance
7mm
Width
20.4mm
Length
15mm
Height
