معرفی

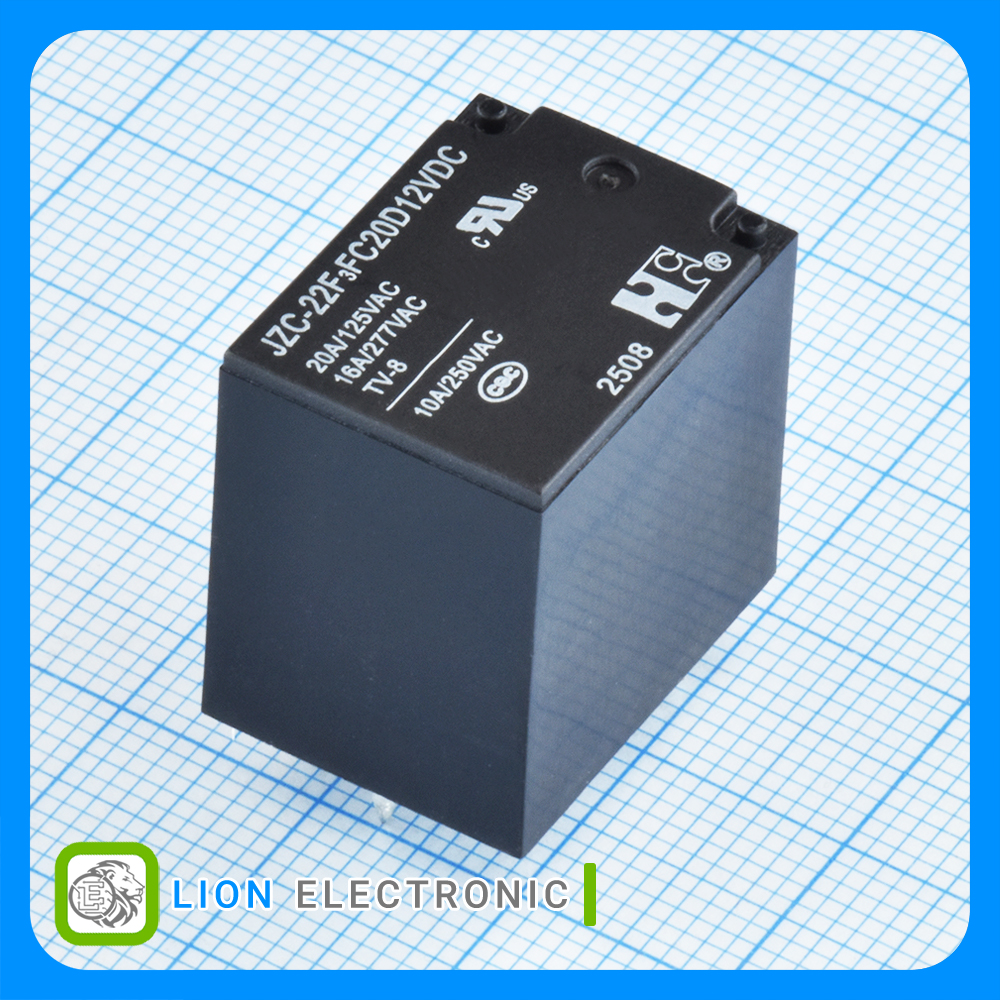

رله 12 ولت دیسی 15 آمپر با کنتاکت 1 Form C پایهدار
General Purpose Relay 12VDC, 15A, 1 Form C with Through Hole Package
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class B
- Coil Voltage: 12VDC
- Contact Current Rating: 15A
- Coil Resistance: 320Ω
- Coil Current: 37.5mA
- Power Consumption: 450mW
- Height: 20.2mm
- Length: 20.3mm
- Width: 16.8mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC
مشخصات JZC-22F3FC20DDC12V
JZC-22F3FC20DDC12V
Part Number
Class B
insulation class
Non-Latching
Coil Type
1 Form C (SPDT-NO, NC)
Relay Contact Form
12VDC
Coil Voltage
15A
Contact Current Rating
450mW
Power Consumption
250VAC
Max Switching Voltage
Tube
Packaging
Through Hole
Mounting Style
320Ω
Coil Resistance
37.5mA
Coil Current
20.3mm
Length
16.8mm
Width
20.2mm
Height
