OMRON
معرفی

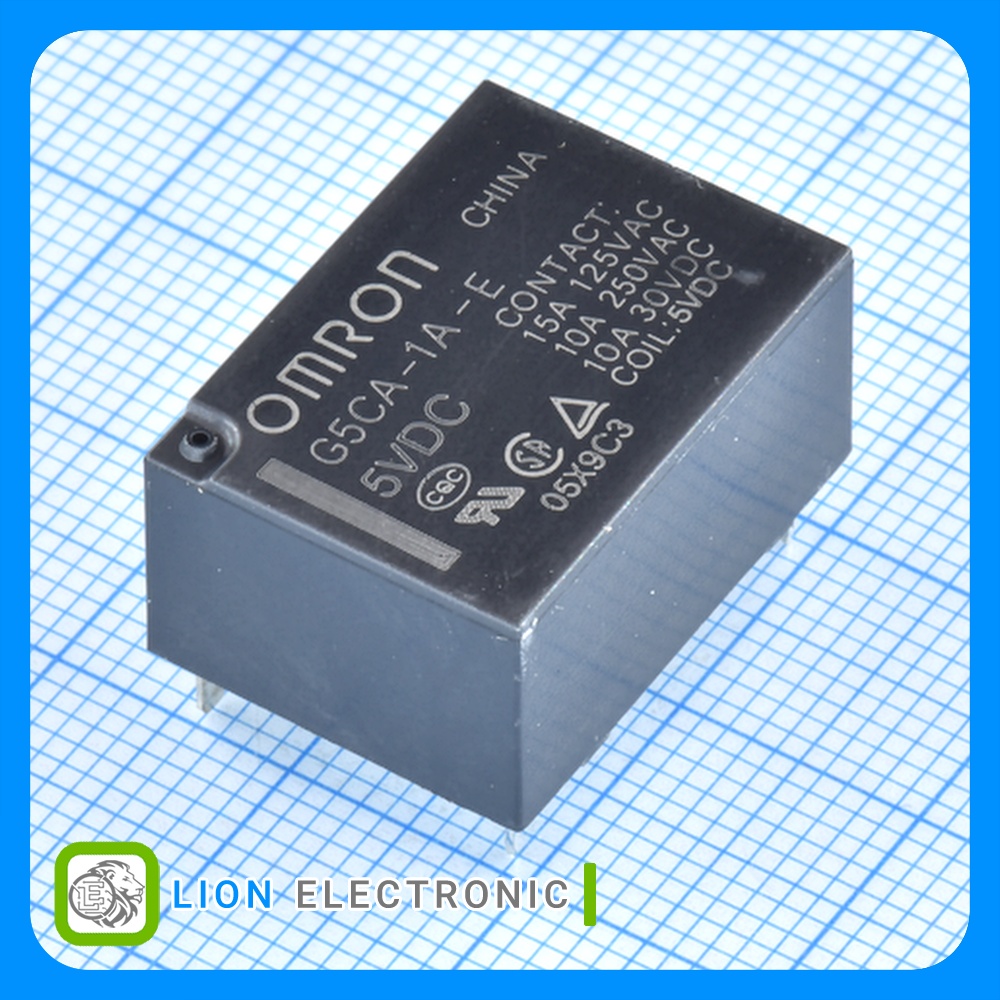

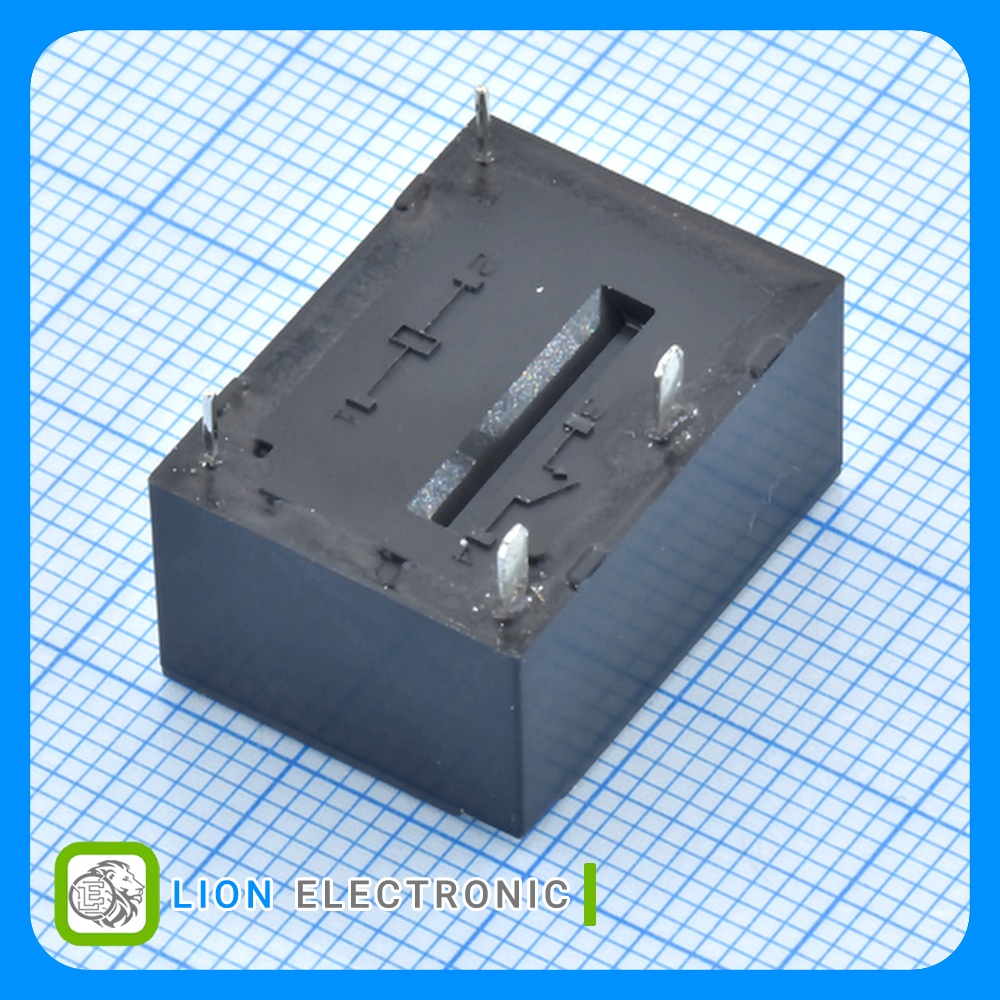

رله قدرت تک کنتاکت 1 Form A (SPST-NO) ولتاژ کویل 5 ولت جریان کنتاکت 10 آمپر با نصب پایهدار
General Purpose Power Relay 1 Form A (SPST-NO), 5V with 10A Contact Current
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- Coil Voltage: 5VDC
- Contact Current Rating: 10A
- Coil Resistance: 125Ω
- Coil Current: 40mA
- Power Consumption: 200mW
- Height: 11mm
- Length: 22mm
- Width: 16mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC 125VDC
مشخصات G5CA-1A-E-DC5
G5CA-1A-E-DC5
Part Number
1 Form A (SPST-NO)
Relay Contact Form
Non-Latching
Coil Type
5VDC
Coil Voltage
200mW
Power Consumption
10A
Contact Current Rating
N/A
insulation class
250VAC 125VDC
Max Switching Voltage
125Ω
Coil Resistance
Tube
Packaging
Through Hole
Mounting Style
40mA
Coil Current
16mm
Width
22mm
Length
11mm
Height
