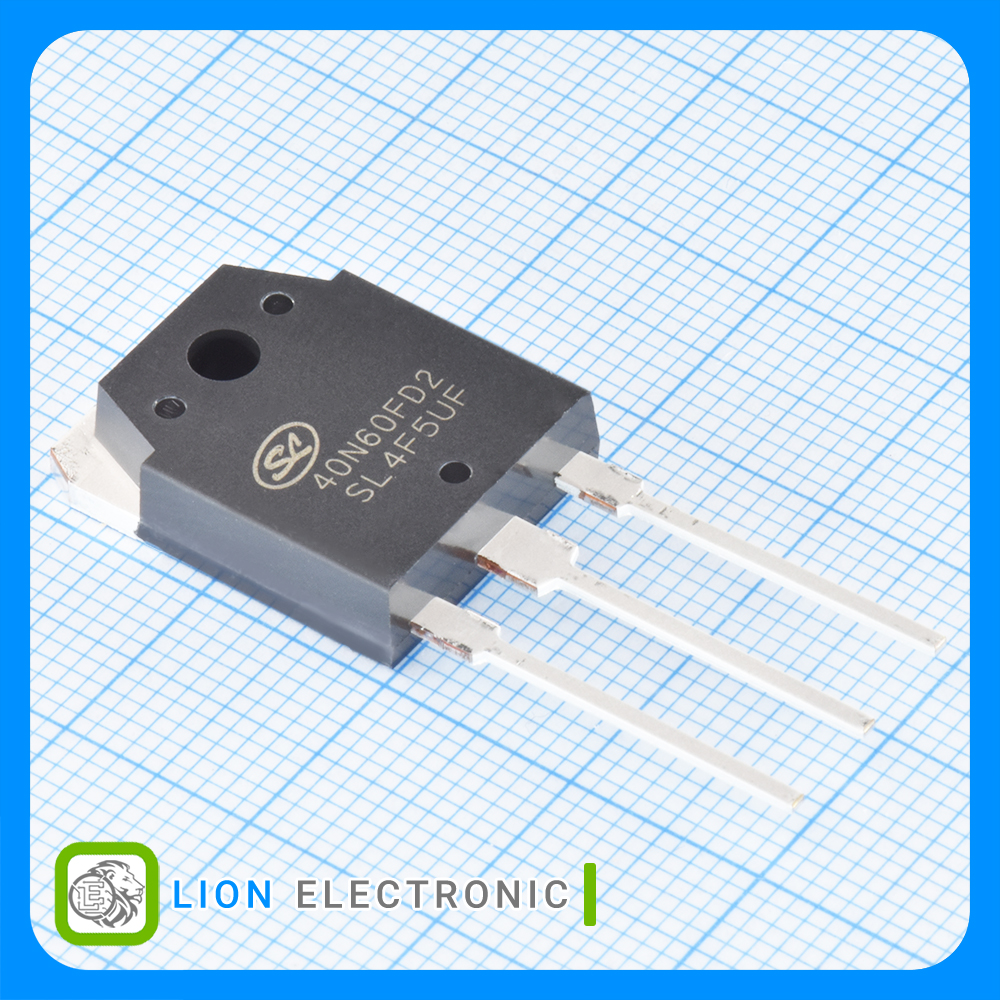

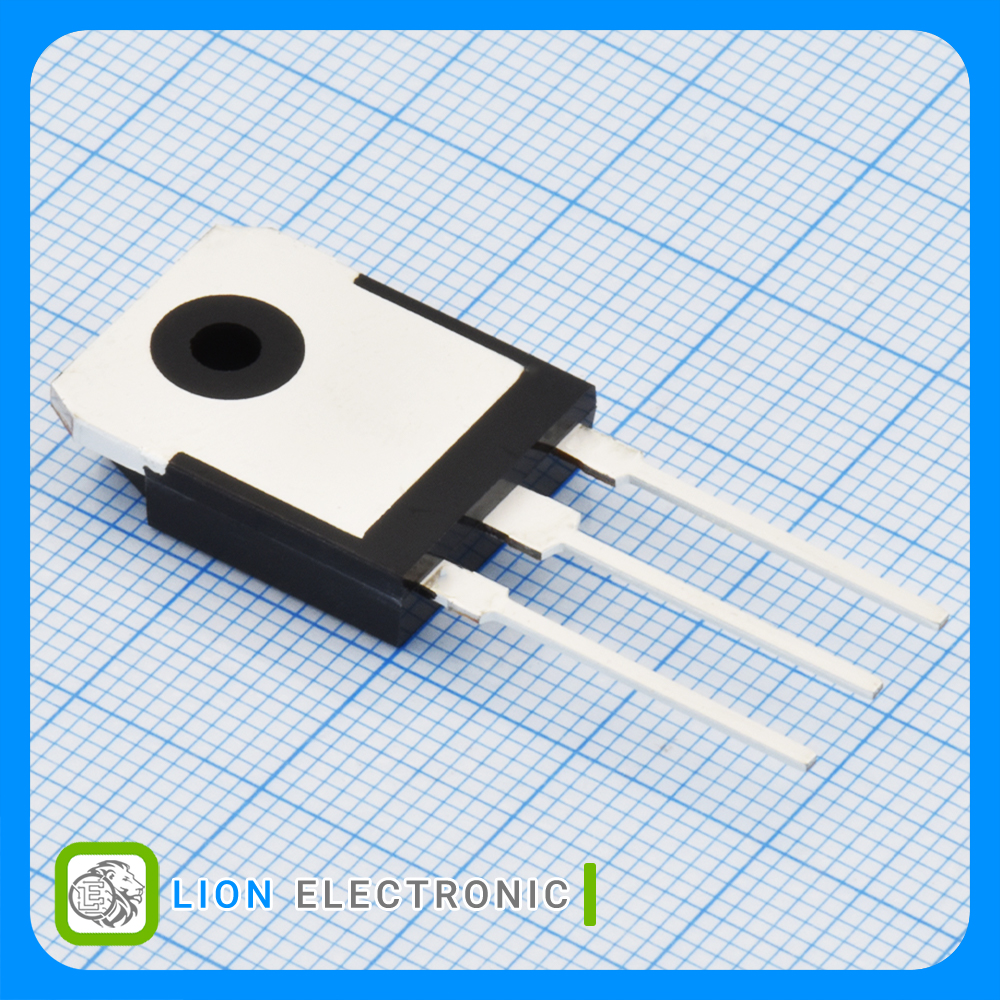

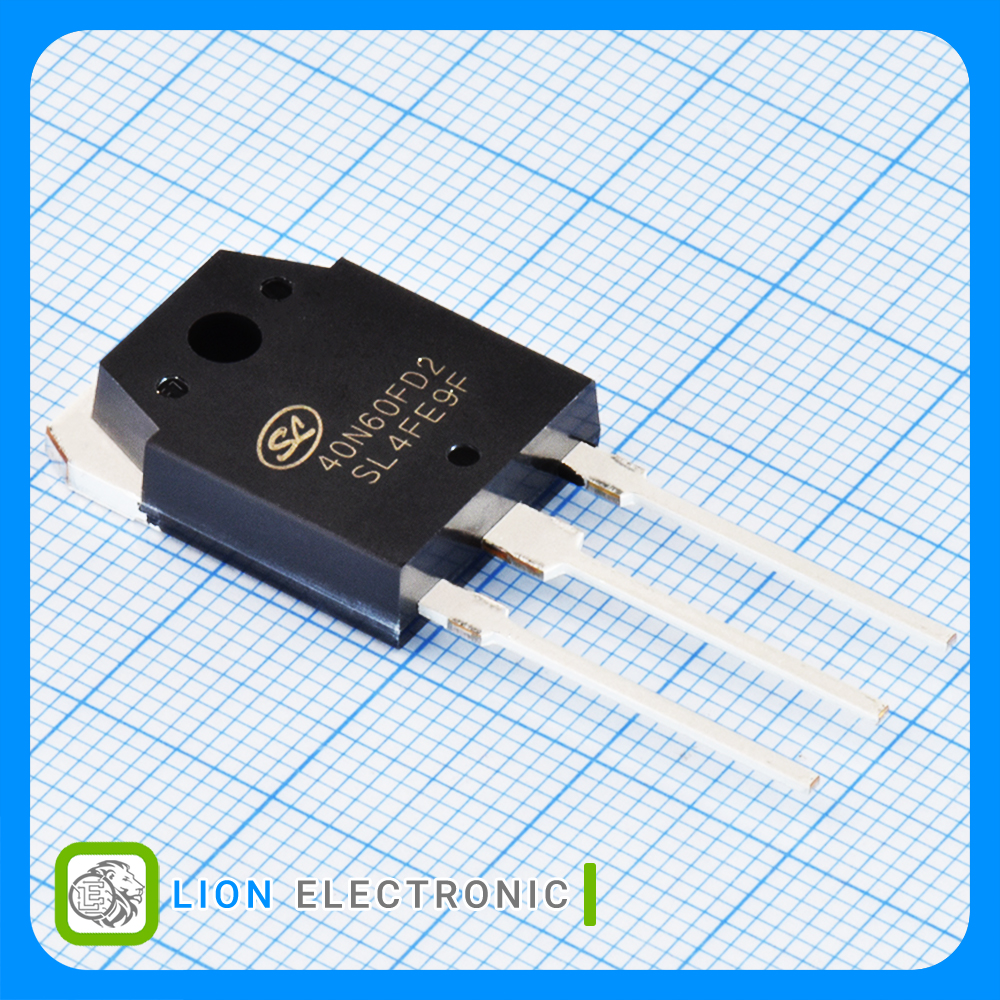

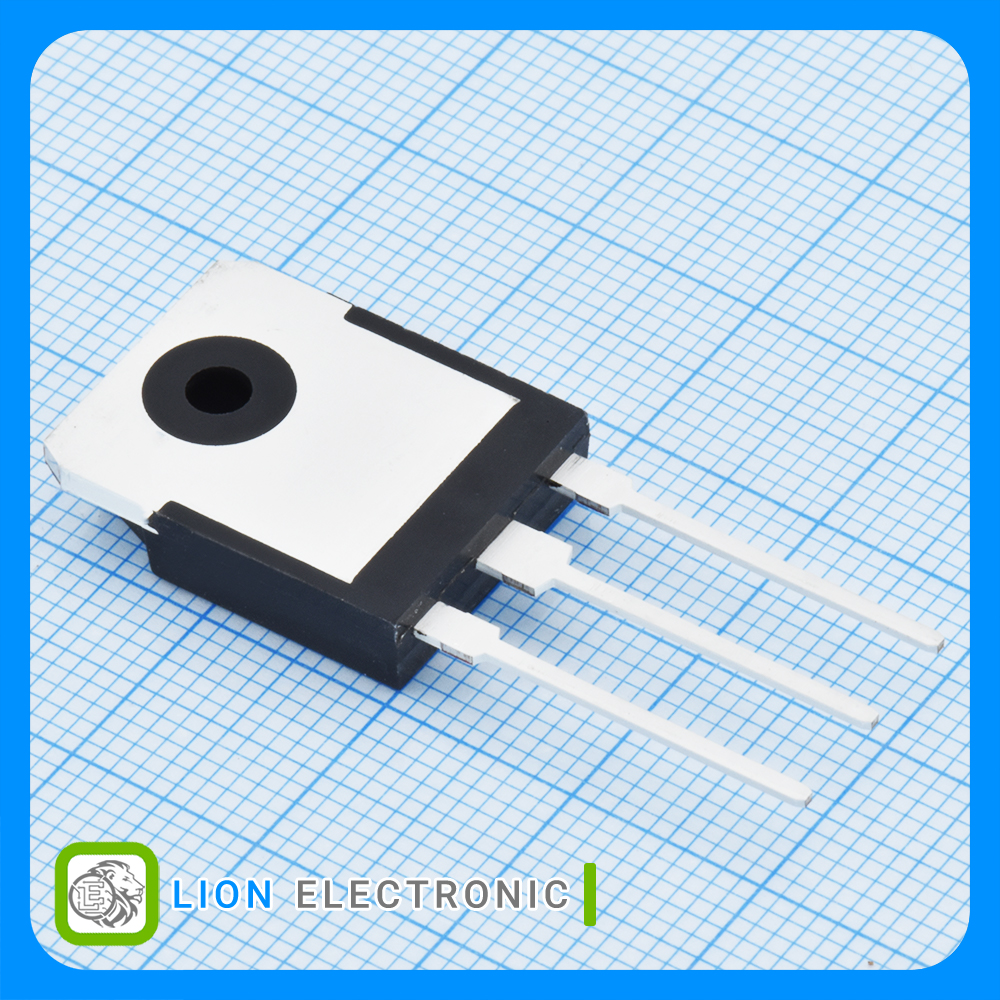

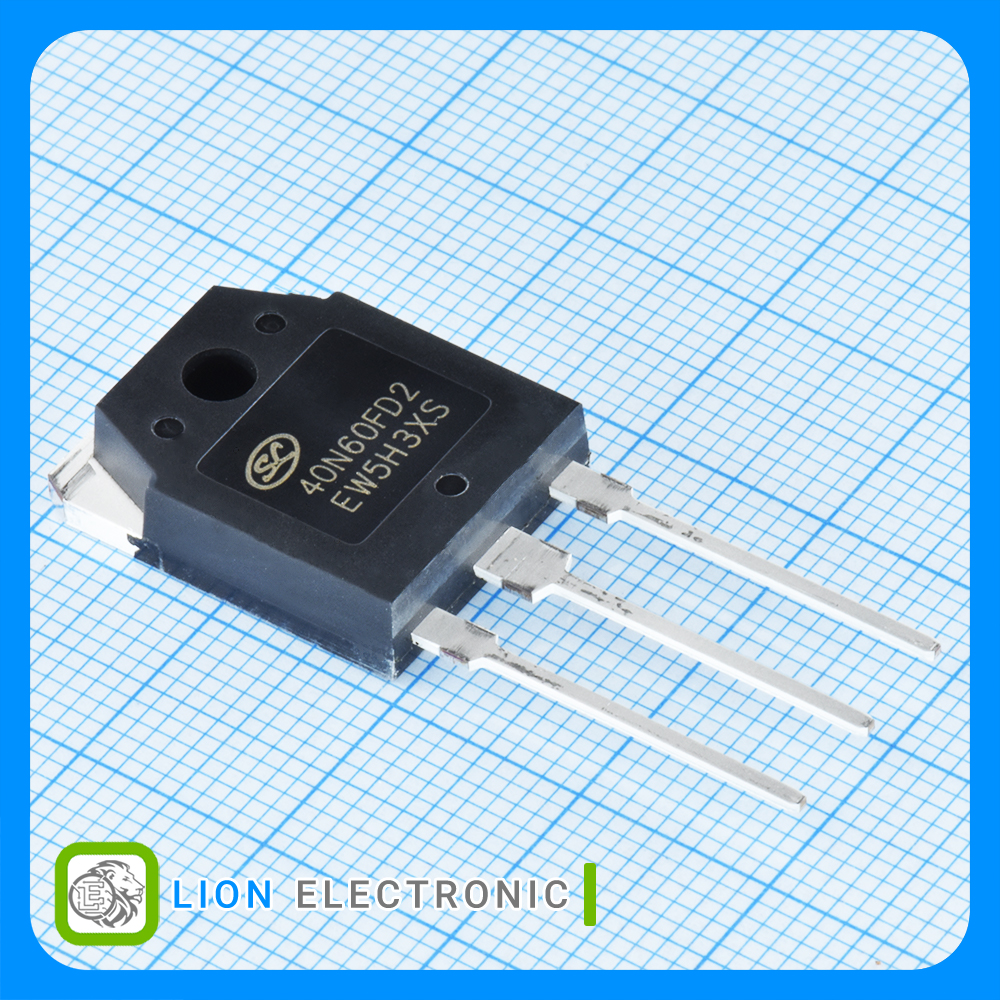

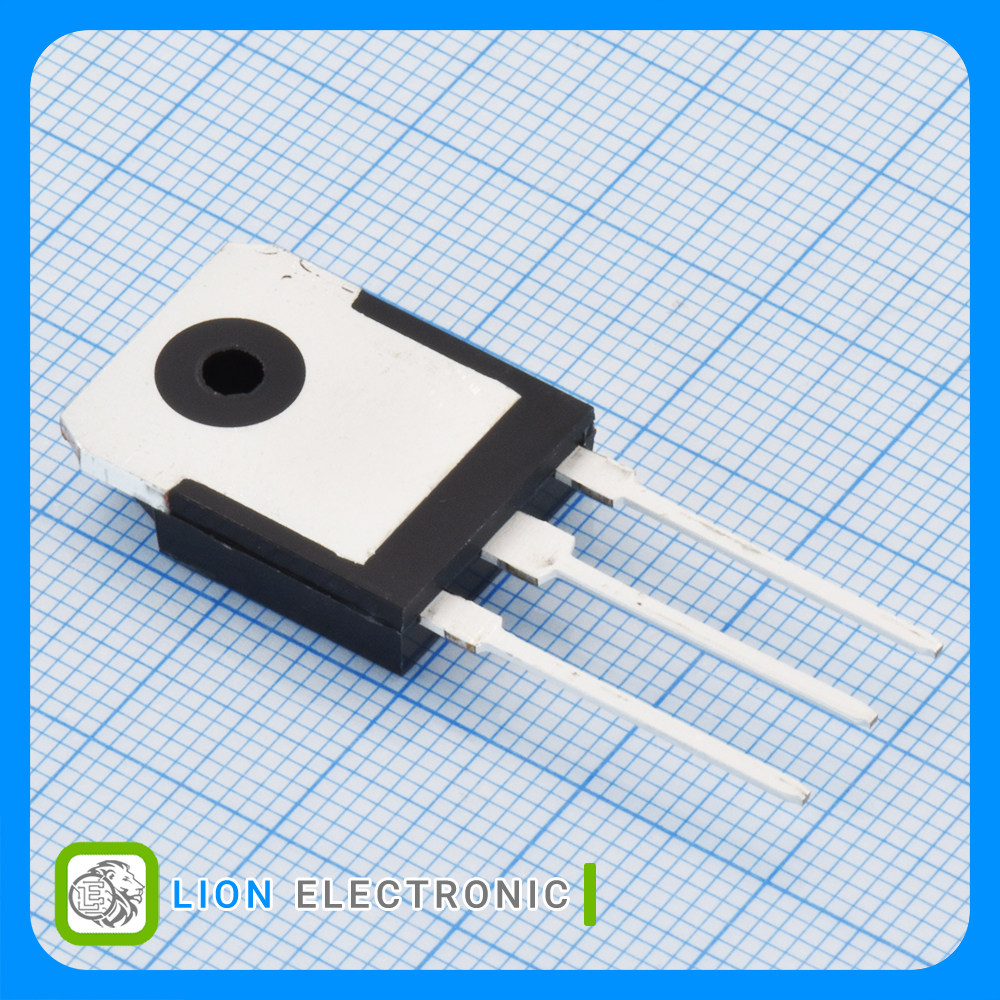

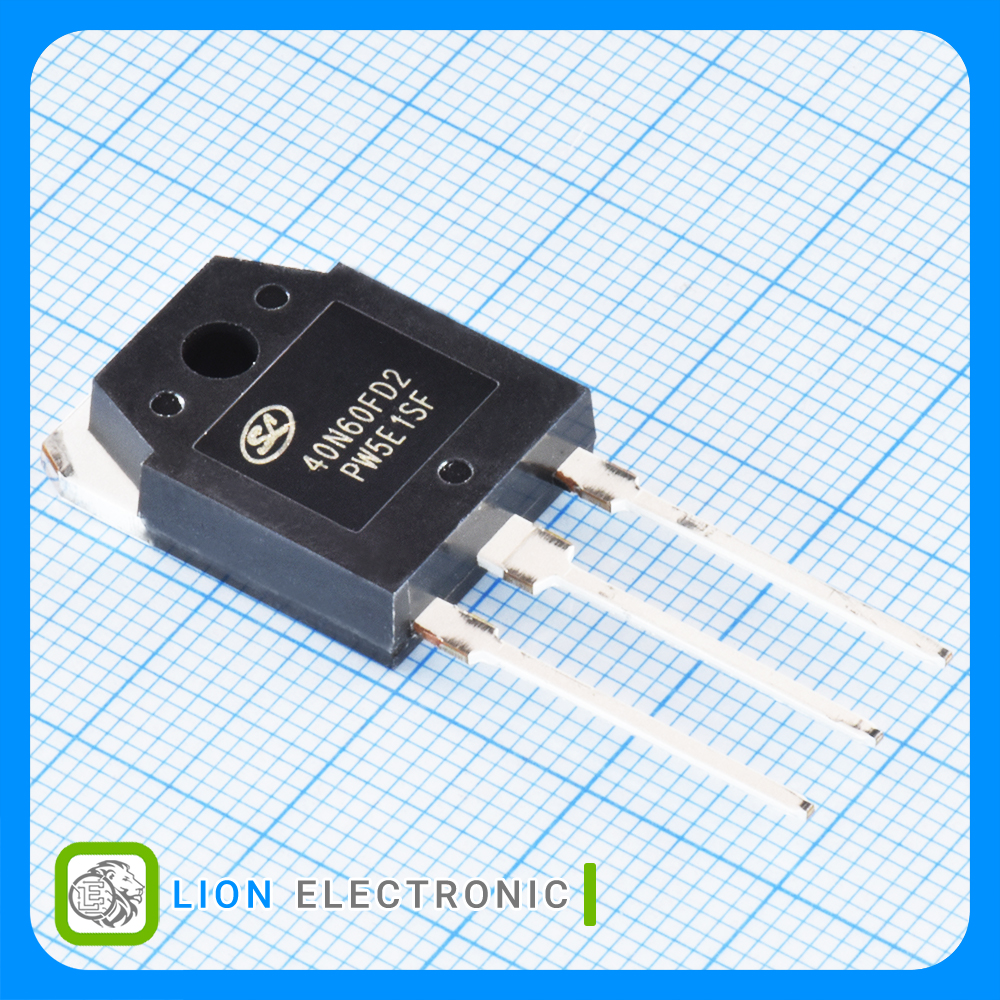

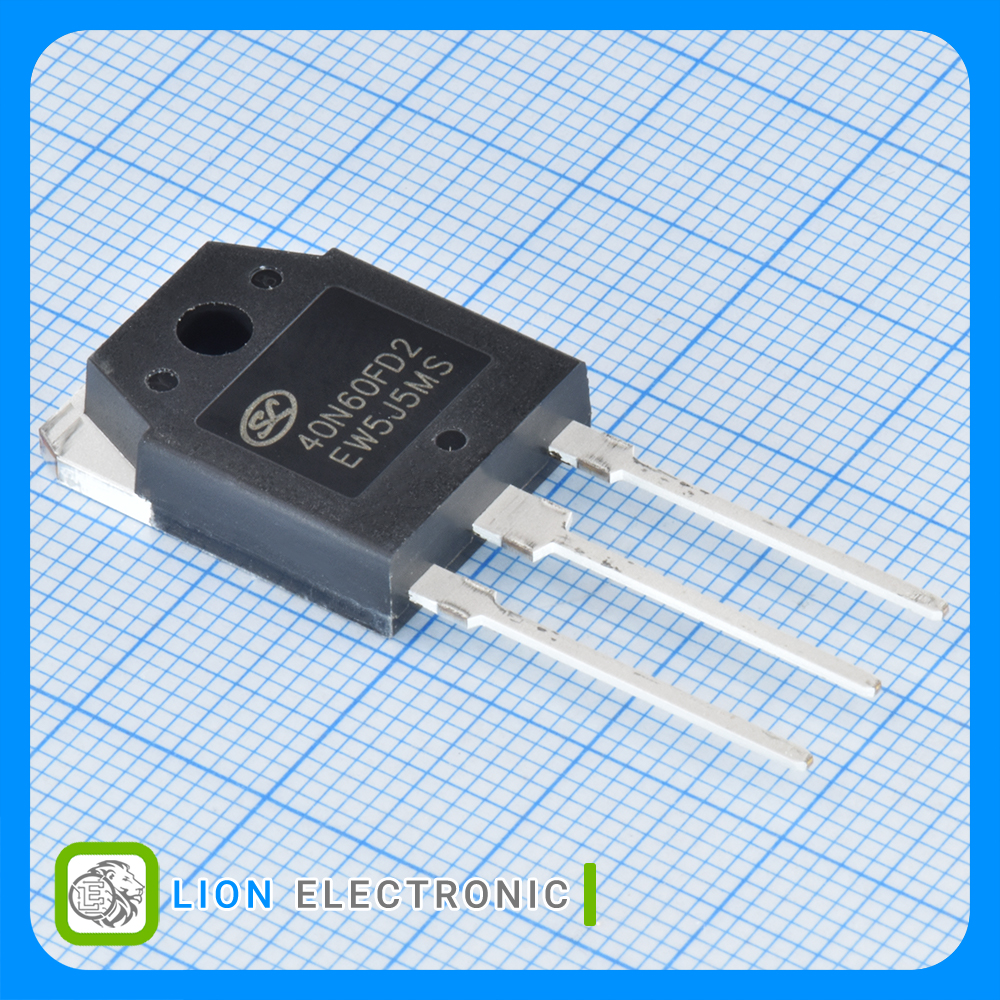

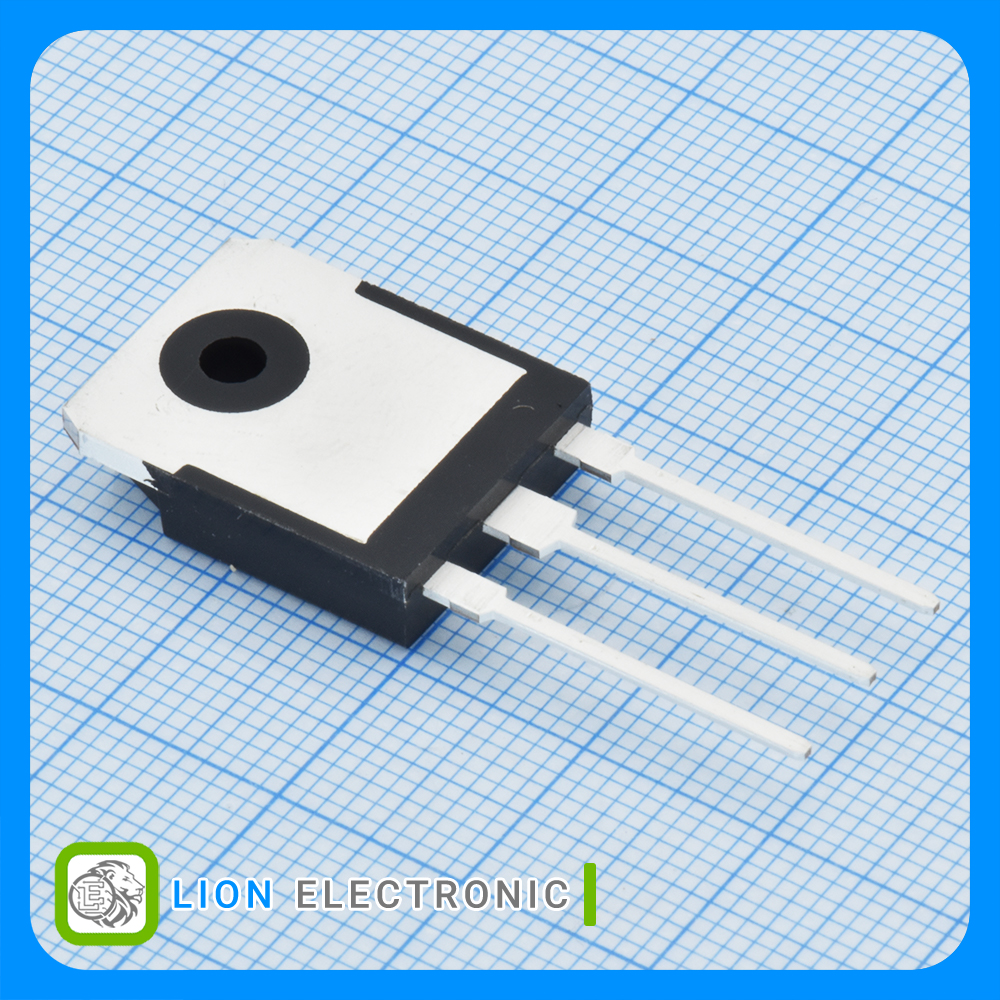

SGT40N60FD2PN
SGT40N60FD2PN
Part Number
2646
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ترانزیستور IGBT با ولتاژ 600 ولت جریان کلکتور 40 آمپر، جریان پیوسته 80 آمپر با پکیج TO-3P-3
IGBT Transistor 600V, 40A, Continuous Collector Current 80A with TO-3P-3 Package
معرفی
ترانزیستور IGBT با ولتاژ 600 ولت جریان کلکتور 40 آمپر، جریان پیوسته 80 آمپر با پکیج TO-3P-3
IGBT Transistor 600V, 40A, Continuous Collector Current 80A with TO-3P-3 Package
Specifications
- Technology: FIELD STOP IGBT
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 80A
- Collector - Emitter Saturation Voltage: 1.8V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 290W
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات آیجیبیتی SGT40N60FD2PN

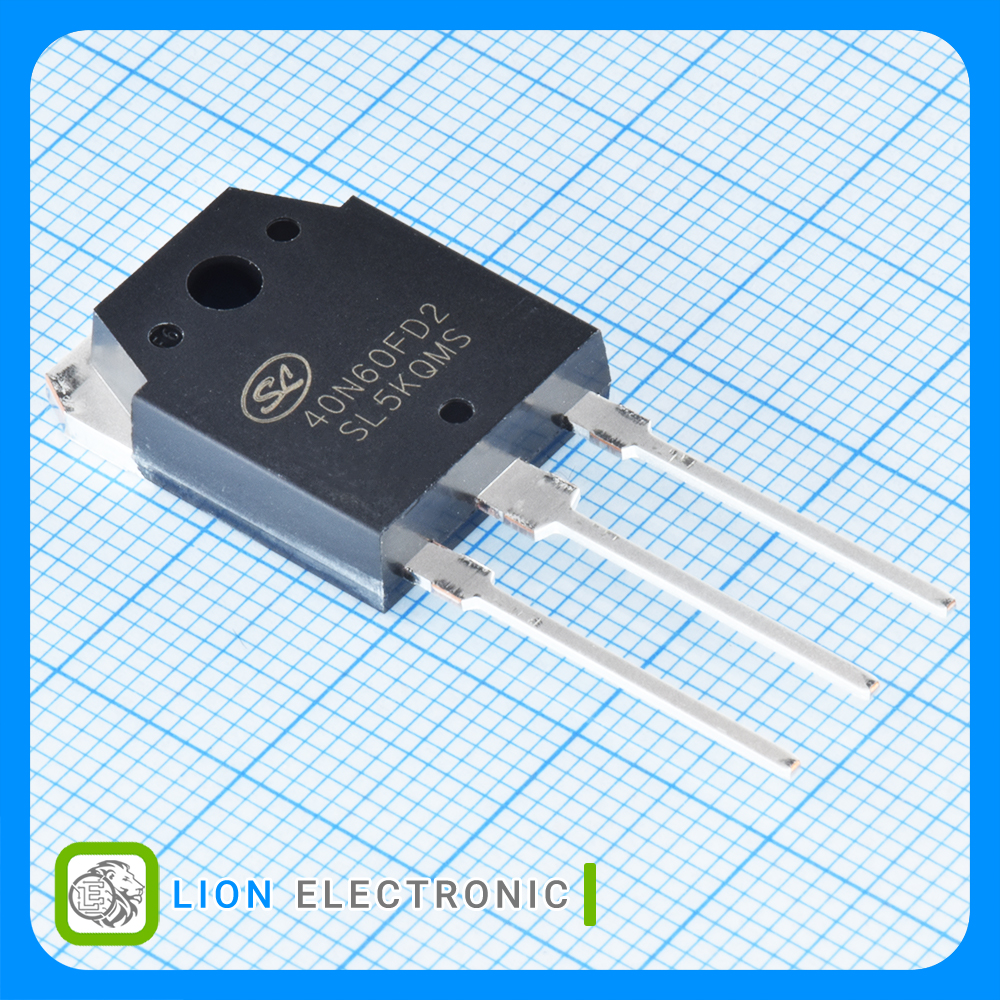

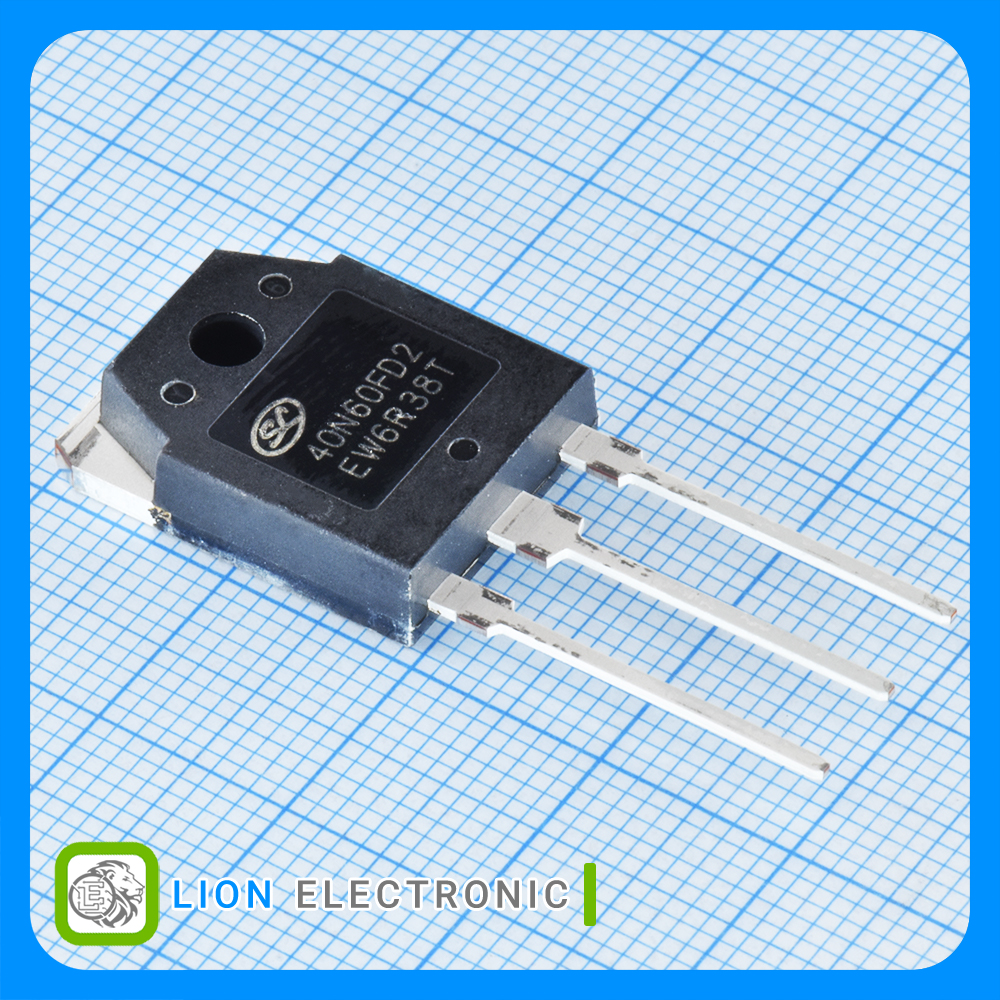

آیجیبیتی SGT40N60FD2PN
Part Number
FIELD STOP IGBT
Technology
20V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
80A
Continuous Collector Current aT 25 c
+175C
Maximum Operating Temperature
1.8V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
290W
Pd - Power Dissipation
TO-3P
Package-Case
