NCE Power
معرفی

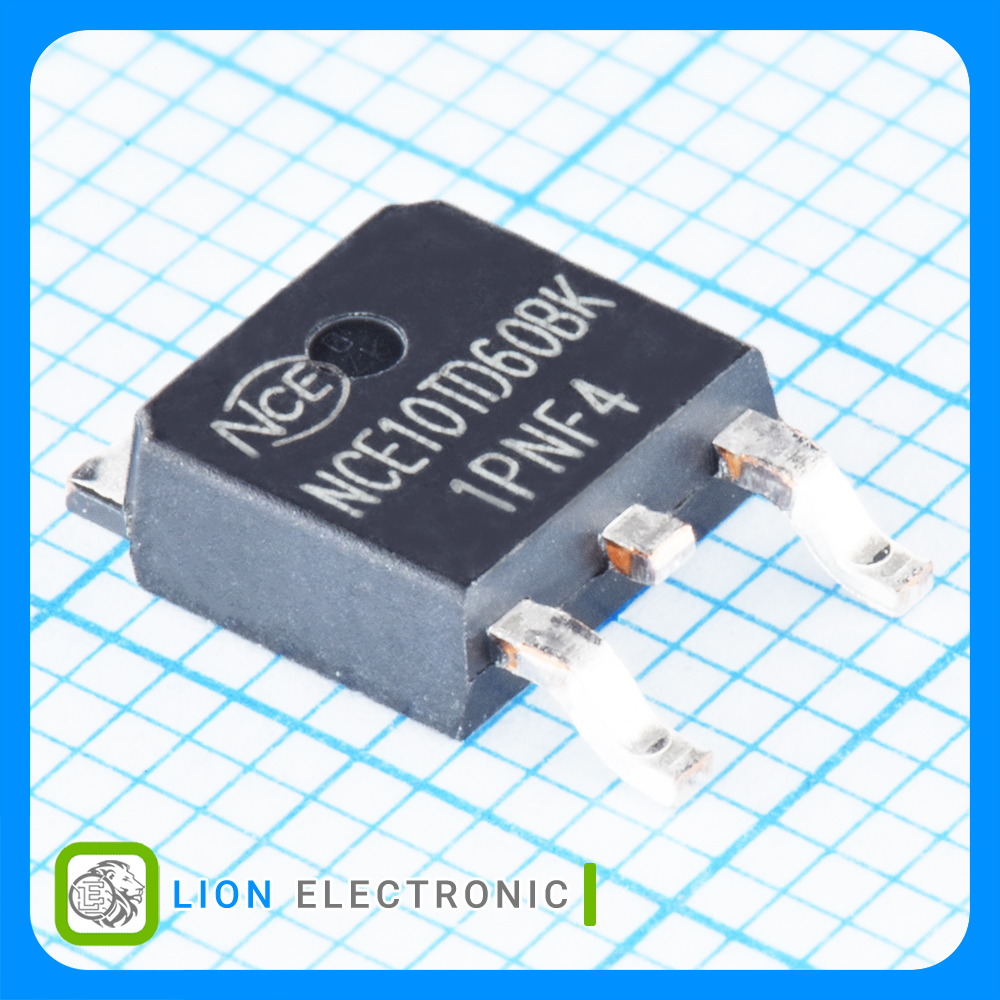

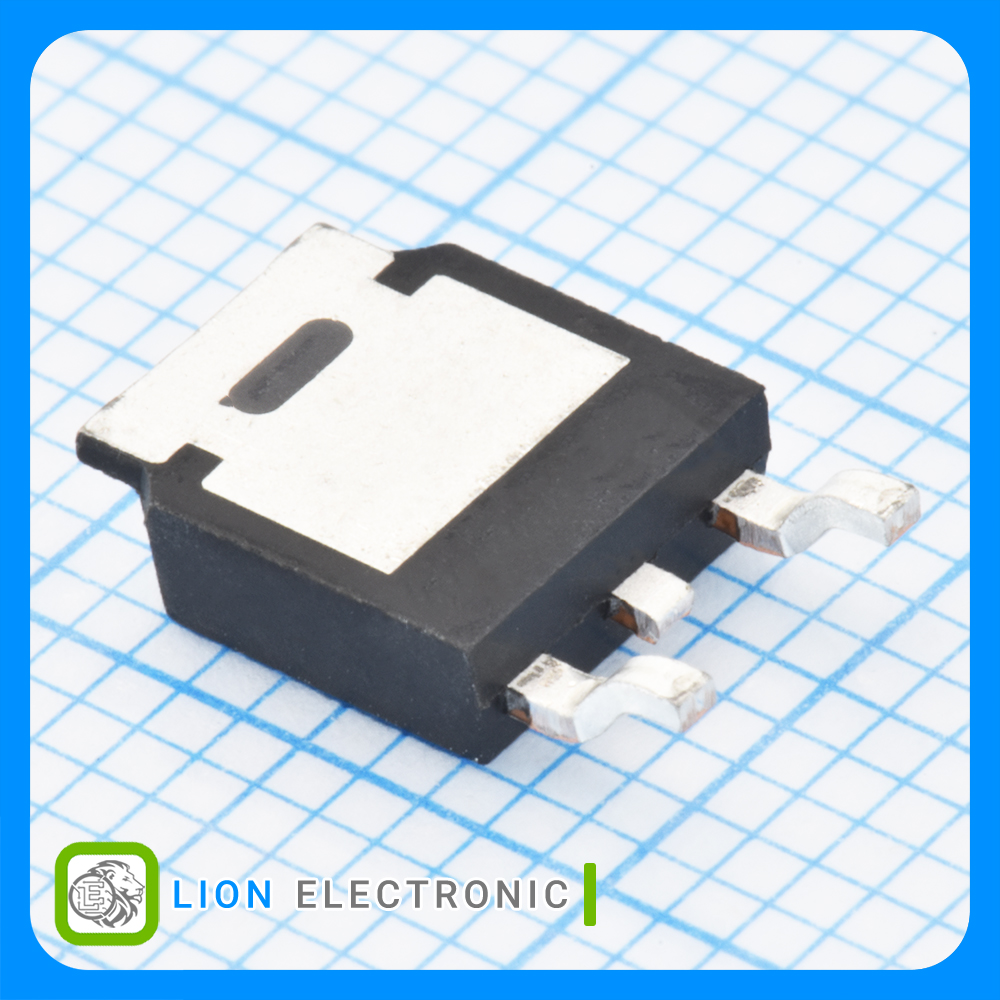

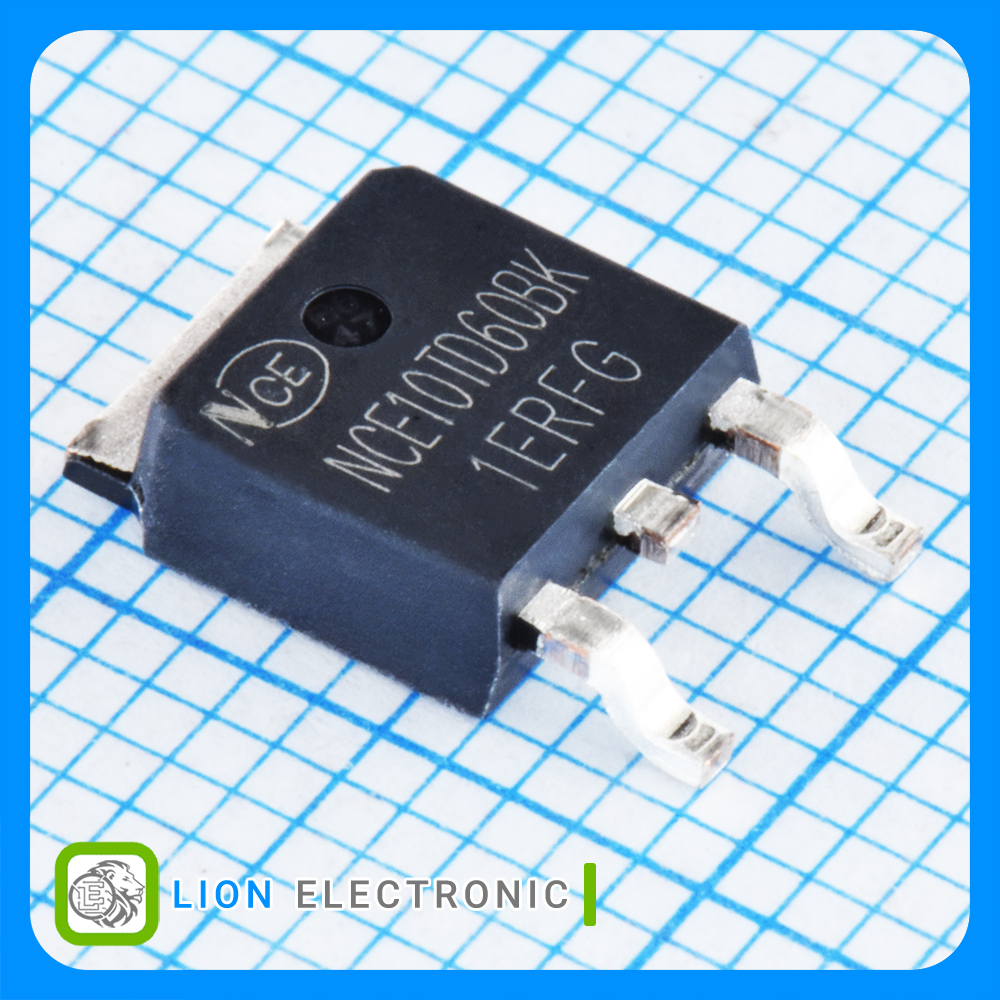

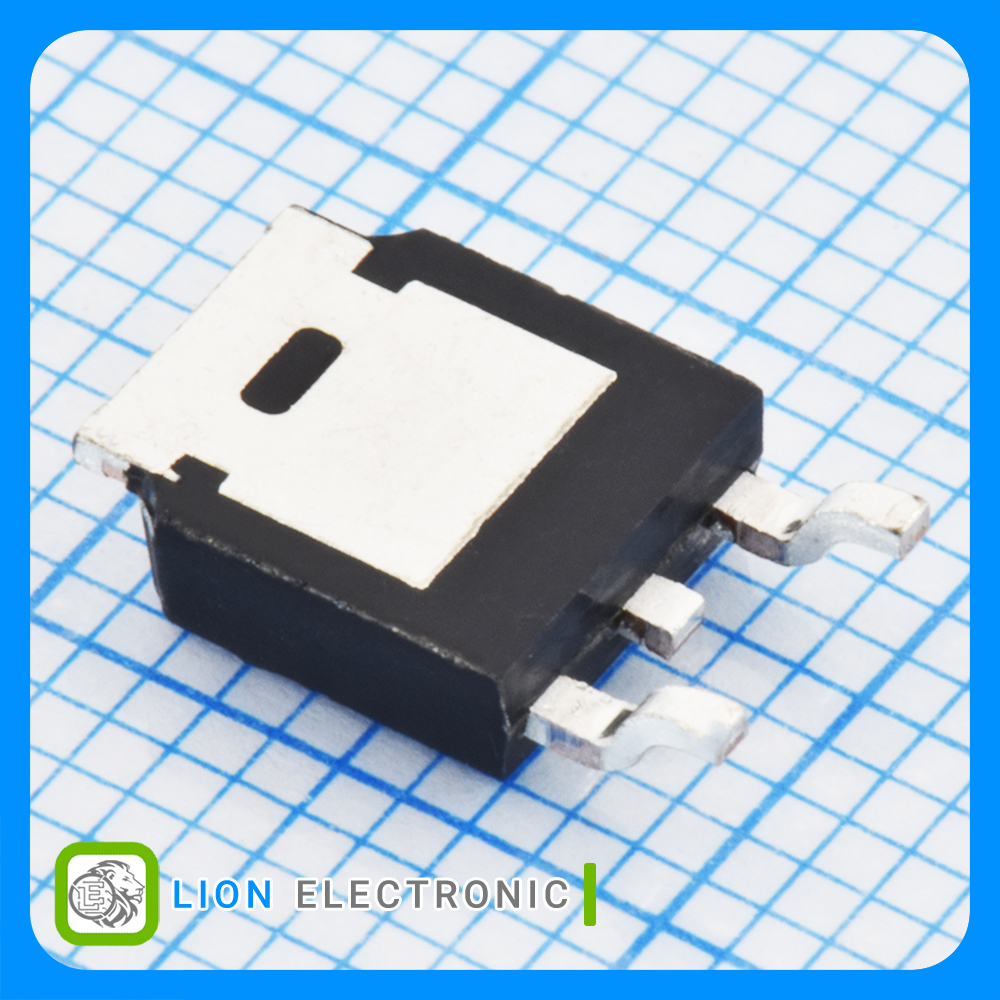

ترانزیستور IGBT با ولتاژ 600 ولت و جریان 20 آمپر با پکیج DPAK (TO-252)
IGBT Transistor 600V, 20A with DPAK (TO-252) Package
Specifications
- Technology: Trench FS II
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 20A
- Collector - Emitter Saturation Voltage: 1.9V
- Maximum Gate Emitter Voltage: 30V
- Pd - Power Dissipation: 83W
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات آی جی بی تی NCE10TD60BK

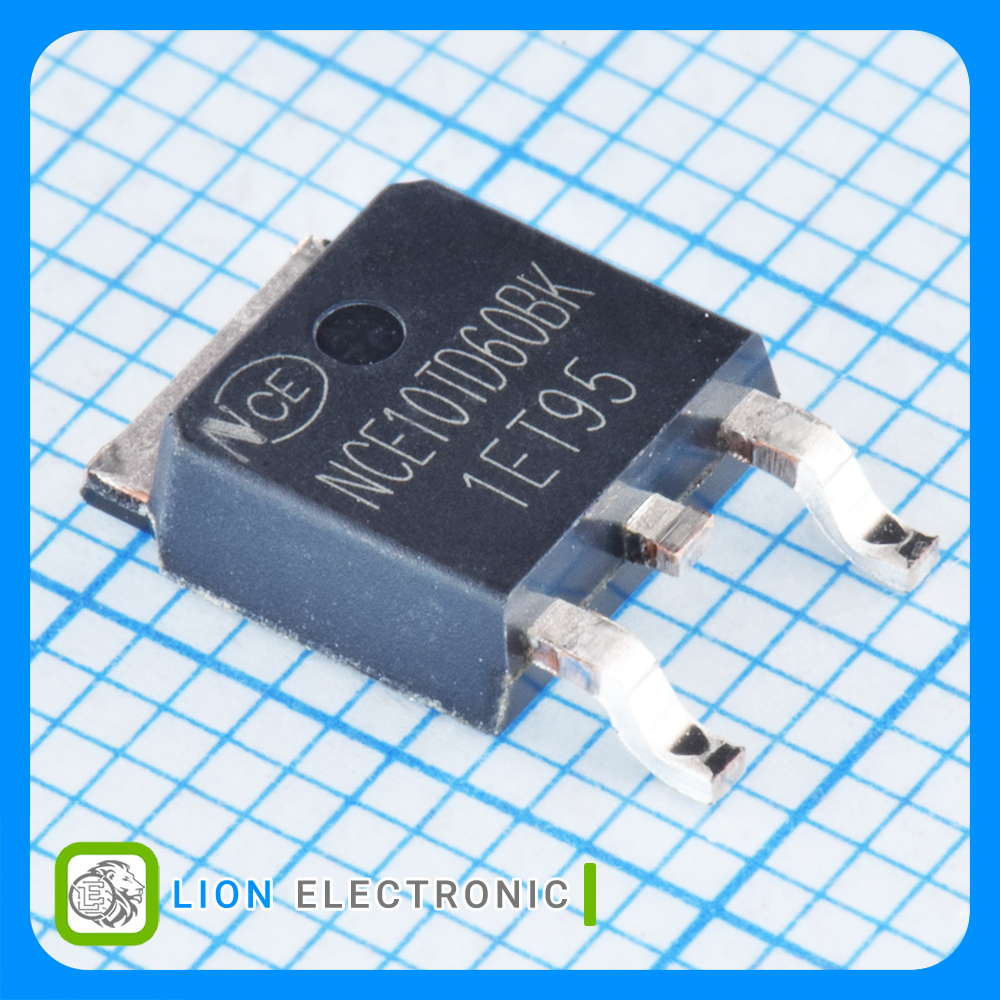

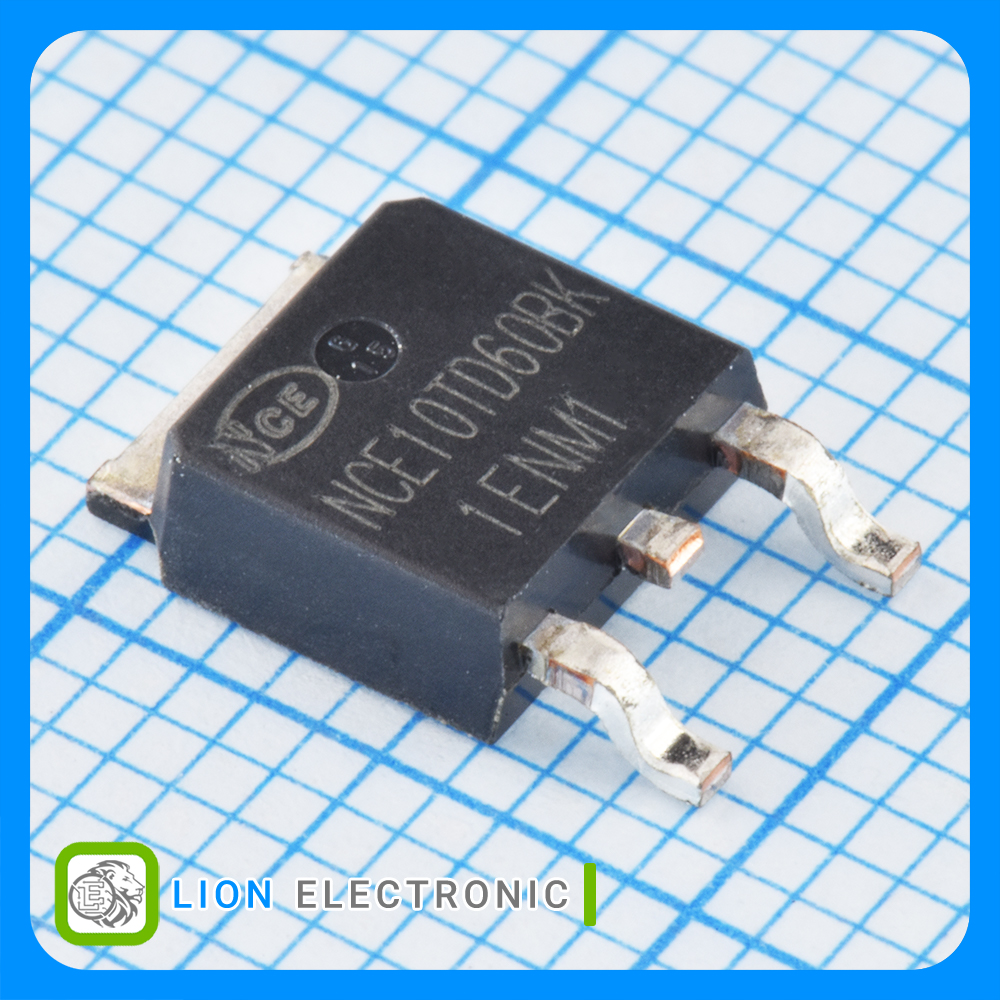

آی جی بی تی NCE10TD60BK
Part Number
20A
Continuous Collector Current aT 25 c
-55C
Minimum Operating Temperature
Reel
Packaging
30V
Maximum Gate Emitter Voltage
Trench FS II
Technology
SMD/SMT
Mounting Style
+150C
Maximum Operating Temperature
1.9V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
DPAK
Package-Case
83W
Pd - Power Dissipation
